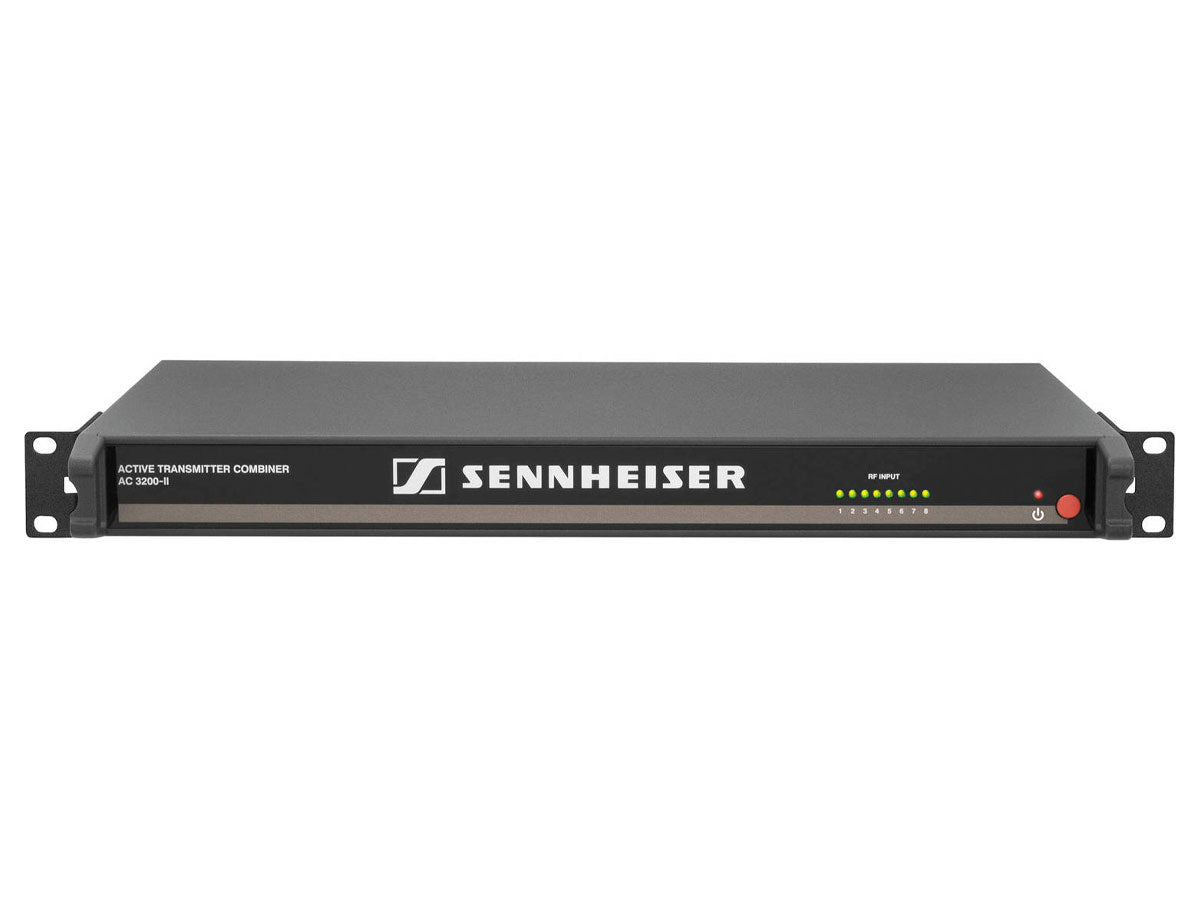

Sennheiser AC 3200 MKII Active Transmitter Combiner

Sennheiser AC 3200 MKII Active Transmitter Combiner

SKU: SEN-505497
£2,933.33 GBP ex VAT
£3,520.00 GBP inc VAT
ex VAT £2,933.33 GBP ex VAT
£3,520.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The AC 3200-II is an active 8-channel transmitter combiner for bundling the antenna signals in large wireless monitoring systems. Designed for the 2000 Series rack-mount monitor transmitters, it is ideal for large productions where reliable transmission and long reach are key. The AC 3200-II allows up to eight signals to be transmitted from a single antenna. In multi-channel systems it is an indispensable tool for efficiently reducing intermodulation between transmission channels. Linear power amplifiers handle up to 100 mW per channel without loss, and LEDs for each channel provide the user with a reliable system overview.

  • The AC 3200-II combines up to 8 signals and transmits them via a single antenna
  • The AC 3200-II combines signals of up to 8 x 100 mW without loss
  • Significant suppression of intermodulation products between the connected transmitters
  • Easy installation of wireless monitoring systems
  • Long reach
  • Efficient use of the frequency spectrum
Impedance 50 ohms
Dimensions 436 x 215 x 44 mm
Weight approx. 4 kg
Attenuation 0 dB (+/- 1dB)
Power consumption max. 90 W
Operating temperature -10 °C to +45 °C
RF frequency range 500 – 870 MHz
Power supply 12 V DC
Antenna connector BNC
Current consumption max. 7.5 A
  • 1 x AC 3200 MKII Active Transmitter Combiner
  • 1 x NT12-125D Power Supply Unit
  • 3 x Mains Cables (EU/UK/US)
  • 4 x Self-Adhesive Device Feet
  • 1 x Instrction Manual
