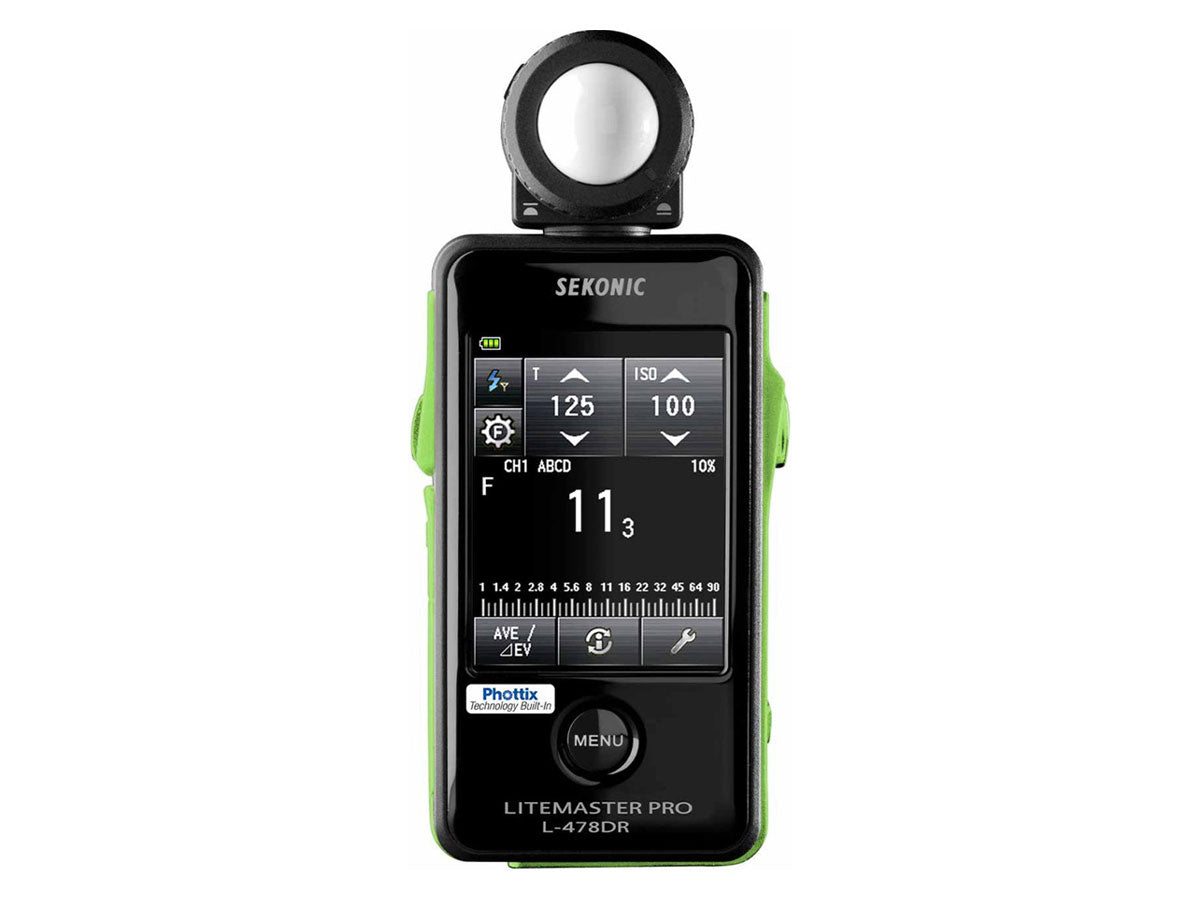

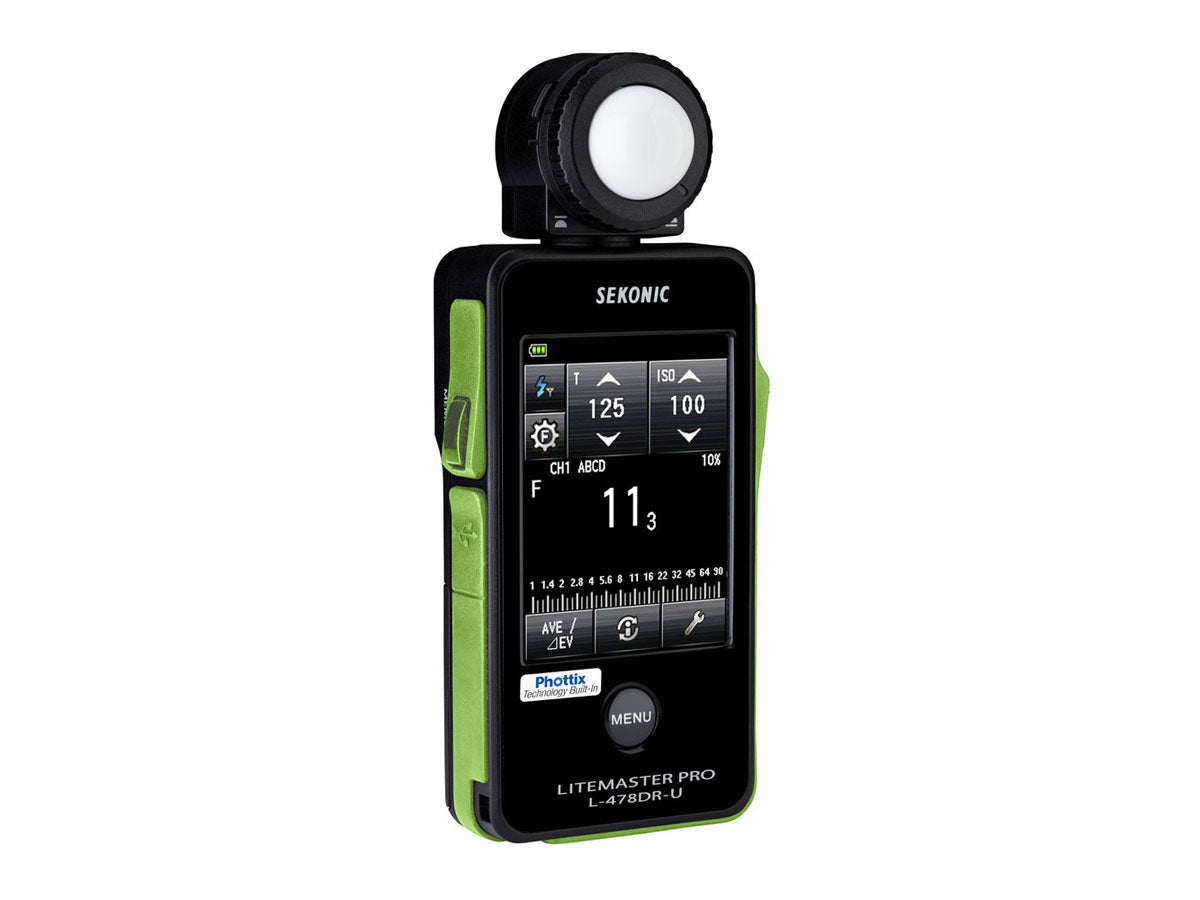

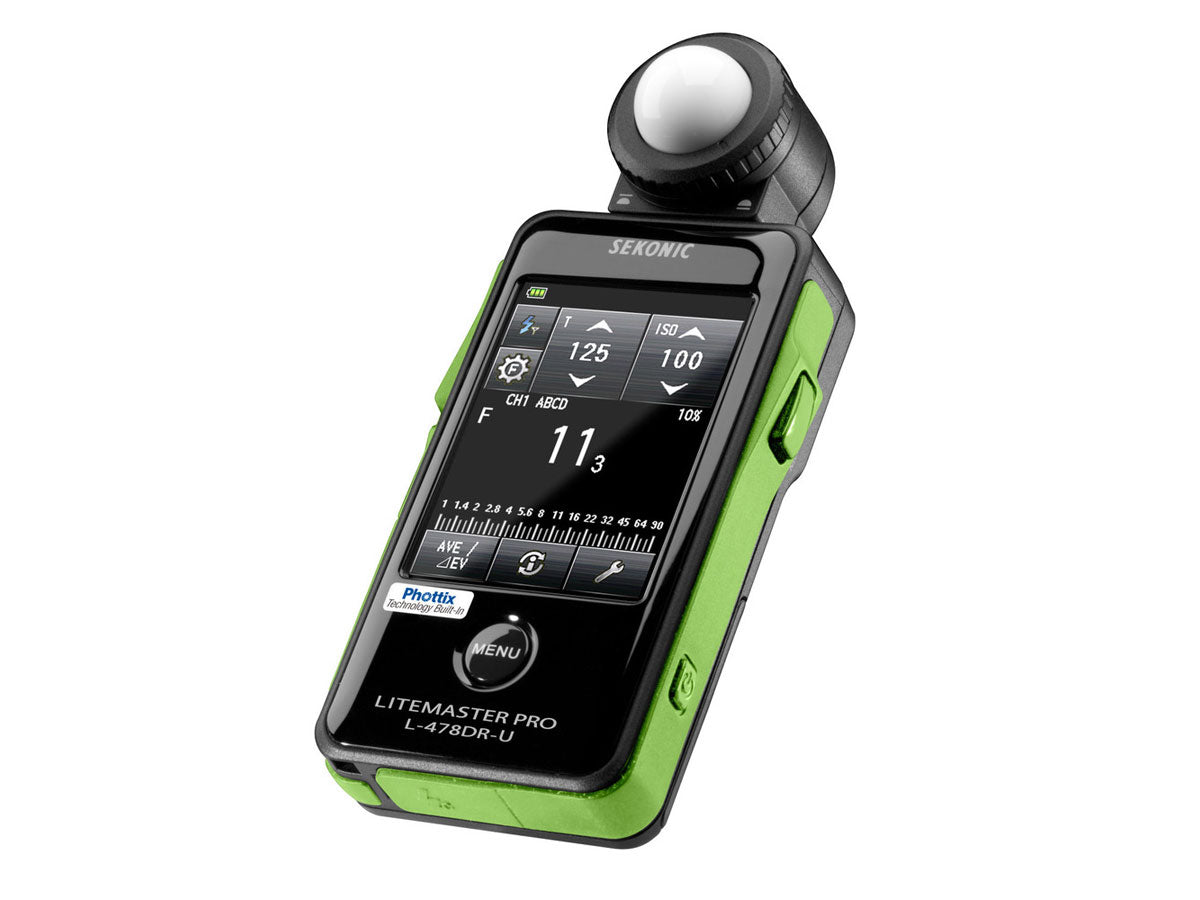

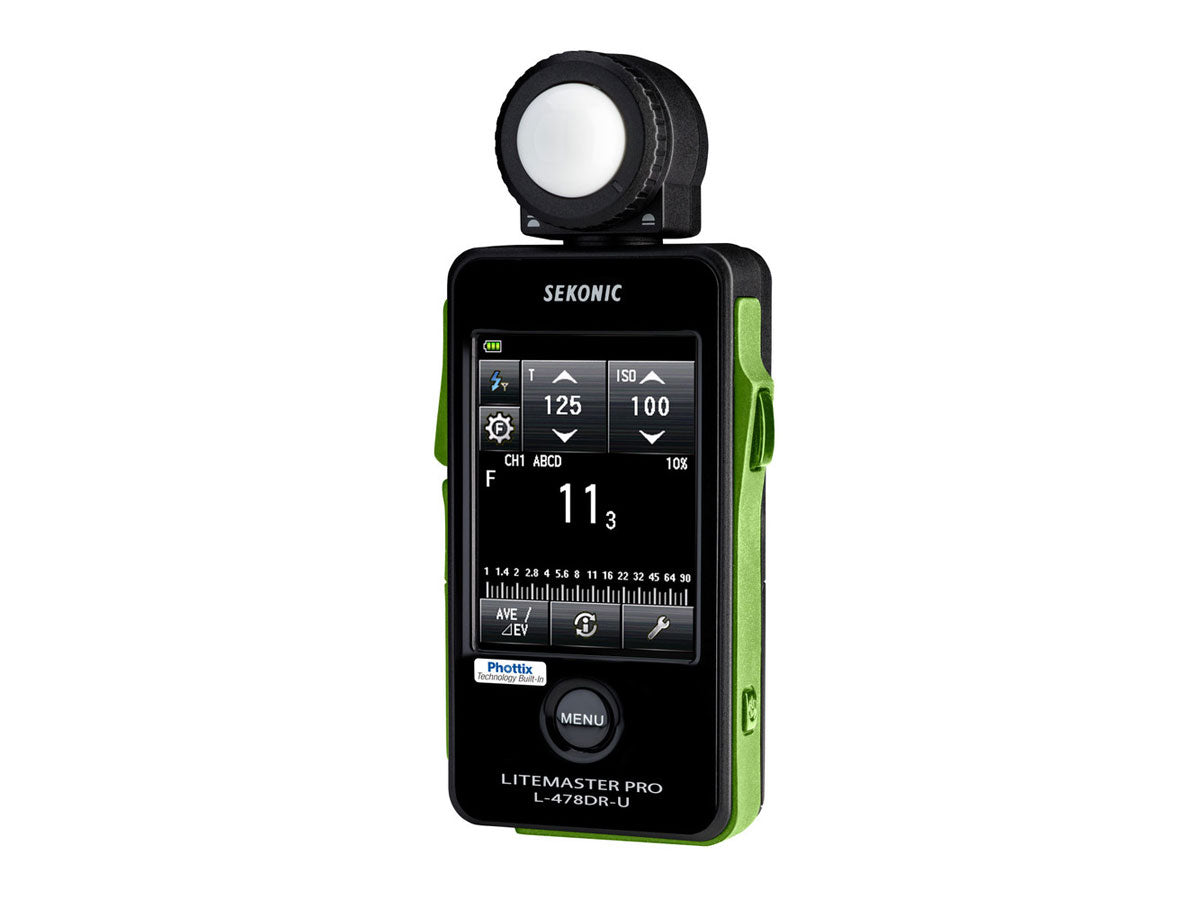

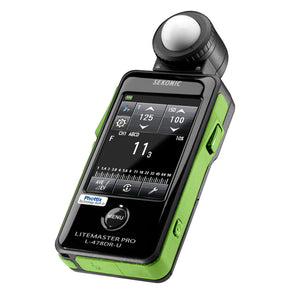

Sekonic's LiteMaster Pro L-478 Series meters are the world's first touch-screen-operated light meters. They have an array of unique, must-have features for both still and motion story tellers. Their compact size is both instantly familiar and comfortable to use. A large LCD (2.7") displays ambient, flash, cine and a host of other information in a clear and understandable way. Settings are made by simply touching or sliding a finger over the screen.
The L-478 meters can be quickly calibrated to your camera using Sekonic's Data Transfer software and either Sekonic or X-Rite Brand targets or by manually inputting data to the DTS program or on the meter itself.
Keeping pace with wireless advancements, the L-478DR-PX comes complete with exclusive Phottix wireless triggering technology which combines light measurement with triggering as selected Channels and Groups providing amazing control in your hand.
The L-478DR-PX has a radio module and antenna built into the meter. The system transmits at 2.4GHz and uses the Phottix Strato II signal protocol that can trigger channels (1-4) and groups (A,B,C,D) to fire any flash or Studio strobe connected to a Phottix Strato, Strato II, Ares II, or Atlas II receiver as well as a Phottix Mitros+ flash or an Indra 500/360TTL strobe set to Strato II receive function. When shooting, photographers can pick from various Phottix transmitters including the Strato II , Ares II , Odin or Odin II. The L-478 series meters offer the following languages in the interface: Japanese, English and Chinese. Depending on the country where the meter is purchased, the language is fixed and cannot be changed by the user.
| Sensor: | SPD |
| Measuring System: | Exposure Meter Incident light: Swivel head, retractable lumisphere Reflected light: Removable, with Optional 5 deg. VF |
| MEASURING RANGE AND MODES | |
| Measuring Modes (Ambient Light): | T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL |
| Measuring Modes (Flash Light): | Cordless, Cord-in (PC), Radio triggering (Built-in, Phottix), Multiple cumulative flash |
| Measuring Range at ISO100 (Ambient Incident Light): | EV-2 to EV22.9 0.63 lx to 2,000,000 lx 0.1 fc to 180,000 fc |
| Measuring Range at ISO100 (Ambient Reflected Light): | EV3 to EV22.9 1.0 cd/m2 to 980,000 cd/m2 0.29 fl to 290,000 fl |
| Measuring Range (Flash Incident Light): | F1.0 to F161.2(=128.9) |
| Measuring Range (Flash Reflected Light): | F2.8 to F161.2(=128.9) |
| ISO Range: | ISO 3 to ISO 409,600 + ISO 850 |
| Aperture Range (Ambient Light): | F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step) |
| Aperture Range (Flash Light): | F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step) |
| Shutter Speeds Range (Ambient Light): | 30m to 1/64,000s in 1, 1/2, 1/3 step (Analog scale: 4s to 1/2,000s in 1/3 step) |
| Shutter Speeds Range (Flash Light): | 30m to 1/1,000s in 1, 1/2, 1/3 step |
| Frame Rate Range (Ambient Light): | 1 f/s to 1,000 f/s plus other 20 settings (customized from 0.001 f/s to 9,999.999 f/s) |
| Shutter Angles Range (Ambient Light): | 1 deg. to 358 deg. plus other 20 settings (customized from 0.001 deg. to 360 deg.) |
| EV Range (Ambient Light): | EV-27.9 to EV55.8 |
| Memory: | Yes (9 times) |
| Average: | Yes |
| Contrast/Comparison Function: | Yes (+/-9.9EV in 1/10 step) |
| Radio System: | Transmitter built-in - Phottix Strato II protocol (2.4GHz) |
| Flash vs Ambient Analyzing: | Yes (in 10% step) |
| Filter Compensation: | Yes (-12EV to 12EV, preset 30 type) |
| Exposure Compensation: | Yes (-9.9EV to +9.9EV) |
| Calibration Compensation: | Yes (-1.0EV to +1.0EV) |
| Custom Settings: | Yes (13 custom settings) |
| PHYSICAL | |
| Operating Temperature: | -10 deg. C to 50 deg. C |
| Storage Temperature: | -20 deg. C to 60 deg. C |
| Power Source: | 1.5V x 2 (AAA battery) |
| LCD: | 2.7" color dot matrix touch panel LCD |
| LCD Backlight: | Yes |
| Dimensions: | 14 x 5.7 x 2.6cm / 5.51 x 2.21 x 1.02" |
| Weight: | 140g / 0.31lbs |
