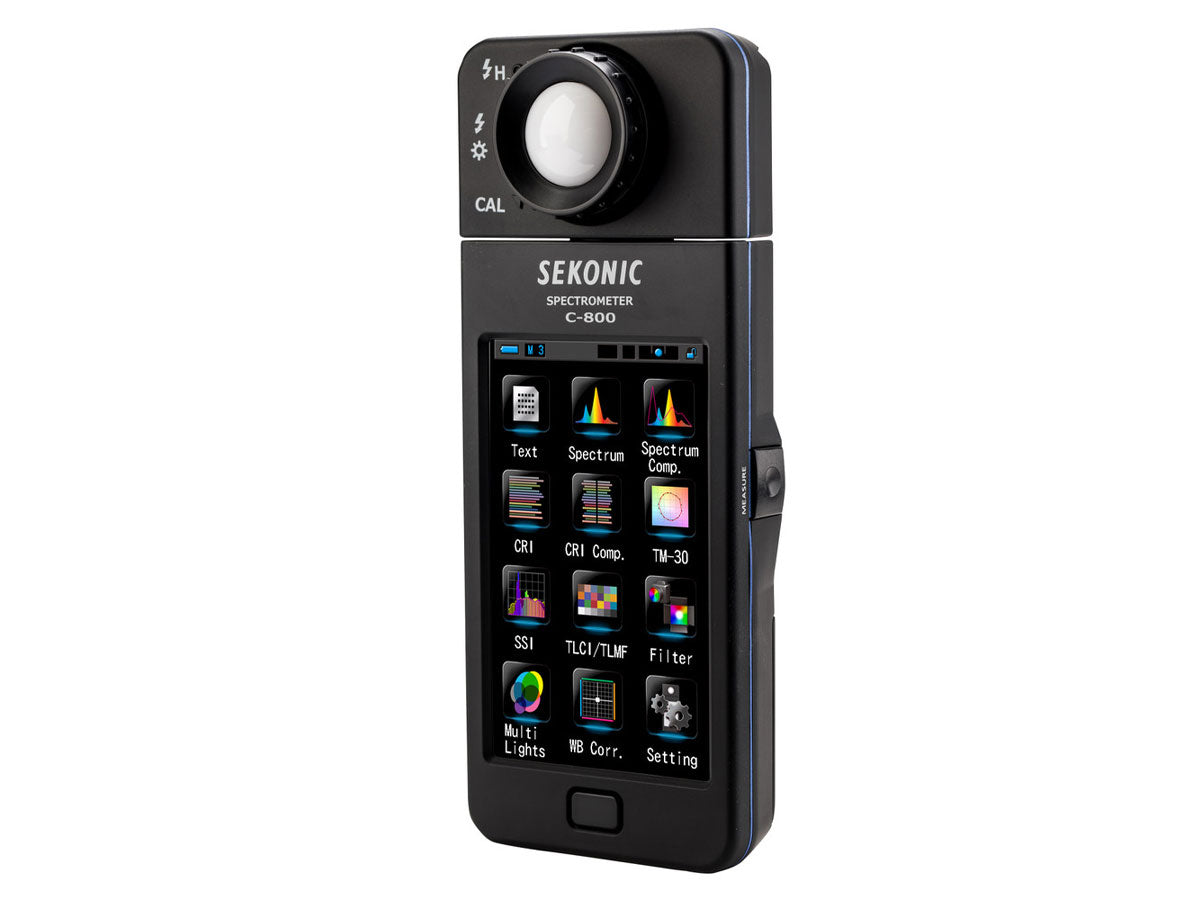

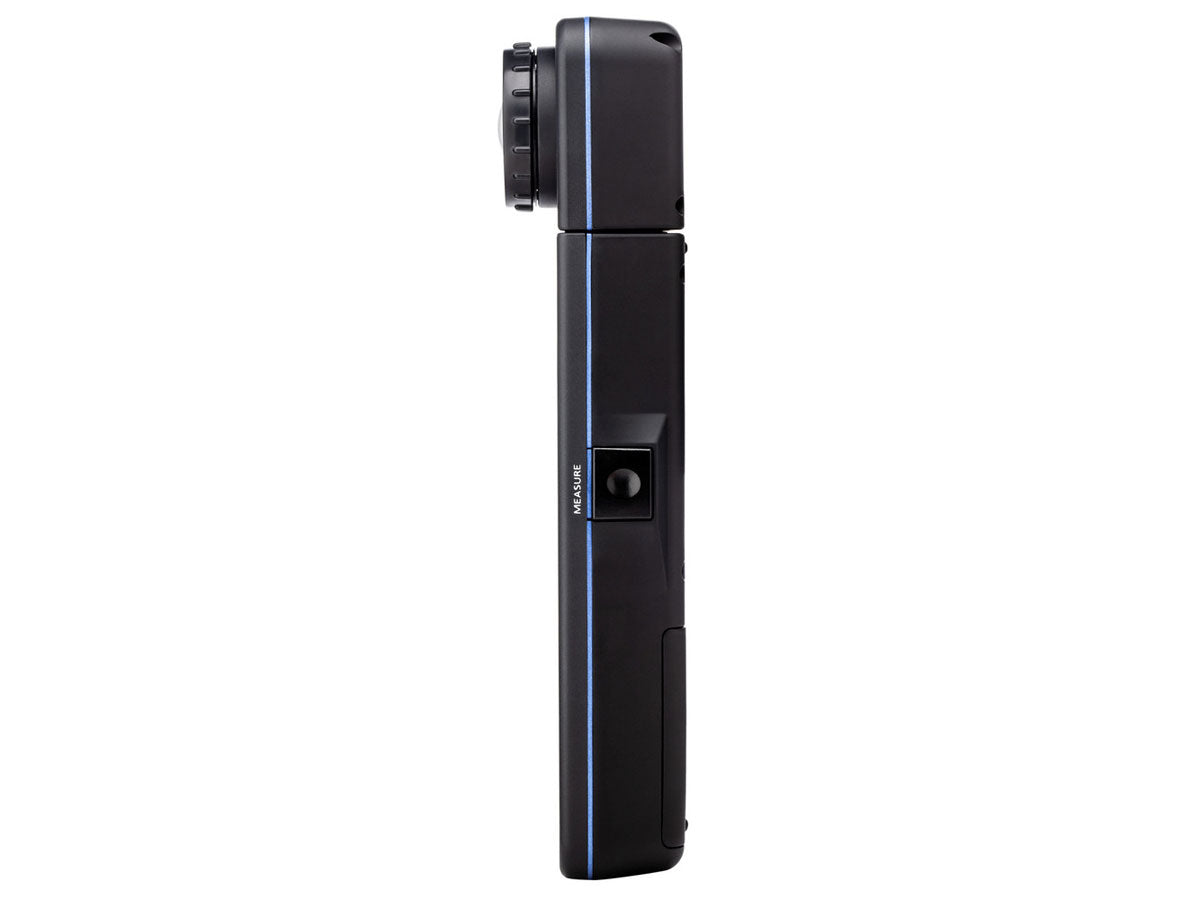

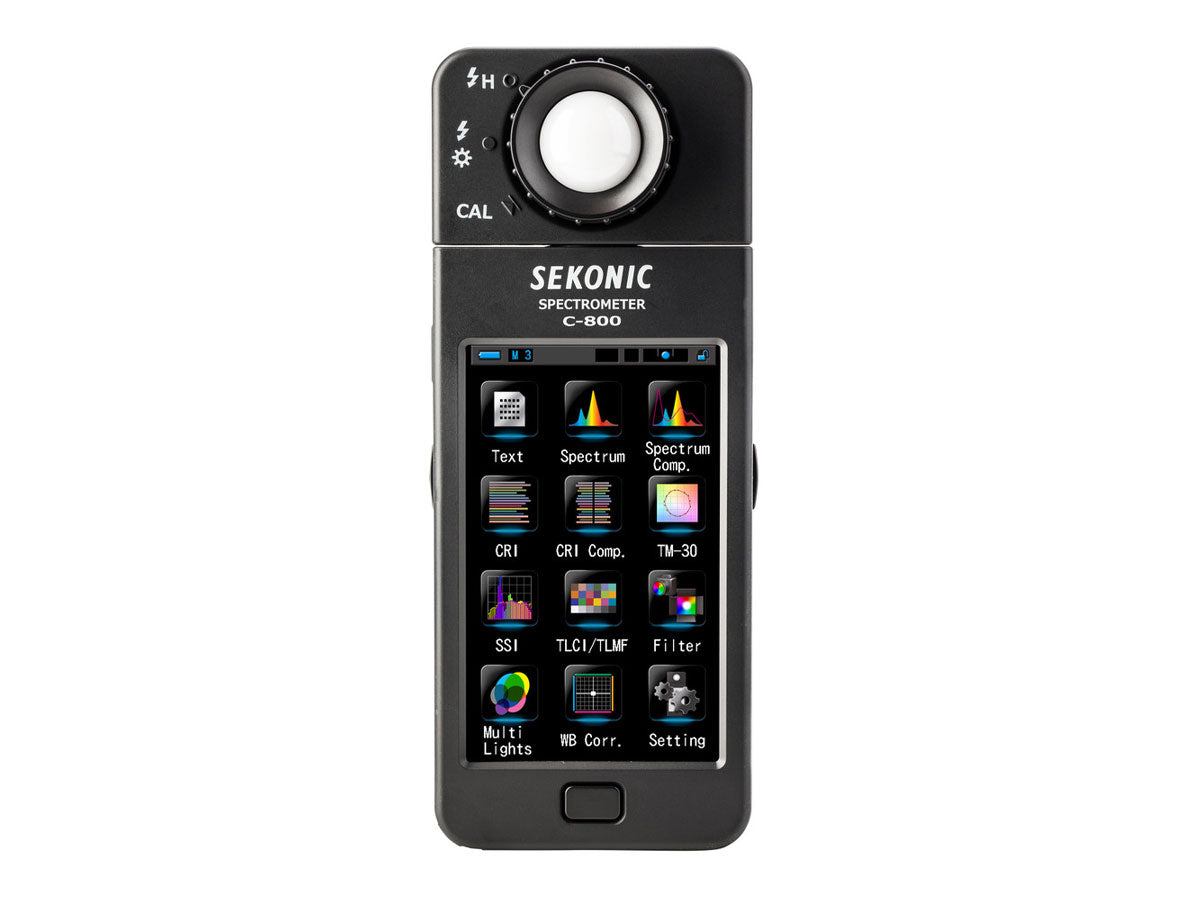

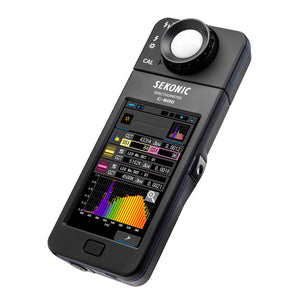

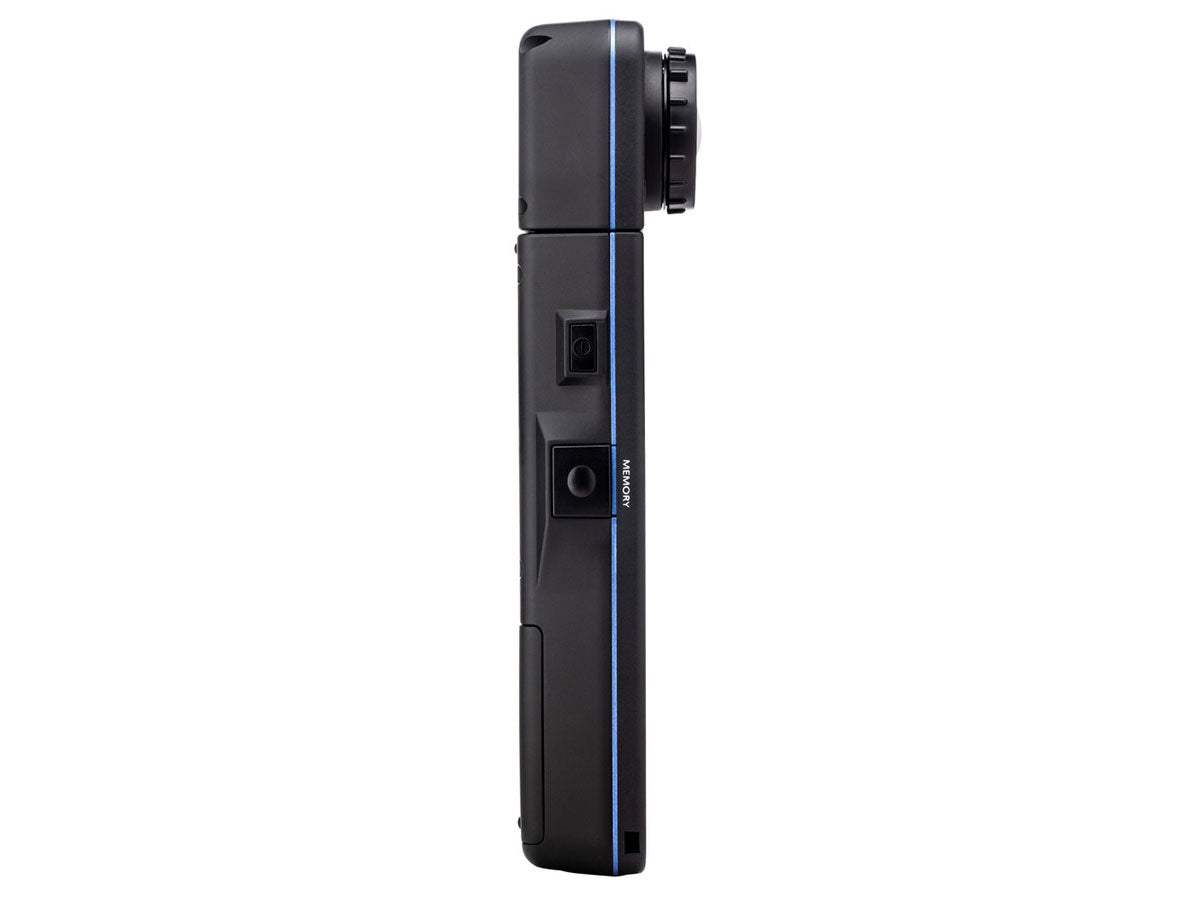

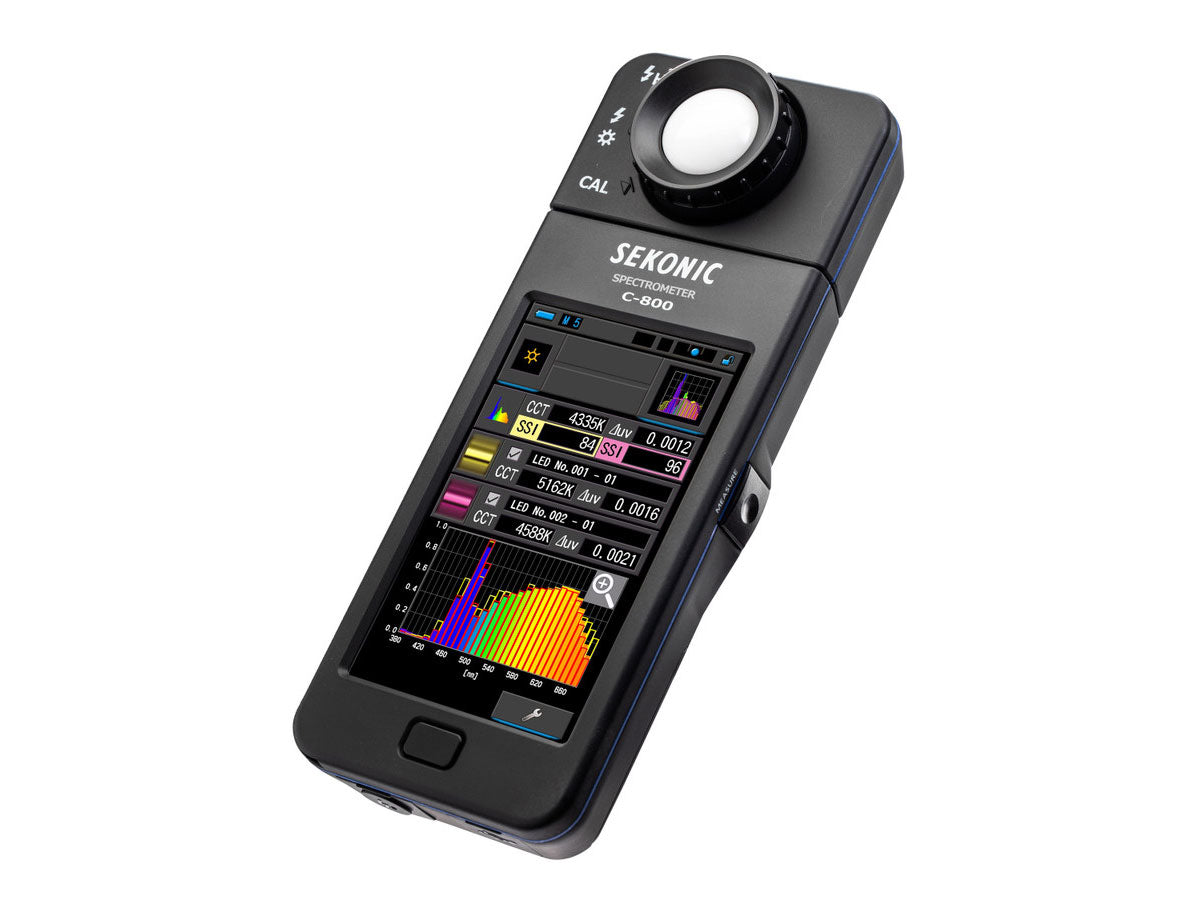

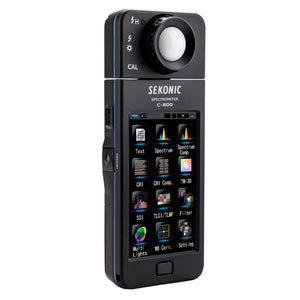

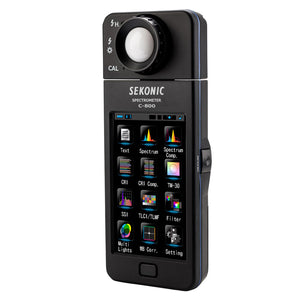

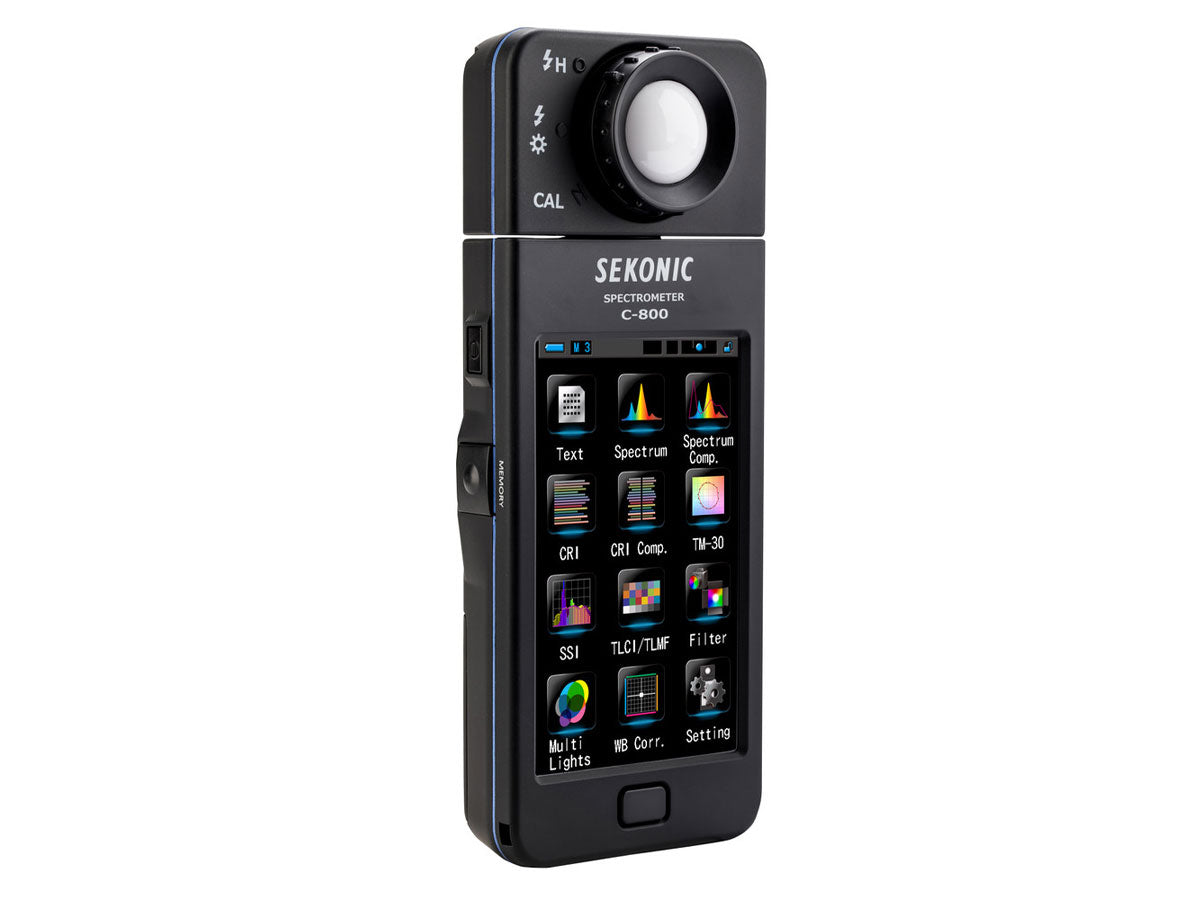

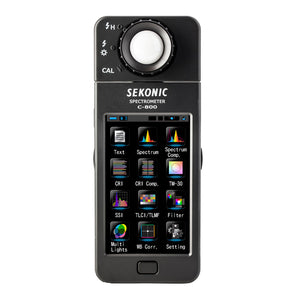

The Sekonic Spectrometer C-800 is a full-spectrum color meter that can precisely measure every kind of light including LED HMI Fluorescent and electronic flash. Its high-resolution measuring system featuring CMOS sensor enables capturing spikes in light source output to provide unsurpassed color measurement accuracy. Different than any spectrometer today the C-800's direct display of values for major light source and lens filter brands simplifies correcting and modifying light color for cleaner recording and faster post process.
The New C-800 has CRI, TLCI, TLMF, TM-30-18, and CRI. Currently, the only meter to have SSI (Spectral Similarity Index) developed by the Academy of Motion Picture Arts and Science and Technology Council. Now you can compare and score lights based upon their spectral similarity.
With the C-800 matching the new generation of RGB, RGBW and RGBAW LED's has never been easier. The meter will give you any lights (x, y) values to measure precise chromaticity coordinates, and you can measure Hue and Saturation to get the best match from any RGB LEDs. Now matching your LEDs to any available light source, gelled or not, can now be done in seconds.
The enhancements to the new C-800 show the commitment and importance of end-user input and compatibility with new and growing trends in the color control industry. The new Spectrometer C-800 will give filmmakers and photographers increased confidence with lights to render true to life skin tones and realistic color, as well as match lights better than any other meter on the market. The C-800 will empower you to light better.
| MEASURING RANGE & MODES | |
| Measuring Modes (Ambient Light): | Ambient light |
| Measuring Modes (Flash Light): | Cordless, Cord-in (PC) |
| Measuring Range at ISO 100 (Ambient Incident Light): | 1 lx to 200,000 lx * 0.1 fc to 18,600 fc ** |
| Measuring Range (Flash Incident Light): | 20 lx・s to 20,500lx・s 1.86 fc・s to 1,900 fc・s |
| Spectral Wavelength Range: | Text mode, Spectrum mode, Spectrum comparison mode, CRI mode, CRI comparison mode, TM-30 mode, SSI mode, TLCI/TLMF modem Filter mode (lighting and camera filter), Multi Lights mode, White Balance Correction mode |
| Colour Measuring Mode (Display Mode): | 1,600 to 40,000K |
| Colour Measuring Range (Ambient Light): | 2,500 to 40,000K |
| Colour Measuring Range (Flash Light): | Correlated color temperature (CCT), Deviation (Δ uv), x, y, Hue, Saturation, |
| Colour Measuring Units (Colour Parameters): | Correlated color temperature (CCT), Deviation (Δ uv), x, y, Hue, Saturation, |
| Colour Measuring Units (Colour Rendering Properties): | CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF |
| Colour Measuring Units (Photo / Cinematography): | LB/CC filter number (camera/lighting filter), LB/CC index, CC number, |
| Target Colour Temperature Range: | 2,500K to 10,000K |
| Shutter Speeds Range (Ambient Light): | Auto - Max.: 15 sec., Min.: 0.5 sec. |
| Shutter Speeds Range (Flash Light): | 1s to 1/500s (plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400) |
| Memory: | Yes (99 times) |
| Contrast / Comparison Function: | Yes |
| Custom Settings: | Yes (12 custom settings) |
| Measuring Data Output: | Memorized value with graphic |
| PHYSICAL | |
| Tripod Socket: | Yes |
| Operating Temperature: | -10 deg. C to 40 deg. C |
| Storage Temperature: | -10 deg. C to 60 deg. C |
| Power Source: | 1.5V x 2 (AA battery), USB bus-power |
| LCD: | 4.3" color dot matrix touch panel LCD |
| LCD Backlight: | Yes |
| Size: | 18.3 x 7.3 x 2.7cm / 7.2 x 2.87 x 1" |
| Weight: | 230g / 0.5lbs |
