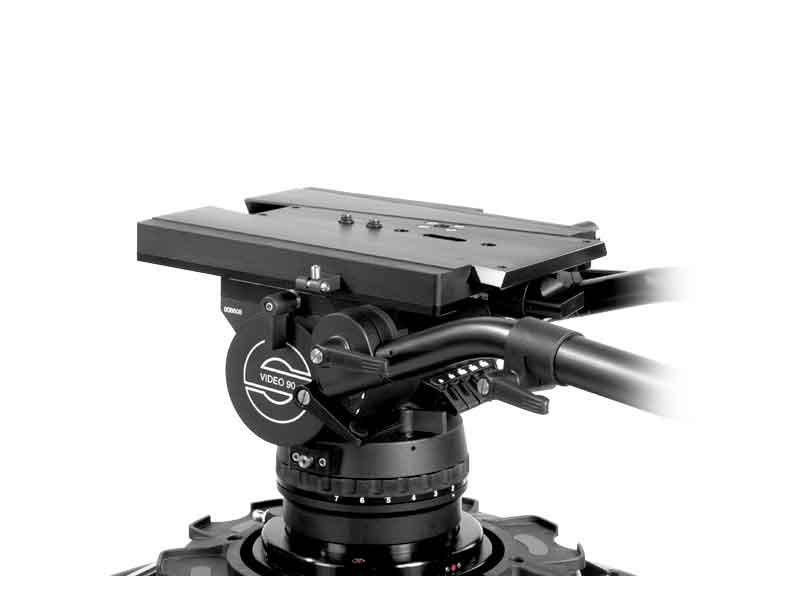

Sachtler Video 90 FB 150mm Fluid Head

Sachtler Video 90 FB 150mm Fluid Head

SKU: SAC-8092
£11,550.00 GBP ex VAT
£13,860.00 GBP inc VAT
ex VAT £11,550.00 GBP ex VAT
£13,860.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Professional camera operators choose the Video 90 FB for OB and studio applications for good reasons. The fluid head features direct-response horizontal and vertical brakes. Mounted on the back of the head, they are absolutely vibration-free, thus guaranteeing exceptionally smooth operation. The integrated assembly lock lets you mount the camera quickly and safely, while a fine tuning knob ensures perfect counterbalance.

The Sachtler Quickfix, a standard feature of the Video 90 FB, lets you mount flat base heads with a single screw. This saves a lot of time, especially if you have to change equipment quickly, which is all in a normal day’s work in OB environments.

Two built-in threaded holes for the teleprompter tubes, a feature of the Video 90 FB sliding plate, allow you to place the teleprompter right next to the rotating axis. Do you need to use counterweights? This is no problem for the Video 90 FB, which supports maximum loads up to 115 kg / 254 lb.

A high-performance, jerk-free damping system is indispensable for long focal lengths in OB applications. Broadcasting professionals know they can rely on Sachtler damping systems. It is always at hand in full force.

  • Payload Range: 0 to 115 Kg / 0 to 254 lb
  • 24 step counterbalance
  • 7 horizontal and 7 vertical grades of drag
  • Interface for teleprompter mounting
  • Tilt range: +60°/-45°
  • Flat base fitting for pedestal ond OB tripods

Weight:    14.2 kg
    31.3 lb
Payload:    0 - 115 kg
    0 - 254 lb
Sliding range - plate:    180 mm
    7.1 in
Counterbalance:    24 steps
Grades of drag:    7 each horizontal and vertical + 0
Tilt range:    +60°/-45°
Temperature range:    -40° to +60° C
    -40 to +140° F
Camera fitting:    V-plate
Tripod/Pedestal fitting:    Flat base
Pan bar(s):    2 pan bar front sections
Level:    yes

  •  Sachtler VIDEO 90 FB Fluid Head (Flat Base) - Supports 0-255 lbs
  • 1x Right Front Section Pan Bar (#B-3073-020)
  • 1x Left Front Section Pan Bar (#B-3074-020)
  • Quick Release / Wedge Plate (#3080)
