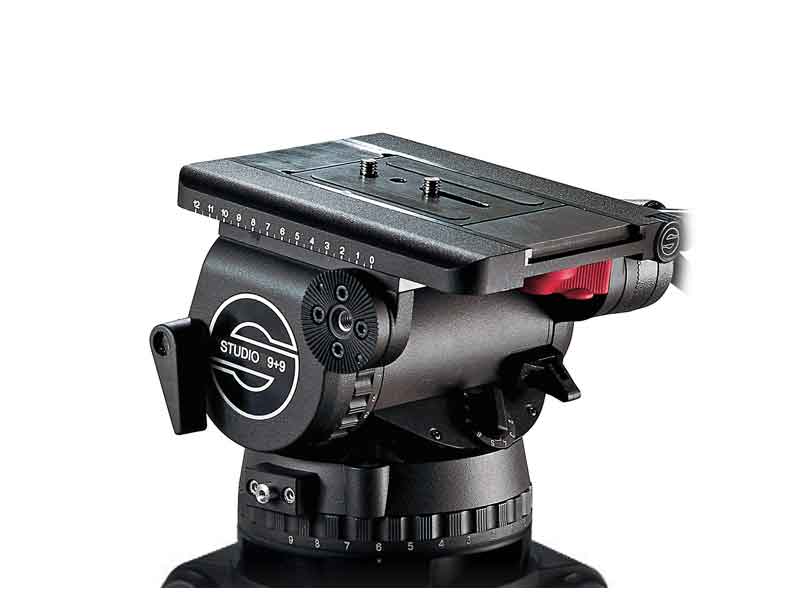

Sachtler Studio 9+9 Fluid Head
Sachtler Studio 9+9 Fluid Head
£11,235.00 GBP inc VAT
£11,235.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
With the Studio 9+9, Sachtler’s unique, patented damping system has been significantly extended. As the name indicates, there are nine levels of extra-powerful drag, ensuring perfect counterbalance in 18 steps. Levels 2 to 7 are fairly fine, while the jump from levels 7 to 9 is much greater.
The fluid head also boasts a sliding plate, which has an integrated spindle drive. Centering the camera weight is now fast and easy – just slide the plate quickly into place, and fine tune with the spindle drive if required. The counterbalance system combines the renowned Sachtler system with a dial knob system, compensating perfectly for any load up to 55 kg / 121 lb.
In addition, the Studio 9+9 has a viewfinder extension bracket and front box connections as standard features.
- Payload Range: 8 to 55 Kg / 18 to 121 lb
- 18 step counterbalance with Boost Button
- 9 horizontal and 9 vertical grades of drag
- Tilt range: +90/-60°
- For tripods with 150 mm bowls, integrated flat base fitting, Mitchell with adapter (3902 / 6053)
- Interfaces for viewfinder extension and front box
Weight 8.4 kg / 18.5 lbs
Payload 8 - 55 kg / 18 - 121 lbs
Sliding range - plate 115 mm / 4.5 in
Counterbalance in 18 steps
Grades of drag 9 each horizontal and vertical + 0
Tilt range +90/-60°
Temperature range -40° to +60° C / -40 to +140° F
Camera fitting Touch & Go Plate 35
Tripod/Pedestal fitting 150 mm bowl, integrated flat base fitting
Pan bar(s) 1, telescopic, Type Movie
Level self-illuminating Touch Bubble
Batteries Level 3 x 625U or LR9
Adapter viewfinder extension standard
- 1x Telescopic Pan Bar (#3170)
- Camera Plate 35 Wedge Plate (#3051)
