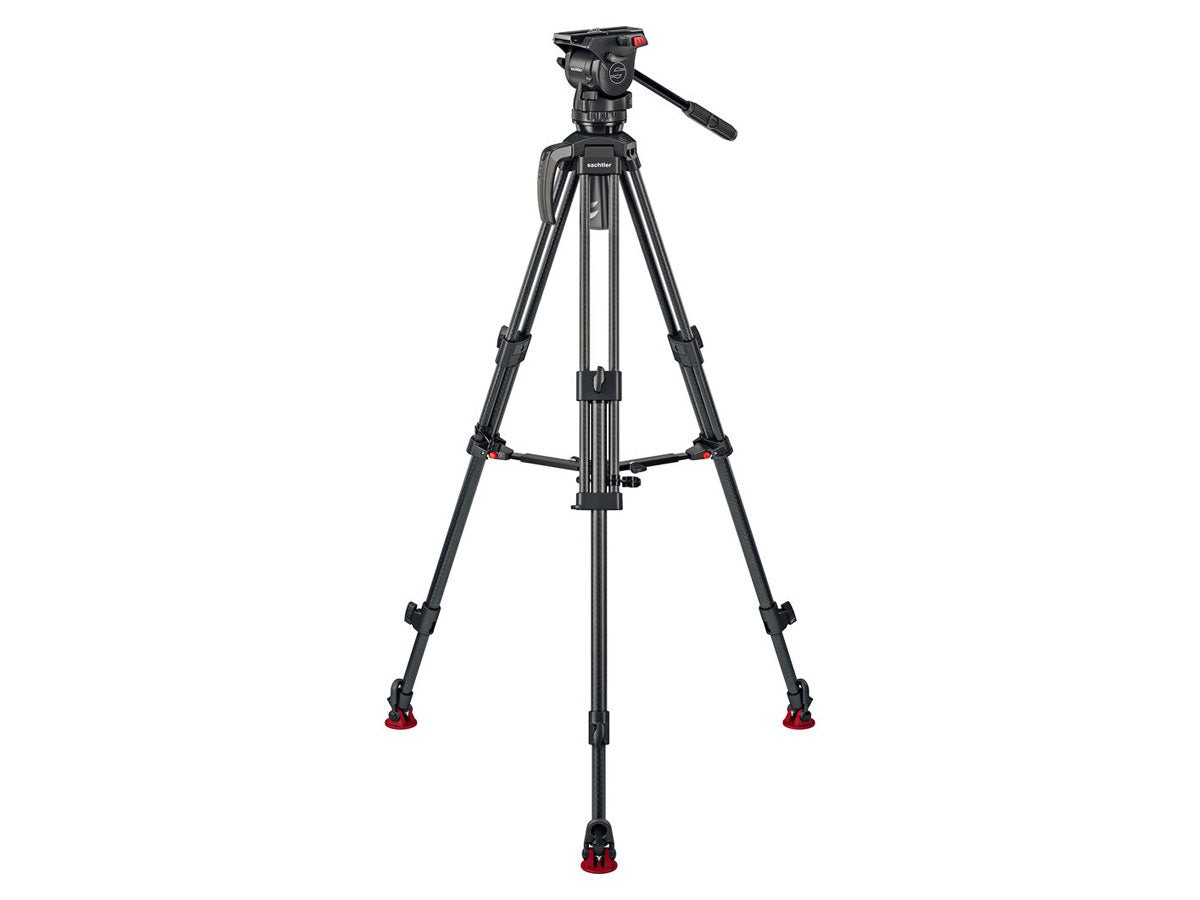

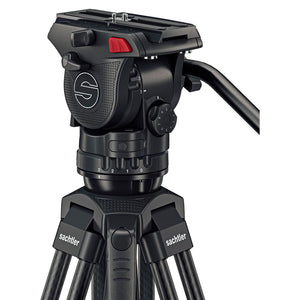

Sachtler 1018CM Ace XL CF MS Mk II System

Sachtler 1018CM Ace XL CF MS Mk II System

SKU: SAC-1018CM
Regular price £1,240.00 GBP ex VAT
£1,488.00 GBP inc VAT
Regular price ex VAT Sale price £1,240.00 GBP ex VAT
£1,488.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Are you ready?

With Ace, precision meets dedication. Achieve finesse in every shot with fast counterbalance, and smooth drag adjustments. Lightweight and compact, with consistent performance, Ace is along for the journey. From urban jungles to the call of the wild, be ready for every opportunity that comes your way.

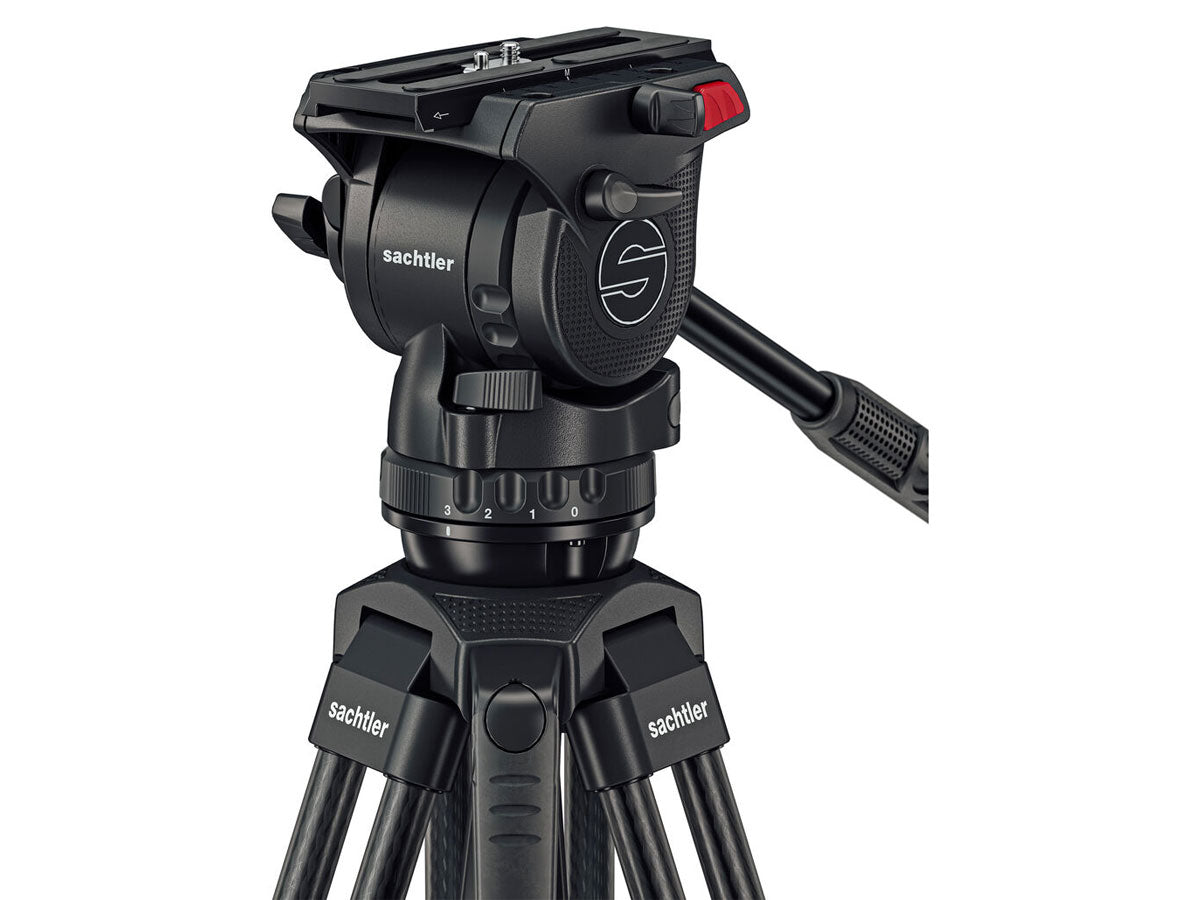

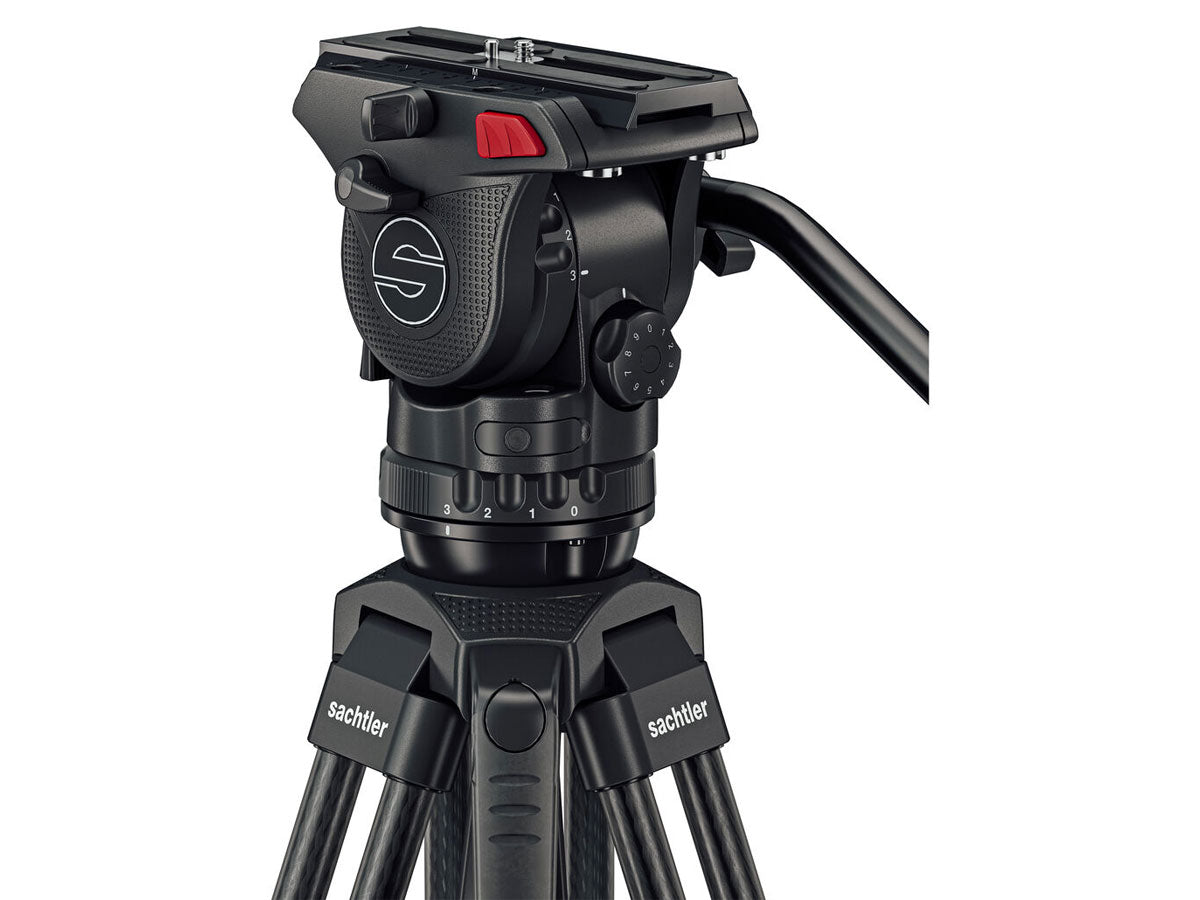

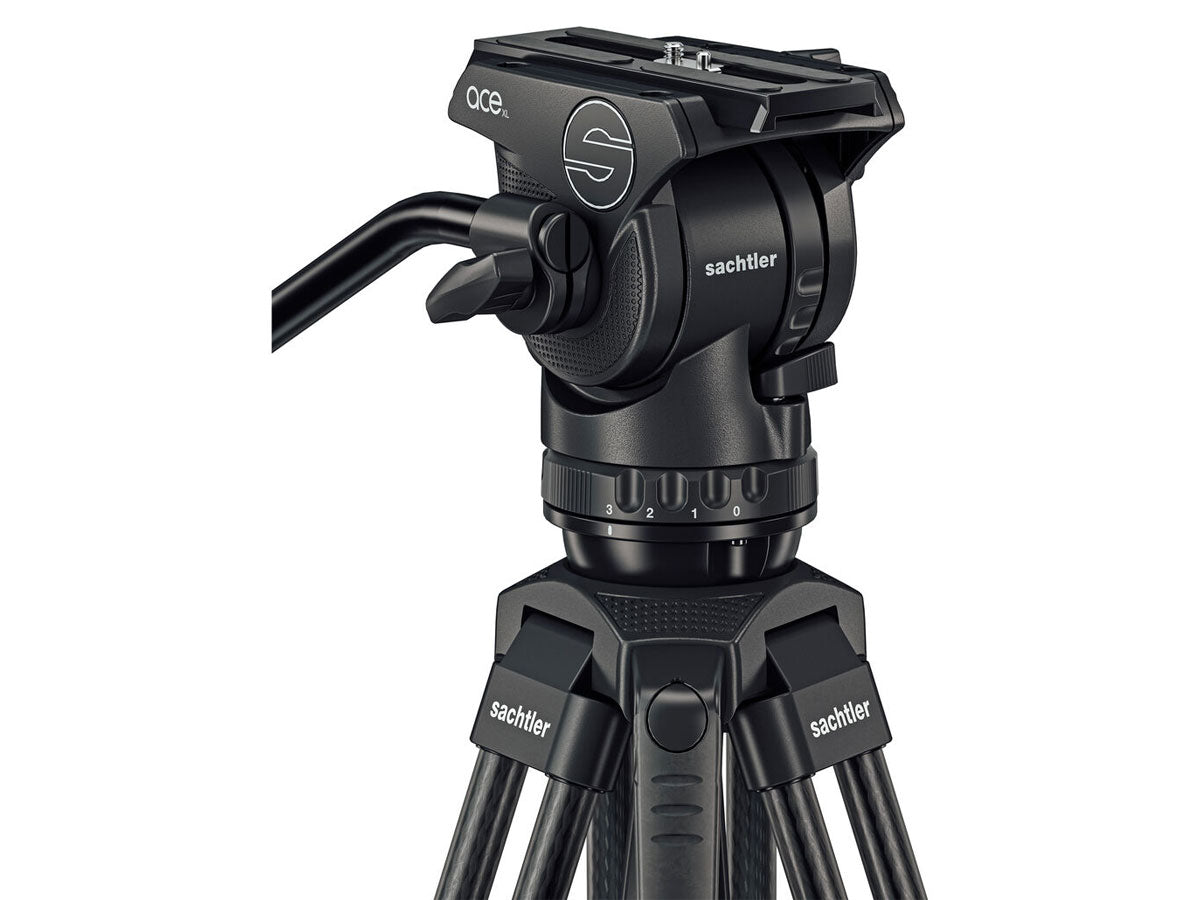

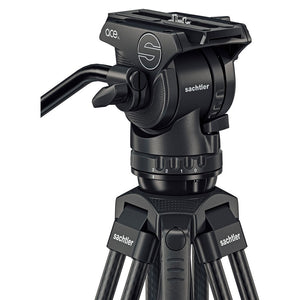

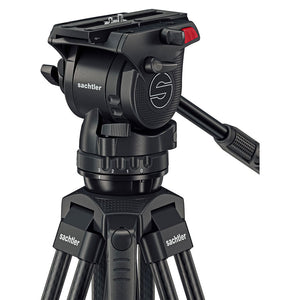

With Ace in your corner, stability and smoothness comes with every shot. It simplifies your setup with camera plate markers, stepped counterbalance and quick pan and tilt adjustments. Ace XL supports camera rigs weighing up to 8kg (17.6lbs), with nine steps of balance to quickly match your payload. A 104mm (4.1in) balance plate sliding range helps position accessorised cameras centrally and Sachtler drag gives smooth movement in any temperature. Ace XL also includes an illuminated level bubble to keep things straight in any location and a removable threaded stud for when you want to swap to a slider. Weighing just 4.1kg (9lbs), this Ace XL system is light in weight but not in features, so go further, climb higher and capture that winning shot unplanned or in the heat of the moment.

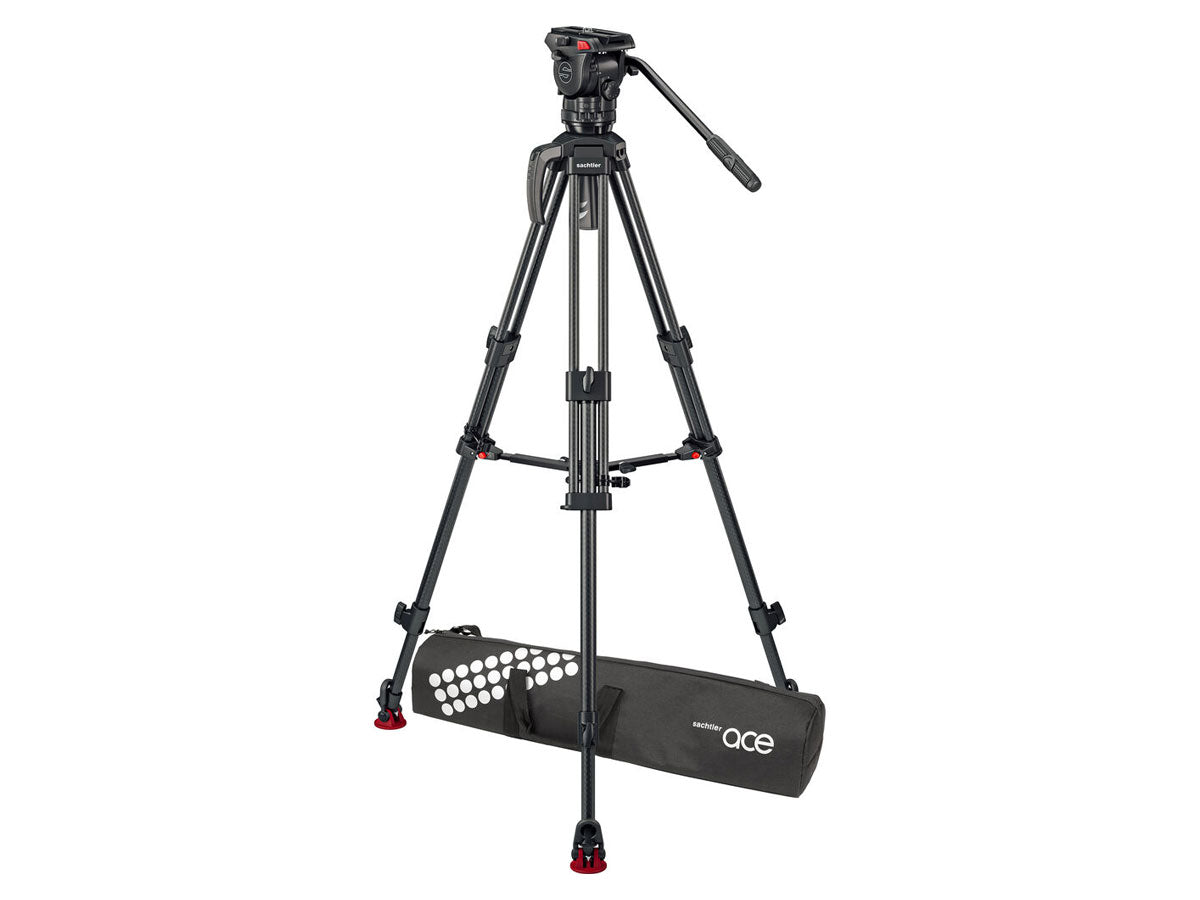

The System Ace XL CF MS includes an ultra-lightweight 2-stage carbon fibre 75mm tripod that keeps its weight to a minimum without sacrificing strength. With three 3/8” accessory mounting points on the tripod bowl you can add something extra to your rig like a Magic Arm. Or attach the carry handle so you’re always ready to chase down the shot. The detachable flowtech-style mid-level spreader provides stability no matter how rocky the road. And when the road is long, Ace comes with a carry case for protection on the go.

Ace is built to earn its place on your journey. Designed with precision-engineered drag segments and rigorously tested materials, consistent performance is a given. That's why Sachtler is trusted by professionals like you. Whatever path you choose to travel, Ace is your support system.

  • Ace XL system with 2-stage carbon fibre tripod
  • Supports payloads up to 8kg (17.6lbs)
  • Nine steps of counterbalance
  • Sachtler drag with 3 + 0 steps
  • Illuminated level bubble
  • Accessory mounts on tripod bowl
  • Ace bag, mid-level spreader and carry handle included
Payload: 0 - 8 kg / 0 - 17.6 lbs
Counterbalance Steps: 9 + 0
Drag Settings: 3 + 0
Weight: 4.1 kg / 9 lb
Height Range: 78 - 169 cm / 30.7 - 66.5 in

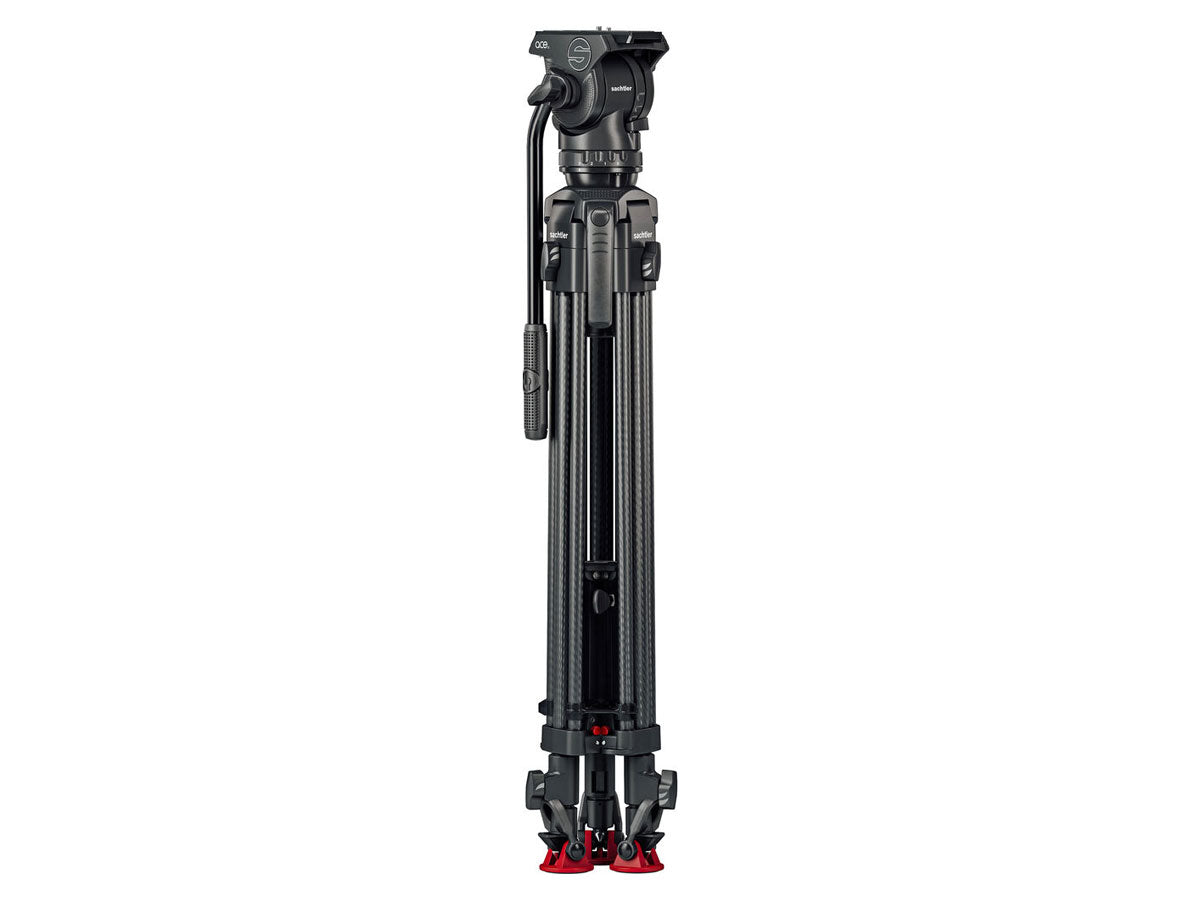

Transport Length: 86 cm / 33.9 in
Illumination: Yes
Pan Bar Type: Pan bar Ace #S2150-1200
Number of Pan Bars: 1
Bowl Size: 75 mm with integrated flat base
Tripod Stages: 2
Tripod Material: Carbon Fibre
Sliding Range: 104 mm / 4.1 in
Camera Plate Interface: Slide in
Tilt Range: 90° to -75°
Temperature Range: -30° to +60°C / -22° to +140°F
Warranty: 1-Year manufacturer warranty extendable to 2 Years with product registration
Packaging Dimensions: 22 x 21.5 x 98 cm; 6.6 kg / 8.7 x 8.5 x 38.6 in; 14.6 lb
  • Ace XL Mk II Fluid Head (S2170-0001)
  • Tripod 75/2 CF Mk II (S2171-0001)
  • Mid-Level Spreader flowtech75 (S2054-1001)
  • Rubber Feet 75 (ssp12p0150)
  • Bag Ace (9117)
  • Carry Handle (S2051-1063)
