Rosco DMG MAXI Basic Kit

Rosco DMG MAXI Basic Kit

SKU: ROS-29822400K001
Regular price £4,049.75 GBP ex VAT
£4,859.70 GBP inc VAT
Regular price ex VAT Sale price £4,049.75 GBP ex VAT
£4,859.70 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included

Includes: DMG MAXI, Power Supply, Single Yoke, AC and DC Extension Cables

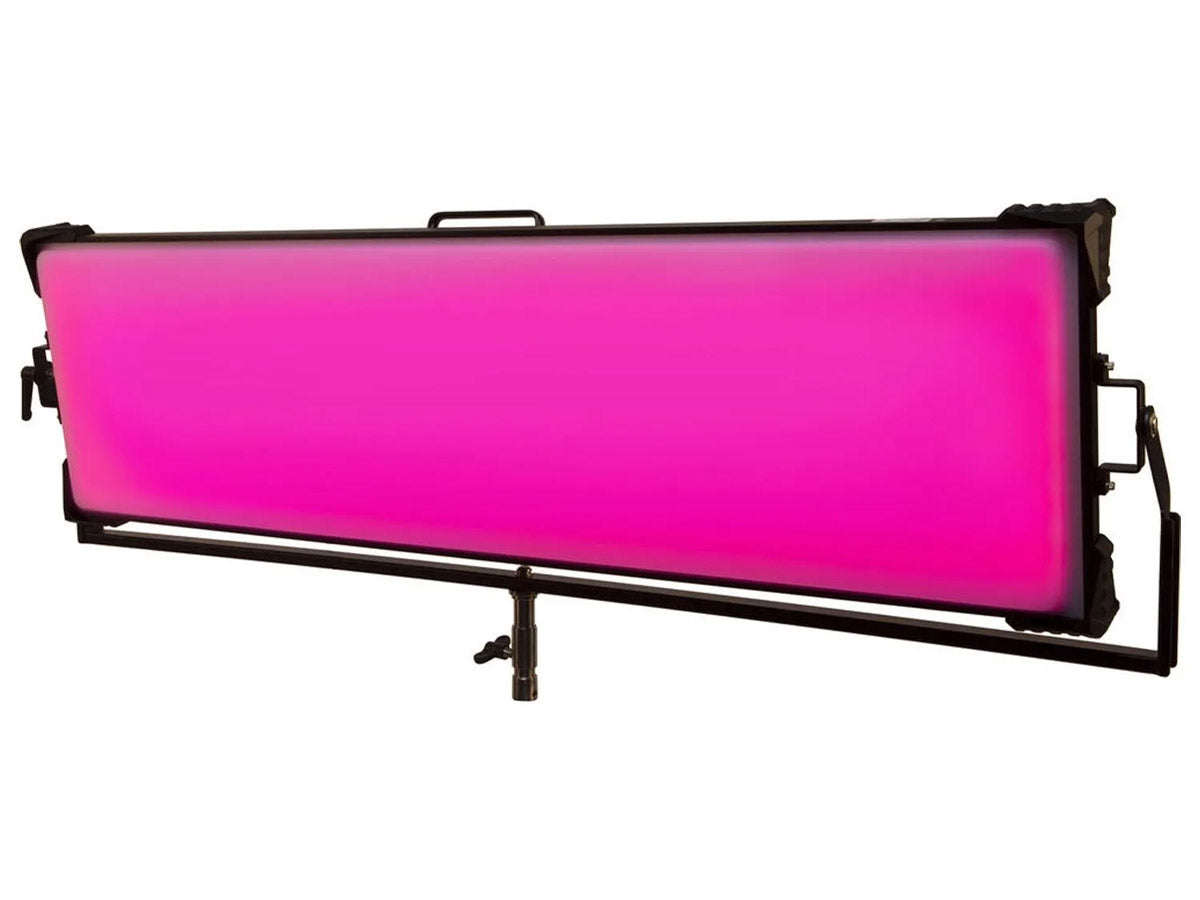

Filmmakers no longer need to sacrifice F-stops for color-mixing technology. The DMG MAXI is a lightweight, ultra-bright soft light that provides superior, full-spectrum color rendering for set lighting. The fixture features a powerful array of emitters that can produce virtually any color desired, and white light that looks fantastic on skin tones.

Multiple DMG MAXI units can be assembled together using the LINK 2 and LINK 4 accessories to create larger/brighter light sources. A Double Yoke Accessory and a Triple Yoke Accessory are also available to combine two or three MAXI lights together.

MIX® Technology
Rosco’s patented MIX technology features six LEDs: Red + Lime + Green + Blue + Amber + White. This proprietary blend of emitters enables DMG MAXI fixtures to produce a wider gamut of colors than comparable RGBW/RGBA fixtures. The red, lime, and amber LEDs have also been phosphor-converted. This process not only fills in the spectral gaps found in other color mixing lights, it also optimizes the fixture’s output to better match the sensors of digital cameras.

Enhanced Skin Tones
Rosco’s MIX technology enables DMG fixtures to generate a full-spectrum white light with a 1700K – 10,000K color temperature range. When lighting talent with a DMG MAXI, filmmakers will notice enhanced skin tone reflectance because the unique, phosphor-converted MIX® LEDs produce more of the wavelengths found in all human skin tones.

True Rosco Color™
The wider color gamut created by Rosco’s MIX technology also enables the DMG MAXI to create over 130 True Rosco Color™ gel matches. These colors have been verified – by eye, by meter, and by camera – to match traditional tungsten and daylight sources with Rosco gels on them.

Multiple Control Options
Set lighting technicians know that speed is of the essence when the cameras are rolling. There are no complicated menus on the DMG MAXI. Simply choose between five different modes: White Mode, Color Mode, Gel Mode, Effects Mode and Source Match Mode – then adjust the settings of the light as needed. All of these features are available using the fixture’s Driver accessory (sold separately) or via the free myMIX app from a mobile device. The DMG MAXI is also RDM compatible and can be controlled via wired DMX, wireless DMX using CRMX from LumenRadio, and ArtNet.

Lux @ 1 Meter (3.3ft): 7377 @ 3200K / 7550 @ 5600K
Lux @ 3 Meter (10ft): 1034 @ 3200K / 1045 @ 5600K
Fixture Input Voltage: 100-240 VAC
Battery Voltage: 24-35 VDC
Maximum Power: 360W
LED Colours: Red*, Green, Blue, Lime*, Amber*, White (4000K) * Denotes phosphor-converted LEDs that are unique to Rosco.
Light Modes: WHITE / GEL (with True Rosco Color Gel Matches) / COLOR – HSI & XY (With Rec 709 & Rec 2020 overlays) / EFFECTS / SOURCE MATCH
Colour Temperature Range: 1700K – 10,000K
Flicker-Free: Up to 4,000 FPS
Control Protocols: Via Bluetooth using the myMIX app
RDM enabled DMX 512 via 5-pin XLR
Wireless via LumenRadio CRMX Timo FX transceiver
ArtNet via LAN (RJ45) and WiFi (2.4 & 5.8GHz)
Dimensions: 47″ x 14″ x 3.3″ (120cm x 36cm x 8.5cm)
Weight: 17.6 lbs (8 kg)
  • DMG MAXI Kit w/ Single Yoke -

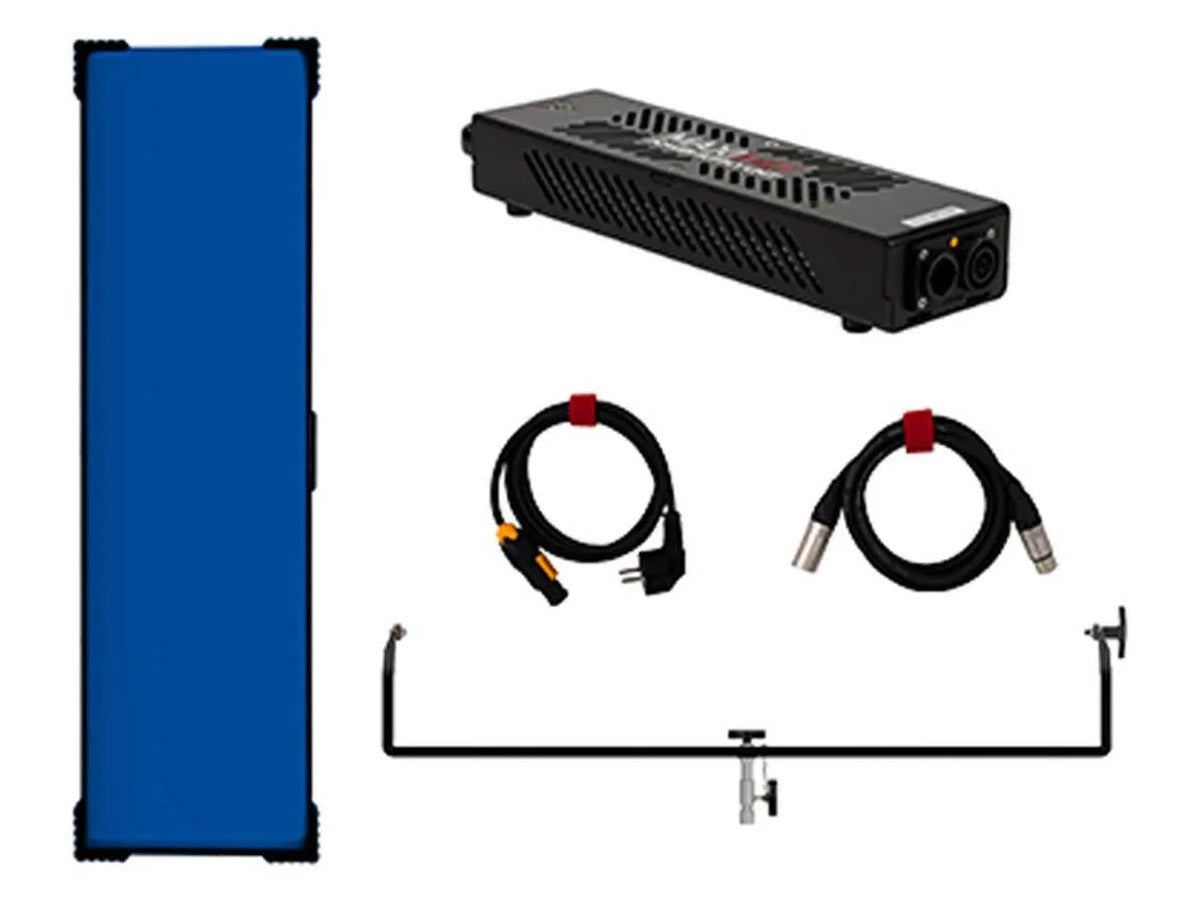

  • Kit includes:
    • DMG MAXI Lamp Head 360 Watts (inc Flat Dome diffusion)
    • DMG MAXI Power Supply Unit
    • DMG MAXI Single Yoke
    • DMG MAXI DC Cable
    • DMG MAXI AC Cable
