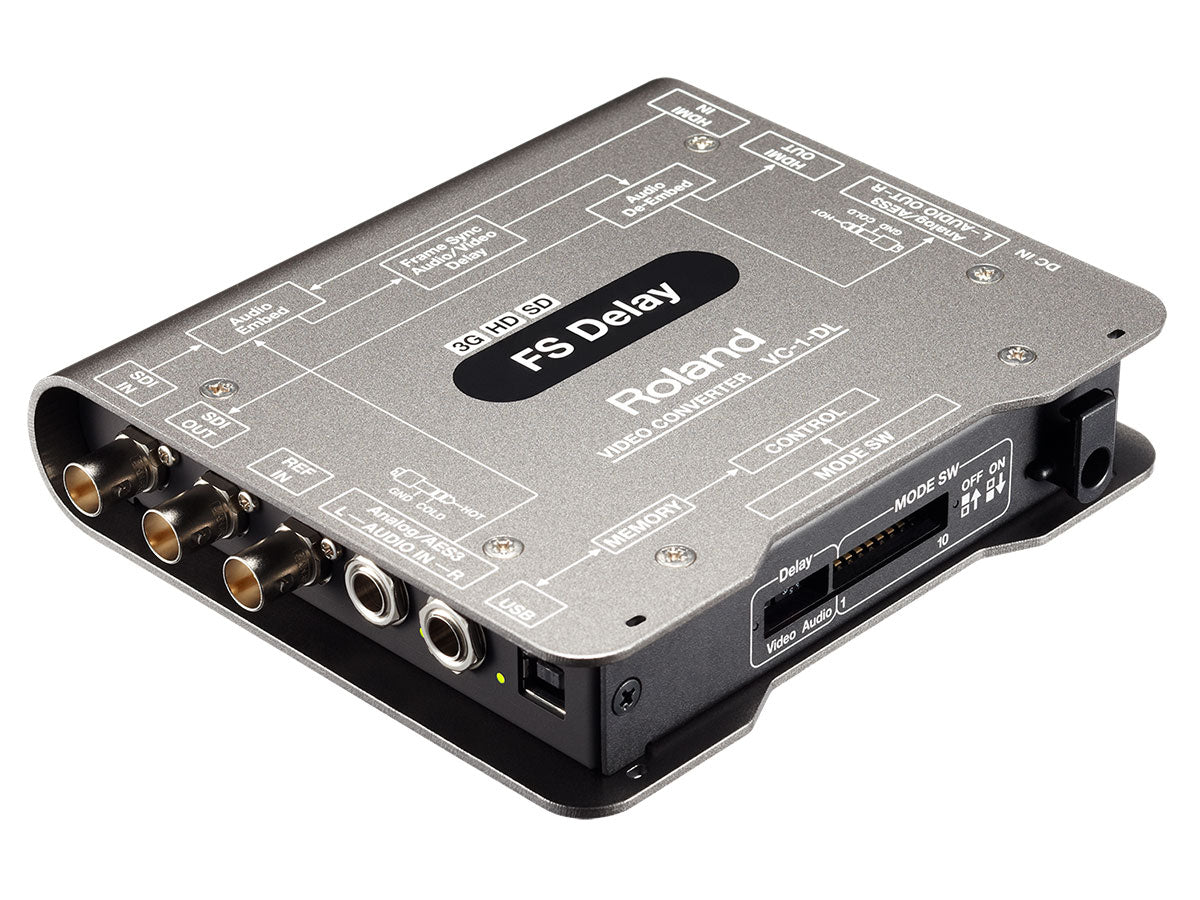

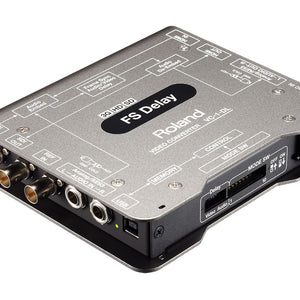

Roland VC-1-DL Bi-Directional SDI to HDMI Converter

Roland VC-1-DL Bi-Directional SDI to HDMI Converter

SKU: ROL-VC-1-DL
£690.00 GBP ex VAT
£828.00 GBP inc VAT
ex VAT £690.00 GBP ex VAT
£828.00 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

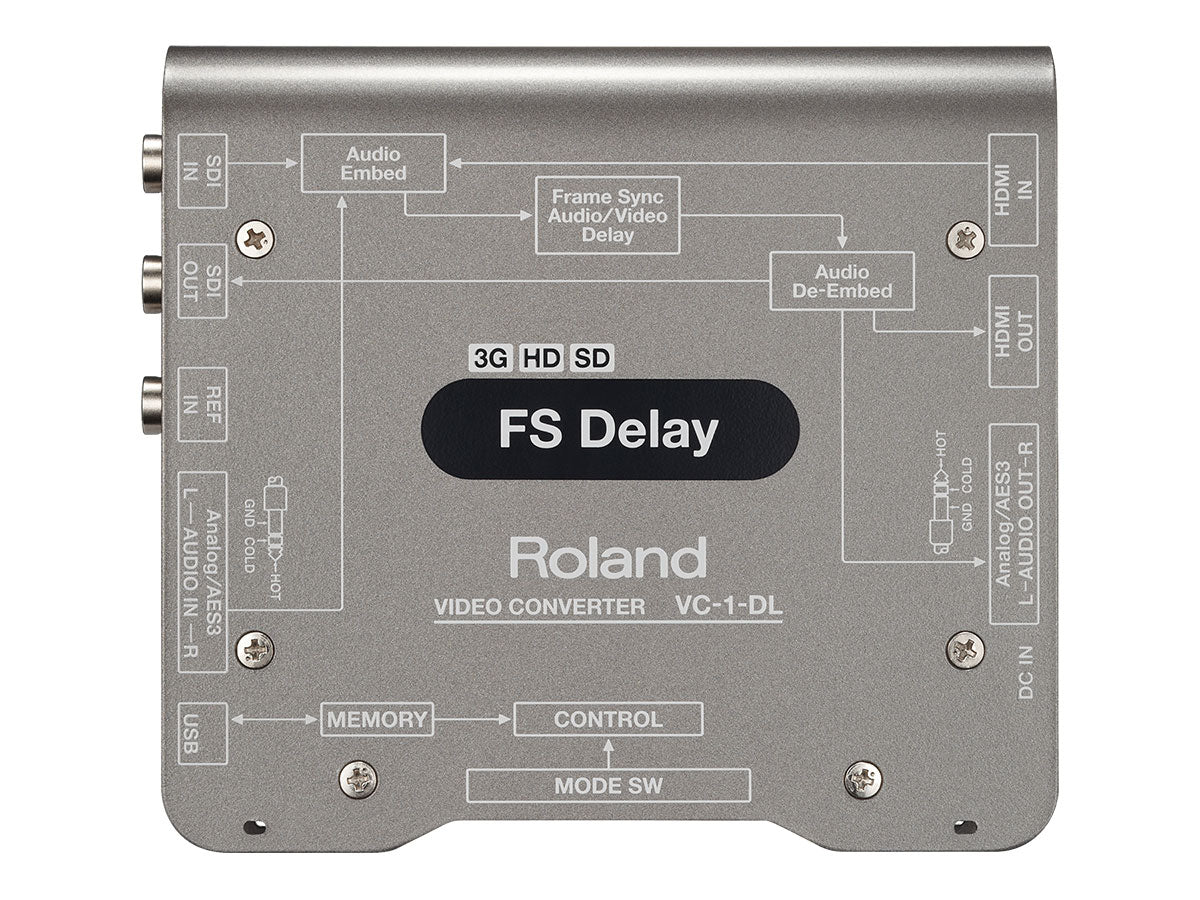

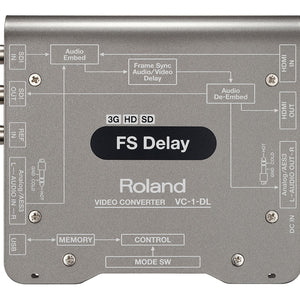

Bi-directional SDI/HDMI with Delay and Frame Sync
Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
The VC-1 Video Converter series
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

Roland VC-1-DL
In live production as you add more video components to a signal flow, latency is introduced. The VC-1-DL converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently. This is helpful when keeping various types of cameras in sync as well as ensuring a projector stays in sync with an LED wall. In this way it is an indispensable tool live production, broadcast and recording applications.
  • HDMI to SDI Conversion
  • SDI to HDMI Conversion
  • Lossless Image Conversion
  • 3G (Level A&B) /HD/ SD SDI
  • HDCP Support
  • Built-in Frame Synchronizer

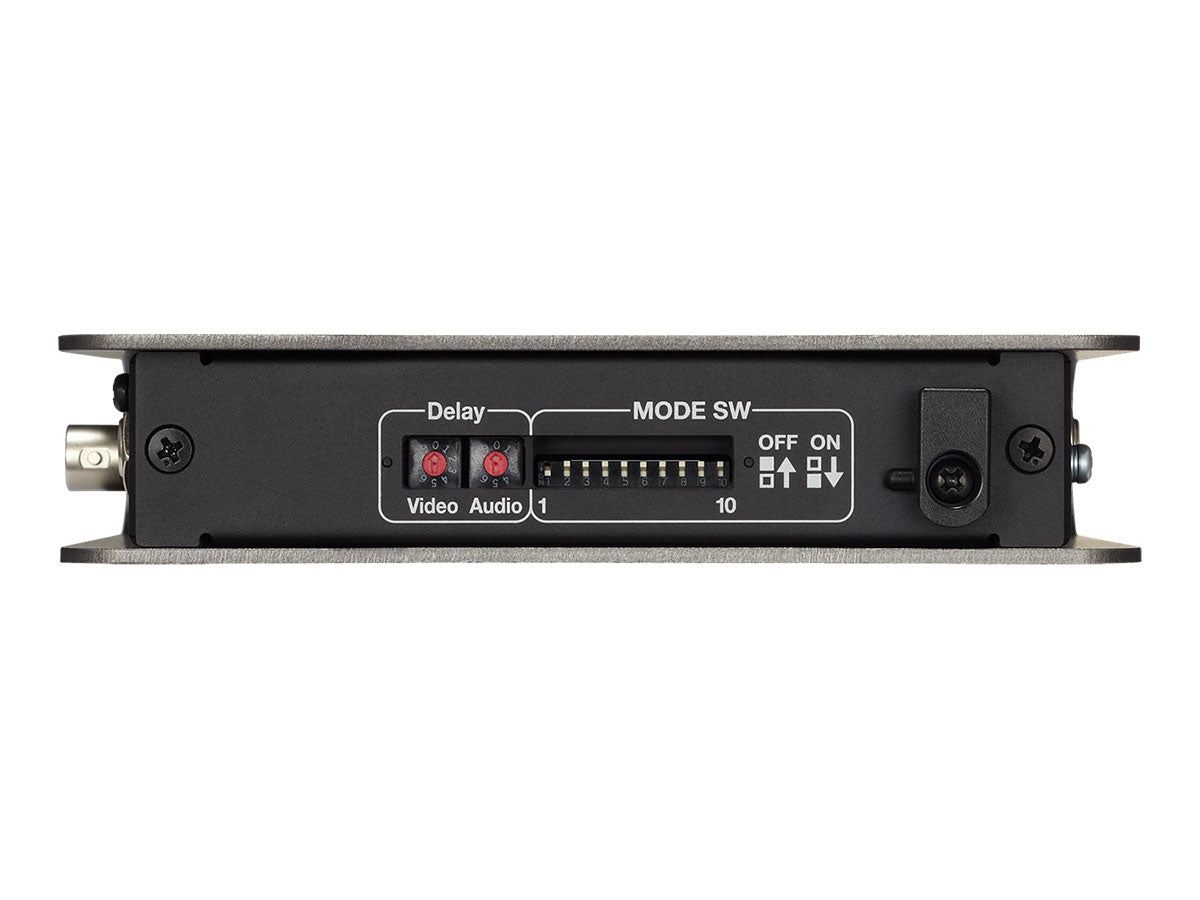

  • Audio Delay - up to 9 fields (4.5 frames)
  • Video Delay - up to 9 fields (4.5 frames)
  • VC-1 RCS, PC/MAC Control Application

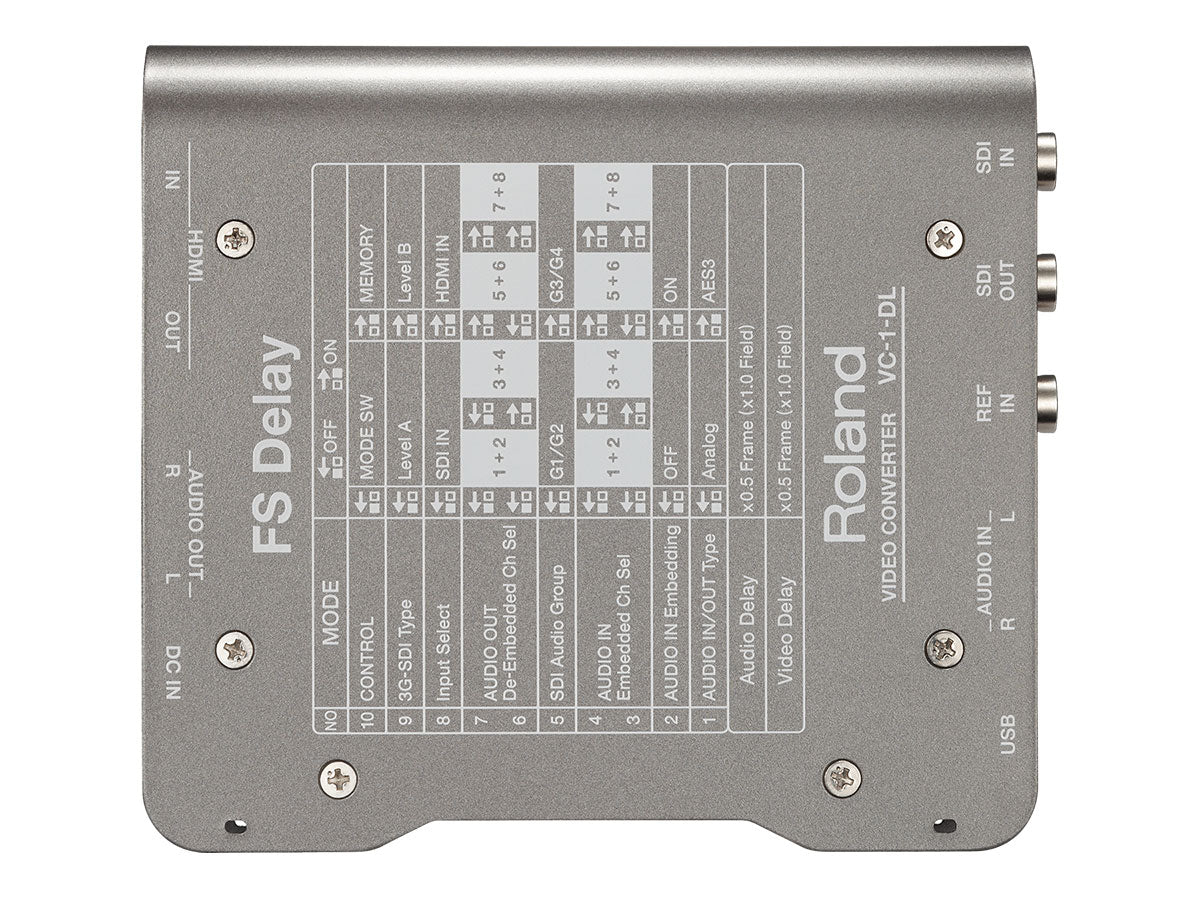

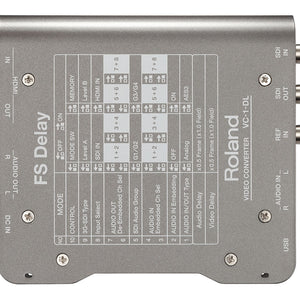

  • Selectable Channel for Embedded/De-Embedded Audio

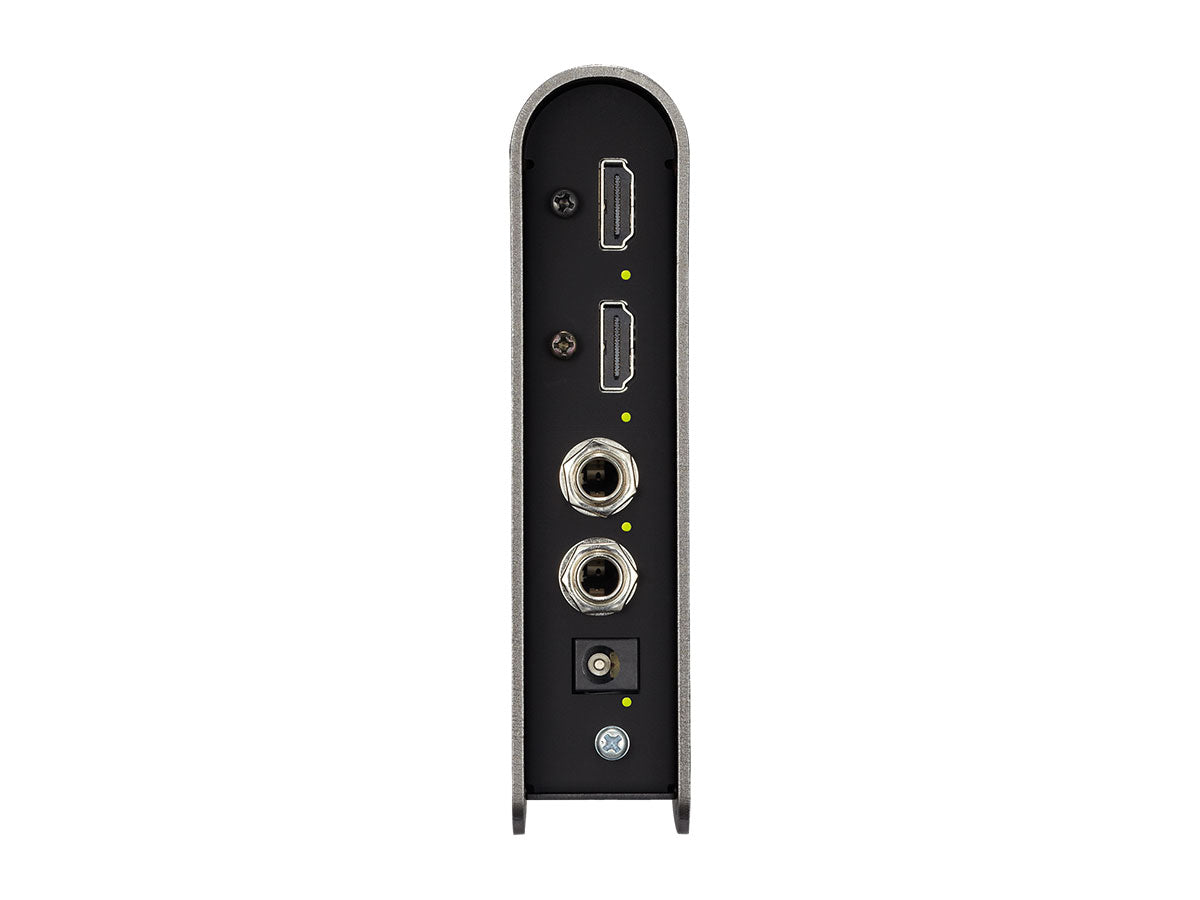

INPUT
SDI Connector: BNC type x 1
HDMI Connector: Type A (19 pins) x 1
Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Reference Connector: BNC type x 1
Reference Signal Format: Black Burst, Bi-level, Tri-level
Reference Impedance: 75 ohms
OUTPUT
SDI Connector: BNC type x 1
HDMI Connector: Type A (19 pins ) x 1
Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair ( L/R)
Digital Audio Connector: 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector )
INPUT / OUTPUT FORMAT
SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1
SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)
HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1
AUDIO INPUT / OUTPUT
Analog Audio Input Level: +4dBu
Analog Audio Maximum Input Level: +24dBu
Analog Audio Input Impedance: 110 ohms
Analog Audio Output Level: +4dBu
Analog Audio Output Impedance: 600 ohms
Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance: 110 ohms
OTHERS
USB Connector: USB Type B (Hi-Speed USB) x 1
Power Supply: DC 9V
Power Consumption: 8W
Operation Temperature: +0 to + 40 degrees Celsius
Accessories: AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
SIZE & WEIGHT
Width: 150 mm / 5-15/16 inches
Depth: 130 mm / 5-1/8 inches
Height: 30 mm / 1-3/16 inches
Weight: 500 g / 1 lbs. 2 oz
