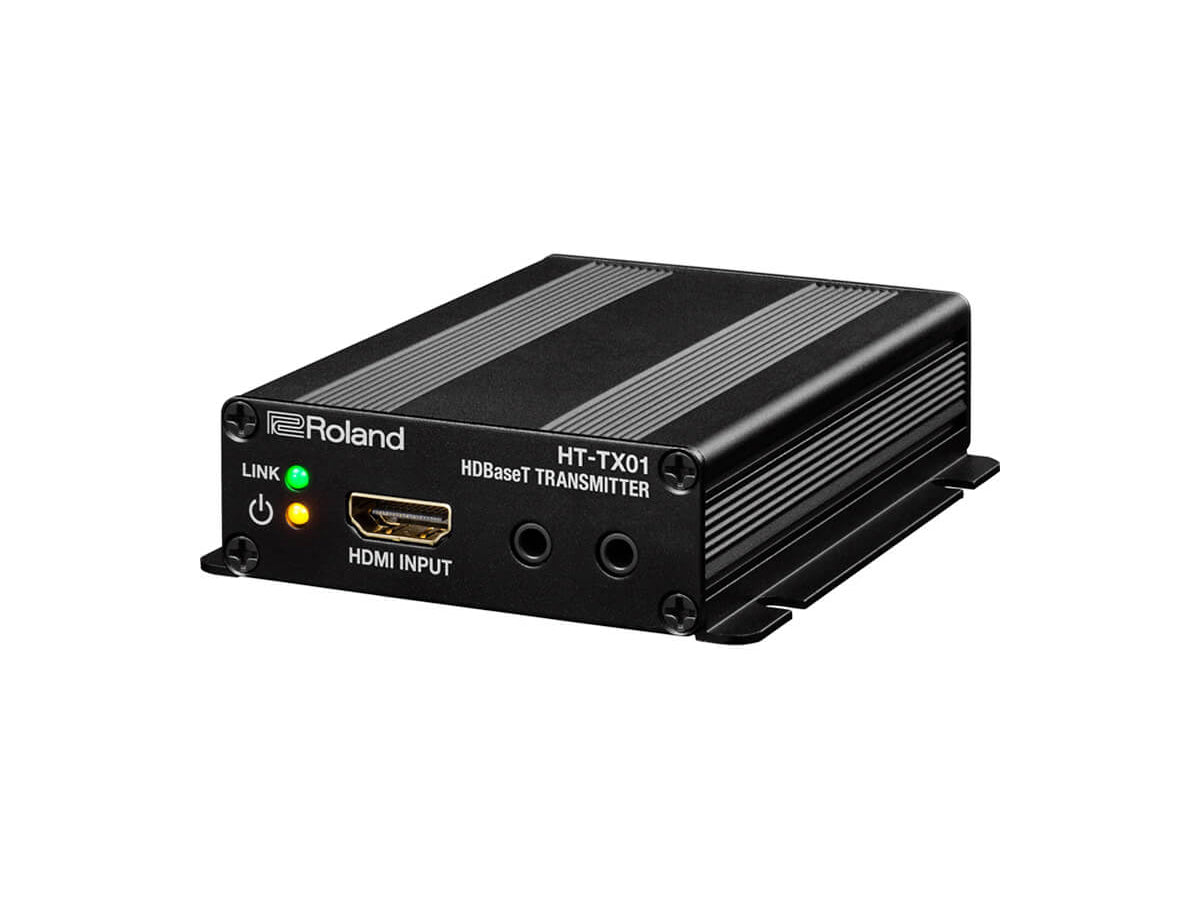

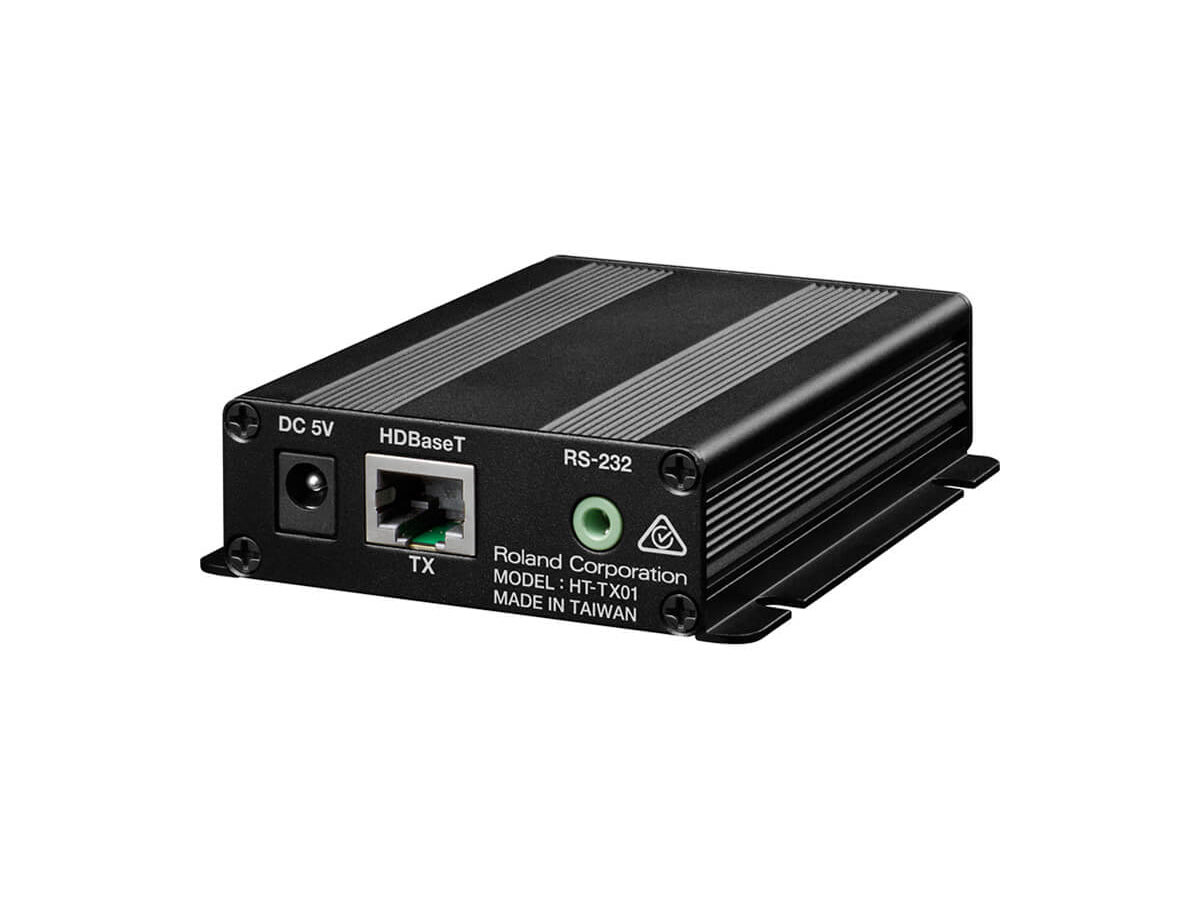

Roland HT-TX01 HDBaseT Transmitter
Roland HT-TX01 HDBaseT Transmitter
SKU:
ROL-HT-TX01
Regular price
£284.00 GBP ex VAT
£340.80 GBP inc VAT
£340.80 GBP inc VAT
Regular price
ex VAT
Sale price
£284.00 GBP ex VAT
£340.80 GBP inc VAT
Unit price
per
£340.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
HDBaseT-compatible transmitter capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.
Roland HDBaseT Transmitter
Roland HD BaseT solutions empower the sharing of ideas in huddle & meeting rooms and supports AV installations with simplified distribution of the presenter’s computer to a video switcher or a digital projector hundreds of feet away.
Long-Distance HDMI Distribution
Pair the Roland HT-TX01 Transmitter with the Roland HT-RX01 Receiver to convert and transmit uncompressed High Definition HDMI video, audio and RS-232 control up to 100 meters using industry standard Cat5e cable.
- HDBaseT Transmitter
- Converts HDMI input to HDBaseT signals
- Maximum 1080/60p and WUXGA support for HDMI
- HDCP compliant
- Capable of RS-232C transmission
| Input Formats: | 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 *RGB formats : Conforms to VESA DMT Version 1.0 Revision 11. *The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz) *1920 x 1200/60Hz : Reduced blanking |
| Audio Formats: | The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio |
| Input Connectors: | HT-TX01: HDMI x 1 : Type A 19 pins HT-RX01: RJ45 x 1 |
| Output Connectors: | HT-TX01: RJ45 x 1 HT-RX01: HDMI x 1 : Type A 19 pins |
| Other Connectors: | RS-232 x 1 : 9 pins D-sub type *when using additional RS-232 cable |
| Transmission Distance: | The maximum is 100m (328 ft) *To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable. *The available distance depends on the quality of the LAN cable. |
| Operating Temperature Range: | 0°C to 40°C / 32°F to 104°F |
| Operating Temperature Humidity: | 10 to 85 % (no condensation) |
| Storage Temperature Range: | 20°C to 60°C / 4°F to 140°F |
| Storage Temperature Humidity: | 10 to 85 % (no condensation) |
| Current Draw: | 2 A |
| Power Supply: | AC Adaptor |
| Dimensions: | 81 x 93 x 24mm / 3-3/16 x 3-11/16 x 1" |
| Weight: | 300g / 11oz |
