| ACOUSTIC & ELECTRICAL SPECIFICATIONS | |
| Frequency Range: | Mic Inputs: 20Hz - 20kHz Monitor Outputs: 20Hz - 20kHz |
| Microphone Input Impedance: | 4KΩ |
| Instrument Input Impedance: | 1MΩ |
| Preamplifier Gain Range: | 0 - 76dB |
| Equivalent Noise: | -131.5dBV (A-weighted) |
| Line Output Maximum Level: | 4dBu |
| Headphone Output Power: | 250mW |
| Power Requirements: | 30W USB-C PD (15V, 2A) |

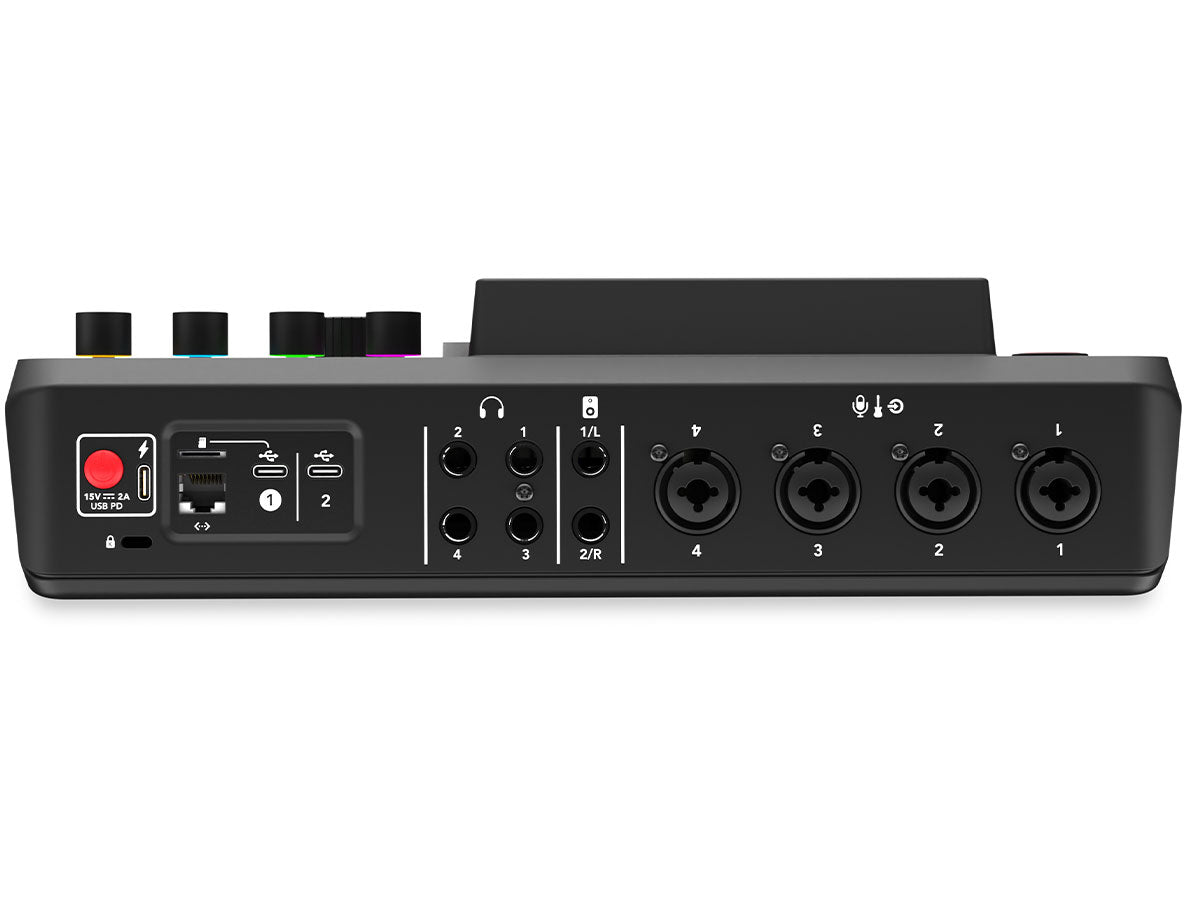

| Analogue Audio Input Connectivity: | 4 x combo jack inputs (microphone, line, instrument) |
| Analogue Audio Output Connectivity: | 2 x balanced line output, 4 x headphone output |
| Bluetooth Connectivity: | Bluetooth audio with Music and Headset profile (wide band speech) |
| USB Interface 1: | 1 x 2-in/16-out multichannel device, 1 x 2-in/2-out with mix-minus |
| USB Interface 2: | 1 x 2-in/2-out with mix-minus |
| Bit Depth: | 24bit |
| Sample Rate: | 48kHz |
| Recording Storage: | microSDHC, microSDXC, USB-C removable drive (exFAT – minimum 100MB/s) |
| Data Transfer: | USB 3.0 SD card reader 130MB/s |
| Network Connectivity: | Wifi 802.11g/n/ac 2.4GHz and 5GHz, Ethernet 100/1000 |
| OS Requirements: | macOS 10.15 or later, Windows 10 Version 1803 or later, Windows 11 |
| Internal Storage: | 4GB (SMART pads) |
| MECHANICAL SPECIFICATIONS | |
| Weight: | 1960g |
| Dimensions: | 305mm x 270mm x 60mm |
