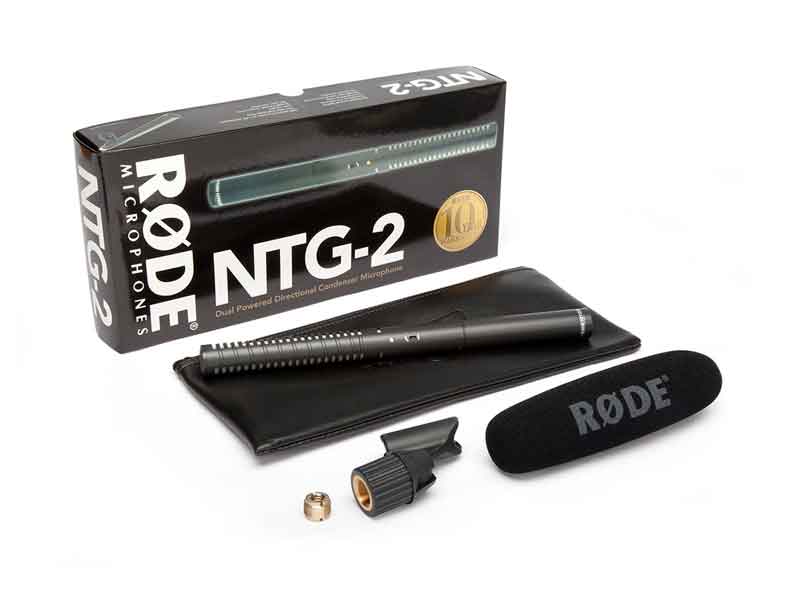

The NTG2 is a lightweight condenser shotgun microphone, designed for professional applications in film, video, television and broadcast. Its full frequency response, low noise and audio transparency makes it ideal in a range of applications including filmmaking, voice-over and streaming. It can operate either from P48 phantom power or via a removable AA battery for maximum flexibility in the studio or in the field. It also features a switchable high-pass filter for added flexibility.
| ACOUSTIC & ELECTRICAL | |
| Acoustic Principle: | Line Gradient |
| Active Electronics: | JFET impedance convertor with balanced transformer output |
| Capsule: | 0.50" |
| Polar Pattern: | Supercardioid |
| Address Type: | End |
| Frequency Range: | 20Hz - 20kHz |
| Output Impedance: | 250Ω |
| Maximum SPL: | 131dB SPL |
| Maximum Output Level: | 6.9mV (@ 1kHz, 1% THD into 1KΩ load) |
| Sensitivity: | -36.0dB re 1 Volt/Pascal (15.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-Weighted): | 18dBA |
| Power Requirements: | AA Battery and P48 |
| Output Connection: | XLR |
| MECHANICAL | |
| Dimensions: | 280 x 22 x 22mm |
| Weight: | 161g |
