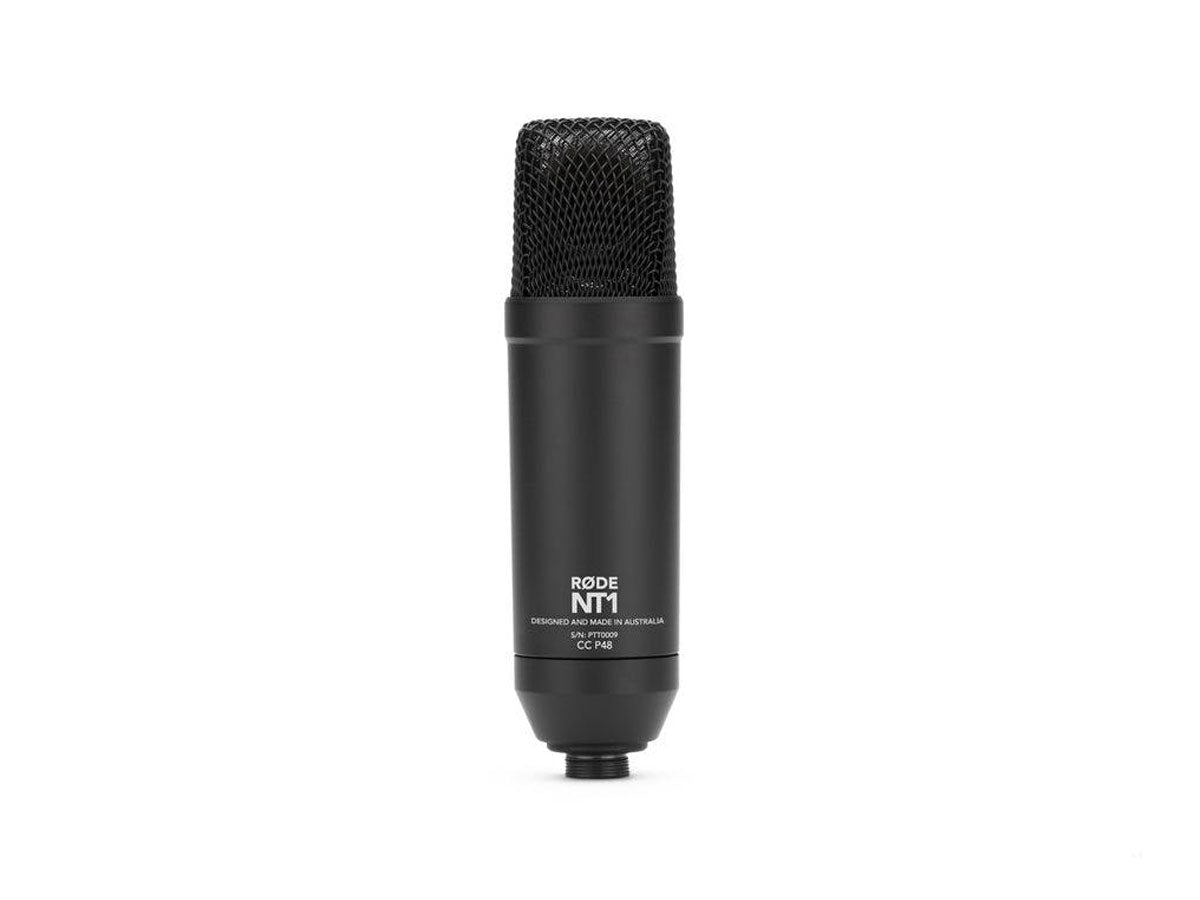

| NT1 | |
| Output Connection: | 3 Pin XLR. Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground) |
| Acoustic Principle: | Pressure gradient |
| Active Electronics: | JFET impedance converter with bipolar output buffer |
| Directional Pattern: | Cardioid |
| Frequency Range: | 20Hz ~ 20kHz |
| Output Impedance: | 100Ω |
| Equivalent Noise: | 4.5 dBA SPL (as per IEC651) |
| Maximum Output: | +8 dBu (1kHz, 1% THD into 1K Ω load) |
| Sensitivity: | -29 dB re 1V/Pa (35mV @ 94dB SPL) ± 2dB @ 1kHz |
| Dynamic Range: | 128 dB SPL |
| Maximum SPL: | 132 dB SPL |
| Signal-to-Noise Ratio: | 90 dBA SPL (as per IEC651) |
| Power Requirements: | 24V phantom power 48V phantom power |
| Colour: | Black |
| Dimensions: | 187 x 50mm |
| Weight: | 395g |

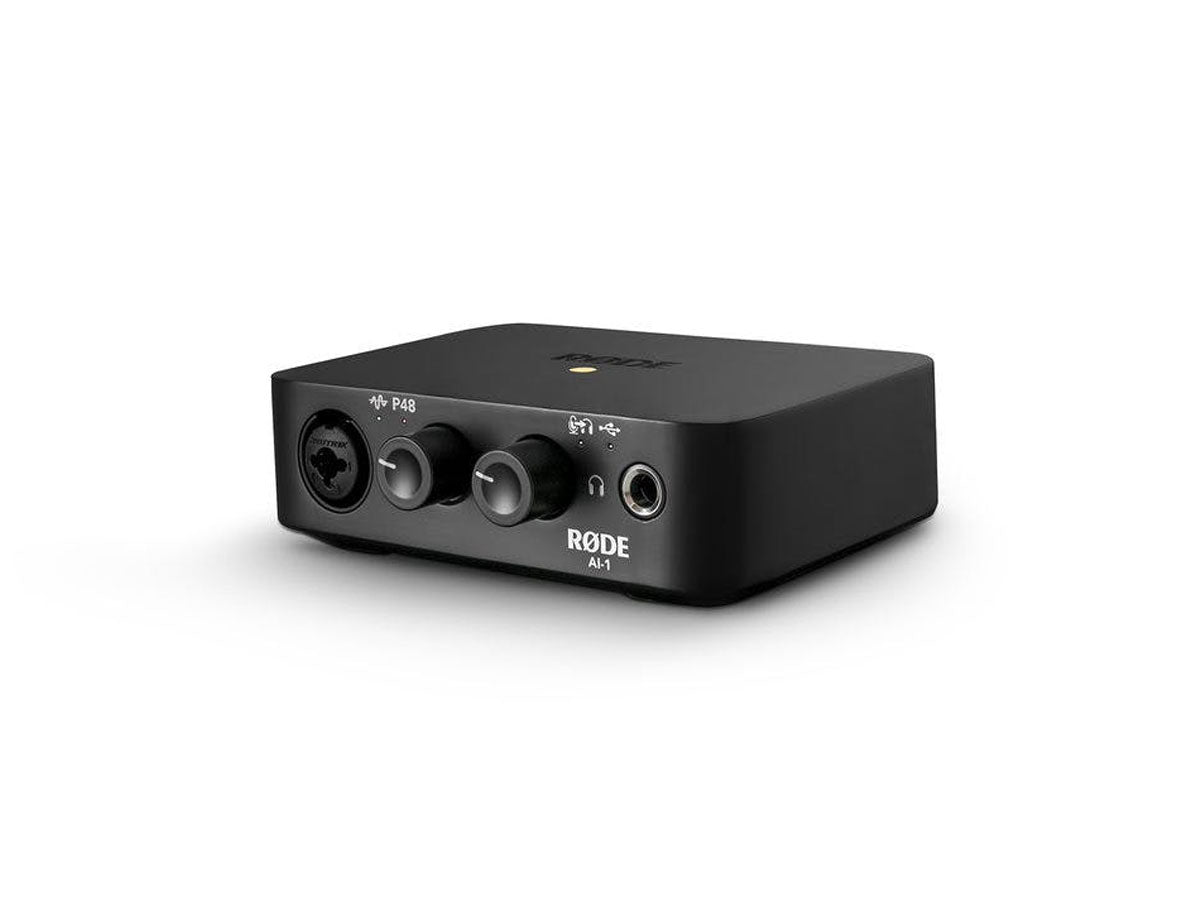

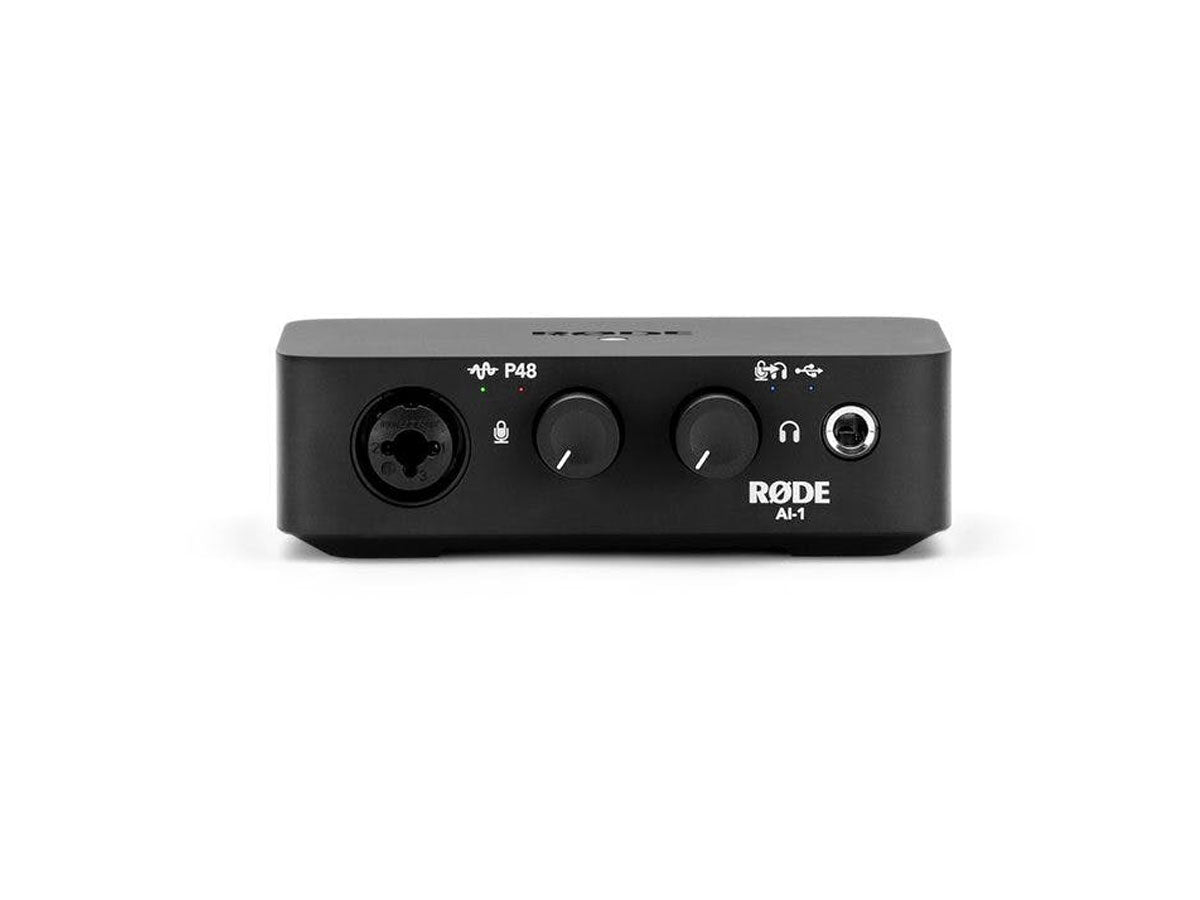

| AI-1 | |
| Computer Connectivity: | USB |
| Form Factor: | Desktop |
| Simultaneous I/O: | 1 x 2 |
| Number of Preamps: | 1 |
| Bit Depth: | 24-bit |
| Sample Rates: | 44.1 kHz 48 kHz 88.2 kHz 96kHz |
| Analog Inputs: | 1 x Neutrik XLR-1/4” combo |
| Analog Outputs: | 2 x 1/4” (impedance balanced) 1 x 1/4” (headphones) |
| Direct Monitor: | Yes |
| USB: | 1 x USB Type C |
| Bus Powered: | Yes |
| OS Requirements: | Mac OS 10.10 or later Windows 7 or later |
| Power: | USB bus-powered |
| Dimensions: | 38 x 124 x 10mm |
| Weight: | 560g |
