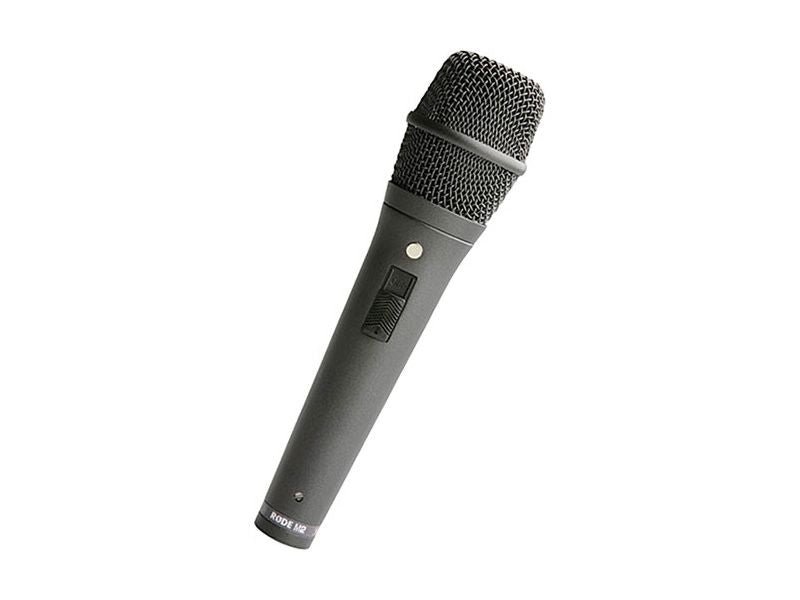

The M2 is a rugged condenser microphone that is designed for the ultimate in performance for live vocals. Featuring an internally shock-mounted ½-inch condenser capsule, it delivers a full frequency response for exceptionally detailed voice reproduction on stage and its tight supercaridoid polar pattern ensures a focused sound that minimises spill and feedback. The M2 also features a lockable on/off switch for added versatility.
| ACOUSTIC & ELECTRICAL | |
| Acoustic Principle: | Pressure gradient |
| Active Electronics: | JFET impedance converter with bipolar output buffer |
| Capsule: | 0.50" |
| Polar Pattern: | Supercardioid |
| Address Type: | End |
| Frequency Range: | 35Hz - 20kHz |
| Output Impedance: | 50Ω |
| Maximum SPL: | 141dB SPL |
| Maximum Output Level: | 5.2mV (@ 1kHz, 1% THD into 1KΩ load) |
| Sensitivity: | -44.0dB re 1 Volt/Pascal (6.30mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-Weighted): | 23dBA |
| Power Requirements: | P24 or P48 |
| Output Connection: | XLR |
| MECHANICAL | |
| Dimensions: | 187 x 47 x 47mm |
| Weight: | 308g |
