| ACOUSTIC & ELECTRICAL | |
| Gain Range: | 60dB (with firmware version 1.3.1) |
| Bit Depth: | 24-Bit |
| Sample Rates: | 44.1kHz / 48kHz / 88.2kHz / 96kHz |
| 48V Phantom Power: | Yes |
| Simultaneous I/O: | 1 x 2 |
| Number of Preamps: | 1 |
| Direct Monitor: | Yes |
| Bus Powered: | Yes |
| OS Requirements: | Mac OS10.10 or later Windows 7 or later |
| Power: | USB bus-powered |
| MECHANICAL | |
| Form Factor: | Desktop |
| Analog Inputs: | 1 x Neutrik XLR-1/4" combo |

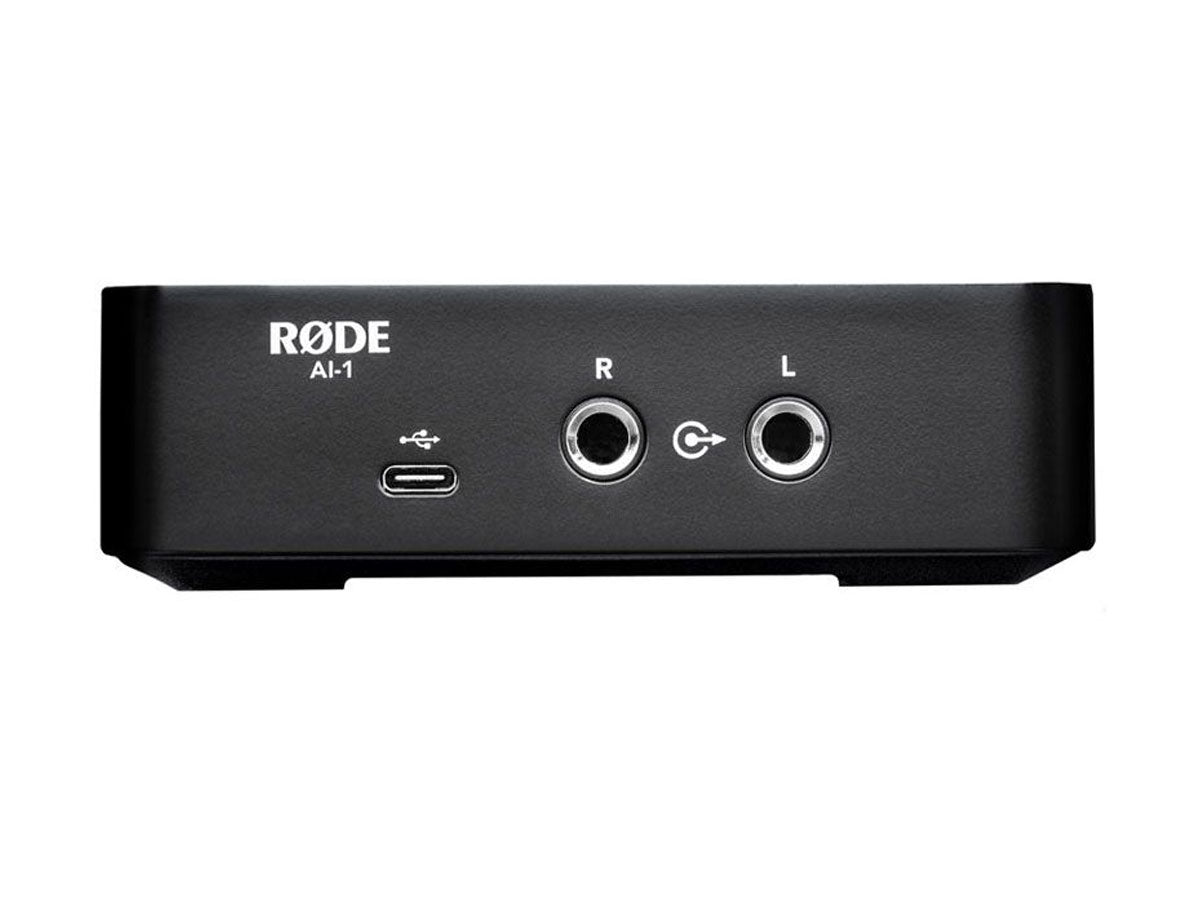

| Analog Outputs: | 2 x 1/4" speaker outputs (impedance balanced) 1 x 1/4" headphone output |
| USB Connectors: | 1 x USB-C |
| Dimensions: | 100mm x 124 x 38mm (with knobs) 88mm x 124mm 38mm (chassis) |
| Weight: | 560g |
