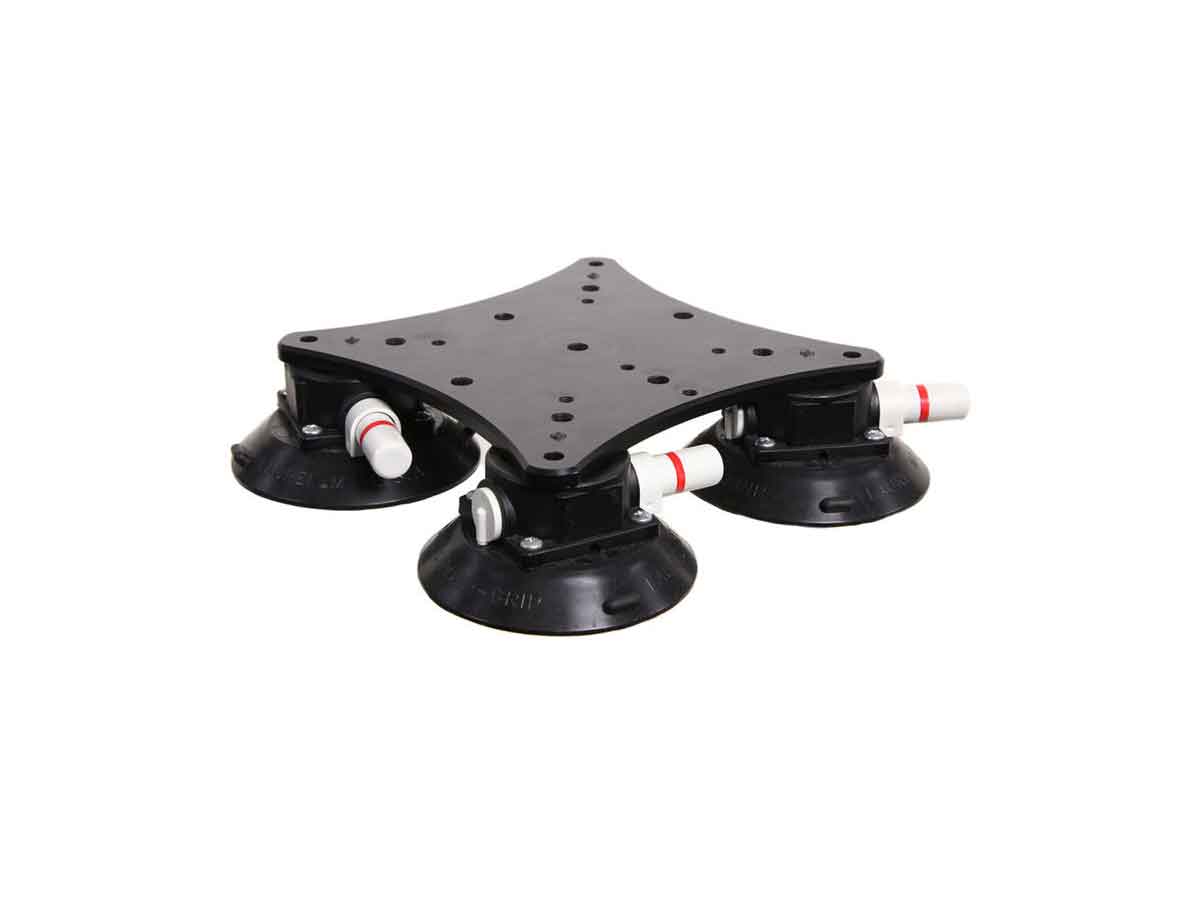

RigWheels RigPlate Suction Mount with 4.5" C-Cups

The RigWheels RigPlate Suction Mount consists of a RigPlate camera mounting plate and four C-Cup suction cups. Together they form a sturdy camera mounting platform to attach to a car, boat, or any moving vehicle or flat surface.

The cheese-style RigPlate offers numerous mounting points to attach a camera and accessories. It features fourteen 1/4"-20 and four 3/8"-16 threaded holes, as well as four 5/16" and five 3/8" pass-through holes.

The four 4.5" C-Cups provide a strong platform-mounting base. Each C-Cup features a vacuum pump mechanism and a stud that screws into the RigPlate. A red line on each cup's vacuum indicates when suction pressure on the cup is low.

The Suction Mount also includes one 3/8"-16 bolt and one 3/8" washer for mounting.

RP01 RigPlate

The RigWheels RP01 RigPlate serves as a resourceful component of the camera mounting hardware. Its first function is to serve as a mounting plate for attaching RigWheels. The RigPlate and 1 set of RigWheels (sold separately) provide with smooth movement as a tabletop / skater dolly that can be used on any smooth or hard surface.

Using the RigPlate as a pipe dolly gives a scalable slider / dolly option for the new generation of mid-size and compact cameras. Attaching 2 RigPlates together creates a captive-rail camera carriage that allows secure camera movement at any angle. Using the RigPlate in conjunction with RigAxels (sold separately) adds even more capability to this simple system with a more traditional tabletop dolly setup and a robust pipe-dolly option.

The RigPlate is a camera support platform and can be used for much more than camera movement. A variety of several different mounting points allow you to attach a myriad of accessories. There are ten 1/4-20 and five 3/8-16 threaded holes (industry standard sizes) in addition to four 5/16" and five 3/8" pass-through holes.

The RigPlate can be turned into a rock-solid suction mount by adding the A-Cups or B- Cups (sold separately).

C-Cup Suction Cup

The RigWheels C-Cup Suction Cup is an industrial-grade suction mount used in creating camera vehicle rigs. The C-Cup features a vacuum pump mechanism and a stud that screws into the separately available RigPlate or RigAxel components.

The C-Cup is one of the larger suction cup sizes offered by RigWheels, providing a strong platform-mounting base. A red line on the cup's vacuum mechanism provides a quick visual indicator of when pressure on the cup is low.

• Industrial-grade camera rigging suction mount
• A red line indicates when the cup's pressure is low
• Screws directly into the separately available RigPlate or RigAxel components
• The heavy-duty C-Cup is one of several sizes offered by RigWheels
