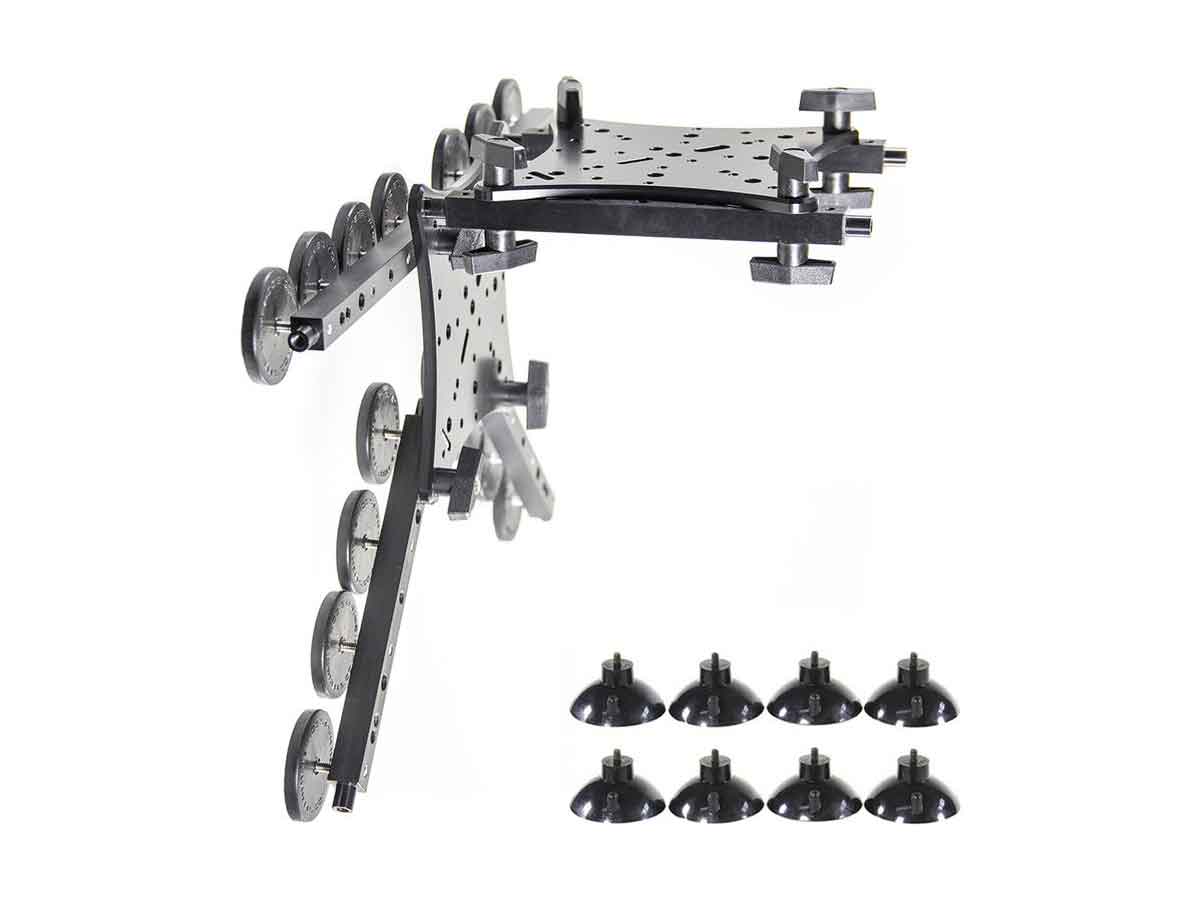

RigWheels RigMount XL Camera Mounting Platform with Sidecar and Hostess Tray

RigWheels RigMount XL Camera Mounting Platform with Sidecar and Hostess Tray

SKU: RIG-RMXL-SC
Regular price £868.70 GBP ex VAT
£1,042.44 GBP inc VAT
Regular price ex VAT Sale price £868.70 GBP ex VAT
£1,042.44 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Use the RigMount XL Camera Mounting Platform with Sidecar and Hostess Tray from RigWheels to mount your camera on the metal or glass side of a car, boat, or moving vehicle. The mount consists of two RigPlate cheese-style platforms, sixteen magnetic mounts, eight A-Cup suction mounts, six rig-mounting axles, and all the required connection hardware. The durable metal platform provides stability and weight distribution for large-format cameras, and the provided components are designed to mount on the side of a car or moving vehicle.

At the center of the mount are two versatile RigPlates, each providing ten 1/4"-20 and five 3/8"-16 threaded holes in addition to four 5/16" and five 3/8" pass-through holes for mounting your camera and accessories. The six axles connect to the plates with thumbscrews and can be adjusted in any configuration to balance your camera. The sixteen magnets and eight suction mounts can be used separately or intermixed to create a solid connection with the metal surface. The magnets have a thin, rubber coating to protect the surface and provide up to 50 pounds of vertical pull resistance for a secure bond.

Since the mounting kit components are modular, they can be used in various ways such as a hi-hat mount configuration, or more components can be purchased such as additional magnets for attaching to a glass surface, wheels, and dolly rails. All the hardware required for attaching the mount components is included.

  • Mounting Platform for Larger Cameras
  • 2x RigPlate Cheese-Style Platforms
  • 16x Magnetic Mounts
  • 8x A-Cup Suction Cup Mounts
  • 6x Rig Mounting Axles
  • Connecting Hardware

Rig Mount Magnetic Mount Long (Single)

Screw Type 1/4"-20, 1.5" long (3.8 cm)
Mount Plate Diameter 2.5" (6.4 cm)

A-Cups (4-Pack)

Mount Type Suction (general purpose use)
Tripod Mounting Screw 1/4"-20
  • 2x RP01 RigPlate
  • 6x RA01 1-RigAxle
  • 16x Rig Mount Magnetic Mount Long (Single)
  • 2x A-Cups (4-Pack)
  • 4x A-Cup Camera Suction Mounts
  • 6x 5/16" Thumbscrew (0.75" Long)
  • 4x 5/16" Thumbscrew (2" Long)
  • 4x 5/16" Female Thumbscrew
  • 4x 5/16" Wingnut
  • 6x 5/16" Washer
  • 5/16" Bolt (2" Long)
  • 2x 5/16" Bolt (0.87" Long)
  • 3/8"-16 Bolt (0.75" Long)
  • 3/8" Washer
