RigWheels Clout Mount Slingshot 30 Vibration Isolator

RigWheels Clout Mount Slingshot 30 Vibration Isolator

SKU: RIG-SS-30
£1,000.00 GBP ex VAT
£1,200.00 GBP inc VAT
ex VAT £1,000.00 GBP ex VAT
£1,200.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

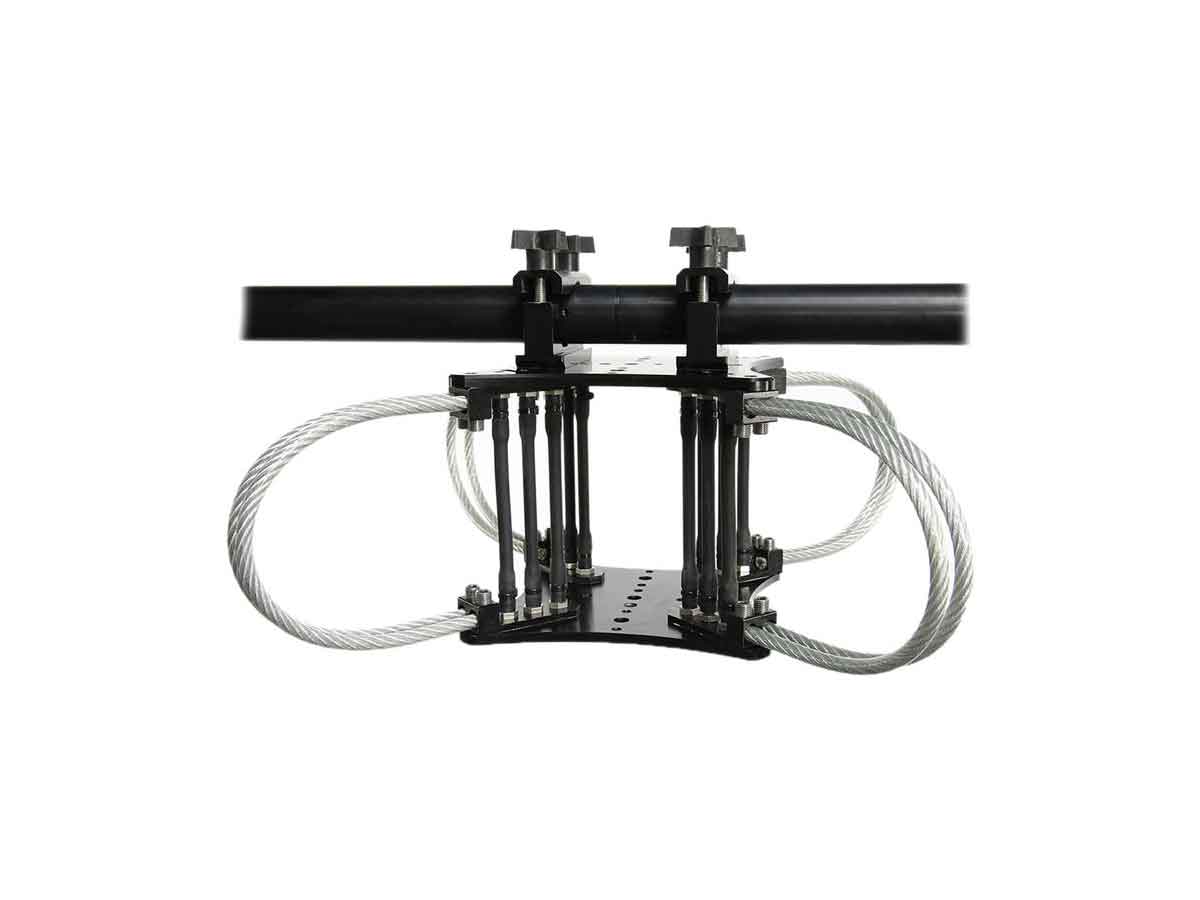

Capture smooth traveling vehicle shots by underslinging your gimbal camera rig weighing up to approximately 30 lb with the RigWheels Cloud Mount Slingshot 30 Vibration Isolator. Especially suitable for setups where a hood, roof, or trunk mount is impractical, the Slingshot 30 adds both 3/8" and 5/16" elastic tubing to the standard Cloud Mount configuration for increased vibration isolation.

Additional components include two RigPlates, eight cables, tube connectors, wire cables, thumb knobs, bolts, and hardware. Like the rest of the RigWheels line, the modular Slingshot 30 features quick, reliable mounting and can be scaled to the size of your camera rig using additional components.

  • Supports larger camera/gimbal rigs up to approximately 30 lb
  • Uses 3/8" and 5/16" elastic tubing and wire cable for vibration isolation and support
  • Includes two RigPlates, knobs, bolts, and hardware
  • Modular system is easily modified using separately available components

  • Use to Undersling Camera/Gimbal Rig
  • Supports Approximately 30 lb Payload
  • 15x 3/8" & 15 x 5/16" Elastic Tubes
  • 2x RigPlates
  • Versatile Component System
  • Customize & Scale to Your Rig Size
  • 8x Vibration Isolator Cables & Clamps
  • 16x Elastic Tube Connectors
  • 4x Thumb Knobs
  • Made in the USA
Payload Capacity Approximate: 30 lb / 13.6 kg
Cable Dimensions Diameter x Length:
0.25 x 15" / 6.4 x 381 mm
Tube Diameter 5/16" (0.25" / 6.4 mm)
3/8"   (0.375" / 9.53 mm)
Plate Dimensions: Not Specified by Manufacturer

Mounting Points:
Multiple 1/4"-20 and 3/8"-16 Threads
Multiple 5/16" and 3/8" Pass-Through Holes
  • 8x Wing Nut (3/8")
  • 11x Split Washer (3/8")
  • 15x Elastic Tube (3/8")
  • 15x Elastic Tube (5/16")
  • 4x Thumb Knob (5/16 x 1.5")
  • 2x Variable Size Pipe Clamp
  • 100x SlingShot Zip Tie
  • 2x RP01 RigPlate
  • 8x Vibration Isolator Cable Clamp
  • 8x Elastic Tube Connector (3/8"-16 x 7/8" Threads)
  • 16x Elastic Tube Connector (1/4"-20 x 1/2" Threads)
  • 11x Washer (3/8")
  • 3x Bolt (3/8 x 3/4")
  • 8x Vibration Isolator Cable (1/4 x 15")
