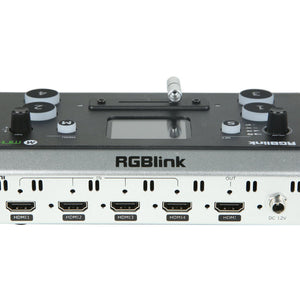

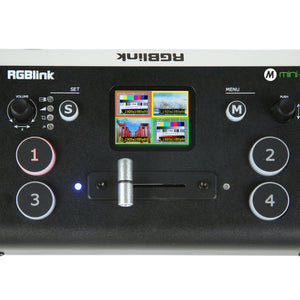

RGBLink Mini + - Video Switcher with 4 x HDMI Inputs

RGBLink Mini + - Video Switcher with 4 x HDMI Inputs

SKU: RGB-230-0001-02-0
£380.00 GBP ex VAT
£456.00 GBP inc VAT
ex VAT £380.00 GBP ex VAT
£456.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

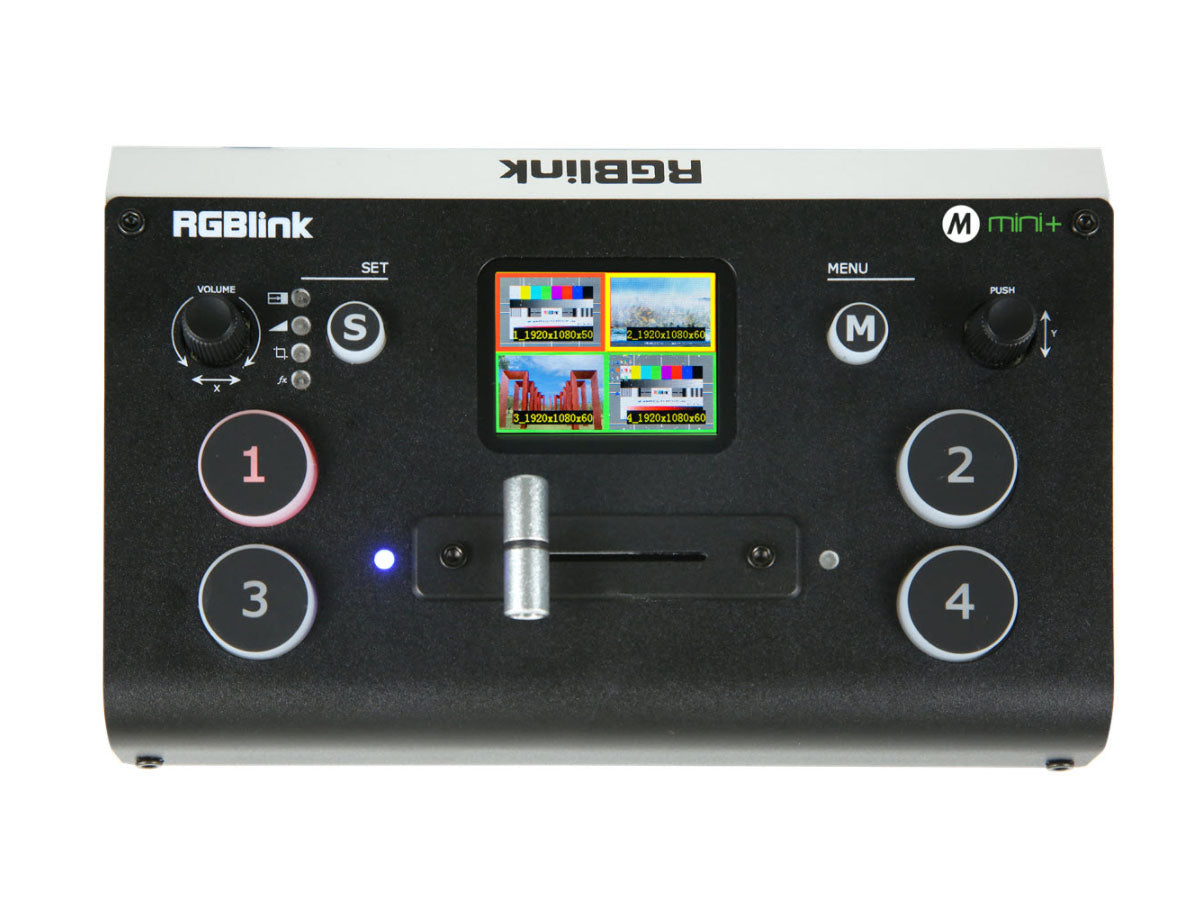

Mini+ makes the sophisticated simple. Switch seamlessly between any of the four HDMI inputs and output to both HDMI and the dedicated USB 3.0 output. mini+ is equally ideal for live streaming applications and presentations, allowing multiple sources to be utilized for a professional impression every time. On board features include PTZ camera control, Chroma Key, channel logo overlay, PIP and PBP presets, transition effects and external audio embedding, Large buttons make quick actions easy, while the provision of the T-bar allows smooth transition between sources, whether they be cameras or graphics. Compact in size, mini goes anywhere, and with handy features like the ability to mount to standard 1 /4in UNC accessories, mini is at home in any studio.

● USB 3.0 live streaming port
● Compact design
● Live preview of four inputs
● Seamless switching
● Auto cut and manual switch
● Transition effects
● PIP (Picture-In-Picture) presets
● Chroma Key
● Apply overlay LOGO
● Audio insert/extract
● HDMI output as PGM or Multi-view
● Connect & control up to four PTZ cameras
● Control remotely from XPOSE mini software for computers
● Control remotely from the XPOSE mini app for mobiles & tablets
● Support for third party apps including OBS Studio

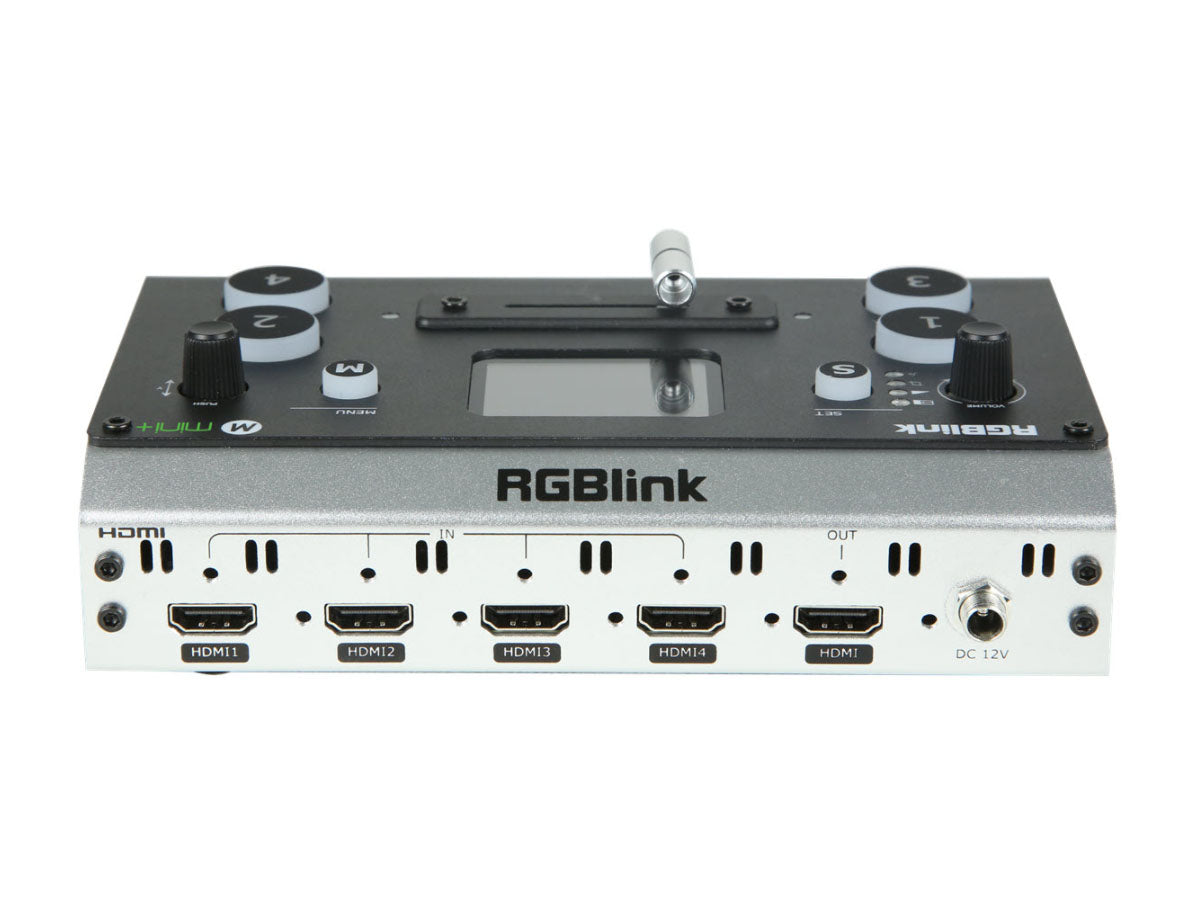

Connectors

Input

HDMI

4 x HDMI-A

Output

HDMI

1 x HDMI-A

USB 3.0

1 x USB Type A

Audio

In

1 x 3.5mm Stereo Jack

Out

1 x 3.5mm Stereo Jack

Communications

LAN

1 x RJ45

Power


1 x DC Jack

Performance

Input Resolutions

HDMI

SMPTE

720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60

VESA

1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60

Output Resolutions

HDMI

SMPTE

720p@50/60 | 1080p@24/25/30/50/60

VESA

1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×1024@60 | 1360×768@60

USB Streaming



1280×720@50/60 | 1280×1024@60 | 1360×768@60 | 1920×1080@24/25/30/50/60

Note: Refer connected computer for applicable resolution support

Supported Standards

HDMI

1.3

USB

3.0

H.265

ITU-T H.265 | ISO/IEC 23008-2

PTZ

VISCO

Color Space

RGB

Video Sampling

4:4:4 YUV

Latency

<4 frames

Line In Delay

Up to 8 frames

Power

Input Voltage

DC 12V/1.5A (via Plug Pack supplied)

Max Power

18W

Environment

Temperature

-0℃～70℃

Humidity

10% ~ 85% RH

Physical

Weight

Net

Device

0.5kg

Packaged

1pc

  1.25kg

10pcs

13.00kg

20pcs

24.00kg


Dimensions

Net

Device

180mm x 113mm x  49mm

Packaged

1pc

255mm x 145mm x  85mm

10pcs

490mm x 305mm x 345mm

20pcs

565mm x 490mm x 345mm
