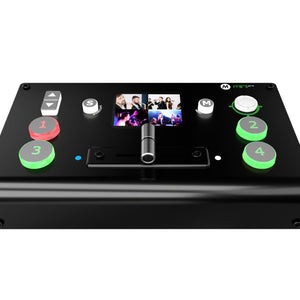

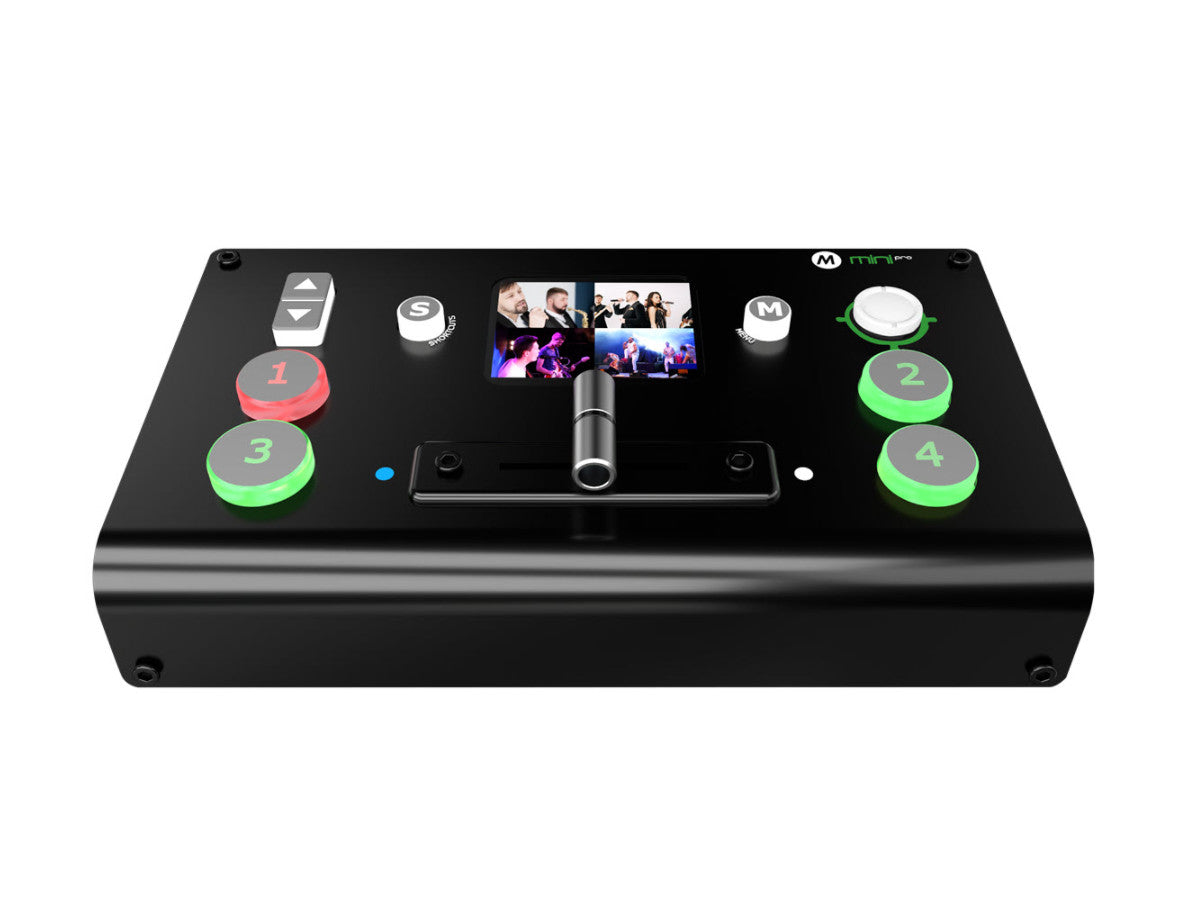

RGBLink Mini Pro - Streaming switcher
RGBLink Mini Pro - Streaming switcher
£474.00 GBP inc VAT
£474.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The dual channel video switcher mixer for the streaming generation, mini-pro features four resolution independent inputs – up to full 4K60 to take advantage of native high-performance sources, whether cameras or laptops, without compromise. While presets for PIP and PBP are provided, mini-pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers – truly unique in a streaming mixer of this size – features usually found only on larger professional video mixers.
Audio for output is selectable from embedded sources or an external source. Both Line and Mic level audio a supported on aboard with variable delay controls to bring audio into sync if needed.
In addition to HDMI and USB3.0 streaming outputs, mini-pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from mini-pro.
The exclusive integral display not only shows video preview, but is touch enabled for natural operation of features and settings. Remote control is available via free companion apps for laptops and mobile devices too.
mini-pro is packed with features including dynamic output control, preview multi-view, picture in picture, Chroma Key, video transitions, on board PTZ camera controls and more.
4K HDMI Input
â— Embedded & Insert Audio with Sync
â— USB Streaming Output
â— Record to USB
â— Joystick Camera Control
â— Assignable Preview Multi-View
â— Onboard video preview
â— Chroma Key
â— Configurable PIP video overlay
â— Broadcast style TBAR
â— Control remotely from XPOSE mini software for computers
â— Control remotely from the XPOSE mini app for mobiles & tablets
â— Support for third party apps including OBS Studio

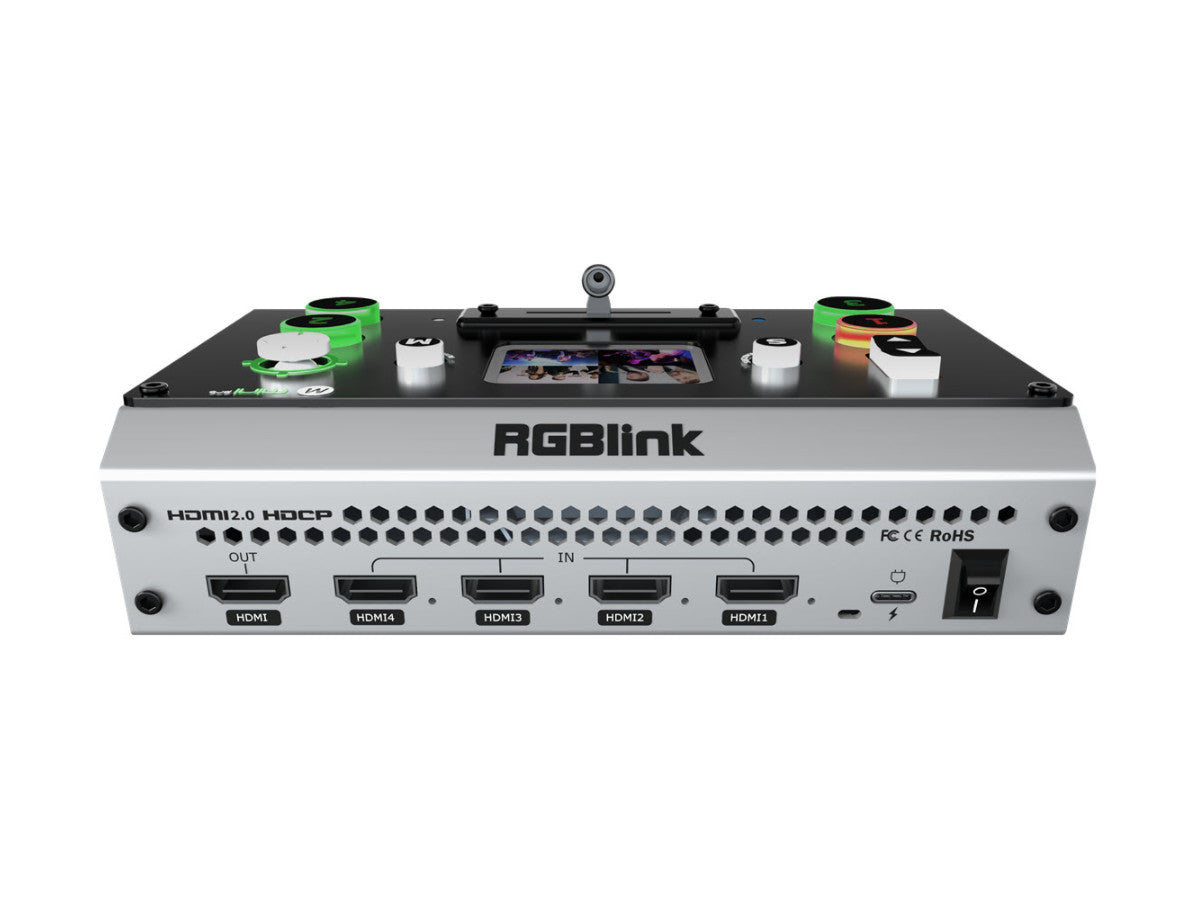

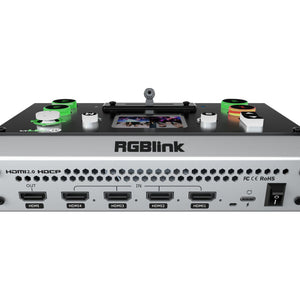

| Connections | |||||
| Video Inputs | 4 x HDMI-A | ||||
| Video Output | 1 x HDMI-A (1 x 2K) | ||||
| Streaming Output | 1 x USB-A | ||||
| Recording Output | 1 x USB-A | ||||
| Audio In | 1 x 3.5mm mini-Jack | ||||
| Audio Out | 1 x 3.5mm mini-Jack | ||||
| Communication | 1 x RJ45 | ||||
| Power | 1 x USB-C | ||||
| Platforms | |||||
| Software | RGBlink XPOSE mini Windows 10, macOS | ||||
| Mobile Apps | RGBlink XPOSE mini iOS, Android | ||||
| Firmware Updates | RGBlink XTOOL | ||||
| Power Requirements | |||||
| Power Supply | External USB-C PSU | ||||
| Max Power | 24W | ||||
| Compatibility | USB Power Delivery (PD) 3.0 | ||||
| Supported Cables | Certified USB PD Aware | ||||
| Operational Environment | |||||
| Temperature | 0° to 60° C (32° - 140° F) | ||||
| Humidity | 10-85% RH | ||||
| Physical Speciï¬cations | |||||
| Weight |
| ||||
| Dimensions |
| ||||
| Performance | |||||||||||||||
| Input Convertors | Independent on each of 4 inputs | ||||||||||||||
| Input Resync | On all 4 inputs | ||||||||||||||
| Input Resolutions | SMPTE
VESA
| ||||||||||||||
| Output Resolutions |
| ||||||||||||||
| Supported Standards |
| ||||||||||||||
| Video Sampling | 4:4:4 YUV | ||||||||||||||
| Grayscale Processing | 10but | ||||||||||||||
| Color Space | RGB | ||||||||||||||
| Colorspace Conversion | Realtime in Hardware | ||||||||||||||
| Latency | <4 frames | ||||||||||||||
| Audio In Delay | Up to 8 frames | ||||||||||||||
| Mic Plug In Power | Available | ||||||||||||||
| Analog Input | Unbalanced Stereo | ||||||||||||||
| Chroma Keys | 1 | ||||||||||||||
| Output Video Layers | 2 PGM, 2 PVW | ||||||||||||||
| Order Codes | |||||||||||||||
| 230-0003-01-0 | mini-pro | ||||||||||||||
