RGBLink 4K HDMI/USB 3.0/IP 12x PTZ Camera

RGBLink 4K HDMI/USB 3.0/IP 12x PTZ Camera

SKU: RGB-981-0011-09-0
£2,100.00 GBP ex VAT
£2,520.00 GBP inc VAT
ex VAT £2,100.00 GBP ex VAT
£2,520.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications

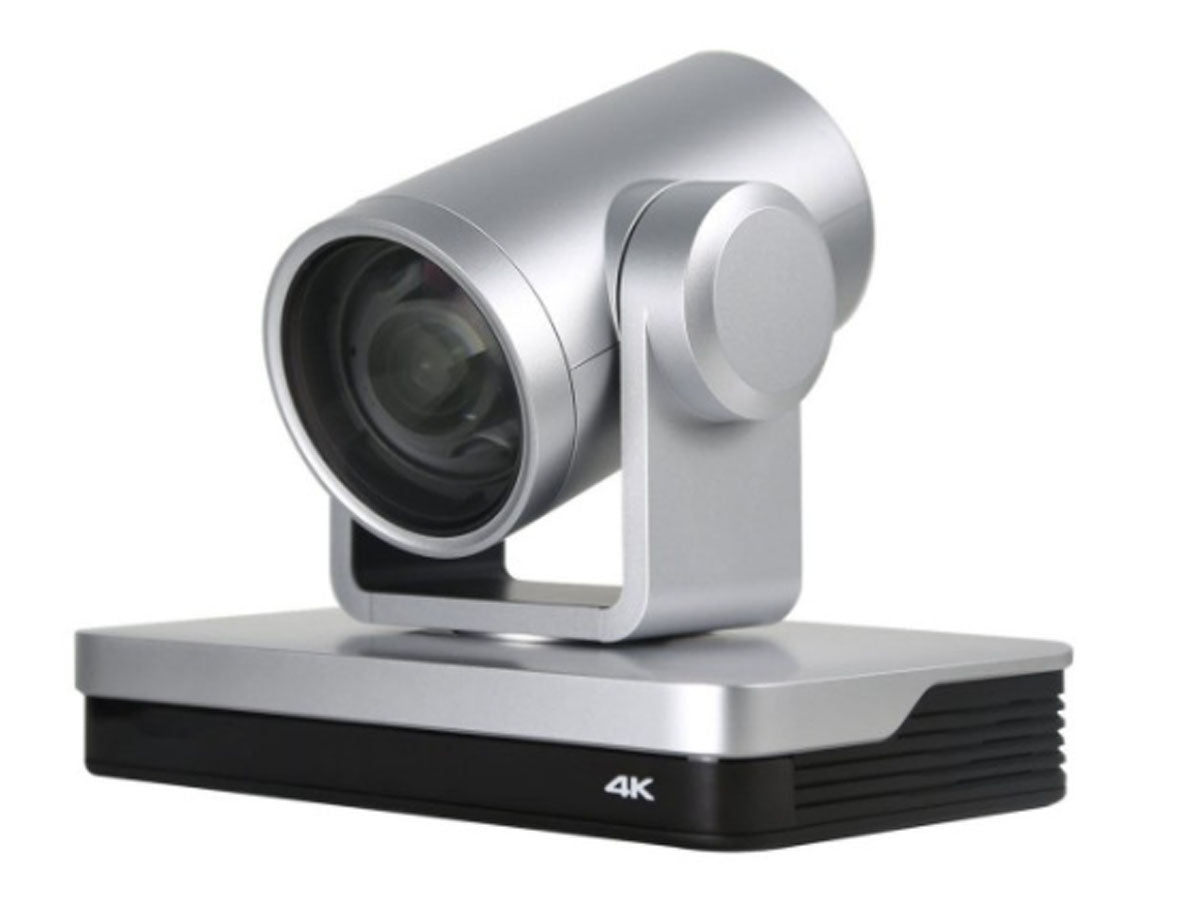

The RGBlink RGB12X-UHD-WH 4K Ultra HD PTZ Camera is a new Ultra HD 4K camera with 12X optical zoom and 80.4° wide angle lens. It has perfect functions, superior performance and rich video output interfaces. It also boasts with advanced ISP processing algorithms to offer vivid and high resolution video with a strong sense of depth and fantastic colour rendition.

It features built-in Built with SONY high quality CMOS sensor, which allows it to output 4K at 60 FPS video. It fully satisfies all scenario demand of Distance Learning, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

Camera

Output Resolutions

Communication

Movement-and-Tilt Parameter

Connectors

Power

Environment

Physical

  • Optical Zoom: 12x
  • Focus: f=3.85 mm - 43.06 mm ±5%
  • Viewing Angle Horizontal: 7.59°(tele) - 80.4°(wide)
  • Viewing Angle Tilt: 4.6°(tele) - 50.0°(wide)
  • Effective Pixels: 8.51m (16:9)
  • Aperture: f1.8 - f3.56±5%
  • Minimum Illumination: 0.5 lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White Balance: Auto, Manual, One Push, select from preset
  • Focus: Auto, Manual, One Push
  • Exposure Mode: Auto, Manual, Shutter Priority, Iris Priority, Whiteness Priority
  • Shutter Speed: 1/25 - 1/10000
  • Dynamic Range: OFF, Dynamic Level Adjustment
  • BLC: On, Off
  • Video Adjustment: Brightness, Colour, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB
  • Audio Compression Format: AAC | MP3 | G.711A
  • Video Compression Format IP: H.265 | H.265
  • Video Compression Format USB: MGPG | H.264 | YUY2 | NV12
  • HDMI, SMPTE & USB 3.0: 720p@50/60 | 1080i@25/30/50/60 | 2160p@25/30/50/60
  • YUY2 / NV12 / IP: 320×176@25/30 | 640×360@25/30 | 640×480@25/30 | 960 ×540@25/30 | 1280×720@25/30 | 1920×1080@25/30
  • MJPEG / H.264 / H.265: 320×176@25/30 | 640×360@25/30 | 640×480@25/30 | 960 ×540@25/30 | 1280×720@25/30 | 1920×1080@25/30 | 3840×2160@25/30
  • Control Protocols: VISCA | Pelco-D | Pelco-P
  • Baud Rates (bps): 115200 | 9600 | 4800 | 2400
  • Network Protocols: RTSP | RTMP | ONVIF | GB/T28181 | VISCA
  • Pan Range: -110° - +110°
  • Pan Speed: 100°/s
  • Tilt Range: -30° - +90°
  • Tilt Speed: 70°/s
  • Preset Qty: 255
  • Video(Output) HDMI: 1 x HDMI-A
  • Video(Output) USB 3.0: 1 x USB-A
  • Video(Output) Streaming LAN: 1 x RJ45
  • Audio Input: 1 x 3.5mm Stereo Jack
  • Communication Serial RS232 In/Out: 2 x DIN 8
  • Communication Serial RS422 (485): 1 x 4Pin IDC
  • Power In: 1 x HEC3800 DC Socket
  • Input Voltage: DC12V (via Plug pack supplied)
  • Max Power: 12W
  • Temperature: -10°C - 50°C
  • Humidity: 20% - 80% RH
  • Weight: 1.7 Kg
  • Dimensions: 220 x 144 x 159 mm
  • Warranty: 1 Year Manufacture
