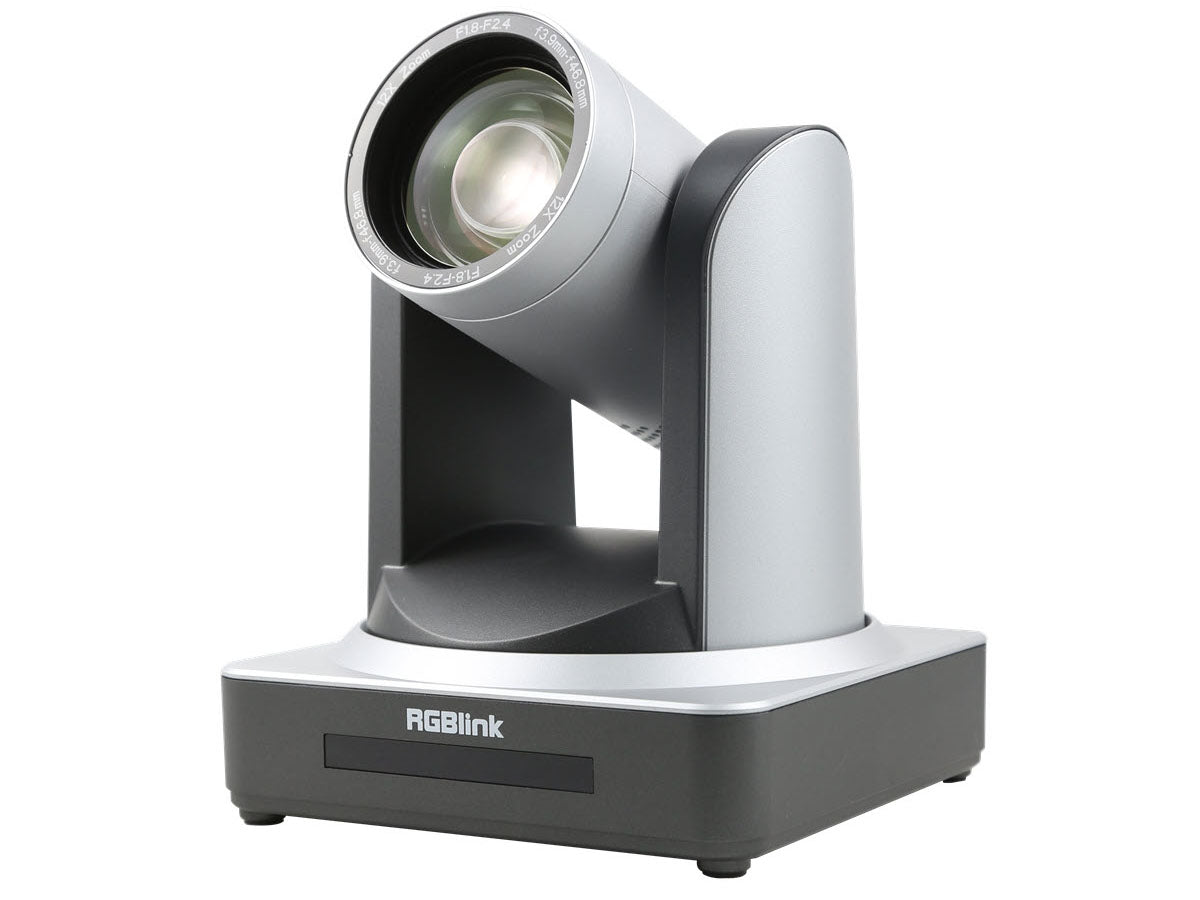

RGBLink 12x Zoom PTZ Camera
RGBLink 12x Zoom PTZ Camera
£972.00 GBP inc VAT
£972.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
Precise Head Control
With built-in high precision motor drive control, the camera can be re-positioned in under a second by 60 degrees and a zoom speed of 0.1 degree. Whether large movement or small, multi-speed movement is not only smooth and accurate, but super quiet. Automatic focussing powered with advanced algorithms enhances overall performance aiding ease of operation.
12X/20X Optical Zoom
With a choice of two models, RGBlink PTZ cameras offer embedded 2D & 3D noise reduction and ISP image processing technology. The result is clear, vivid and balance video regardless of zoom angle.
Professional PTZ Camera
Whether outputting to HDMI, SDI or IP, RGBlink PTZ cameras provide a host of onboard features and functions. Advanced ISP image processing and algorithms enhance image performance from the sensor.Full 340 degree horizontal and 120 degree vertical range along with up to wide 72.5 degree viewing angle are provided, making RGBlink cameras suitable fordemanding applications whether short throw or long.
Multi-Scene Preset
Create and store up to 255 presets with position, zoom and focus via the web interface. Assign presets to buttons for instant recall.
Web Preview
Preview video and control camera via the web-browser based interface simply by connecting on a LAN. Use any video output for monitoring.
- 72.5 degree wide-angle lens
- High performance in low light scenarios with Wide Dynamic Range
- Full 1920×1080p HD Resolutions up to 60 frames per second
- H.264/H.265
- Pan and Tilt Control
- Wide Application
- Low-power Sleep Function

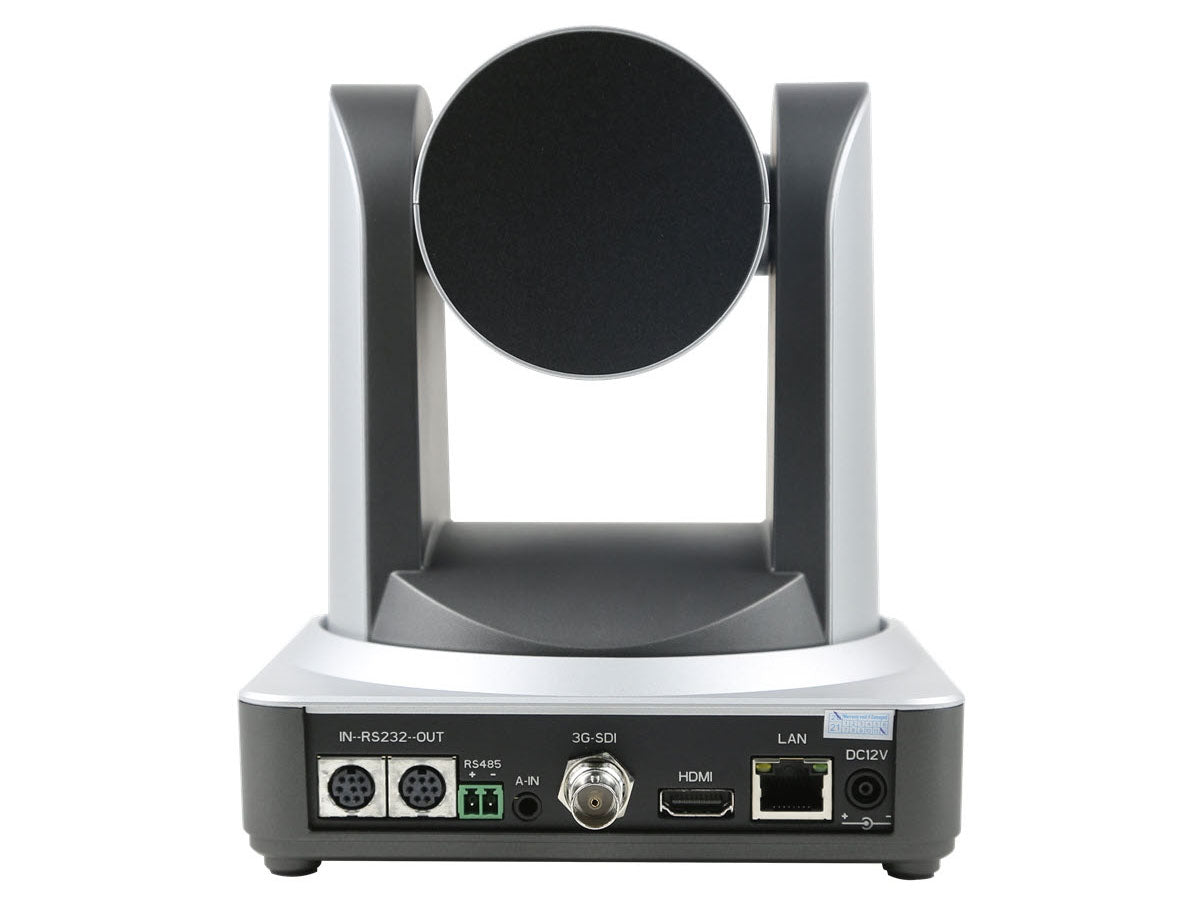

| Connectors | |
| Video(Output) | HDMI: 1 x HDMI-A SDI: 1 x BNC LAN: 1 x RJ45 |
| Audio | 1 x 3.5mm Stereo Jack Input |
| Communication | RS232: 2 x DIN 8 RS485: 1 x 2 Pin Terminal Connector Network: 1 x 100Mbps(10/100BASE-TX) |
| Power | 1 x HEC3800 DC Socket |
| Camera | |
| Optical Zoom | 12X fï¼3.9～46.8mm |
| View Angle | 6.3°ï½ž 72.5° |
| AV | F1.8 ～ F2.4 |
| Digital Zoom | 10X |
| Minimum Illumination | 0.5Lux （F1.8，AGC ON） |
| DNR | 2D & 3D DNR |
| White Balance | Auto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto/Manual |
| Aperture/Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/ Dynamic level adjustment |
| Video Adjustment | Brightness, Colour, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Effective Pixels | 2.07m,16:9 |
| Pan/Tilt Movement | -170°ï½ž+170°/'-30°ï½ž+90° |
| Pan/Tilt Control Speed | 0.1～60°/S, 0.1～30°/S |
| Preset Speed/Quantity | Pan:60°/S,Tilt:30°/S;Up to 255 preset positions(10 remote control) |
| Audio Compression Format | AAC,MP3,G.711A |
| Video Compression Format | H.264, H.265,Dual Streaming Output |
| Output Resolutions | 720p25/29.97/30/50/59.94/60 1080p25/30/29.97/30/50/59.94/60 |
| Control Protocol | VISCA, Pelco-D, Pelco-P |
| Baud Rate (bps) | 115200, 9600, 4800, 2400bps |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, Visca |
| Supported Standards | HDMI: 1.3 SDI: SMPTE 425M (Level A & B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, DVB-ASI |
| Power | |
| Input Voltage | DC12V/1.5A |
| Max Power | 12W |
| Environment | |
| Temperature | -10℃～50℃ |
| Humidity | 20%～80% |
| Physical | |
| Weight | Net 1.4kg |
| Dimension | Net 150mm×150mm×167.5mm |
