Portkeys LH5P II 5.5" 4K HDMI Touchscreen Monitor
Portkeys LH5P II 5.5" 4K HDMI Touchscreen Monitor
£442.80 GBP inc VAT
£442.80 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

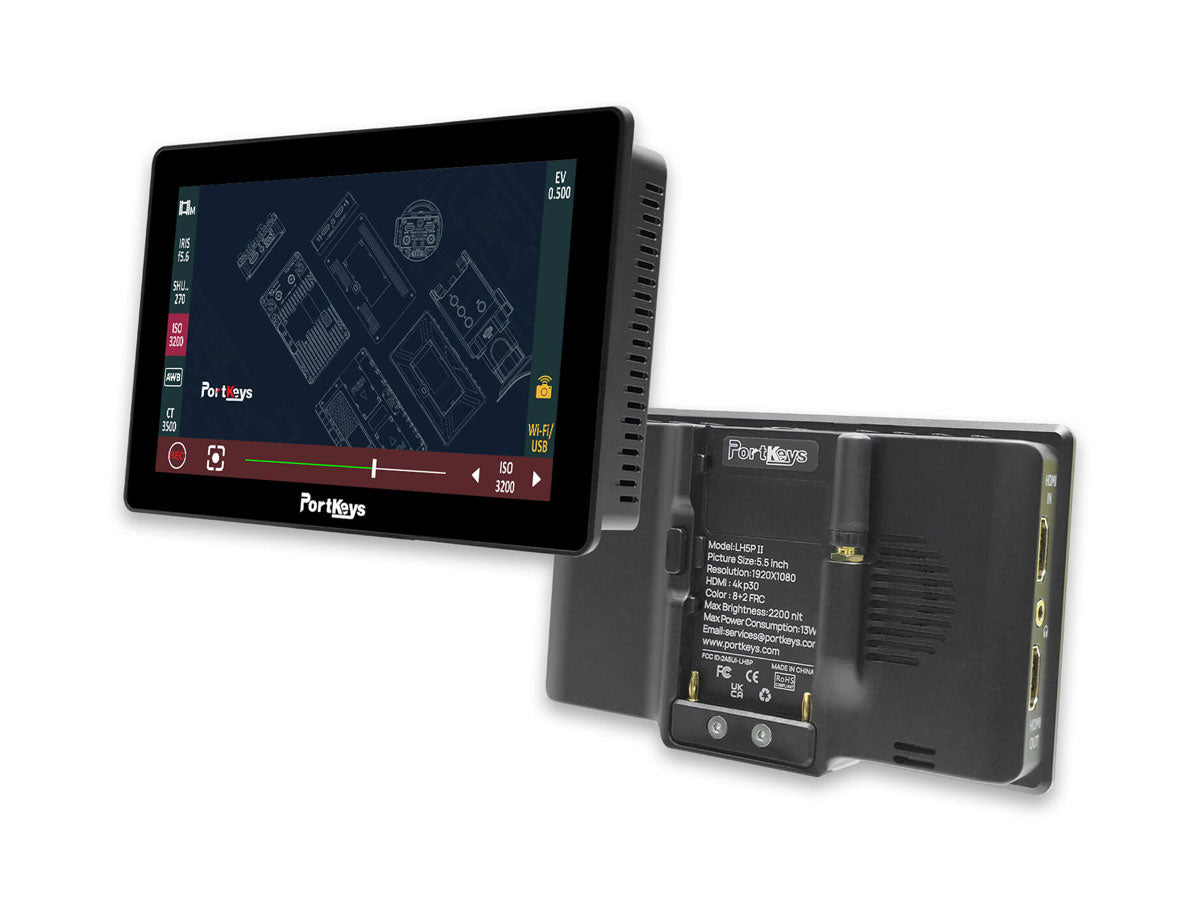

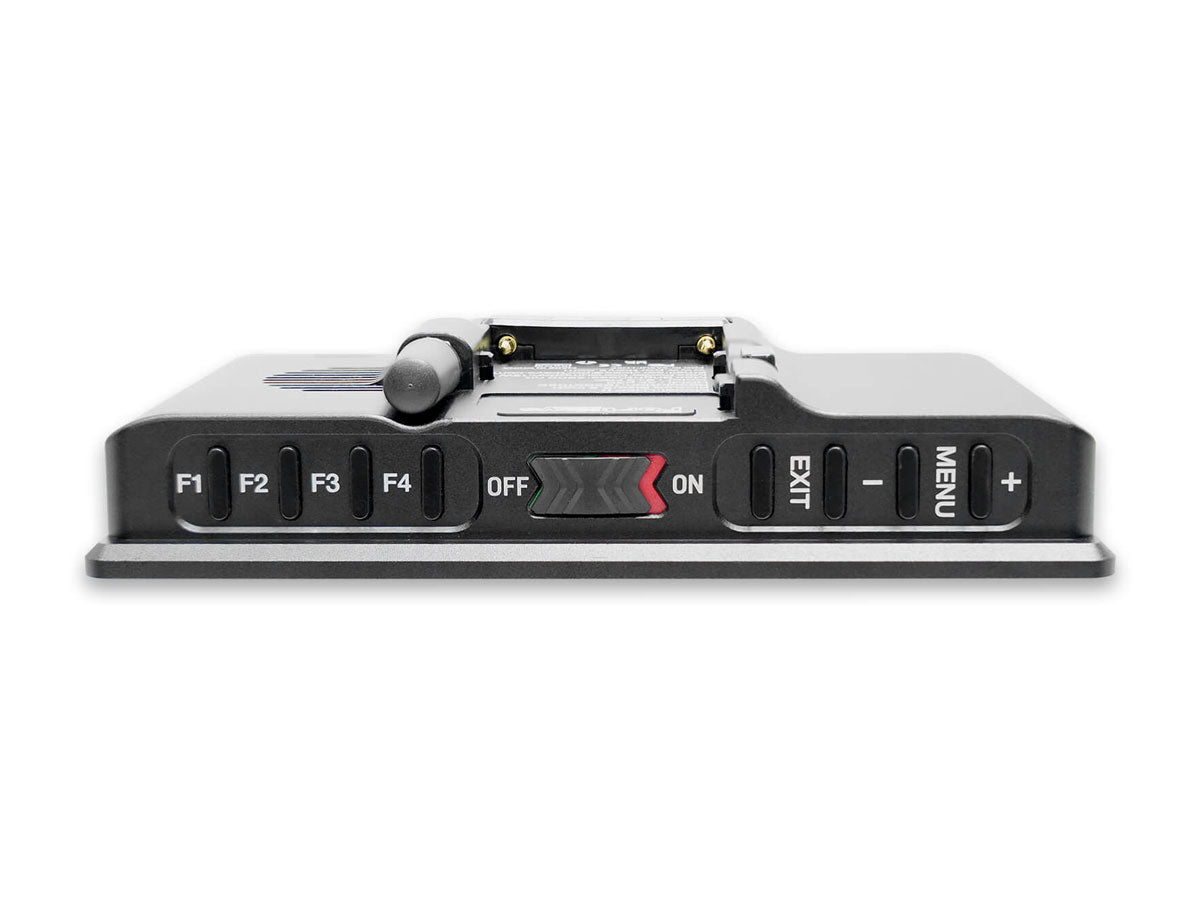

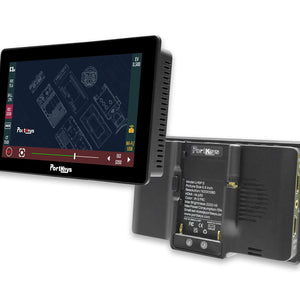

The Portkeys LH5P II is our 5.5-inch on-camera entry-level model into the world of wired and wireless camera control. However, no corners have been cut with a bulletproof all-aluminum housing and toughened glass in front of the display, a daylight-viewable touchscreen, four user-assignable function buttons that can even start/stop camera recording, and a full suite of professional monitoring tools. With a weight of only 285g/10.05oz (without battery), the LH5P II is a lightweight addition to your camera rig, but it adds many useful features to make your life on set easier.
The LH5P II has a maximum brightness of 2,200 nits, so shooting outside in full sunlight is easy. The 10-bit (8+2 FRC) panel makes color reproduction more accurate with a rich level of color details and no color banding. Also, each Portkeys LH5P II display is factory color-calibrated and covers 100% of the Rec.709 color space and 85% of the DCI-P3 color space.

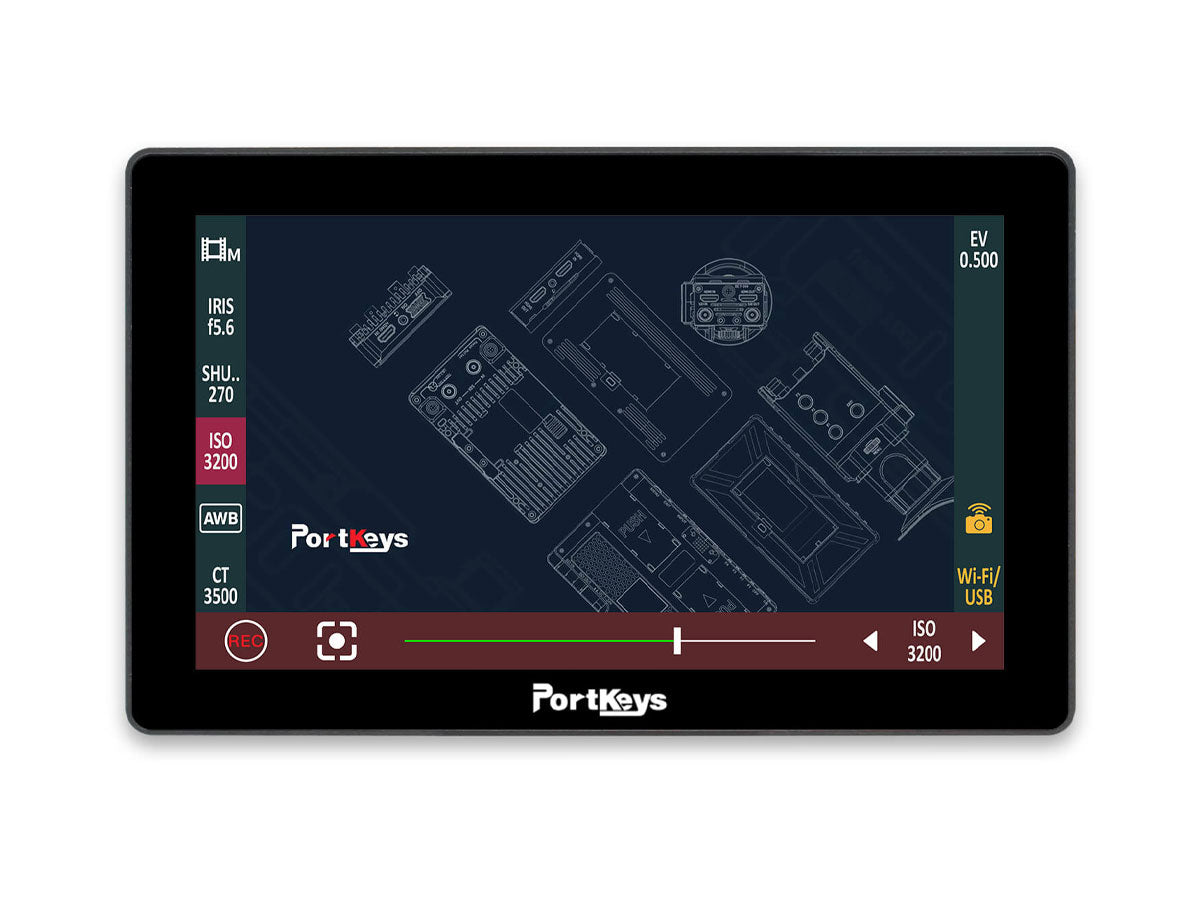

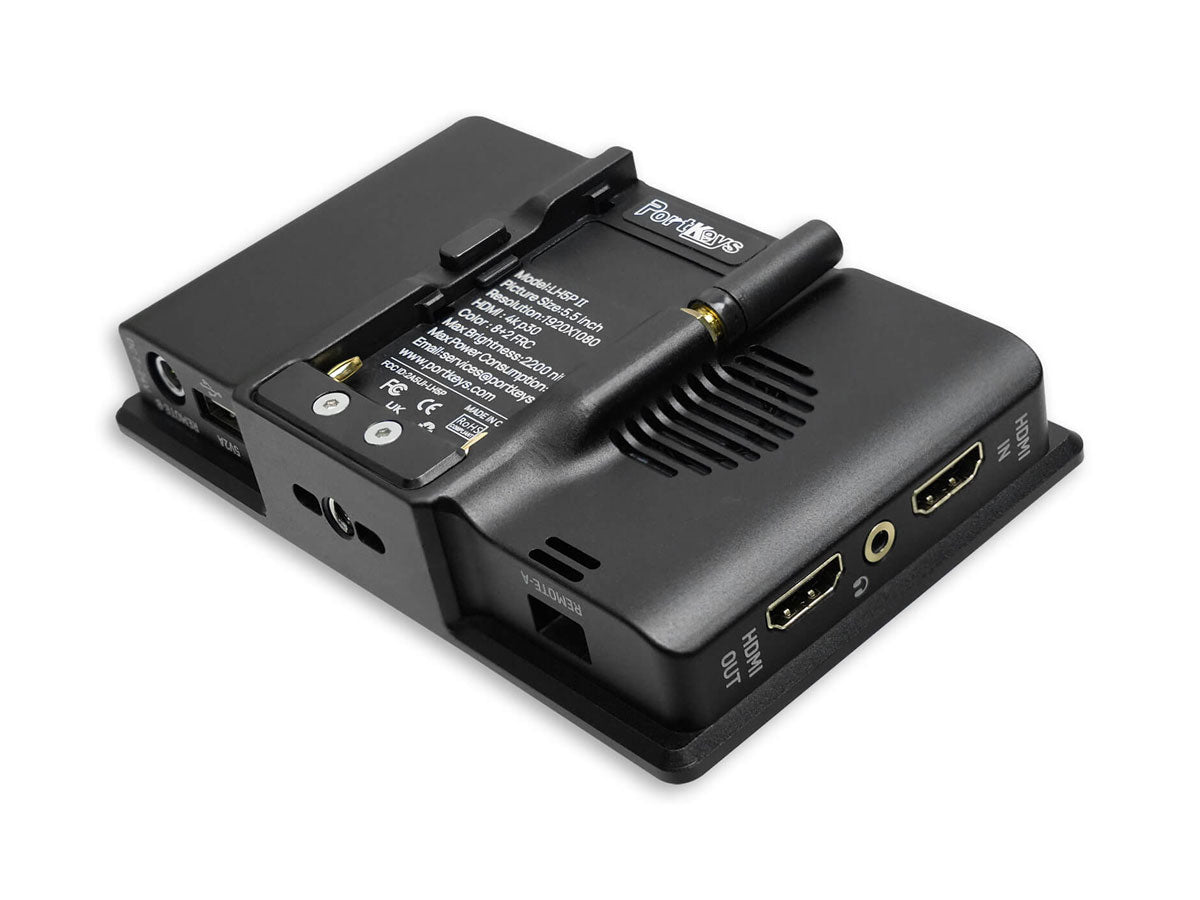

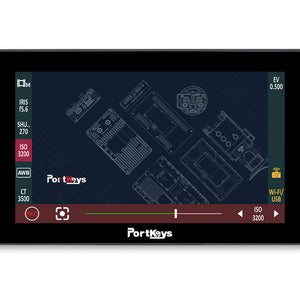

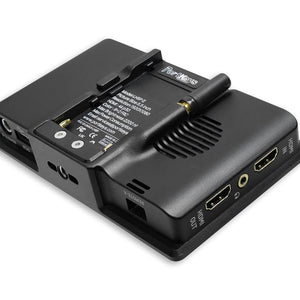

The Portkeys LH5P II features a 5.5-inch display with a FullHD 1920 x 1080 resolution, a large 178° viewing angle, and a 1000:1 contrast ratio. The monitor features one 4K HDMI input and one 4K HDMI output that can take signals up to 4K DCI at 24p, 4K UHD at 30p, or FullHD 1080p at up to 60p.

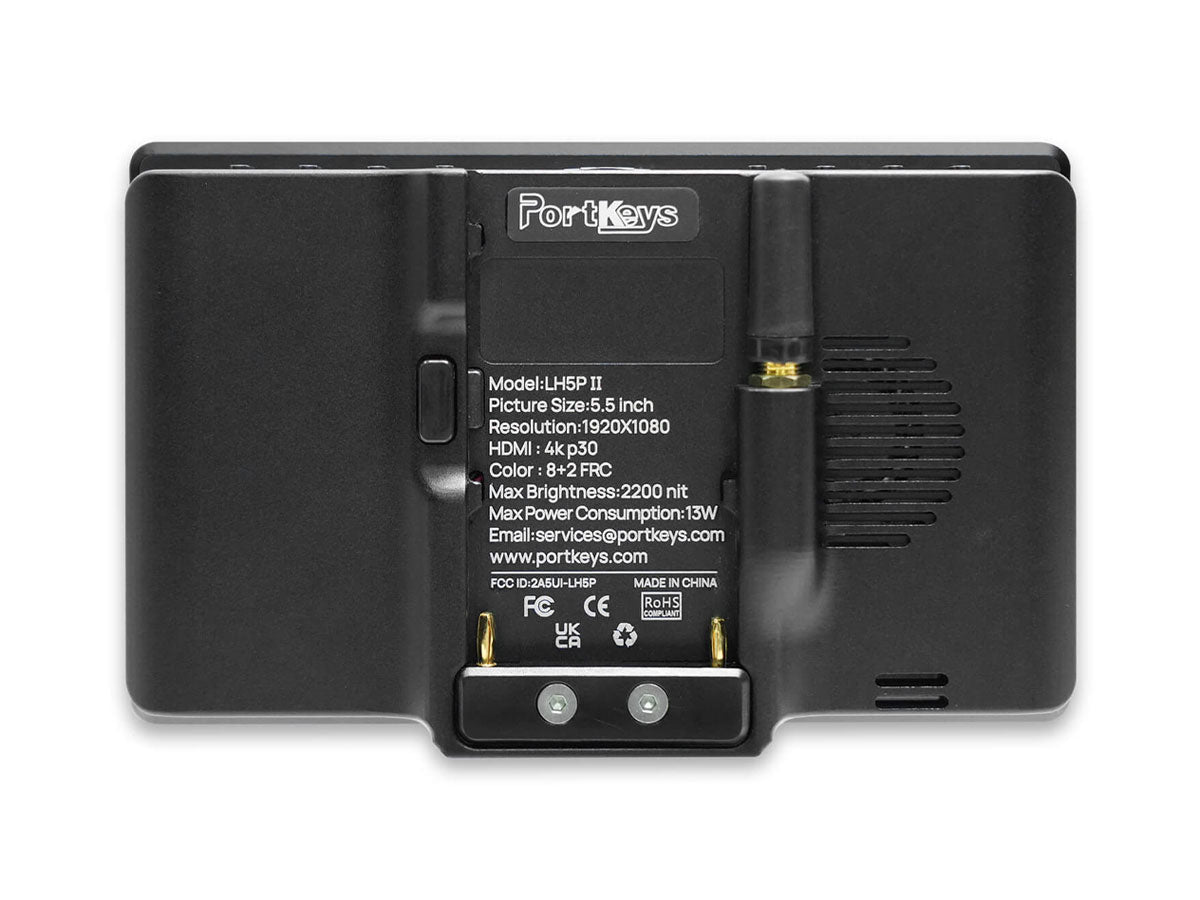

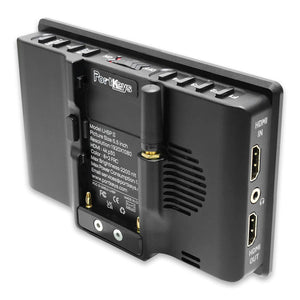

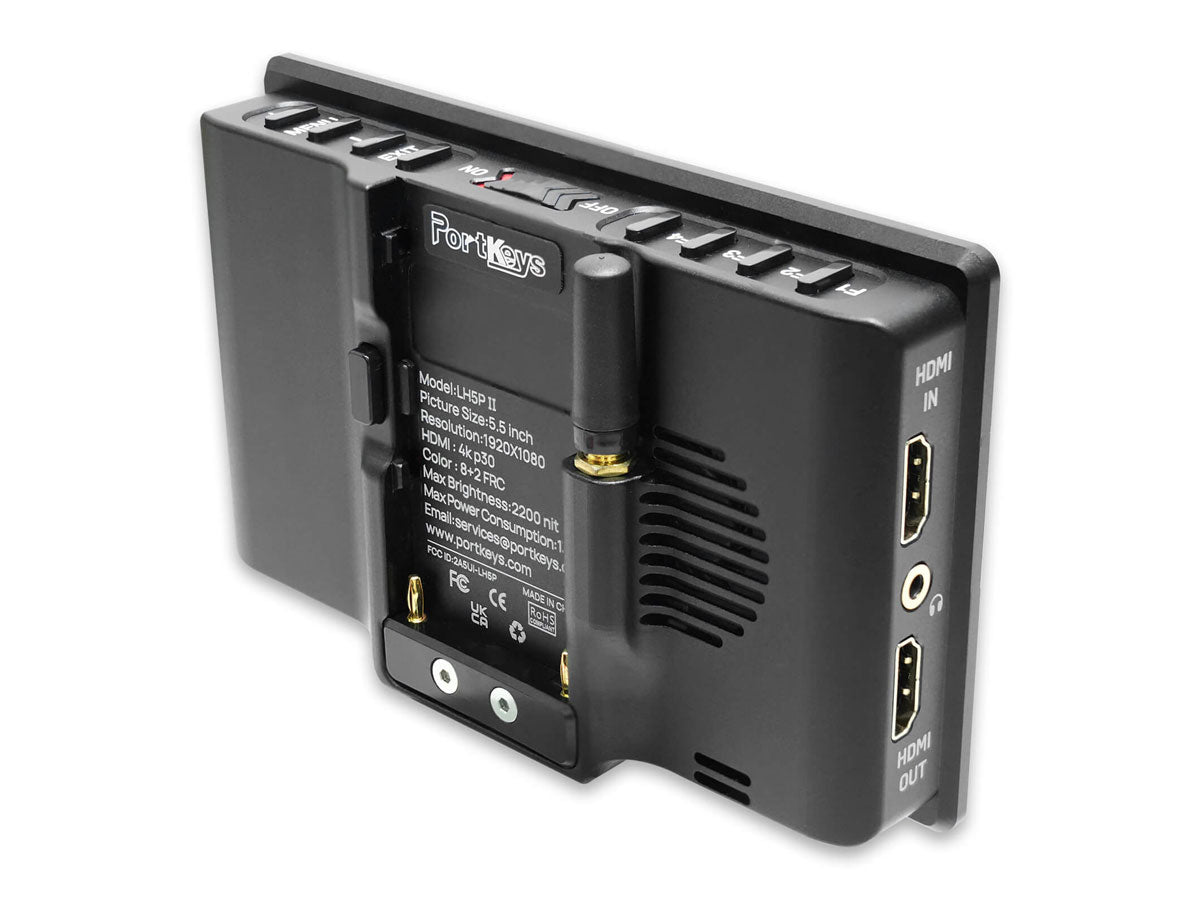

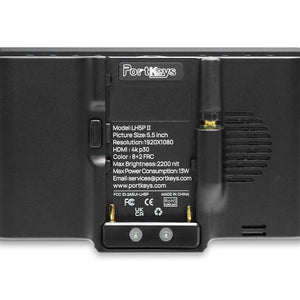

At the back of the LH5P II, you’ll find a built-in Sony NP-F-style battery plate that can power it for hours thanks to a low power draw of only 13W.

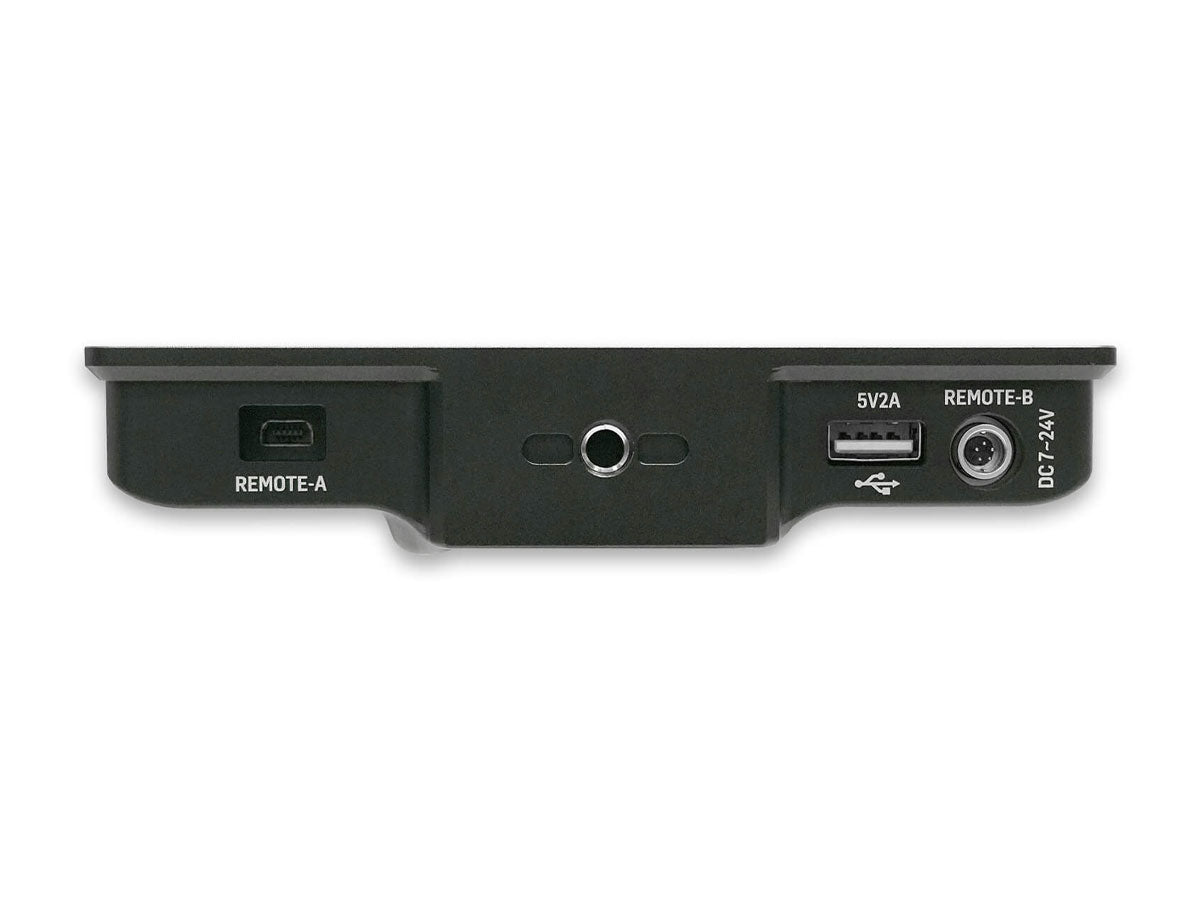

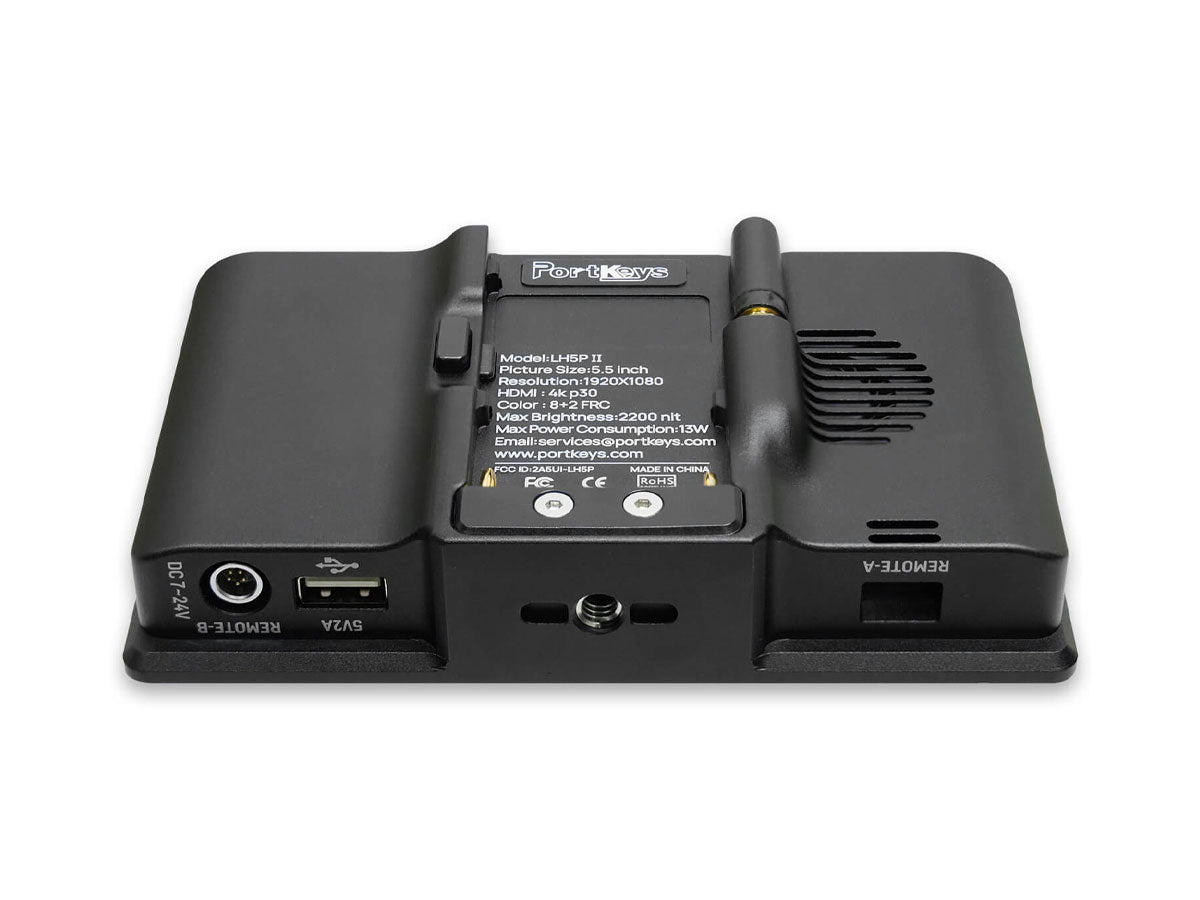

Also, the 5-pin aviation 7-24V power input at the bottom of the monitor and the included D-Tap to 5-pin aviation cable allow you to run your monitor via an external battery for unlimited time. Lastly, this 5-pin aviation power port can also be used to power small camera accessories (max. 5V 1A).
- 3D LUT monitoring. You can load custom LUTs via the USB port at the bottom of the monitor and the included USB key.
- A high-precision Waveform, Histogram, and Zebra tools. You can monitor the video signal before or after the 3D LUT.
- ARRI False Color mode and user-defined mode. When you use the user-defined mode, you can freely set the IRE values.
- A new Peaking algorithm to help you nail focus easily.
- Cropping feature to precisely zoom wherever you want inside the image.
- Framing guides, grids, aspects, and Auto image flip.
- Image Capture and Image Overlay. Image Capture takes a snapshot of the HDMI video input (combined with a LUT if desired) and saves it to the monitor’s memory. Then, you can set the transparency/opacity of the Image Overlay. This feature is helpful for shot matching (continuity) or a quick overview of the day’s shots.
- Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x.
- Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.
| Screen Size: | 5.5″ |
| Dimensions: | 144 x 90 x 30.8mm |
| Viewing Angle: | 178°H/178°V |
| Brightness: | 2200nit |
| Resolution: | 1920 x 1080 |
| Contrast Ratio: | 1000:1 |
| Weight: | 285g |
| Colour Depth: | 10bit(8+2 FRC) |
| Maximum Power: | 13W |
| Material: | Aluminum alloy + Toughened glass |
| Input Voltage: | DC 7-24V |
| Output Voltage: | 4pin Aviation Connector OUT 7.4V(NPF) |
| Video Signal Input: | 4K HDMI |
| Video Signal Output: | 4K HDMI |
| Support Battery Model: | SONY NP-F970/F960/F750/F550 |
| 5pin Aviation Power Input: | Available 7-24V power supply or NPF |
| 5pin Aviation Power Output: | Can output 5V1A voltage to power other devices |
| Audio Output: | 3.5mm Headphone Jack |
| USB-A: | Firmware Update / 3D LUT |
| Fan: | Yes |
- 1x LH5P II Monitor
- 1x Power Cord (Aviation Port to DC)
- 1x LANC Control Cable
- 1x Type-C Control Cable
- 1x Warm Prompt Card
- 1x Safety Box
- 1x U Disk
- 1x After Sales Service Card
- 2x 2.4 Straight Head Antenna
