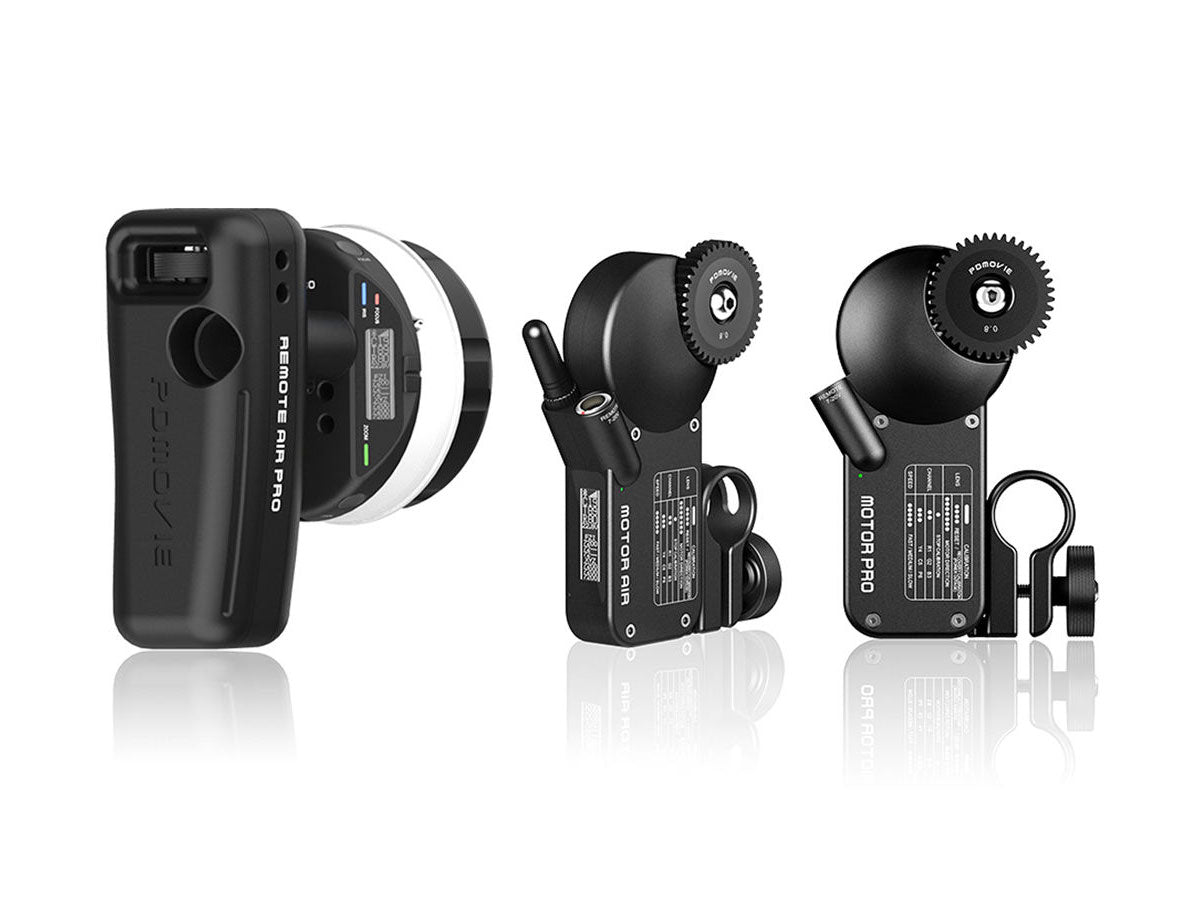

PDMOVIE Air Pro 3 Dual Channel
PDMOVIE Air Pro 3 Dual Channel
SKU:
PDL-PD4-S2
Regular price
£1,165.83 GBP ex VAT
£1,399.00 GBP inc VAT
£1,399.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,165.83 GBP ex VAT
£1,399.00 GBP inc VAT
Unit price
per
£1,399.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
REMOTE AIR PRO 3 - Triple Channel Wireless Lens Control
200-Meter Control Distance
Distance PDMOVIE have optimized the data transmission algorithm. In the case of the built-in antenna, the linear control distance can still reach 200 meters.
Triple Channel Controller
New form of controller with 75mm focus control handwheel, have two levers to control zoom and iris.
Adjust Optionally
Only need to adjust the position with a twist. Regardless of the size of the palm and the way to hold, it is still possible to find a suitable location for use.
Durable Handle
In the face of harsh working conditions, users can still finely control the equipment.
Quick Battery Replacement Super Endurance
The controller uses a replaceable 600mAh battery, supports hot plug, and a battery lasts 12 hours.
Distinct Data
The controller and receiver motor use the same data display mode, which makes the data clearer at a glance.
Click, Press All In OneButton
By clicking or pressing different times, can quickly set the signal channel, control channel, motor speed and remtoe recording.
Wireless Wired Two-in-One
REMOTE AlR PRO 3 can be wireless or remote. In the case of very strong signal interference, the controller is connected with the 6-pin socket on the motor by the serial line, can transfer to the wired control.
Remote Air App
Controller and receiver motor have built-in bluetooth module, support the 10S APP to control the lens, mark the lens data and set the lens to run automatically. (Android is under development.)
| CONTROLLER | ||
| Weight: | 262g | |
| Dimensions: | 8 x 8 x 4.95cm | |
| Battery Capacity: | 600mAh | |
| Battery Voltage: | 3.7V | |
| Charging Voltage: | 5V IN | |
| RECEIVE / MASTER MOTOR | ||
| Weight: | 196.5g | |
| Dimensions: | 10.8 x 4.8 x 2.3cm | |
| Torque: | Max0.5Nm | |
| Working Voltage: | 7-20V | |
| Gear: | Module: 0.8 | Teeth: 40 |
| Module: 0.6 | Teeth: 60 | |
| Module: 0.5 | Teeth: 72 | |
| Module: 0.4 | Teeth: 90 | |
| Noise: | <28 dB | |
| WIRELESS LAN | ||
| Wireless Lan: | 2.4G Digital Wireless Full duplex transmission mode Bluetooth 4.2 wireless technology | |
| TRANSMISSION DISTANCE | ||
| Transmission Distance: | 100m signal transmission distance | |
| BATTERY | ||
| Battery: | 30+ hours service time Instant start within standby time of 30 days More than 1000 times circulation of full charge and discharge USB portable charging | |
| MEMORY FUNCTION | ||
| Memory Function: | One-key stroke memory function can record strokes of different lens Manually set the (AB point) Employing digital limitation function can guarantee the safety of the lens | |
- 1x Controller
- 1x Receiver Motor
- 3x Li42B Battery
- 1x LI42B Battery Charger
- 1x D-Tap Power Cable
- 1x USB 6Pin Charging Cable
- 1x Micro USB Charging Cable
- 2x 15/19mm Adapter Ring
- 4x Marking Disk
- 1x Short Antenna
- 1x Long Antenna
- 1x Lanyard
- 4x 1/4 Screws
- 2x Hex Spanners
- 1x Hard Case
- 1x Slave Motor
- 1x Slave Motor Cable
