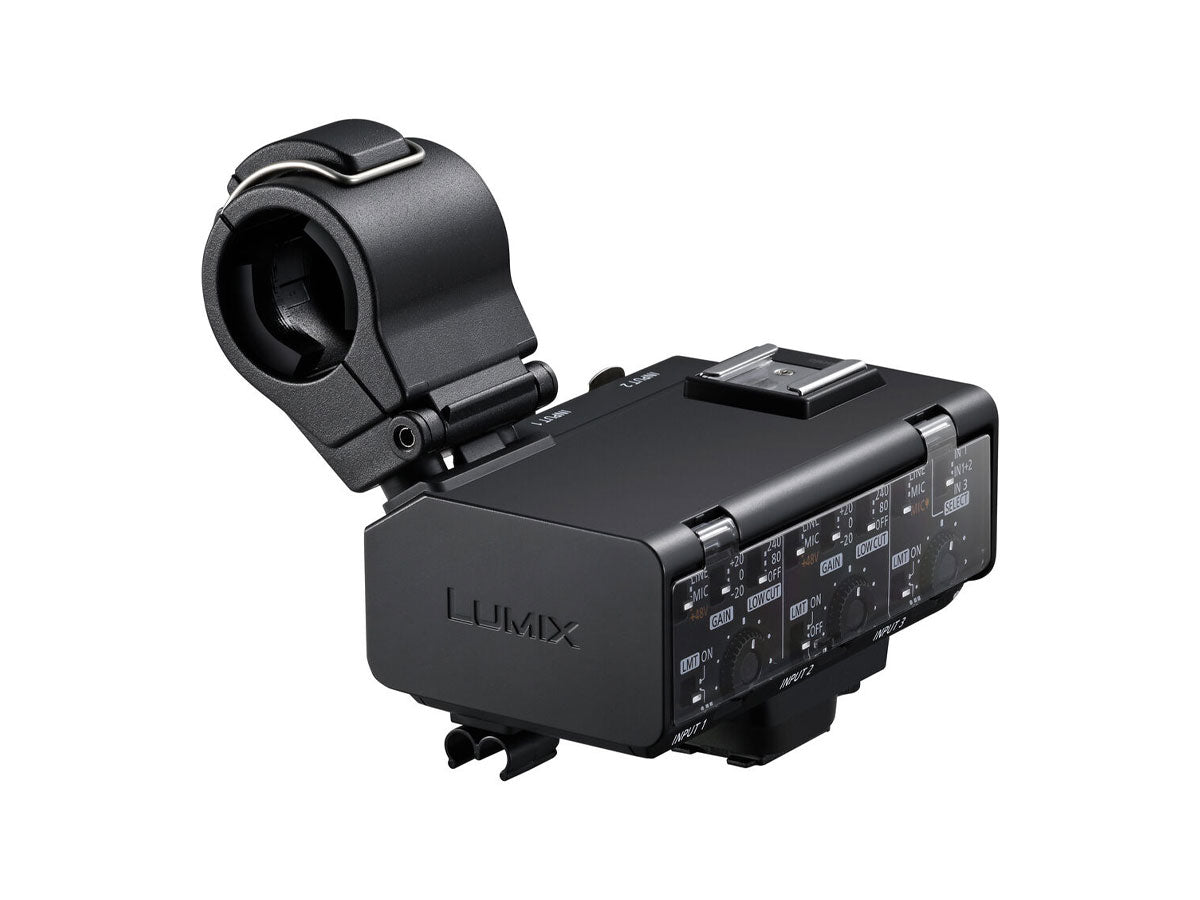

Panasonic XLR Microphone Adapter

Panasonic XLR Microphone Adapter

SKU: PAN-DMW-XLR2E
£349.00 GBP ex VAT
£418.80 GBP inc VAT
ex VAT £349.00 GBP ex VAT
£418.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

LUMIX XLR microphone adaptor allows the camera* to deliver 32-bit float recording, improving the quality and efficiency of the entire workflow. With its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds. As a result, there is no need for tedious sound level adjustments during audio recording. Video and music can be managed in a single file, making post-production much more efficient.

  • Enables 32-bit Float Recording
  • LUMIX XLR microphone adaptor allows the camera* to deliver 32-bit float recording, improving the quality and efficiency of the entire workflow
  • There is no need for tedious sound level adjustments during audio recording.
  • Video and music can be managed in a single file, making post-production much more efficient.
  • *Compatible model as of June 2024: LUMIX GH7 (DC-GH7)
INPUT 1 / INPUT 2
Input Terminal: XLR 3-pin (female)
Standard Input Level: LINE: 0 dBu
MIC, +48V: -40 dBu
(0 dBu=0.775 Vrms)
Standard Recording Level: -12 dBFS (at the standard input)
Frequency Characteristic: 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
Phantom Power Source: 48V
INPUT 3
Input Terminal: φ3.5mm stereo mini jack
Standard Input Level: LINE: -10 dBV
MIC, MIC (plug-in power): -40 dBV
(0 dBV=1 Vrms)
Standard Recording Level: -12 dBFS (at the standard input)
Frequency Characteristic: 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
Plug-In Power: 2.5V
SAMPLING FREQUENCY BIT LENGTH / NUMBER OF RECORDING CHANNELS
Linear Recording: 48kHz/24-bit/2ch, 96kHz/24-bit/2ch
(Select one of INPUT1, INPUT1+2, or INPUT3)
48kHz/24-bit/4ch
Float Recording: 48kHz/32-bit/2ch, 96kHz/32-bit/2ch
(Select one of INPUT1, INPUT1+2, or INPUT3)
48kHz/32-bit/4ch
PHYSICAL
Dimensions: Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch (without microphone holder)
Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder)
(excluding the projecting parts)
Weight: Approx. 158 g / 0.35 lb (without microphone holder)
Approx. 192 g / 0.43 lb (with microphone holder)
Operating Temperature: -10℃ to 40℃ (14℉ to 104℉)
Operating Humidity: 10 - 80 %RH
  • 1x XLR Microphone Adapter
  • 1x Cable Holder
  • 1x Microphone Holder
  • 1x Pouch
