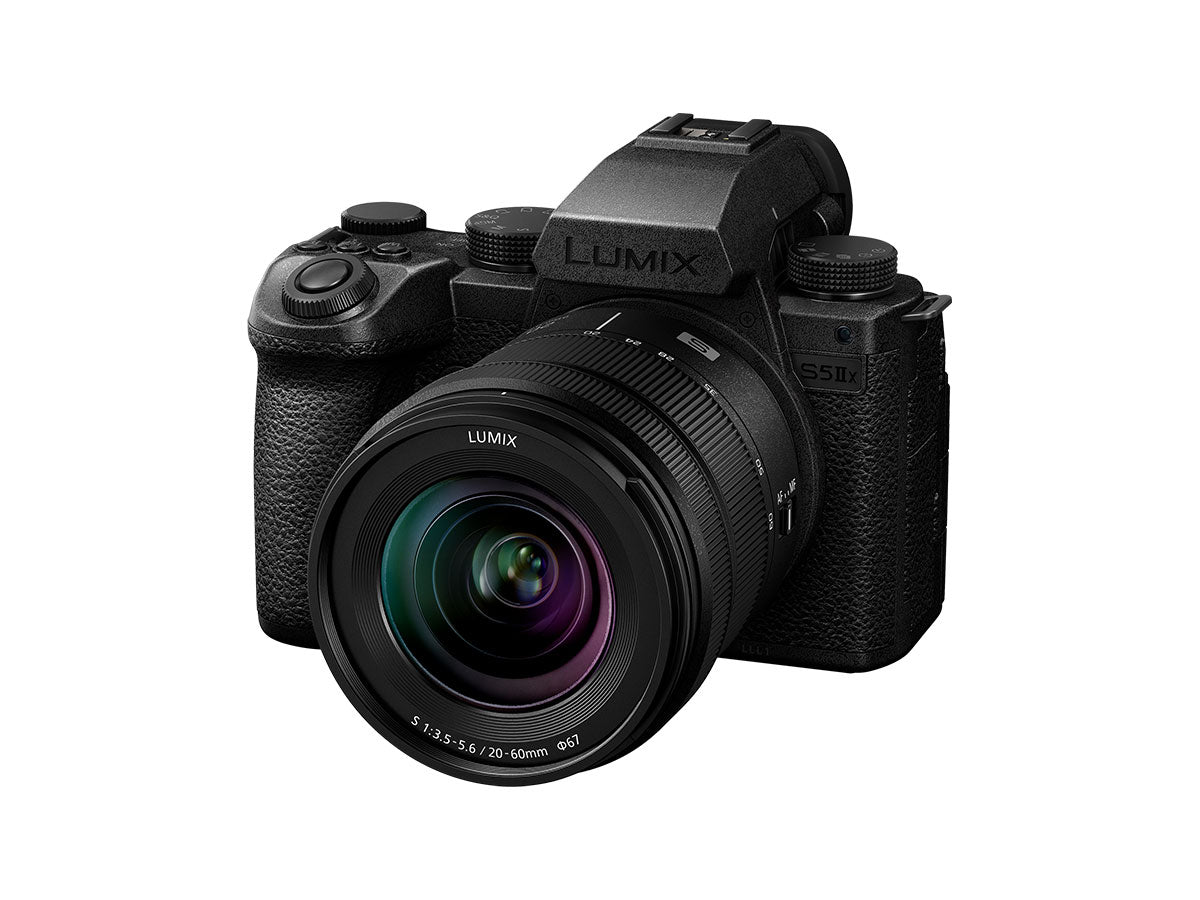

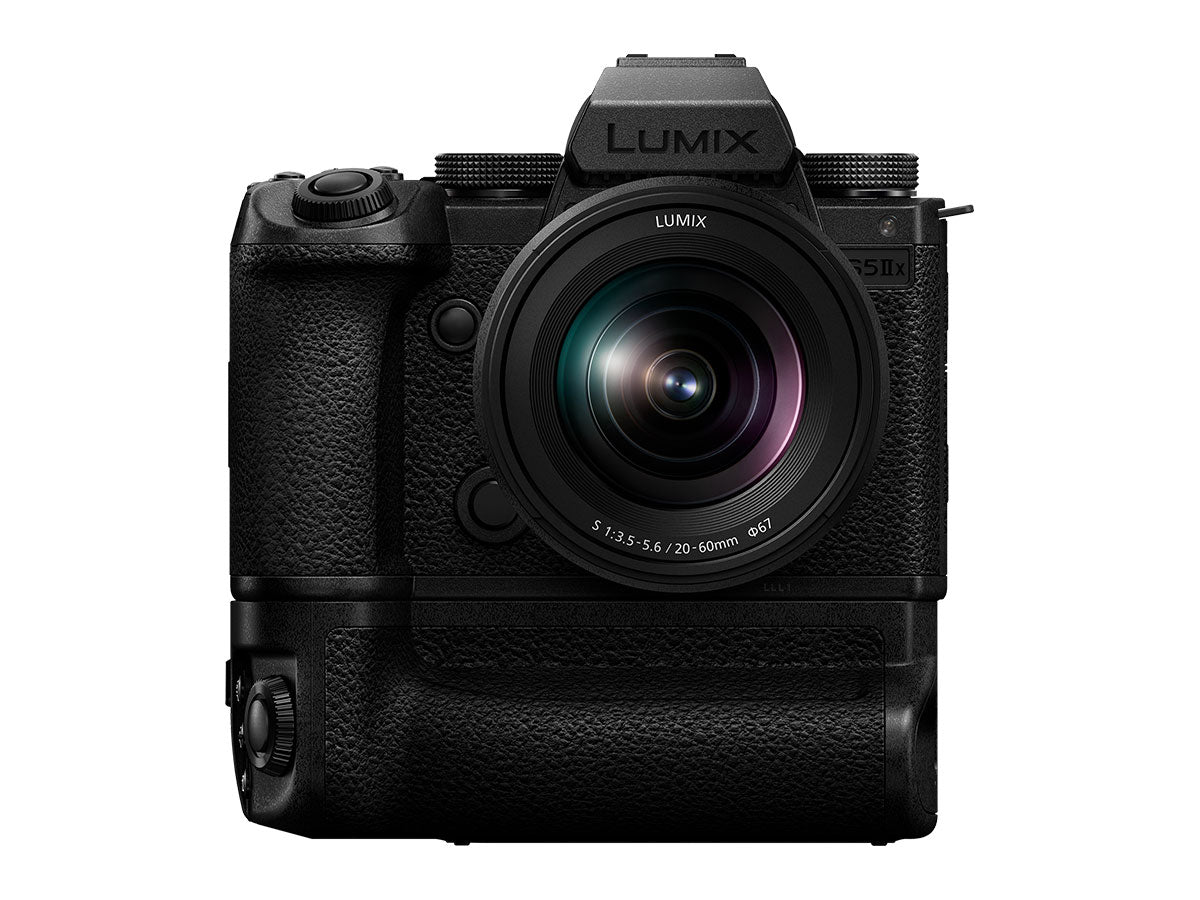

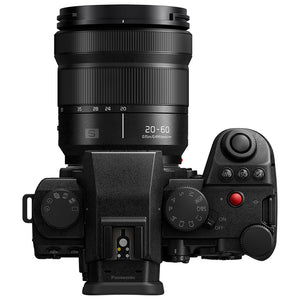

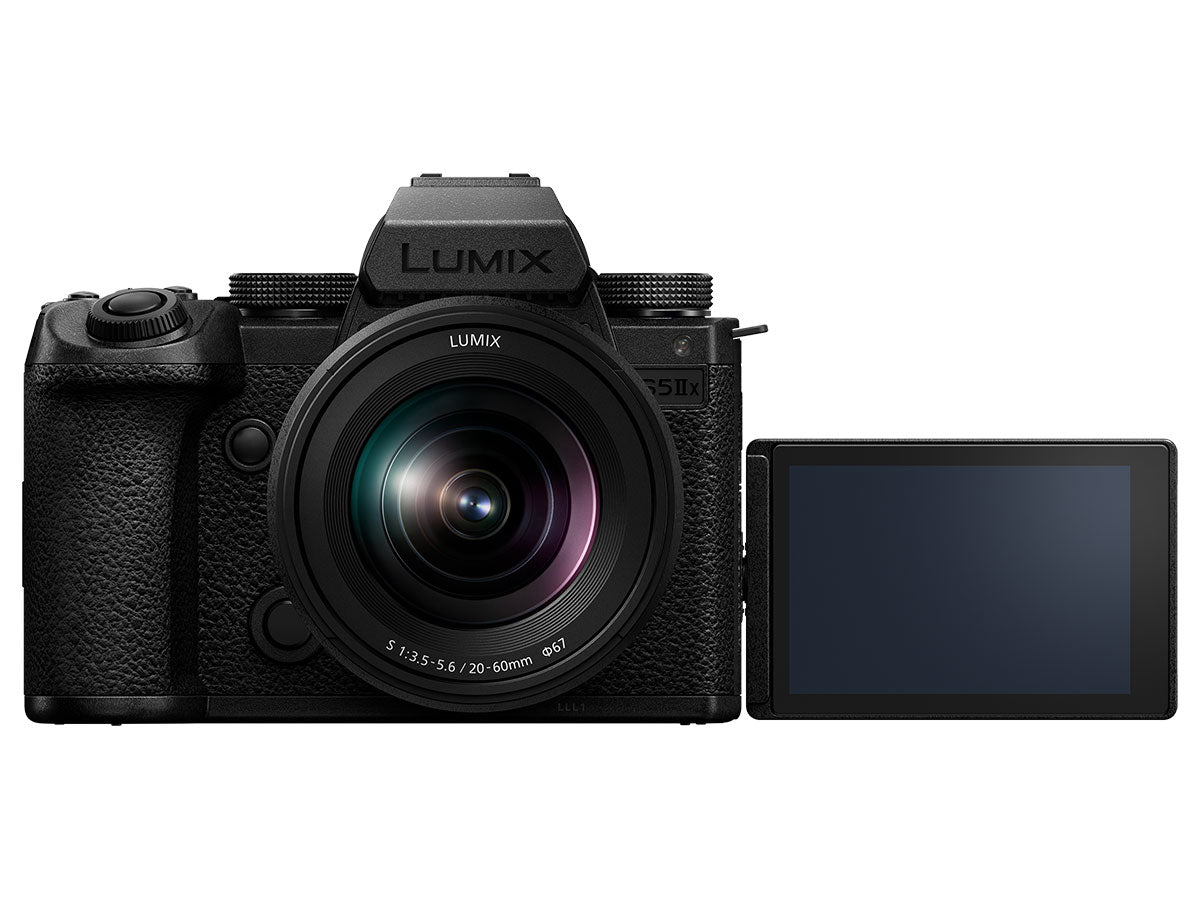

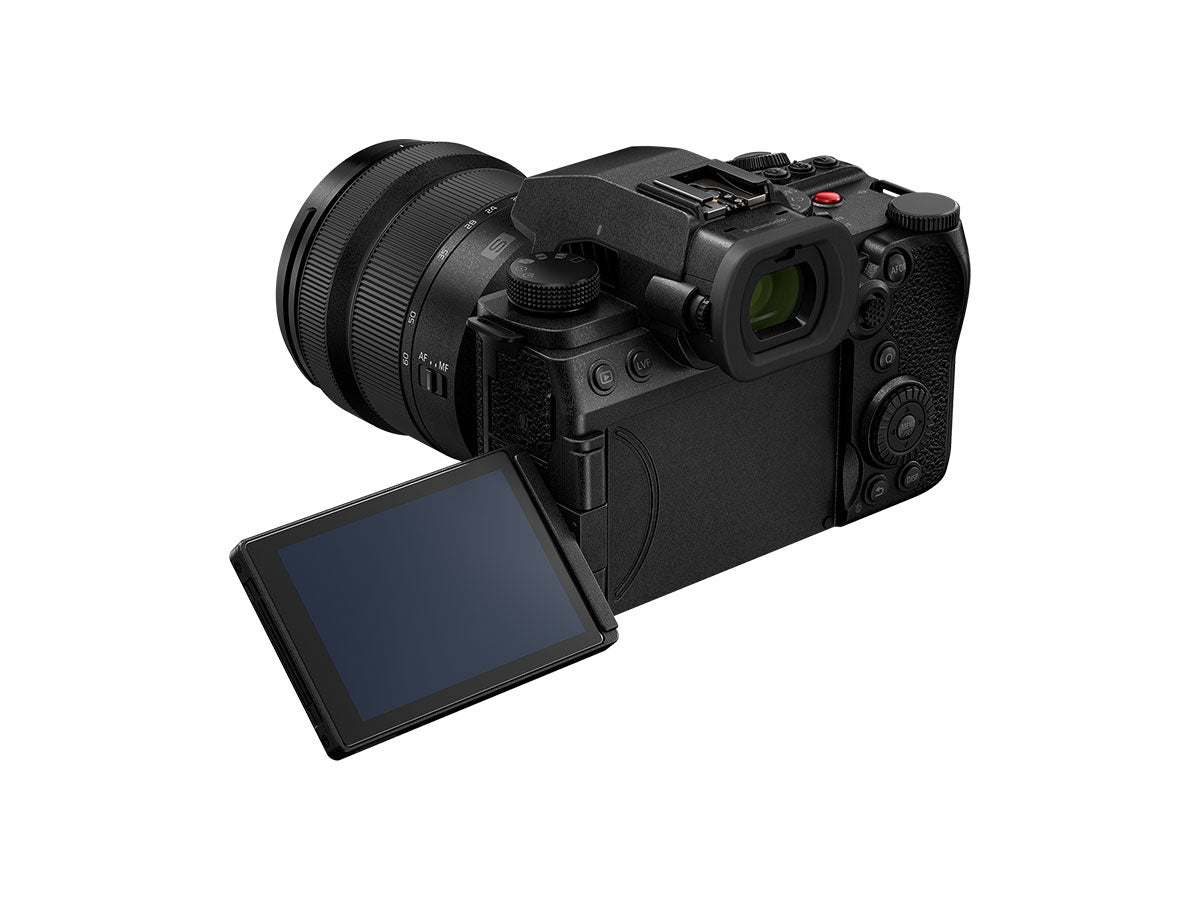

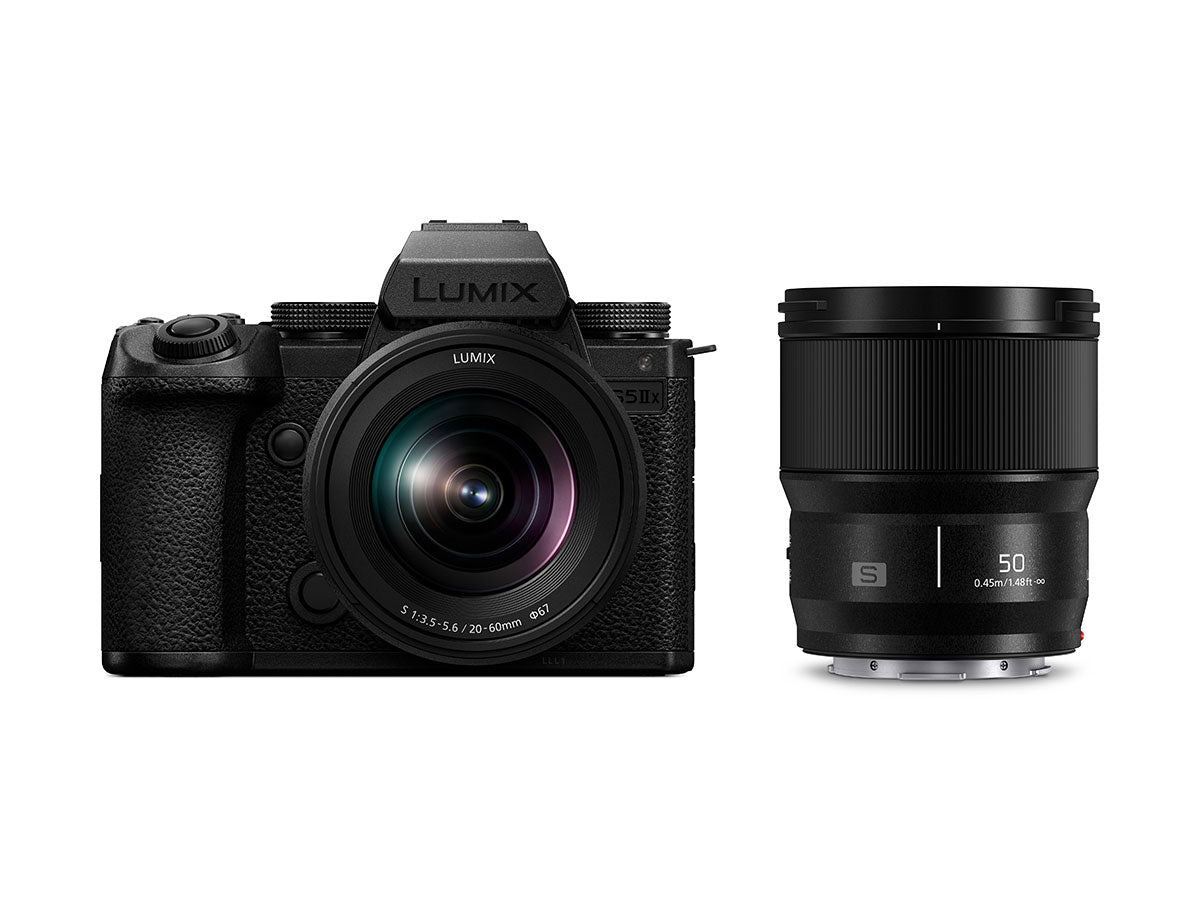

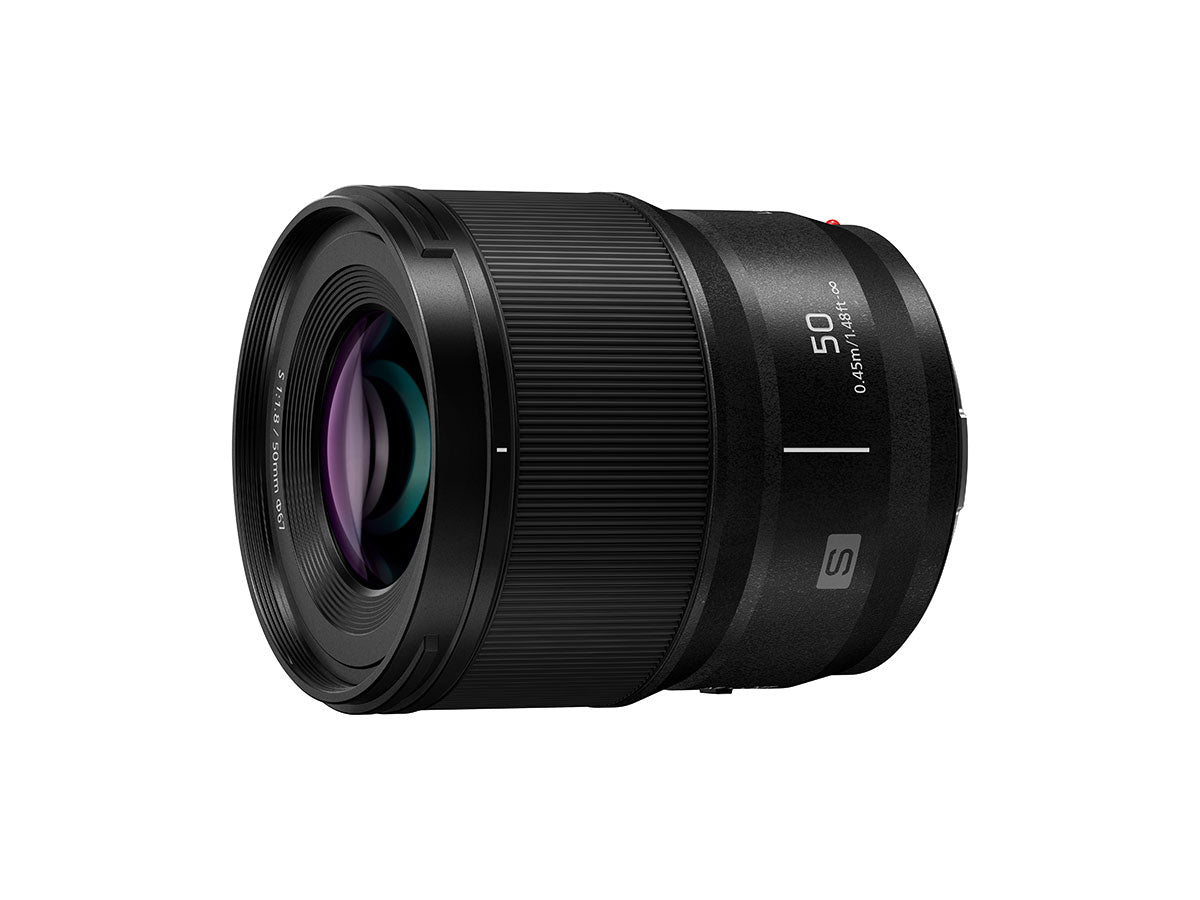

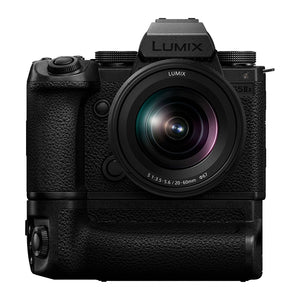

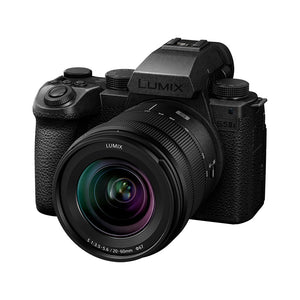

Panasonic LUMIX S5iiX (with Lumix S 20-60mm and 50mm)"
Panasonic LUMIX S5iiX (with Lumix S 20-60mm and 50mm)"
SKU:
PAN-DC-S5M2XWE
Regular price
£1,915.83 GBP ex VAT
£2,299.00 GBP inc VAT
£2,299.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,915.83 GBP ex VAT
£2,299.00 GBP inc VAT
Unit price
per
£2,299.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
Under the design philosophy "Shaping Emotions", LUMIX S5IIX was built with an exceptional matte black design like no other.
LUMIX DESIGN aspires to create tools that respond to the passion of the creator. Form and function give shape to the heart’s emotions; every part feels right and precisely where it needs to be. Hands sure of what to do enable eyes to stay fixed on the subject. In forming the ideal tool, our aim is to create a camera you can use instinctively with precision control for maximum shooting pleasure.
LUMIX Design philosophy: shaping emotions
The new all-black design of the LUMIX S5IIX is made to encourage the creator to becomes immersed in capturing the subject, oblivious to the tools in use. It’s designed to harmonize with the shooting environment and prevent reflections on the iris or recording media supporting artistic creativity.
A higher grade of visual expression
With the LUMIX S5IIX, recording and playback is supported using an external SSD via USB. In addition, the ability to record ProRes 422 HQ (maximum 1.9Gbps) and 4:2:2 10-bit All-Intra directly to SSDs, which combine portability and high capacity has improved efficiency in data backup and post-processing.
With the LUMIX S5IIX, recording and playback is supported using an external SSD via USB. In addition, the ability to record ProRes 422 HQ (maximum 1.9Gbps) and 4:2:2 10-bit All-Intra directly to SSDs, which combine portability and high capacity has improved efficiency in data backup and post-processing.
Go live anytime, anywhere
Choose your favorite streaming approach to share your latest in real time! For outdoor use, wireless live streaming (RTMP/RTMPS) is easy to set up with the LUMIX Sync app. For indoor use, highly stable wired live streaming (RTP/RTSP) is also available.
Phase Hybrid AF for aggressive shooting
The most important thing in autofocus is to be dependable. The new Phase Hybrid AF delivers speed and accuracy to help you capture the target subject even in the most challenging scenes where multiple subjects are involved, and even in backlit or low-light environments.
The most important thing in autofocus is to be dependable. The new Phase Hybrid AF delivers speed and accuracy to help you capture the target subject even in the most challenging scenes where multiple subjects are involved, and even in backlit or low-light environments.
Great for shooting as you walk: Active I.S. Technology
New Active I.S. lets you walk and shoot at the same time. By determining the status of camera shake and optimizing correction ratios, Active I.S. can compensate for even significant camera shake, approximately 200%* more than conventional systems.
*Compared with LUMIX S5. Focal length 20mm, when using S-R2060.
New Active I.S. lets you walk and shoot at the same time. By determining the status of camera shake and optimizing correction ratios, Active I.S. can compensate for even significant camera shake, approximately 200%* more than conventional systems.
*Compared with LUMIX S5. Focal length 20mm, when using S-R2060.
Heat management for unlimited recording time
4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5IIX’s new optimized heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video).
*The camera may stop recording when used in a temperature that is lower or higher than the recommended operating temperature (0 to 40 degrees). Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5IIX’s new optimized heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video).
*The camera may stop recording when used in a temperature that is lower or higher than the recommended operating temperature (0 to 40 degrees). Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
The LUMIX commitment to superior image quality
The new engine delivers more true-to-life colors, finer resolution, and a natural three-dimensional effect, and combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas.
The new engine delivers more true-to-life colors, finer resolution, and a natural three-dimensional effect, and combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas.
Easy color grading with REAL TIME LUT
LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialized editing skills, the camera helps you expand your range of expression as much as you want.
LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialized editing skills, the camera helps you expand your range of expression as much as you want.
- Digital Single Lens Mirrorless camera
- Lens mount: L-Mount
- Type: 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
- Camera effective pixels / Total pixels: 24.20 megapixels / 25.28 megapixels
- AR (Anti Reflection) coating: Yes
- Aspect ratio / Color filter: 3:2 / Primary color filter
- Dust reduction system: Image sensor shift type
| TYPE | ||
| Type: | Digital Single Lens Mirrorless camera | |
| Lens Mount: | L-Mount | |
| IMAGE SENSOR | ||
| Type: | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor | |
| Camera Effective Pixels / Total Pixels: | 24.20 megapixels / 25.28 megapixels | |
| Anti-Reflection Coating: | Yes | |
| Aspect Ratio / Colour Filter: | 3:2 / Primary color filter | |
| Dust Reduction System: | Image sensor shift type | |
| LATITUDE | ||
| Latitude: | 14+ stops (V-Log) | |
| STILL IMAGE | ||
| Recording File Format: | JPEG (DCF, Exif 2.31), RAW | |
| Aspect Ratio: | 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 | |
| File Size (Pixels) When Using Full-Frame Lenses: | 3:2 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode. 4:3 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode. 16:9 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode. 1:1 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode. 65:24 6000x2208(L) 2:1 6000x3000(L) | |
| File Size (Pixels) When Using APS-C / Super 35mm Lenses: | 3:2 3984x2656(L) / 2880x1920(M) / 2064x1376(S) 4:3 3536x2656(L) / 2560x1920(M) / 1840x1376(S) 16:9 3984x2240(L) / 2880x1624(M) / 1920x1080(S) 1:1 2656x2656(L) / 1920x1920(M) / 1376x1376(S) | |
| Image Quality: | RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine) | |
| Colour Space: | sRGB, AdobeRGB | |
| MOTION PICTURE | ||
| Recording File Format: | MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes MP4: H.264/MPEG-4 AVC, H.265/HEVC | |
| Audio Format: | MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) MP4: AAC (2ch 48kHz/16-bit) *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately). | |
| System Frequency: | 59.94Hz / 50.00Hz / 24.00Hz | |
| Image Area of Video: | Full / APS-C / PIXEL/PIXEL | |
| MOV / 59.94Hz / FULL: | [6K] 5952x3968 (3:2) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [6K] 5952x3136 (17:9) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888x3312 (16:9) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920x1080 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| MOV / 59.94Hz / APS-C / PIXEL/PIXEL: | [C4K] 4096x2160 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [4K] 3840x2160 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [3.3K] 3328x2496 (4:3) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [FHD] 1920x1080 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *When Image Area of Video is set to APS-C. | |
| MOV / 50.99Hz / FULL: | [6K] 5952x3968 (3:2) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [6K] 5952x3136 (17:9) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888x3312 (16:9) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920x1080 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| MOV / 50.00Hz / APS-C / PIXEL/PIXEL: | [C4K] 4096x2160 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [4K] 3840x2160 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [3.3K] 3328x2496 (4:3) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [FHD] 1920x1080 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *When Image Area of Video is set to APS-C. | |
| MOV / 24.00Hz / FULL: | [6K] 5952x3968 (3:2) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [6K] 5952x3136 (17:9) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888x3312 (16:9) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920x1080 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| MOV / 24.00Hz / APS-C / PIXEL/PIXEL: | [C4K] 4096x2160 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [4K] 3840x2160 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [3.3K] 3328x2496 (4:3) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [FHD] 1920x1080 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| ProRes / 59.94Hz / FULL: | [5.8K] 5776x3056 (17:9) 29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [C4K] 4096x2160 29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [FHD] 1920x1080 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) | |
| ProRes / 59.94Hz / APS-C / PIXEL/PIXEL: | [C4K] 4096x2160 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [3.3K] 3328x2496 (4:3) 29.97p, 913Mbps (ProRes 422 HQ) / 609Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 730Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [FHD] 1920x1080 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) | |
| ProRes / 50.00Hz / FULL: | [5.8K] 5776x3056 (17:9) 25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [C4K] 4096x2160 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [FHD] 1920x1080 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) | |
| ProRes / 50.00Hz / APS-C / PIXEL/PIXEL: | [C4K] 4096x2160 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [3.3K] 3328x2496 (4:3) 50.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 25.00p, 761Mbps (ProRes 422 HQ) / 508Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [FHD] 1920x1080 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) | |
| ProRes / 24.00Hz / FULL: | [5.8K] 5776x3056 (17:9) 24.00p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [C4K] 4096x2160 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [FHD] 1920x1080 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) | |
| ProRes / 24.00Hz / APS-C / PIXEL/PIXEL: | [C4K] 4096x2160 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [3.3K] 3328x2496 (4:3) 24.00p, 731Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. [FHD] 1920x1080 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) | |
| MP4 / 59.94Hz / FULL: | [4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| MP4 / 59.94Hz / APS-C / PIXEL/PIXEL: | [4K] 3840x2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| MP4 / 50.00Hz / FULL: | [4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| MP4 / 50.00Hz / APS-C / PIXEL/PIXEL: | [4K] 3840x2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| SLOW & QUICK | ||
| MOV / 59.94Hz / FULL: | [FHD] 1920x1080 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more. **External USB-SSD recording. | |
| MOV / 59.94Hz / APS-C: | [C4K] 4096x2160 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [4K] 3840x2160 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording. [FHD] 1920x1080 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 180fps)
| |
