| TYPE | |
| Type | Digital Single Lens Mirrorless camera |
| Lens mount | L-Mount |
| IMAGE SENSOR | |
| Type | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor |
| Camera effective pixels / Total pixels | 24.20 megapixels / 25.28 megapixels |
| AR (Anti Reflection) coating | Yes |
| Aspect ratio / Color filter | 3:2 / Primary color filter |
| Dust reduction system | Image sensor shift type |
| LATITUDE | 14+ stops (V-Log) |
| STILL IMAGE | |
| Recording file format | JPEG (DCF, Exif 2.31), RAW |
| Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 |
| File Size (Pixels) - When using full-frame lenses | |
| 3:2 | 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode. |
| 4:3 | 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode. |
| 16:9 | 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode. |
| 1:1 | 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode. |
| 65:24 | 6000x2208(L) |
| 2:1 | 6000x3000(L) |
| File Size (Pixels) - When using APS-C/Super 35mm Lenses | |
| 3:2 | 3984x2656(L) / 2880x1920(M) / 2064x1376(S) |
| 4:3 | 3536x2656(L) / 2560x1920(M) / 1840x1376(S) |
| 16:9 | 3984x2240(L) / 2880x1624(M) / 1920x1080(S) |
| 1:1 | 2656x2656(L) / 1920x1920(M) / 1376x1376(S) |
| Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine) |
| Color space | sRGB, AdobeRGB |
| MOTION PICTURE | |
| Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC |
| MP4: H.264/MPEG-4 AVC, H.265/HEVC | |
| Audio format | MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) |
| MP4: AAC (2ch 48kHz/16-bit) | |
| *When attaching 3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately)." | |
| System frequency | 59.94Hz / 50.00Hz / 24.00Hz |
| Image area of video | Full / APS-C / PIXEL/PIXEL |
| VIEWFINDER | |
| Type | OLED Live View Finder |
| Pixels | Approx. 3.68 million dots |
| Field of view / Magnification | Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to |
| 3:2 | |
| Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) |
| Eye sensor | Yes |
| Display speed | 120fps / 60fps |

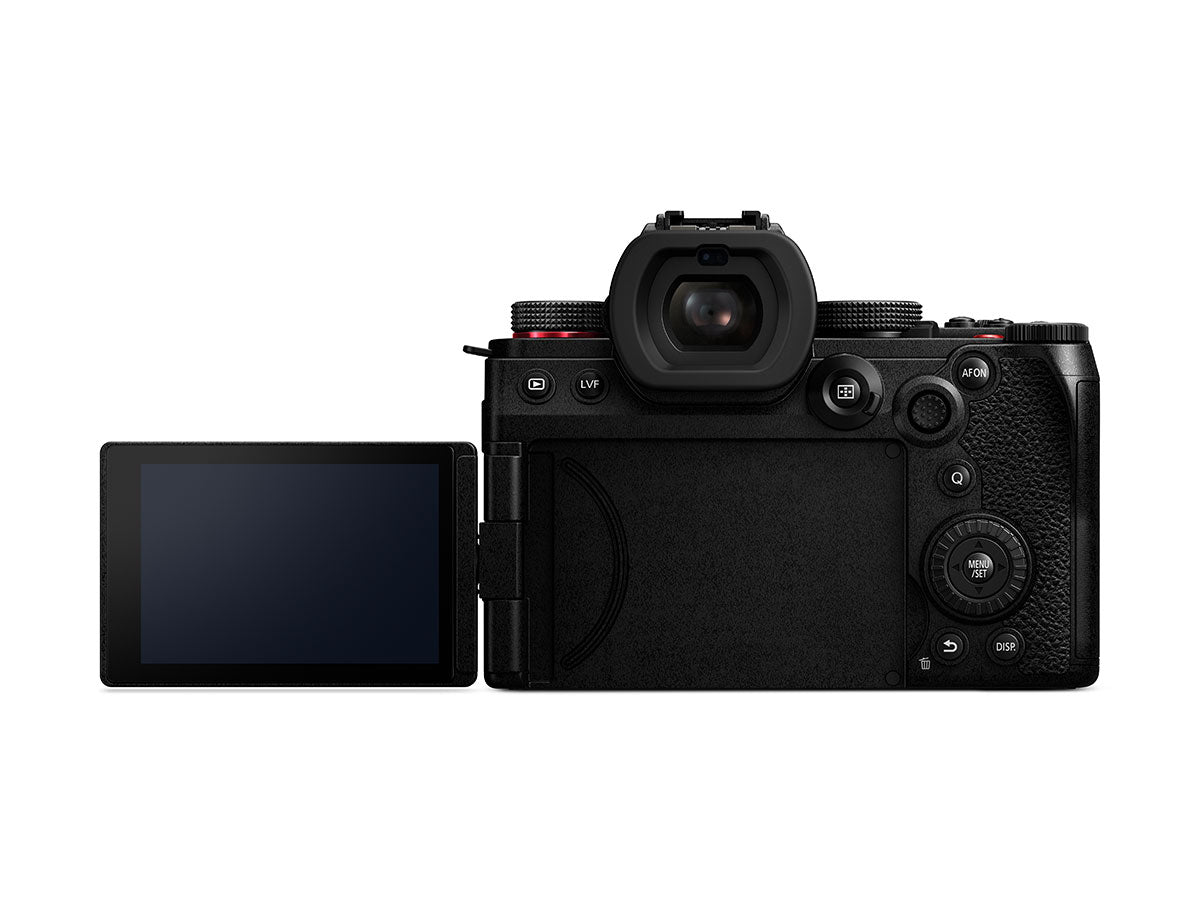

| REAR MONITOR | |
| Type | TFT LCD monitor with static touch control |
| Monitor size | Free-angle, 3.0- inch (7.6cm), 3:2 aspect |
| Pixels | Approx. 1.84 million dots |
| Field of view | Approx. 100% |
| FOCUS (*3) | |
| Type | Phase Detection AF system / Contrast AF system |
| DFD technology | Yes |
| Focus mode | AFS (Single) / AFC (Continuous) / MF |
| AF mode | Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint |
| *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set." | |
| AF detective range | EV -6 - 18 (F1.4, ISO100 equivalent, AFS) |
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
| AF assist light | Yes |
| AF lock | Set the Fn button in custom menu to AF lock |
| Focus ring control | Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) |
| Others | AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, |
| Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF | |
| Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display | |
| (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum | |
| EXPOSURE CONTROL | |
| Light metering system | 1,728-zone multi-pattern sensing system |
| Light metering mode | Multiple / Center Weighted / Spot / Highlight Weighted |
| Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| Mode dial | Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / |
| Slow&Quick / Custom 1, 2, 3 / Intelligent Auto | |
| *The same exposure operations as P/A/S/M mode is available." | |
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| ISO sensitivity (Standard output sensitivity) | |
| [Normal] | Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO |
| [V-Log] | Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO |
| [HLG] | Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO" |
| Dual Native ISO | |
| [Normal] | Native ISO: 100, 640 |
| Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto / 50* / 100-800 *Extended ISO | |
| High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO | |
| [V-Log] | Native ISO: 640, 4000 |
| Auto: Auto / 320* / 640-51200 *Extended ISO | |
| Low: Auto / 320* / 640-5000 *Extended ISO | |
| High: Auto / 2000* / 4000-51200 *Extended ISO | |
| [HLG] | Native ISO: 400, 2500 |
| Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto / 400-3200 | |
| High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO | |
| [Cinelike D2 / Cinelike V2] | Native ISO: 200, 1250 |
| Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto /100* / 200-1600 *Extended ISO | |
| High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO" | |
| AE lock | Set the Fn button in custom menu to AE lock |
| IMAGE STABILIZATION SYSTEM | |
| B.I.S. (5-axis / 5-stop*) | *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] |
| Dual I.S. 2 (6.5-stop*) | *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.] |
| WHITE BALANCE | |
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature |
| setting 1, 2, 3, 4 | |
| White balance adjustment | Blue/Amber bias, Magenta/Green bias |
| Color temperature setting | 2500- 10000K in 100K |
| SHUTTER | |
| Type | Focal-plane shutter |
| Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 |
| Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 | |
| Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 | |
| Motion picture: 1/16,000 - 1/25 | |
| Creative Video M mode / MF mode: 1/16,000 - 1/2 | |
| Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
| Remote control | Remote control by DMW-RS2 (sold separately) |
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
| BRACKET | |
| AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
| Aperture bracket | 3, 5 or all positions |
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels |
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, color temperature setting |
| BURST SHOOTING | |
| Burst Speed - Mechanical Shutter / Electronic Front Curtain Shutter | H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) |
| M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) | |
| L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
| Burst Speed - Electronic Shutter | SH30: 30 frames/sec (AFS/AFC/MF) |
| H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) | |
| M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) | |
| L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
| Number of recordable images | H/M/L* |
| RAW+JPEG: More than 200 images | |
| RAW: More than 200 images | |
| JPEG: More than 300 images | |
| *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. | |
| *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)". | |
| SH | |
| RAW / RAW+JPEG / JPEG: 200 images | |
| FLASH | |
| Flash type | TTL External Flash (sold separately) |
| Synchronization speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S |
| mode. | |
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye |
| Reduction / Forced Off *For iA only. | |
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. |
| Flash output adjustment | 1/3EV step ±3EV |
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
| EXTRA TELE CONVERSION | 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) |
| *Only for still image recording. | |
| COLOUR SETTINGS | |
| Photo Style | Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. |
| Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 | |
| (5-10)* | |
| *Set to ON from Show/Hide Photo Style to select. | |
| Picture Adjustment | Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise |
| Reduction / ISO / WB / LUT | |
| *Adjustable settings vary depending on the Photo Style mode. | |
| Filter | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass |
| LUT Library | Vlog_709 / Set 1-10 |
| *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied | |
| from these settings. | |
| MOTION PICTURE FUNCTION | |
| Time lapse shot | Yes |
| Stop motion animation | Yes |
| Live cropping | Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes) |
| SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
| Luminance level | 8-bit: 0-255 / 16- 235 / 16-255 |
| 10-bit: 0‒1023 / 64‒940 / 64‒1023 | |
| Synchro scan | Yes |
| Master pedestal level | 31 steps |
| Colour bars / 1kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes |
| LUT view assist | Supported file types: .vlt, .cube |
| Monitor / HDMI | |
| HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
| Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF |
| Wave form monitor / Vectorscope | Selectable |
| Knee control | Yes (in Like709 mode) |
| Red REC frame indicator | ON / OFF |
| VERTICAL POSITION INFORMATION | Still image / Motion picture (ON/OFF) |
| LEVEL GAUGE | Yes |
| FUNCTION BUTTON | |
| REC | Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture |
| Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading | |
| Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting | |
| Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking | |
| Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus | |
| Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / | |
| Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display | |
| / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic | |
| Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video | |
| / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / | |
| Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter | |
| / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra | |
| Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / | |
| I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens | |
| Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default | |
| PLAY | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing |
| / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / | |
| Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG | |
| View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default | |
| INTERFACE | |
| USB | USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2)) |
| HDMI (*2) | |
| HDMI | HDMI TypeA |
| Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.) | |
| Monitor-through | 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) |
| 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) | |
| Playback | 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* |
| 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* | |
| 24.00Hz: C4K/24p / 4K/24p / 1080p | |
| *Only for playback. | |
| Remote input | 2.5mm |
| Audio | |
| Build-in microphone | Stereo |
| Wind Noise Canceller: OFF / Standard / High | |
| External microphone / External audio device input | 3.5mm for external microphone / external audio device |
| MIC (Plug-in Power) / MIC / LINE | |
| Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately). | |
| Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately). | |
| XLR microphone | Yes with DMW-XLR1 (sold separately) |
| 4ch mic input | Yes with DMW-XLR1 (sold separately) |
| Speaker | Monaural |

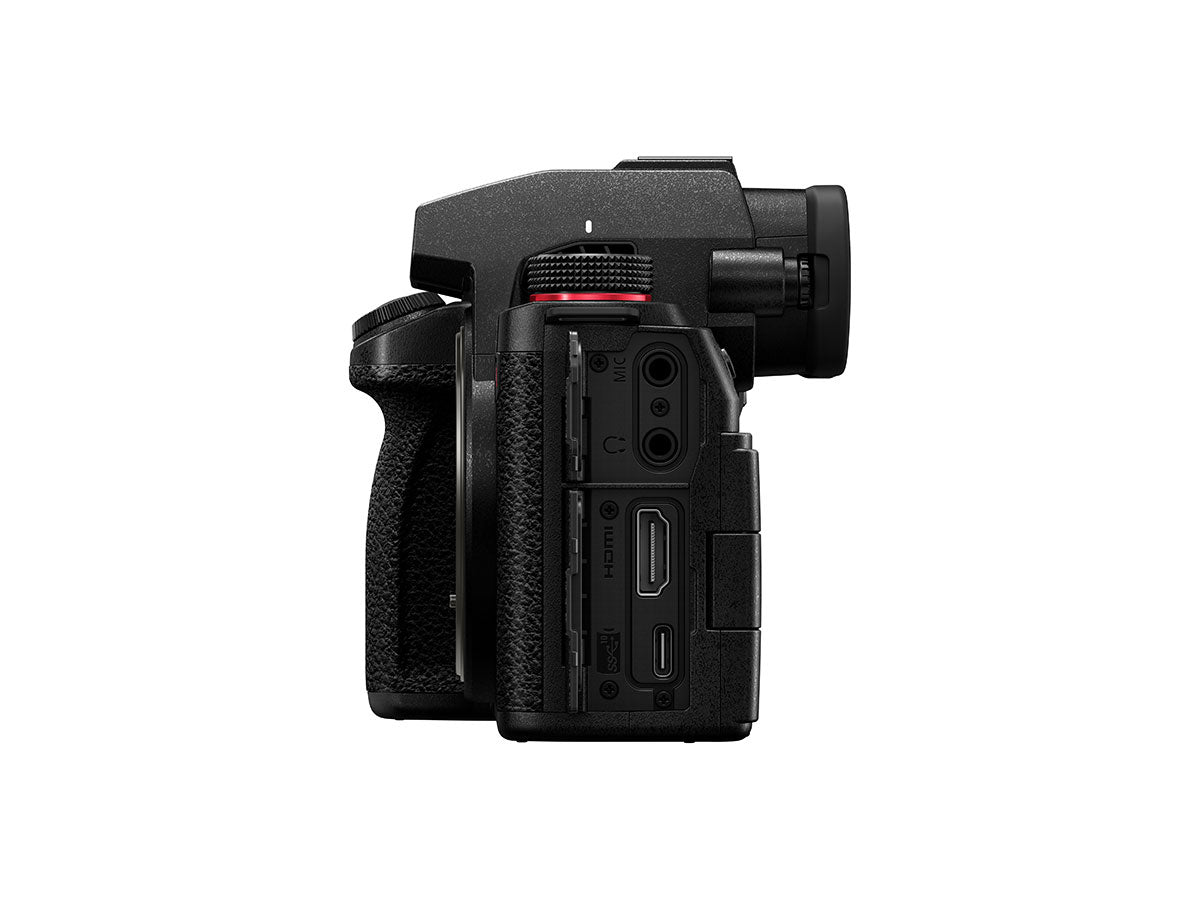

| Headphone output | 3.5mm |
| SD card slot | Slot 1, Slot 2 |
| SD Memory Card / SDHC Memory Card* / SDXC Memory Card* | |
| *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC | |
| Memory Cards. | |
| TC IN/OUT | |
| Count up | Rec Run / Free Run |
| Time code mode | Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.) |
| HDMI time code output | ON / OFF |
| FAN | Auto1 / Auto2 / Fast / Normal / Slow* / OFF** |
| *Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. | |
| **OFF can be set when in iA/P/A/S/M mode. | |
| WIRELESS | |
| Wi-Fi | 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) |
| 5GHz bands (STA) (IEEE 802.11a/n/ac) | |
| Security: WPA/WPA2/WPA3 | |
| Bluetooth | Bluetooth v5.0 (Bluetooth Low Energy (BLE) |
| DUST AND SPLASH RESISTANT* | Yes. |
| *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. | |
| POWER | |
| Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) |
| USB power supply, USB power charging, USB power delivery | |
