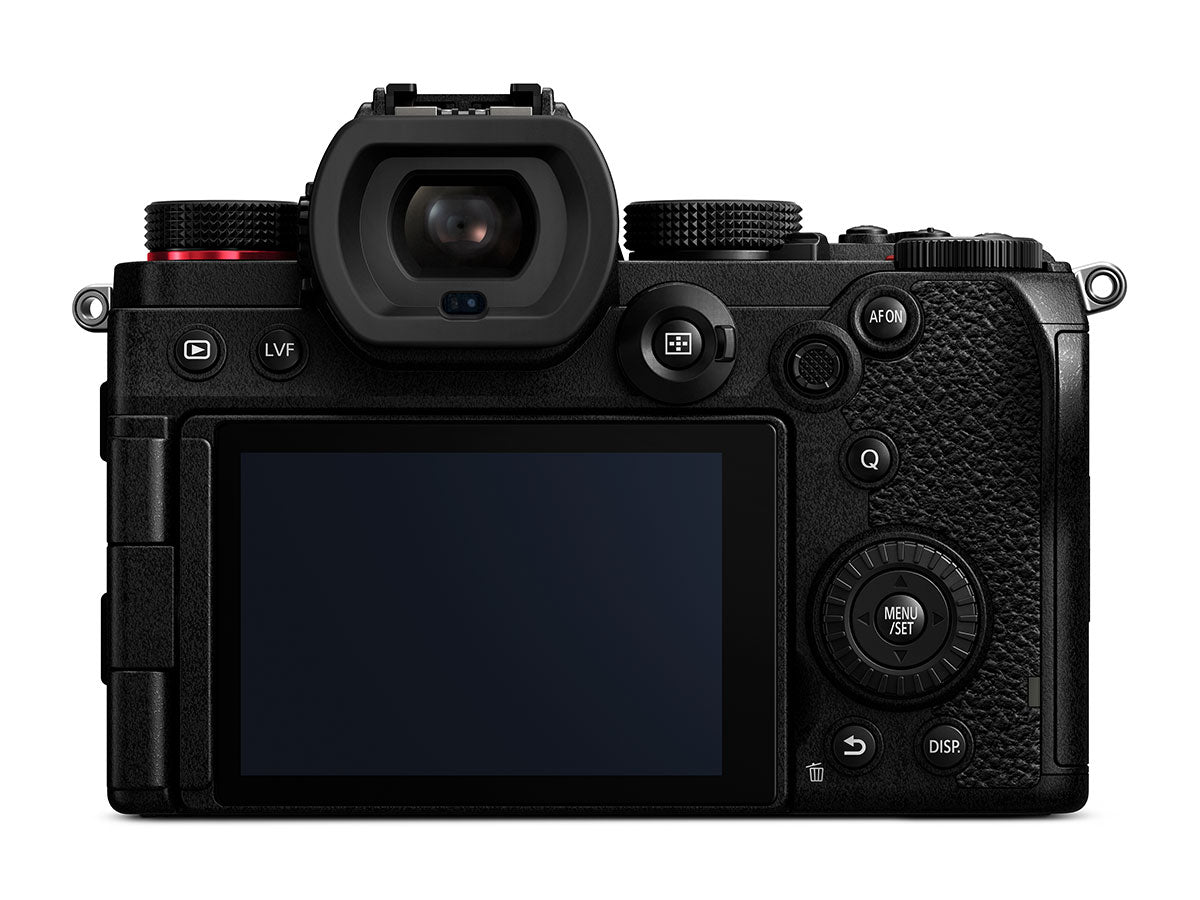

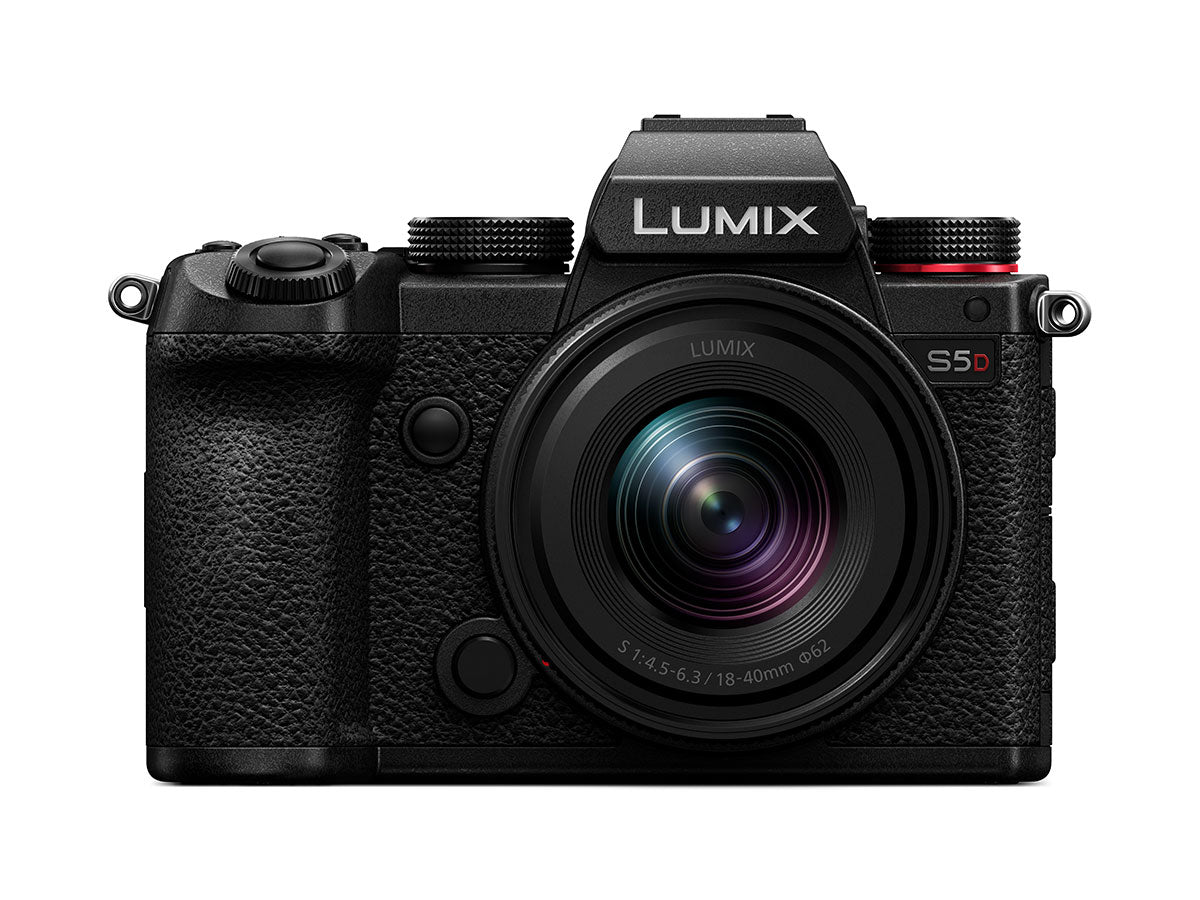

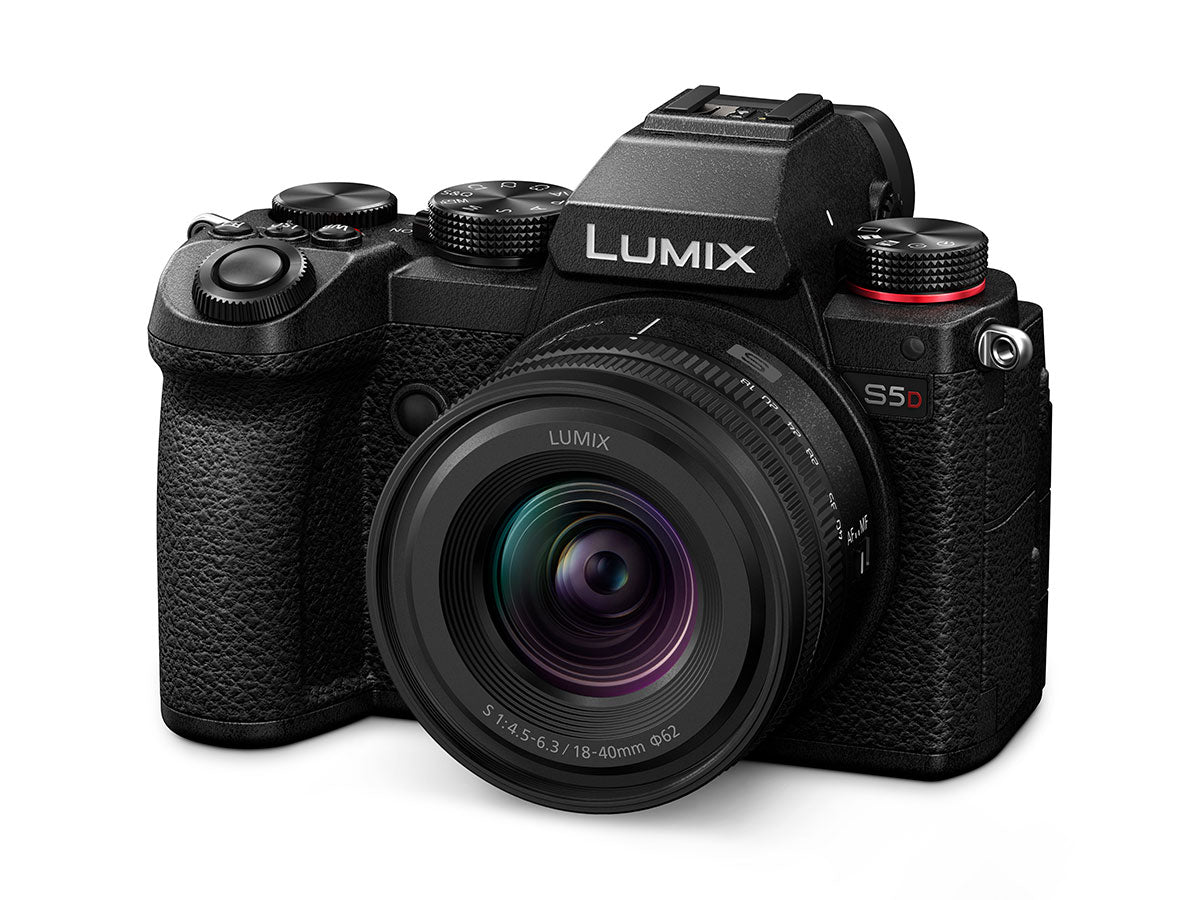

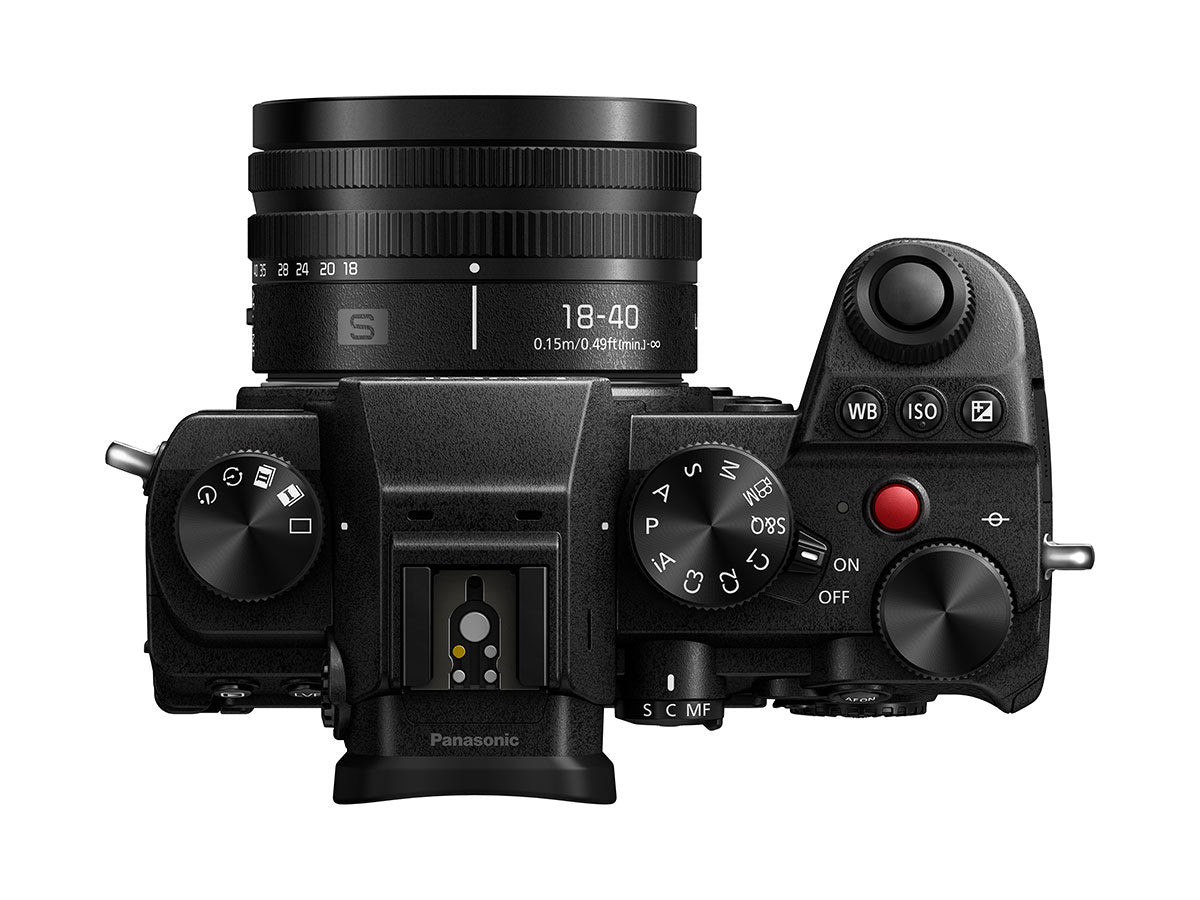

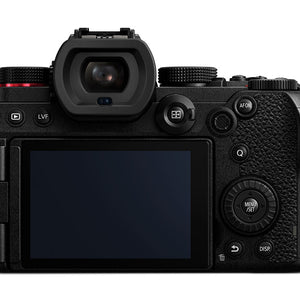

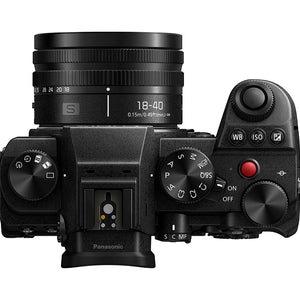

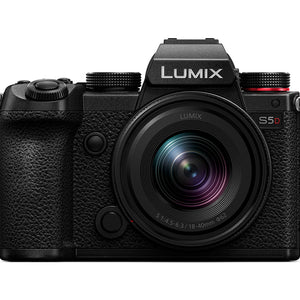

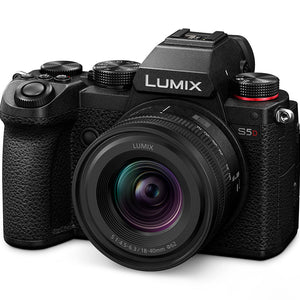

Panasonic Lumix S5D (with 18-40mm Lens)

Name: Panasonic Lumix S5D (with 18-40mm Lens)
Brand: Panasonic
SKU: PAN-DC-S5DNE-K
Price: 1073.00 GBP
Availability: InStock

SKU: PAN-DC-S5DNE-K

£1,073.00 GBP ex VAT
£1,287.60 GBP inc VAT

~~ex VAT~~ £1,073.00 GBP ex VAT
£1,287.60 GBP inc VAT

Sale Sold out

Out of Stock

Quantity

Product variants

View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid

Details
Features
Specifications

DJI LiDAR AF ready

When the S5D is paired with DJI LiDAR Range Finder Module and DJI RS 3 Pro Gimbal, distance measurement information is sent to the camera via USB, and the camera drives the focus, so no focus motor is required, enabling easier handling with a more compact size and greater freedom of shooting. Furthermore, there is no need for lens calibration adjustments, which saves setup time. Thanks to the LiDAR's high-speed 43,200 ranging points within a 14-meter distance, extremely fast AF is realized, which is also effective when shooting in low-light conditions.

Exceptional video recording performance for cinema-quality film creation

The LUMIX S5D delivers superb video performance and is capable of 4K 60p/50p 4:2:0 10-bit, and 4K 30p/25p 4:2:2 10-bit internal recording up to 30 minutes. It is also capable of 4K 60p/50p 4:2:2 10-bit HDMI output. For 4K 30p/25p 4:2:0 8-bit internal recording, there is no time limit.

In addition to C4K video recording, the LUMIX S5D is capable of RAW video data output to ATOMOS NINJA V over HDMI at a resolution of 5.9K (5888x3312) 29.97p/25p, 4.1K (4128x2176) 59.94p/50p and Anamorphic 3.5K (3536x2656)/50p. A variety of video recording assist functions such as the Vector Scope Display, Master Pedestal Adjustment and SS/Gain Operation(SEC/ISO, ANGLE/ISO, SEC/dB) are also available.

The LUMIX S5D delivers 14+ stops of dynamic range, virtually the same as those of the Panasonic cinema cameras, to precisely reproduce everything from dark to bright areas. The ability to capture accurate colours and skin tones is a must for any filmmaker. The LUMIX S5D imports the renowned colour science of Panasonic’s VariCam line-up of cinema cameras, as well as V-Log / V-Gamut.

With Slow & Quick mode, impressive video slow and quick motion in 4K (1-60fps, 30x quick to 2.5x slow) or in FHD (1-180fps, 60x quick to 7.5x slow) is available.

High image quality even in low light situations with Dual I.S. to suppress blurring

The LUMIX S5D boasts a wide dynamic range and reproduces sharp images with exceptional clarity. Noise is minimised even when shooting at maximum ISO 51200 high sensitivity, making it an ideal camera to use in low-light situations.

The LUMIX S5D features Dual Native ISO sensitivity, a technology that was first introduced in the Panasonic professional cinema camera VariCam line-up. Normally, noise increases as sensitivity rises with a single native ISO image sensor. However, the image sensor with Dual Native ISO in the S5D minimises noise generation by choosing an optimal circuit to use according to the sensitivity before gain processing. As a result, it allows a maximum of ISO 51200 high sensitivity recording. Dual Native ISO gives film creators a greater variety of artistic choices as well as the ability to use less light on set, saving time. The LUMIX S5D’s Dual Native ISOs are 640 and 4000.*1

The LUMIX S5D integrates the Body I.S. (Image Stabiliser) for powerful handshake correction. Panasonic developed an algorithm that precisely calculates shake information acquired not only from the gyrosensor, but also from the image sensor and accelerometer sensor. This enables more accurate shake detection and compensation, making it possible to use a 5-stop slower shutter speed*2. Combining the Body I.S. (5-axis) in the camera and the O.I.S. (Optical Image Stabiliser, 2-axis) in the LUMIX S Series lens the 5-axis Dual I.S.2 compensates for blurring, allowing the use of a 6.5-stop slower shutter speed*3.

It is highly beneficial in telephoto shots and in adverse situations, such as in low-light or one-handed shooting. The 5-axis Dual I.S.2 works for both photo and video recording, including 4K. The Body I.S. compensates for camera movement even when other L-Mount lenses without O.I.S. are used.

_{*1 When recording mode is set to V-Log. The sensitivity varies depending on the recording mode.

*2 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.

*3 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used. Firmware must be updated to the latest version.}

Reliable and flexible for optimum creative freedom

The compact LUMIX S5D boasts outstanding mobility while still achieving exceptional performance. To withstand heavy field use, the LUMIX S5D is composed of a magnesium alloy full die-cast body and is splash/dust-resistant*1. With an optimum layout of heat dispersion components, heat is effectively transferred outside which results in stable, continuous video recording for long periods.

The LUMIX S5D has a large LVF (Live View Finder) with a high magnification ratio of approx. 0.74x, as well as a high-precision, high-speed OLED (Organic Light-Emitting Diode) display which features a 2,360K-dot high resolution. Adoption of OLED for the LVF achieves high speed response with minimum time lag of less than 0.005 sec. With an eyepoint of approximately 20 mm, it offers high visibility with comfort for users wearing glasses.

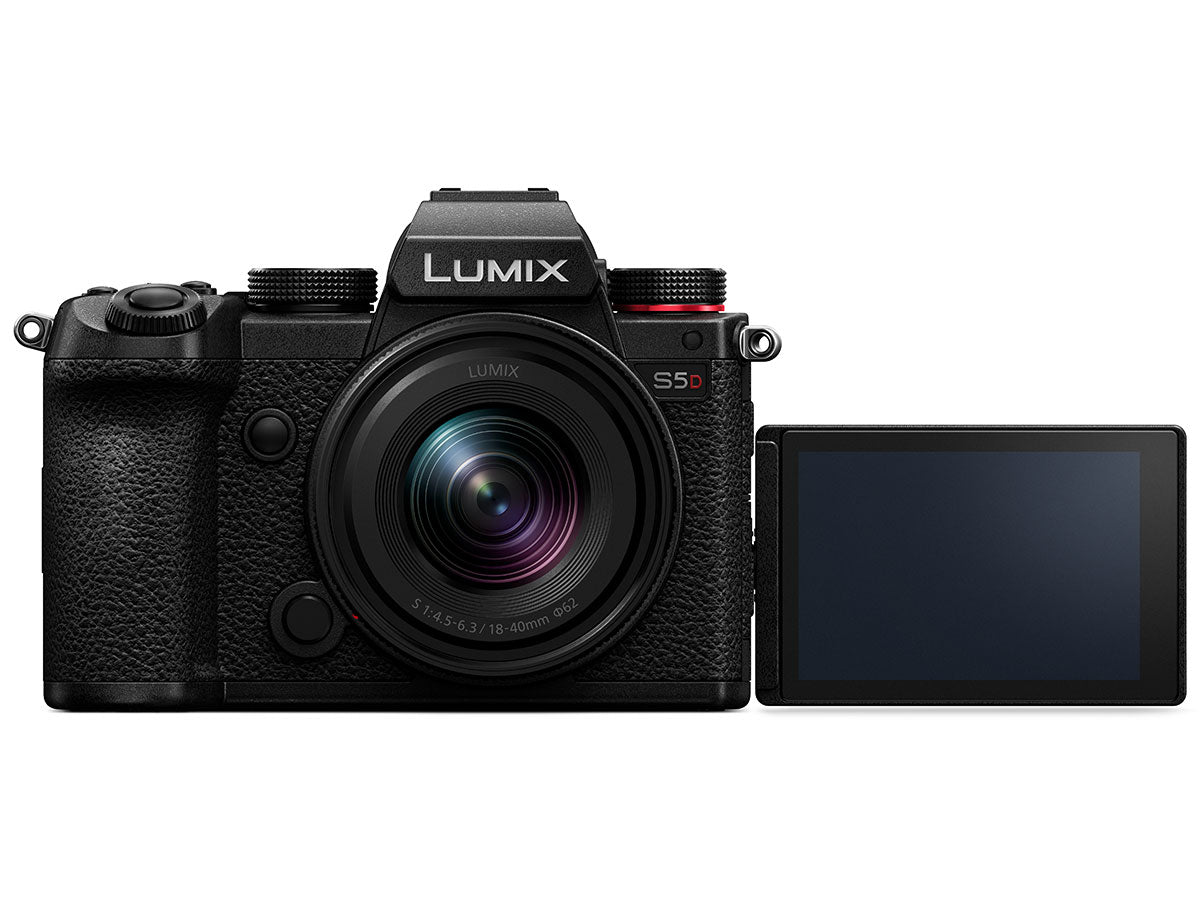

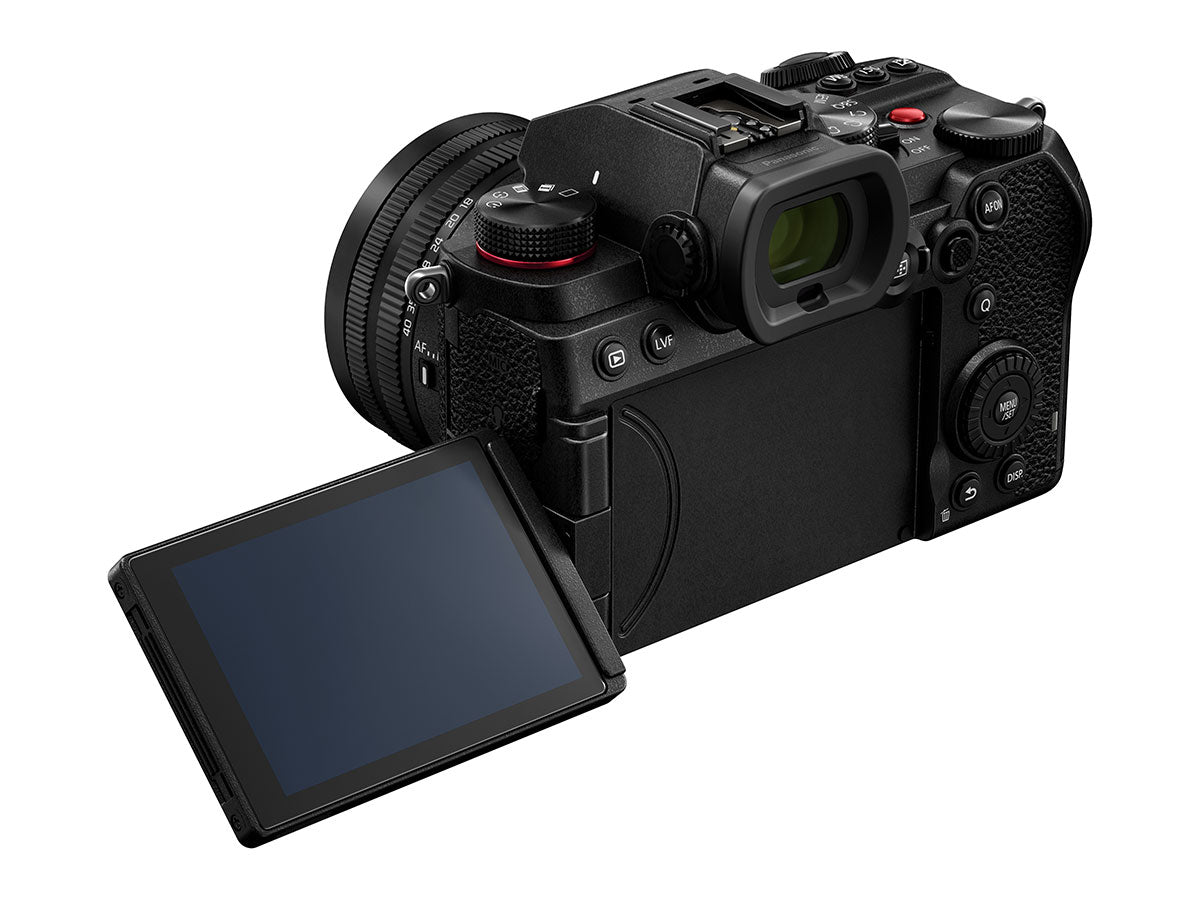

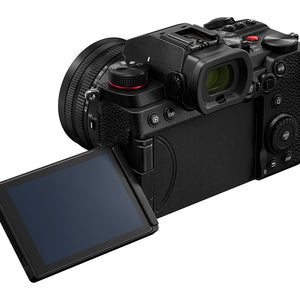

A 3.0-inch free-angle LCD in 3:2 aspect with 1,840K-dot high resolution provides touch control. Composition during recording in various popular aspect ratios such as 16:9, 4:3, 1:1, 4:5, 5:4 and 9:16 can be checked with the Frame Marker function. A REC Frame Indicator identifies whether the camera is recording or not.

The LUMIX S5D has a double SD Memory Card slot - one slot complies with UHS-I and the other with the high-speed, high-capacity UHS-II (Video Class 90).

The camera’s battery can be recharged either via AC or USB according to the user’s convenience.

_{*1 Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.}

Hybrid full-frame mirrorless camera
DJI LiDAR AF ready
24.2 Megapixels Full-Frame CMOS Sensor
Dual native ISO technology
5-axis Dual image stabilisation
Acurate Focusing with Deep Learning Technology
Live view composite
High Resolution Mode - 96MP JPEG/RAW images
Cinema quality V-Log with 14+ stops of dynamic range
Direct access to quick and slow motion recording
Free-angle LCD Touch display (1840K-dot)
OLED live viewfinder (2360K-dot, 0.74x)
2x SD Card Slots
USB battery charge and Power Supply
WiFi 5GHz/Bluetooth
Mic and headphone terminal
L-Mount
Compatible with the XLR Microphone Adapter (DMW-XLR1)
Compact and Lightweight

CAMERA
Type:		Digital Single Lens Mirrorless camera
Lens Mount:		L-Mount
IMAGE SENSOR
Type:		35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera Effective Pixels / Total Pixels:		24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) Coating:		Yes
Aspect Ratio / Colour Filter:		3:2 / Primary color filter
Dust Reduction System:		Image sensor shift type
LATITUDE
Latitude:		14+ stops (V-Log)
STILL IMAGE
Recording File Format:	Still Image:	JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
	6K Photo / 4K Photo:	6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) Extracted still images: JPEG (DCF, Exif 2.31)
Aspect Ratio:		4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
Full Size (Pixels) / When Using Full-Frame Lenses:	3:2:	6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution Mode. 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
	4:3:	5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution Mode. 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
	16:9:	6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution Mode. 3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
	1:1:	4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution Mode. 2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
	65:24:	6000x2208(L)
	2:1:	6000x3000(L)
File Size (Pixels) / When Using APS-C / Super 35mm Lenses:	3:2:	3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 3504x2336(4K PHOTO)
	4:3:	3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO)
	16:9:	3984x2240(L) / 2880x1624(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
	1:1:	2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO)
Image Quality:		RAW / RAW+Fine / RAW+Standard / Fine / Standard
Colour Space:		sRGB, AdobeRGB
MOTION PICTURE
Recording File Format:		MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit)) MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
Switch NTSC / PAL:		Yes (NTSC (59.94Hz) / PAL(50.00Hz))
MOV / NTSC (59.94Hz) / Full Frame:	[C4K] 4096x2160:	29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[4K] 3840x2160:	29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[FHD] 1920x1080:	59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 29.97p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 23.98p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MOV / NTSC (59.94Hz) / APS-C / Pixel by Pixel:	[C4K] 4096x2160:	59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[4K] 3840x2160:	59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) HLG is selectable. 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[Anamorphic 4K] 3328x2496 (4:3):	29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 23.98p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[FHD] 1920x1080:	59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 29.97p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 23.98p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MOV / PAL (50.00Hz) / Full-Frame:	[C4K] 4096x2160:	25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[4K] 3840x2160:	25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[FHD] 1920x1080:	50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 25.00p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MOV / PAL (50.00Hz) / APS-C / Pixel by Pixel:	[C4K] 4096x2160:	50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[4K] 3840x2160:	50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) HLG is selectable. 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[Anamorphic 4K] 3328x2496 (4:3):	50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) HLG is selectable. 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
	[FHD] 1920x1080:	50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) HLG is selectable. 25.00p, 100Mbps (4:2:2 10-bit LongGOP) / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MP4 / NTSC (59.94Hz) / Full-Frame:	[4K] 3840x2160:	29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	[FHD] 1920x1080:	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / NTSC (59.94Hz) / APS-C / Pixel by Pixel:	[4K] 3840x2160:	59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) HLG is selectable. 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	[FHD] 1920x1080:	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / PAL (50.00Hz() / Full-Frame:	[4K] 3840x2160:	25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	[FHD] 1920x1080:	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / PAL (50.00Hz) / APS-C / Pixel by Pixel:	[4K] 3840x2160:	50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) HLG is selectable. 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	[FHD] 1920x1080:	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
HDMI RAW DATA OUTPUT
Compatible External Devices:		ATOMOS HDMI field monitor/recorder "Ninja V+" _{Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V. Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ All functions may not be available depending on the situation.} Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR _{Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over}
Rec Quality / NTSC (59.94Hz) / Full-Frame:	[5.9K] 5888x3312:	29.97p, 12-bit (LPCM) 23.98p, 12-bit (LPCM)
Rec Quality / NTSC (59.94Hz) / APS-C:	[4.1K] 4128x2176 (17:9):	59.94p, 12-bit (LPCM) 29.97p, 12-bit (LPCM) 23.98p, 12-bit (LPCM)
	[Anamorphic 3.5K] 3536x2656 (4:3):	29.97p, 12-bit (LPCM) 23.98p, 12-bit (LPCM)
Rec Quality / PAL (50.00Hz) / Full-Frame:	[5.9K] 5888x3312:	25.00p, 12-bit (LPCM)
Rec Quality / PAL (50.00Hz) / APS-C:	[4.1K] 4128x2176 (17:9):	50.00p, 12-bit (LPCM) 25.00p, 12-bit (LPCM)
	[Anamorphic 3.5K] 3536x2656 (4:3):	50.00p, 12-bit (LPCM) 25.00p, 12-bit (LPCM)
Audio Format:		LPCM (2ch 48kHz/16-bit)
SLOW & QUICK
MP4 / NTSC (59.94Hz) / Full-Frame:	[FHD] 1920x1080:	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60, 100, 120, 150, 180 fps _{*Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.}
MP4 / NTSC (59.94Hz) / APS-C / Pixel by Pixel:	[4K] 3840x2160	29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60 fps
MP4 / PAL (50.00Hz) / Full-Frame:	[FHD] 1920x1080:	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60, 100, 120, 150, 180 fps _{*Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.}
MP4 / PAL (50.00Hz) / APS-C / Pixel by Pixel:	[4K] 3840x2160:	25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 1, 2, 5, 10, 15, 30, 60 fps
VIEWFINDER
Type:		OLED Live View Finder
Pixels:		Approx. 2.36 million dots
Field of View / Magnification:		Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m, when the aspect ratio is set to 3:2
Eye Point / Diopter Adjustment:		Approx. 20 mm at infinity; -1.0 m / -4.0 - +4.0 (dpt)
Eye Sensor:		Yes
Display Speed:		120fps / 60fps
Field of View:		Approx. 0.005sec
REAR MONITOR
Type:		TFT LCD monitor with static touch control
Monitor Size:		Free-angle, 3.0-inch (about 7.62cm), 3:2 aspect
Pixels:		Approx. 1.84 million dots
Field of View:		Approx. 100%
FOCUS
Type:		Contrast AF system
DFD Technology:		Yes
Focus Mode:		AFS (Single) / AFC (Continuous) / MF
AF Mode:		Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3 (Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.
AF Detective Range:		EV -6 - 20 (F1.4, ISO100 equivalent, AFS)
AF Custom Setting:		AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF Assist Lamp:		Yes
AF Lock:		Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking:		Yes / Yes
Others:		AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control
EXPOSURE CONTROL
Light Metering System:		1,728-zone multi-pattern sensing system
Light Metering Mode:		Multiple / Center Weighted / Spot / Highlight Weighted
Metering Range:		EV0-18 (F2.0 lens, ISO100 equivalent)
Mode Dial:		Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto _{*The same exposure operations as P/A/S/M mode is available.}
ISO Sensitivity (Standard Output Sensitivity):		Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Dual Native ISO:	[Normal]:	Native ISO: 100, 640 Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
	[V-Log]:	Native ISO: 640, 4000 Auto: Auto / 320* / 640-51200 *Extended ISO
	[HLG]:	Native ISO: 400, 2500 Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
	[Cinelike D2 / Cinelike V2]:	Native ISO: 200, 1250 Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Exposure Compensation:		1/3 EV step ±5EV (±3EV for motion picture)
AE Lock:		Set the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEM
Image Stabilization System:		Image sensor shift type (5-axis / 5.0-stop) Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]
WHITE BALANCE
White Balance:		AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White Balance Adjustment:		Blue/Amber bias, Magenta/Green bias
Colour Temperature Setting:		2500-10000K in 100K
SHUTTER
Type:		Focal-plane shutter
Shutter Speed:		Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2
Self Timer:		10sec, 3 images / 2sec / 10sec
Remote Control:		Remote control by DMW-RS2 (sold separately)
Silent Mode / Shutter Type:		Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE Bracket:		3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket:		3, 5 or all positions in 1 EV step
Focus Bracket:		1 to 999 images, focus steps can be set in 10 levels
White Balance Bracket:		3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst Speed:	Mechanical Shutter / Electronic Front Curtain Shutter:	AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
	Electronic Shutter:	AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of Recordable Images:		RAW / RAW+JPEG: More than 24 images JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.) _{* When recording is performed under the test conditions specified by Panasonic.}
6K PHOTO / 4K PHOTO
Burst Speed:		6K PHOTO: 30 frames/sec 4K PHOTO: 60 frames/sec, 30 frames/sec
EXIF Information:		Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
FLASH
Flash Type:		TTL External Flash (sold separately)
Flash Mode:		Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash Synchronization:		1st Curtain Sync, 2nd Curtain Sync.
Flash Output Adjustment:		1/3EV step ±3EV
Synchronization Speed:		Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Wireless Control:		Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
EXTRA TELE CONVERSION
Extra Tele Conversion:		2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.
PHOTO STYLE
Photo Style:		Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10
Picture Adjustment:		Contrast / Highlight Sign up to our Newsletter for all the Latest News and Offers Email Contact Us Production Gear Ltd Unit 2, Mundells Court, Welwyn Garden City Hertfordshire, AL7 1EN United Kingdom (+44) 208 2361212 sales@progear.co.uk 8.30am to 5.30pm Monday to Friday Information About Us Contact Us Privacy Policy Sustainability Policy Terms & Condition Help FAQs Finance Options Returns Shipping & Delivery Follow Us Trustpilot © 2026, Progear-website All Rights Reserved UK Company Registration Number: 05576712 \| VAT Number: GB872534510 \| EORI Number: GB872534510000
