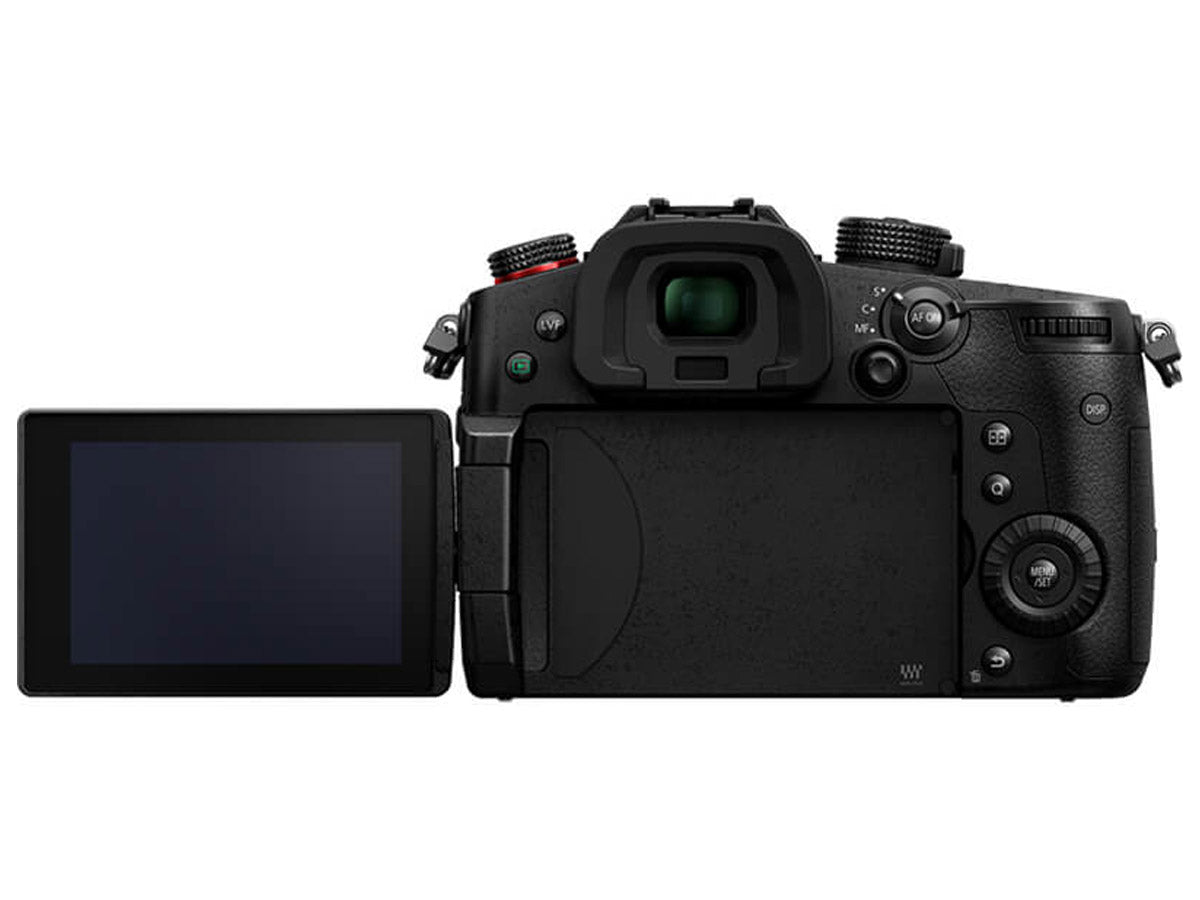

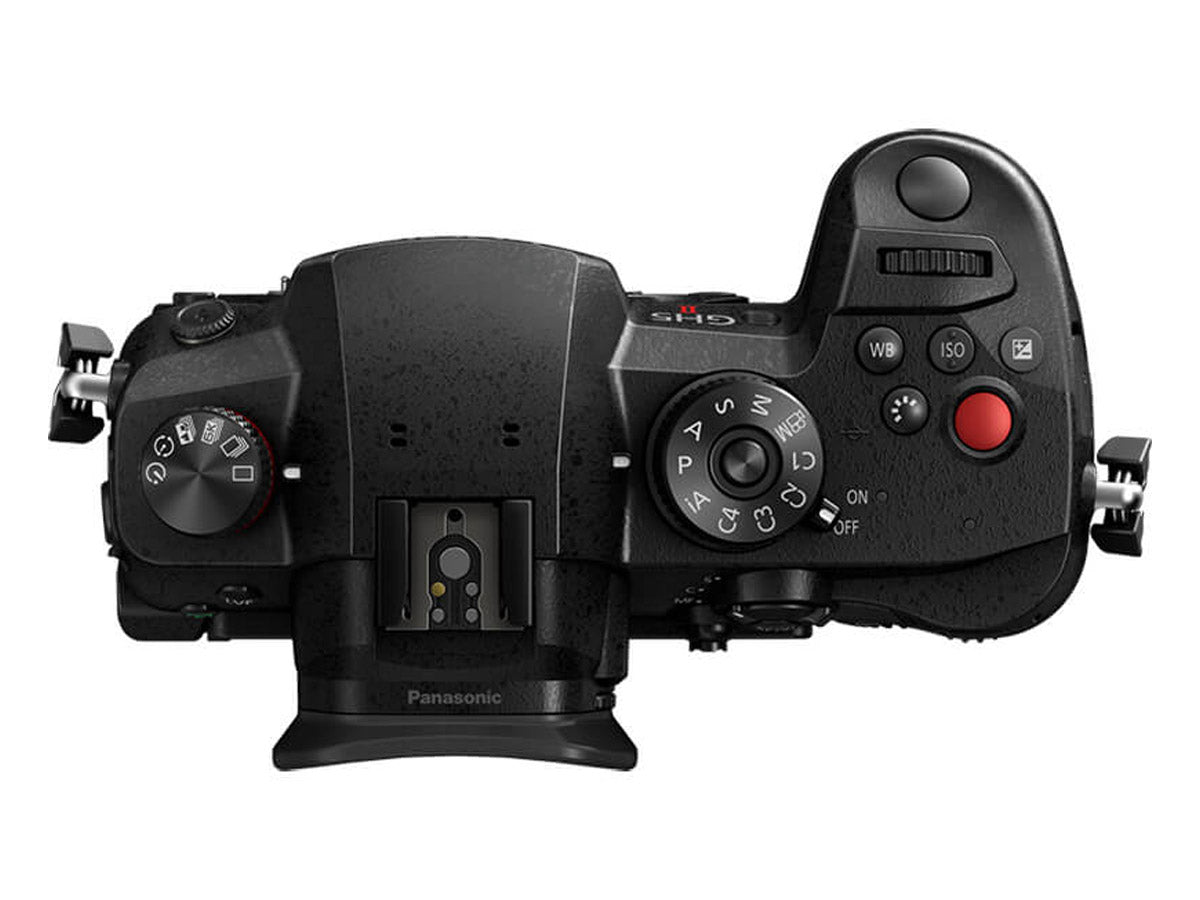

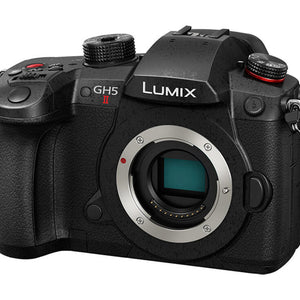

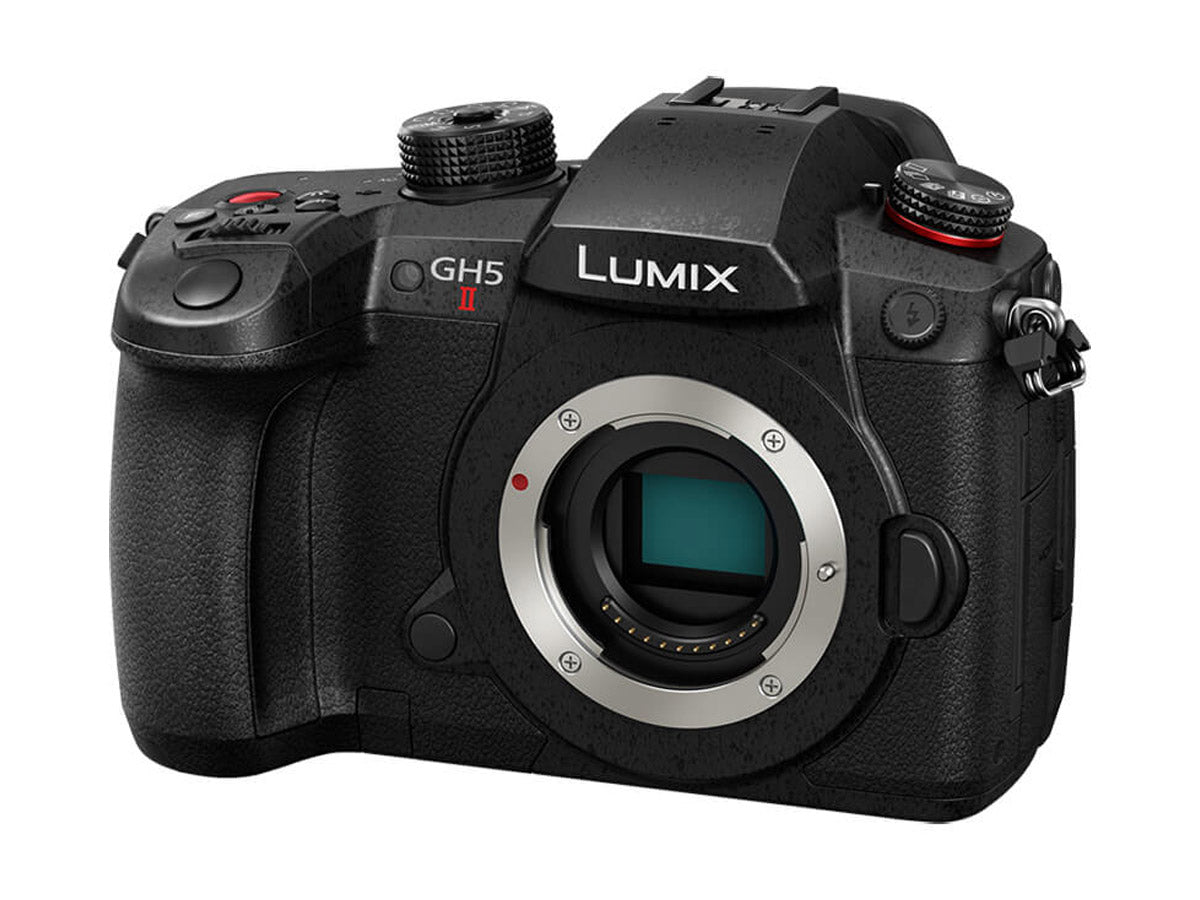

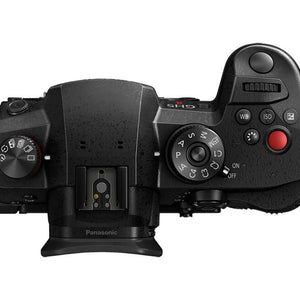

Panasonic Lumix GH5 MKII - Body"

Name: Panasonic Lumix GH5 MKII - Body"
Brand: Panasonic
SKU: PAN-DC-GH5M2E
Price: 815.83 GBP
Availability: InStock

SKU: PAN-DC-GH5M2E

£815.83 GBP ex VAT
£979.00 GBP inc VAT

~~ex VAT~~ £815.83 GBP ex VAT
£979.00 GBP inc VAT

Sale Sold out

Out of Stock

Quantity

Product variants

View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid

Details
Features
Specifications

The LUMIX GH5M2 is a Micro Four Thirds mirrorless camera that boasts outstanding video performance evolved from the renowned GH5.

The LUMIX GH5M2 achieves C4K^*1/4K 60p 4:2:0 10-bit unlimited^*2 video recording and can simultaneously output 4K 4:2:2 10-bit over HDMI. It is capable of wireless live streaming in FHD/60p via the simple-to-use LUMIX Sync smartphone app, or by connecting directly to a Wi-Fi router. In addition, it will receive a future firmware update to add RTP/RTSP wired IP streaming^*3.

The 20.3-megapixel Digital Live MOS Sensor with AR (Anti-Reflective) coating captures details cleanly and drives excellent lens performance. The image processor has also been updated to use the latest high-speed and high-performance Venus Engine.

To achieve stable handheld shooting, the Body I.S. (Image Stabiliser) in the LUMIX GH5M2 is now even more advanced, making it possible to use a 6.5-stop slower shutter speed^*4. With the adoption of the latest algorithm developed for the S1H, video recording is smooth and stable even when the camera is in motion.

A 3.0-inch free-angle LCD with a 3:2 aspect ratio and high resolution of 1840K dots provides touch control. Compared to the GH5, the LCD features higher luminosity and superior colour reproduction to ensure high visibility outdoors.

Corresponding to 4K (4096×2160) as defined by Digital Cinema Initiatives (DCI).
On condition that the camera is under the environment where the operation is guaranteed and is running on the battery. Recording time depends on the capacity of the battery and the SD Memory Card. Recording may stop in C4K/4K 60p 10-bit and Anamorphic mode automatically to protect the camera.
16Mbps cannot be selected when the RTMPS URL is set.
Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

WIRELESS LIVE STREAMING WITH MINIMAL EQUIPMENT

High-quality live streaming is possible both indoors and outdoors with minimal equipment: just the LUMIX GH5M2 and a smartphone with the LUMIX Sync app. In compliance with the RTMP/RTMPS protocol using the H.264 codec, a maximum resolution/framerate of FHD/60p at 16Mbps^*1 is supported.

For wired live streaming, the dedicated LUMIX Webcam Software is available for free download.

Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform.

16Mbps cannot be selected when the RTMPS URL is set.

HIGH QUALITY VIDEO PERFORMANCE

The LUMIX GH Series features outstanding video performance for professional videography and the LUMIX GH5M2 is no exception, capable of unlimited video recording in a variety of settings. When shooting video, the GH5M2’s entire sensor area is used, enabling the user to record uncropped video from the original viewing angle of the lens. Video recording options are vast, offering internal recording up to 4K 60p and 4:2:2 10-bit 30p, or 4K/6K Anamorphic modes.

To deliver high dynamic range and a broad colour spectrum, V-Log L is pre-installed in the camera, making it easy to match the colour tone with footage recorded in the S1H/S1’s V-Log and the GH5/GH5S’s V-Log L. V-Log L renders a very flat image while retaining all its colour information, which is a great benefit in post-production processing. For users who prefer to have a starting point for post-processing, there are 35 compatible conversion LUTs for VariCam cinema cameras available for free download. Practical tools like a Waveform Monitor and V-Log View Assist are also part of the GH5M2’s on-board video toolkit.

Like the S1H video flagship camera of the S Series, the LUMIX GH5M2 provides two types of Cinelike gamma presets in the Photo Style menu. These modes create impressive looks with warm skin tones or delicate nuances of light and shadow even without colour grading over V-Log footage. The Cinelike D2 preset gives priority to dynamic range, while Cinelike V2 prioritizes contrast. L.Monochrome S and L.Classic Neo have also been added. All these presets are also available in Anamorphic mode.

In VFR (Variable Frame Rate) recording, C4K/4K 60fps, Anamorphic 50fps and FHD 180fps are available. AF can be set before starting VFR recording.

A RELIABLE TOOL FOR PROFESSIONALS

Tough enough to withstand heavy field use, the LUMIX GH5M2’s full die-cast front/rear frame is composed of a magnesium alloy and the body is splash, dust, and freeze resistant* down to -10 degrees Celsius. The shutter unit is also durable for approximately 200,000 cycles.

To further support use outdoors, the camera boasts a new high-capacity 2200mAh battery (DMW-BLK22) that complies with USB PD (Power Delivery) and can be recharged via AC or USB. The LUMIX GH5M2 is equipped with a double SD memory card slot compatible with V90-classified, high-speed, high-capacity UHS-II cards for Relay, Backup and Allocation Recording.

With the advanced free-angle touch LCD, users can utilise the frame marker function to check the composition during recording in various common aspect ratios such as in the EVF clearly signals whether the camera is recording, while a new blue indicator shows when the camera is streaming.

_{*Splash Resistant is a term used to describe an extra level of protection this camera offers against exposure to a minimal amount of moisture, water or dust. Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with water.}

Micro Four Thirds Mirrorless Camera with 4K 60p 4:2:0 10-bit Video Recording and Wireless Live Streaming Capability
20.3-megapixel Digital Live MOS Sensor
Advanced Body I.S. (Image Stabiliser) enable a 6.5-stop slower shutter speed
3.0-inch free-angle Touch LCD with a 3:2 aspect ratio and high resolution of 1840K dots
High-quality live streaming via the LUMIX Sync app
Double SD memory card slot

TYPE
Type:		Digital Single Lens Mirrorless camera
Recording Media:		SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens Mount:		Micro Four Thirds mount
IMAGE SENSOR
Type:		Live MOS sensor (17.3 x 13.0 mm)
Effective Pixels:		20.33 megapixels
Total Pixels:		21.77 megapixels
Anti-Reflection Coating:		Yes
Aspect Ratio:		4:3
Colour Filter:		Primary color filter
Dust Reduction Filter:		Image sensor shift type
LATITUDE
Latitude:		12 stops (V-Log L)
STILL IMAGE
Recording File Format:	Still Image:	JPEG (DCF, Exif 2.31), RAW
	6K Photo / 4K Photo:	6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) Extracted still images: JPEG (DCF, Exif 2.31)
Aspect Ratio:		4:3 / 3:2 / 16:9 / 1:1
File Size (Pixels):	4:3:	5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
	3:2:	5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
	16:9:	5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
	1:1:	3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
Image Quality:		RAW / RAW+Fine / RAW+Standard / Fine / Standard
Colour Space:		sRGB, AdobeRGB
MOTION PICTURE
Recording File Format:		MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit, 96kHz/24-bit)) *When attaching DMW-XLR1 (sold separately). MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
System Frequency:		59.94Hz / 50.00Hz / 24.00Hz
Image Area of Video:		Full / Pixel by Pixel
MOV:	59.94Hz [C4K] 4096x2160:	59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	59.94Hz [4K] 3840x2160:	59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	59.94Hz [Anamorphic 6K] 4992x3744 (4:3):	29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
	59.94Hz [Anamorphic 4K] 3328x2496 (4:3):	59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	59.94Hz [FHD] 1920x1080:	59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	50.00Hz [C4K] 4096x2160:	50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	50.00Hz [4K] 3840x2160:	50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	50.00Hz [Anamorphic 6K] 4992x3744 (4:3):	25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
	50.00Hz [Anamorphic 4K] 3328x2496 (4:3):	50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	50.00Hz [FHD] 1920x1080:	50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	24.00Hz [C4K] 4096x2160:	24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	24.00Hz [4K] 3840x2160:	24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	24.00Hz [Anamorphic 6K] 4992x3744 (4:3):	24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
	24.00Hz [Anamorphic 4K] 3328x2496 (4:3):	24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
	24.00Hz [FHD] 1920x1080:	24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
MP4:	59.94Hz [4K] 3840x2160:	59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	59.94Hz [FHD] 1920x1080:	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	50.00Hz [4K] 3840x2160:	50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	50.00Hz [FHD] 1920x1080:	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
VARIABLE FRAME RATE
MOV:	59.94Hz [C4K] 4096x2160:	29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	59.94Hz [4K] 3840x2160:	29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	59.94Hz [Anamorphic 4K] 3328x2496 (4:3):	29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	59.94Hz [FHD] 1920x1080:	59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	50.00Hz [C4K] 4096x2160:	25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	50.00Hz [4K] 3840x2160:	25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	50.00Hz [Anamorphic 4K] 3328x2496 (4:3):	25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	50.00Hz [FHD] 1920x1080:	50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	24.00Hz [C4K] 4096x2160:	24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	24.00Hz [4K] 3840x2160:	24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	24.00Hz [Anamorphic 4K] 3328x2496 (4:3):	24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	24.00Hz [FHD] 1920x1080:	24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
STREAMING
Wi-Fi:	Protocol:	RTMP / RTMPS
	NTSC (59.94Hz) [FHD] 1920x1080:	59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. 29.97p, 6Mbps / 3Mbps (H.264)
	NTSC (59.94Hz) [HD] 1280x720:	59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
	PAL (50.00Hz) [FHD] 1920x1080:	50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. 25.00p, 6Mbps / 3Mbps (H.264)
	PAL (50.00Hz) [HD] 1280x720:	50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)
USB Tethering:	Protocol:	RTMP / RTMPS
	NTSC (59.94Hz) [4K] 3840x2160:	29.97p, 12.5Mbps (H.264)
	NTSC (59.94Hz) [FHD] 1920x1080:	59.94p, 16Mbps / 8Mbps (H.264) 29.97p, 6Mbps / 3Mbps (H.264)
	NTSC (59.94Hz) [HD] 1280x720:	59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
	PAL (50.00Hz) [4K] 3840x2160:	25.00, 12.5Mbps (H.264)
	PAL (50.00Hz) [FHD] 1920x1080:	50.00p, 16Mbps / 8Mbps (H.264) 25.00p, 6Mbps / 3Mbps (H.264)
	PAL (50.00Hz) [HD] 1280x720:	50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)
Wired LAN:	Protocol:	RTMP / RTMPS
	NTSC (59.94Hz) [4K] 3840x2160:	59.94p, 50Mbps / 25Mbps (H.265) 59.94p, 50Mbps / 25Mbps (H.264) 29.97p, 25Mbps / 12.5Mbps (H.265) 29.97p, 25Mbps / 12.5Mbps (H.264)
	NTSC (59.94Hz) [FHD] 1920x1080:	59.94p, 20Mbps / 16Mbps (H.265) 59.94p, 16Mbps / 8Mbps (H.264) 29.97p, 12Mbps / 6Mbps (H.265) 29.97p, 6Mbps / 3Mbps (H.264)
	NTSC (59.94Hz) [HD] 1280x720:	59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
	PAL (50.00Hz) [4K] 3840x2160:	50.00p, 50Mbps / 25Mbps (H.265) 50.00p, 50Mbps / 25Mbps (H.264) 25.00p, 25Mbps / 12.5Mbps (H.265) 25.00p, 25Mbps / 12.5Mbps (H.264)
	PAL (50.00Hz) [FHD] 1920x1080:	50.00p, 20Mbps / 16Mbps (H.265) 50.00p, 16Mbps / 8Mbps (H.264) 25.00p, 12Mbps / 6Mbps (H.265) 25.00p, 6Mbps / 3Mbps (H.264)
	PAL (50.00Hz) [HD] 1280x720:	50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)
VIEWFINDER
Type:		OLED Live View Finder
Pixels:		Approx. 3.68 million dots
Field of View / Magnification:		Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye Point / Diopter Adjustment:		Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye Sensor:		Yes
Display Speed:		120fps / 60fps
REAR MONITOR
Type:		TFT LCD monitor with static touch control
Monitor Size:		Free-angle, 3.0-inch (7.5cm), 3:2 aspect
Pixels:		Approx. 1.84 million dots
Field of View:		Approx. 100%
FOCUS
Type:		Contrast AF system
DFD Technology:		Yes
Focus Mode:		AFS (Single) / AFC (Continuous) / MF
AF Mode:		Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3 (Full area touch is available) (Scalable AF frame size and flexible AF position)
AF Detective Range:		EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF Custom Setting:		AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF Assist Light:		Yes
AF Lock:		Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking:		Yes / Yes
Focus Ring Control:		Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720° (â´) / 1080°/ Maximum (â´)) *When a compatible lens is attached.
Others:		Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
EXPOSURE CONTROL
Light Metering System:		1,728-zone multi-pattern sensing system
Light Metering Mode:		Multiple / Center Weighted / Spot / Highlight Weighted
Metering Range:		EV0-18 (F2.0 lens, ISO100 equivalent)
Recording Mode:		Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto
ISO Sensitivity (Standard Output Sensitivity):		Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step) Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure Compensation:		1/3 EV step ±5EV (±3EV for motion picture)
AE Lock:		Set the Fn button in custom menu to AE lock
WHITE BALANCE
White Balance:		AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White Balance Adjustment:		Blue/Amber bias, Magenta/Green bias
Colour Temperature Setting:		2500-10000K in 100K
SHUTTER
Type:		Focal-plane shutter
Shutter Speed:		Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2
Self Timer:		10sec, 3 images / 2sec / 10sec / Custom Time
Remote Control:		Remote control by DMW-RS2 (sold separately)
Silent Mode / Shutter Type:		Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE Bracket:		3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket:		3, 5 or all positions
Focus Bracket:		1 to 999 images, focus steps can be set in 10 levels
White Balance Bracket:		3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst Speed:	Mechanical Shutter / Electronic Front Curtain Shutter:	AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
	Electronic Shutter:	AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of Recordable Images:		RAW / RAW+JPEG: More than 108 images JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.) *When recording is performed under the test conditions specified by Panasonic.
6K PHOTO / 4K PHOTO
Burst Speed:		6K PHOTO: 30 frames/sec 4K PHOTO: 60 frames/sec, 30 frames/sec
Exif Information:		Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
FLASH
Flash Type:		TTL External Flash (sold separately)
Flash Mode:		Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash Synchronization:		1st Curtain Sync, 2nd Curtain Sync.
Flash Output Adjustment:		1/3EV step ±3EV
Synchronization Speed:		Less than 1/250 second
Wireless Control:		Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash Sync Socket:		Yes
PHOTO STYLE
Photo Style:		Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
Picture Adjustment:		Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB *Adjustable settings vary depending on the Photo Style mode.
MOTION PICTURE FUNCTION
Master Pedestal Level:		31 steps
Luminance Level:		8-bit: 0-255 / 16-235 / 16-255 10-bit: 0â€’1023 / 64â€’940 / 64â€’1023
Wave Form Monitor / Vectorscope:		Selectable
LUT View Assist:
