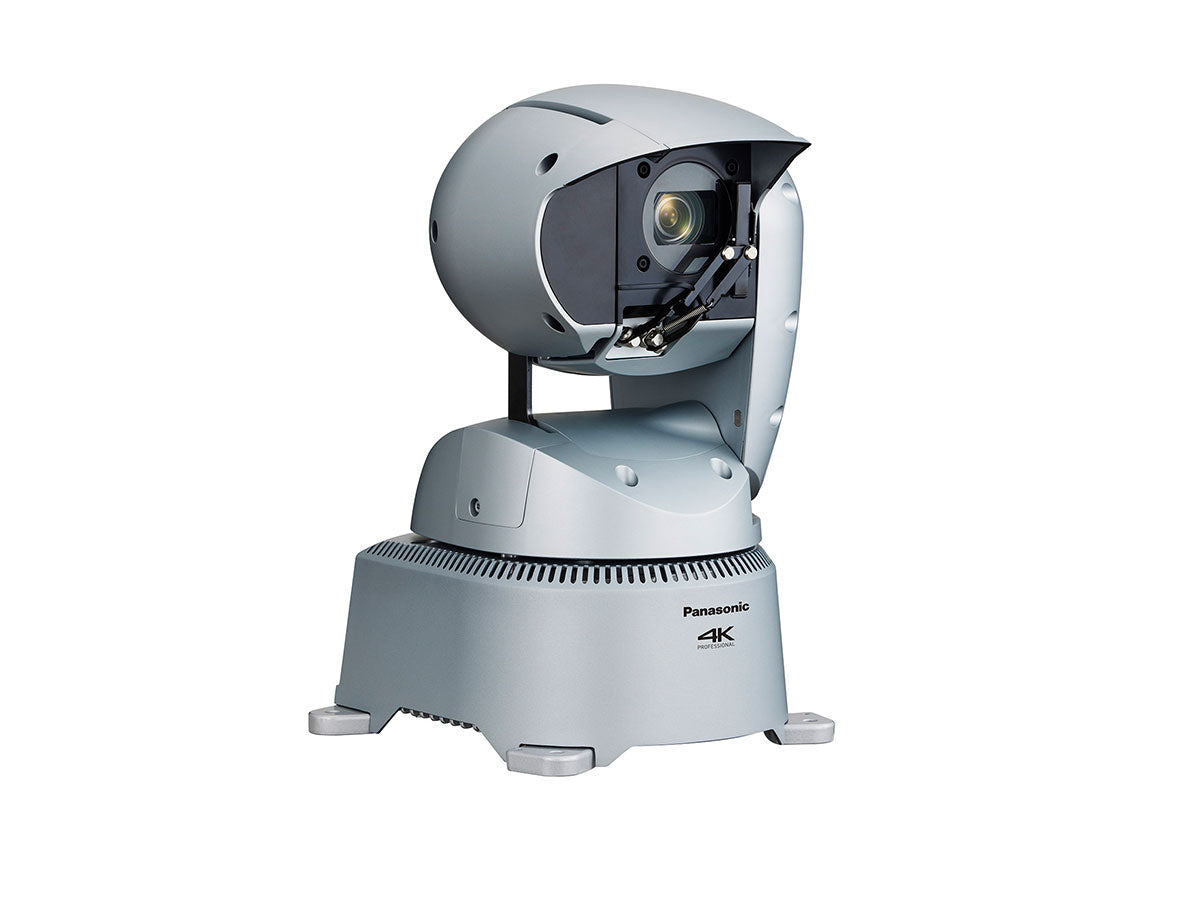

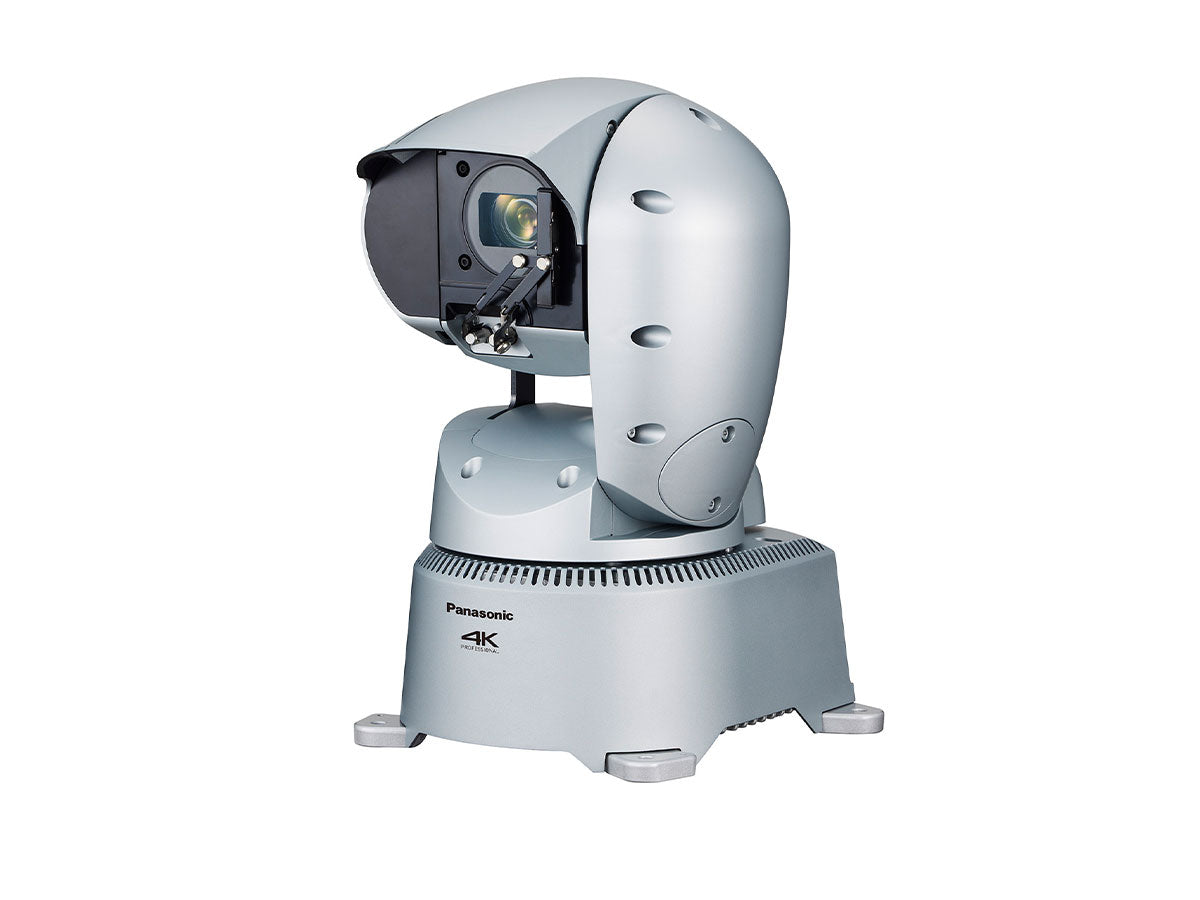

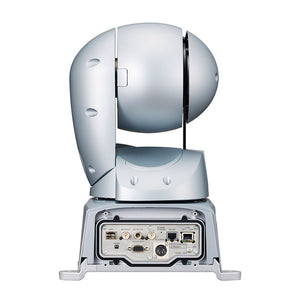

Panasonic AW-UR100 Outdoor 4K PTZ
Panasonic AW-UR100 Outdoor 4K PTZ
SKU:
PAN-AWUR100GJ
Regular price
£10,707.30 GBP ex VAT
£12,848.76 GBP inc VAT
£12,848.76 GBP inc VAT
Regular price
ex VAT
Sale price
£10,707.30 GBP ex VAT
£12,848.76 GBP inc VAT
Unit price
per
£12,848.76 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
AW-UR100 - Integrated 4K Camera
High-precision 4K/60p images, supported by D.I.S.S. (Dynamic Image Stabilizing System).
4K Recording in All Kinds of Outdoor Environments
Watching live broadcasts of sports and live outdoor performances through streamed video has become a popular form of entertainment. Live broadcasts of sporting and other outdoor events have become a common and popular form of entertainment. As the use of video for a variety of different business activities and daily life has become common, the ability to produce and use video with limited resources is becoming increasingly important.
No matter how adverse the conditions, the UR100 is a 4K PTZ camera that reliably delivers high-precision images in 4K/ 60p thanks to D.I.S.S. support. This enables live transmissions on ships, during snowstorms and typhoons, as well as on-site management of airports or warehouses in coastal regions. A wide choice of protocols and I/Fs allows for a flexible and efficient system setup and reduces the risk of false recordings and errors, giving video producers peace of mind.
High-Precision Image Capture That Never Misses Those Crucial Moments
You can never predict where or from what angle important scenes will be captured, so the UR100's wide shooting range and 74.1° wide-angle lens ensure you don't miss any crucial moments. With the 24x optical zoom lens, even hard-to-reach people such as athletes or stage performers can be perfectly captured at large venues - from a bird's eye view or even as a close-up. Additionally, the AW-UR100 can output entire images in 4K and at the same time create cropped shots from portions of the video. You can specify up to three different positions for cropping. In addition, you can zoom in on cropped images up to five times using the cropping zoom function*. The PTZ can be easily accessed and operated from the remote camera controller AW-RP150GJ/RP60GJ or from a PC.
*The image quality of FHD cropping cannot be retained when cropping zoom is used.
The Industry's First* IP65-Compliant Outdoor PTZ
AW-UR100 has 4K with about four times more pixels than FHD (Full High Definition). It also supports 60 frames per second (4K/60p) recording. Even motion-intensive scenes can be recorded without image loss, resulting in a natural, smooth image in high resolution with high-quality colors.
*As of March 2023, according to our own research.
3 Types of Image Stabilization Systems
Low-frequency vibrations, such as those caused by mounting on high poles or ceilings, are a challenge for outdoor PTZ cameras. To address this problem, the AW-UR100 is equipped with three types of image stabilization systems: optical image stabilization (O.IS.), electronic image stabilization (E.I.S) and pan/tilt image stabilization (D.I.S.S. or Dynamic Image Stabilizing System). The pan/tilt function has improved responsiveness and allows the camera to rotate smoothly to minimize shaking caused by external disturbances. In addition, the two-stage vibration correction with O.I.S. and E.I.S. ensures stable image capture regardless of the installation environment.
Flexibility in System Construction
Responding to the diversification of requirements in outdoor video shooting, the AW-UR100 is equipped with video transmission I/F options that can support major baseband transmissions such as 3G-SDI, 12G-SDI, Fiber, etc. It also supports various IP protocols such as NDI® and SRT. Flexible enough to be adapted to various shooting environments and existing video production systems, it can be used in a wide range of installation environments and for purposes of image capture, editing, and distribution. The AW-UR100 helps you to widen the world of utilization and expression for outdoor image capture. You can connect the AW-UR100 with AR/VR2 systems with the output of FreeD1 compliant commands. By outputting tracking data of cameras (pan/ tilt/ zoom/ iris) in conjunction with synchronization signals, therefore the construction of a system without an encoder is easily possible.
*1: Freed is a protocol that is sued to output tracking data for camera position movements to used with AR/ VR systems
*2: AR: Augmented Reality, VR: Virtual Reality
*2: AR: Augmented Reality, VR: Virtual Reality
Equipped with Three Types of Image Stabilizing Systems: O.I.S, E.I.S, and D.I.S.S (Dynamic Image Stabilizing System)
One of the challenges for outdoor PTZ cameras such as those mounted on a high pole or ceiling-mounted cameras has been low-frequency large amplitude swing from wind. To eliminate this problem, the AW-UR100 is equipped with three types of image stabilizing systems; optical image stabilization (O.IS.), electronic image stabilization (E.I.S), and Pan/Tilt image stabilization (D.I.S.S, or Dynamic Image Stabilizing System). The Pan/Tilt function has improved responsiveness enables smooth rotation of the camera to minimize trembling caused by external disturbances. In addition, the two-step vibration correction with O.I.S and E.I.S provides stable image capture regardless of the installation environment.
Various I/F and Supported Protocols
A major update from the HR140 with two 3G-SDI ports, the AW-UR100 is equipped with video transmission I/F options that support major baseband transmissions including 3G-SDI, 12G-SDI, and Fiber. 12D-SDI ports can also be used for 3G-SDI. As it supports major IP transmissions such as NDI®, SRT, and RTMP, you can utilize the AW-UR100 in your existing system environment.
*NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.
*NDI® is a registered trademark of NewTek, Inc. in the United States and other countries.
*In this instance, NDI® is used to indicate low latency with high bandwidth NDI®.
*NDI® is a registered trademark of NewTek, Inc. in the United States and other countries.
*In this instance, NDI® is used to indicate low latency with high bandwidth NDI®.
- Compatible with 4K/60p shooting
- Built-in cropping function
- 24x optical zoom / 74.1° horizontal wide-angle images
- Three types of image stabilization, O.I.S., E.I.S. and D.I.S.S.
- Durability to withstand the harshest of environments
| INPUT / OUTPUT | ||
| Output Format (High Bandwidth NDI): | 4K Format: | 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p |
| HD Format: | 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p､1080/24p, 1080/23.98p, 720/59.94p, 720/50p | |
| Current Consumption: | TBD | |
| Power Requirements: | DC12V~21.8±10%(10.8V~24.0V) | |
| Ambient Operating Temperature: | -15℃ to 45℃ (5 ℉ to +113 ℉) (preheating is required when -5 °C (23 °F) or less) | |
| PoE++: | IEEE802.3bt compliant:DC42-57V (Software authentication (LLDP) is supported)) | |
| Storage Temperature: | –20 °C to +55 °C (–4 °F to +113 °F) | |
| Ambient Operating Humidity: | 10 % to 100 % (no condensation) | |
| Dimensions: | TBD | |
| Finish: | TBD | |
| Mass: | TBD | |
| Controller Supported: | AW-RP150, AW-RP60, AK-HRP1010, AK-HRP1015, AK-HRP1000, AK-HRP1005, AK-HRP250 | |
| Service Life: | Functional durability 7 years (8H), life end 20 years | |
| Imaging Sensors: | 1/2.5-type (1/2.5") 4K MOS Effective Pixels :3,864×2,196= Approx. 8,490,000 pixels | |
| CAMERA UNIT | ||
| Lens: | Motorized Optical 24xZoom F1.8~F4.0 (f=4.12 mm ~ 98.9mm,35mm equivalent:25.0mm ~ 600.0mm) i.Zoom(UHD:28x,FHD:36x) D.Extender(1.4x,2x) Digital Zoom 10x | |
| Optical Filter: | Through､1/4,1/16,1/64 ,IR Through (IR Through is used as "night mode") | |
| Conversion Lens: | Not Supported | |
| Angle of View Range: | Horizontal: | 74.1°(wide) - 3.3°(tele) |
| Vertical: | 46.0°(wide) - 1.9°(tele) | |
| Diagonal: | 81.8°(wide) - 3.8°(tele) | |
| Focus Distance: | Entire Zooming Range: | 1200mm |
| Wide End: | 100mm | |
| Standard Sensitivity: | F4/2,000lux(Non-public) *With full auto function *Although it is not described in manuals, catalogs, etc., the numerical value is described as a guideline for internal materials. | |
| Colour Separation Optical Systems: | 1MOS | |
| Minimum Illumination: | 3lx(F1.8, 59.94p, 50IRE, +42dB, without accumulation) | |
| Horizontal Resolution: | 1,500 TV Typ(center area, UHD Mode, Wide) | |
| Gain Selection: | Auto､0dB ~ 36dB* Can be set in 1dB step increments. (Super Gain function equipped : 37 dB to 42 dB) | |
| Frame Mix: | Auto､0dB､6dB､12dB､18dB､24dB *If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p､1080/25p, it cannot be set. | |
| Synchro Scan: | 59.94p / 59.94i mode 60.0Hz~7200Hz 29.97p mode 30.0Hz~7200Hz 23.98p / 24p mode 24.0Hz~7200Hz 50p / 50i mode 50.0Hz~7200Hz 25p mode 25.0Hz~7200Hz | |
| Gamma: | HD/NORMAL/CINEMA1/CINEMA2/Still like *Black Gamma is not supported | |
| Electronic Shutter Speed: | 59.94p / 59.94i Mode: | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| 29.97p Mode: | 1/30,1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 23.98p / 24p Mode: | 1/24,1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 50p / 50i Mode: | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 25p Mode: | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| White Balance: | ATW, 3200K､5600K AWB-A, AWB-B VAR (selectable between 2000 K and 15000 K by designating a value) (ATW Speed 3-stage variables.) | |
| Chroma Amount Variability: | OFF, -99%~99% | |
| Output Format (UHD / FHD SDI): | 4K Format: | 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) |
| HD Format: | 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/29.97PsF, 1080/25p(Native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p(Native), 1080/23.98p(Native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Shine File: | Full Auto, Scene1, Scene2, Scene3 | |
| Synchronization System: | Internal/External Synchronization (BBS/Tri-level sync) | |

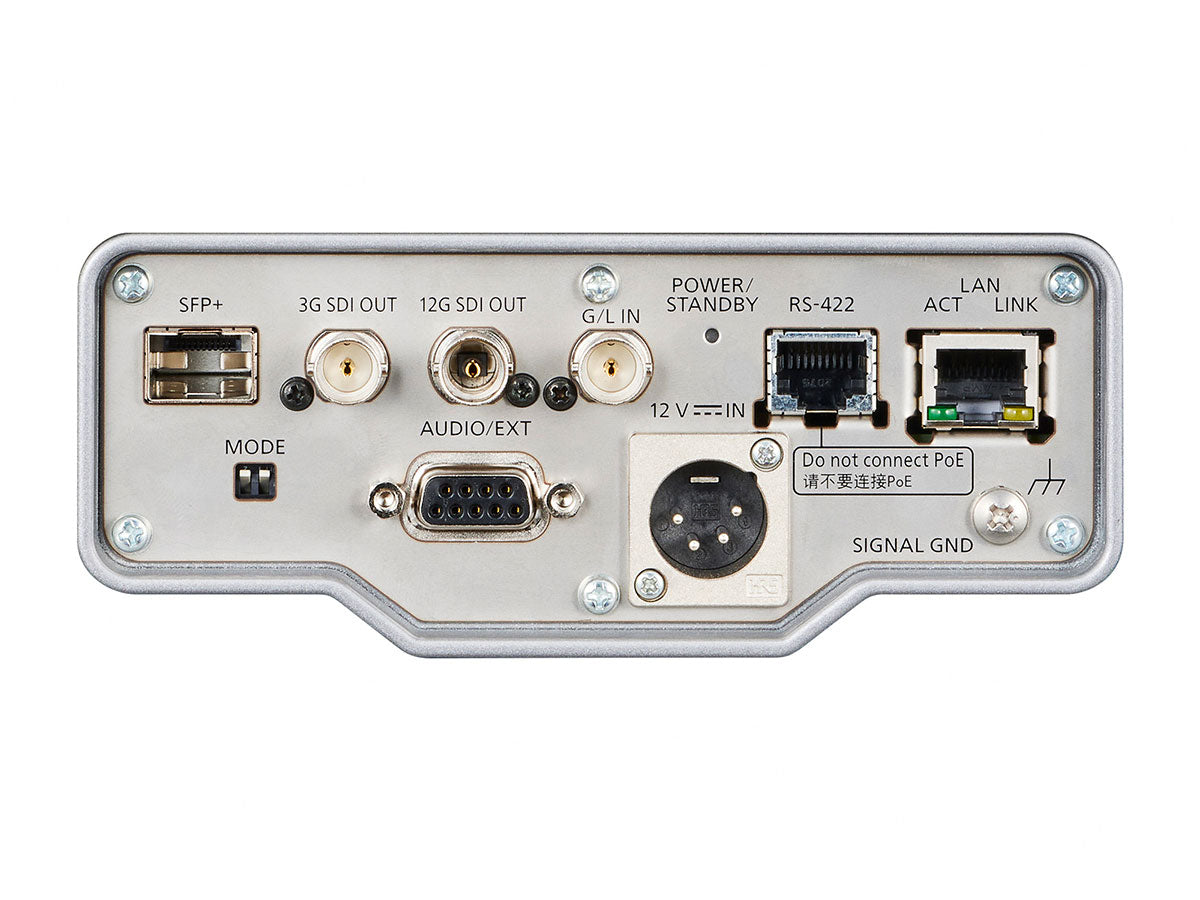

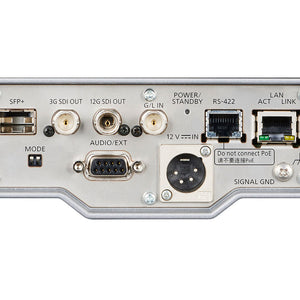

| Input: | DC 12 V IN, G/L IN (BNC) | |
| G/L In: | BBS (Black Burst Sync), tri-level sync supported) | |
| OUTPUT | ||
| SFP+: | SFP+ standard (Single Fiber) *This unit does not support input by optical signals | |
| 12G SDI OUT: | SMPTE2082-1, SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported | |
| 3G SDI OUT: | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported | |
| LAN: | LAN connector for IP control（RJ‑45） | |
| IP Connecting Cable: | If you have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable)Max100 m If you don't have PoE++ ethernet hub LAN cable*1( category 5e or above､straight cable)Max100 m *1 STP(Shielded Twisted Pair) is recommended *2 Category 6 or above is used for 4K video transmission. | |
| AW Protocol Connecting Cable: | LAN cable*(category 5e or above, straight cable)Max1000 m *STP(Shielded Twisted Pair) is recommended | |

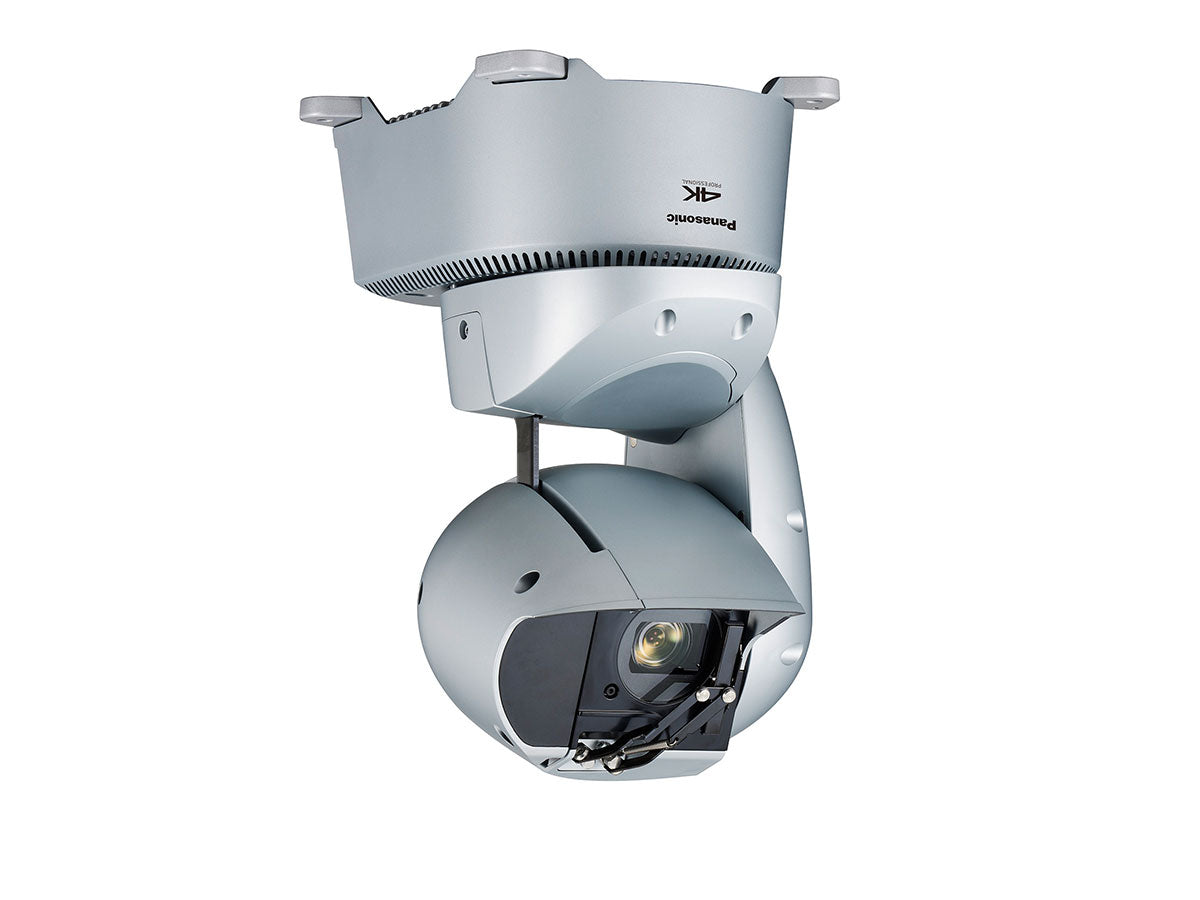

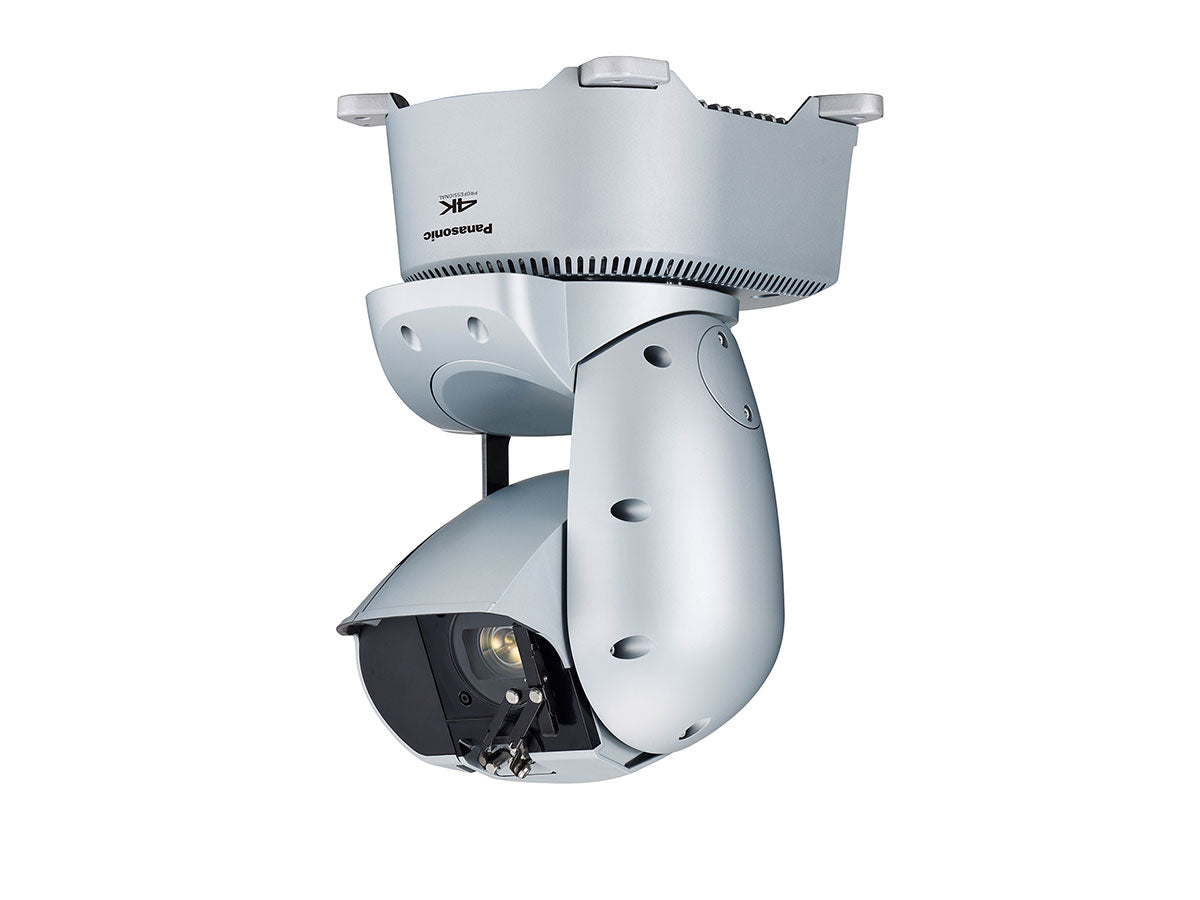

| Installation Method: | Stand-alone (Desktop) or suspended (Hanging) | |
| Pan / Tilt Operation Speed: | Speed range:0.08 °/s ~60°/s( Normal mode) *3 speed modes installed Normal:60°/s,Fast1:90°/s, Fast2:180°/s | |
| Panning Range: | ±175° | |
| Quietness: | TBD | |
| Tilting Range: | –30°~ 210 | |
| Vibration Correction: | D.I.S.S.(Dynamic Image Stabilizing System) | |
| Supported OS, Browsers: | TBD | |
| IP STREAMING | ||
| Image Streaming Mode: | JPEG (MJPEG), H.264, H.265, NDI/HX, High Bandwidth NDI | |
| Image Resolution: | 3840x2160, 1920x1080, 1280x720, 640x360, 320x180 | |
| Image Transmission Setting (JPEG): | Frame rate : Max 30fps *No bit rate specified *JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate Image quality(Fine/Normal) | |
| Image Transmission Setting (H.264): | Transmission Type : Unicast port (AUTO) Transmission mode: CBR, VBR Frame Rate Max to Min Bit Rate | |
| Image Transmission Setting (H.265): | Transmission Type : Unicast port (AUTO) Transmission Mode :CBR, VBR Frame Rate Max to Min Bit Rate | |
| Supported Protocol: | Networl Protocol: Transmission Protocol: Applocation Protocol: Video Streaming Protocol: External Device Cooperation Protocol:FreeD, TSL5.0, SNMP | |
| Audio Compression Type: | AAC-LC, 48kHz/16bit/2ch | |
| NDI (HIGH BANDWIDTH NDI, NDI/HX VER.2) | ||
| Image Resolution (NDI | HX Ver.2): | 1920x1080, 1280x720 | |
| Image Streaming Setting: | High Bandwidth NDI NDI/HX: Frame Rate Max Bit Rate | |
| Audio Compression Type 2: | NDI:AAC, 48kHz, 2ch NDI/HX:AAC-LC, 48kHz/16bit/2ch | |
| F Number Display: | Displayed on the AW-RP150GJ and AW-RP60GJ sides | |
| NDI: | High Bandwidth NDI,NDI|HX included as standard | |
| RS-422: | CONTROL IN RS422A (RJ‑45) | |
| Image Stabilization: | TBD | |
| Privacy Mode: | The lens surface faces backward when standing by (ON/OFF) | |
| NEW FEATURE | ||
| IP Menu Display: | Supported *Non-synchronous with SDI-OUT | |
| VR (FreeD) (IP/RS422): | Supported | |
| WIRELESS REMOTE CONTROLLER | ||
| Horizontal Display Function: | TBD | |
