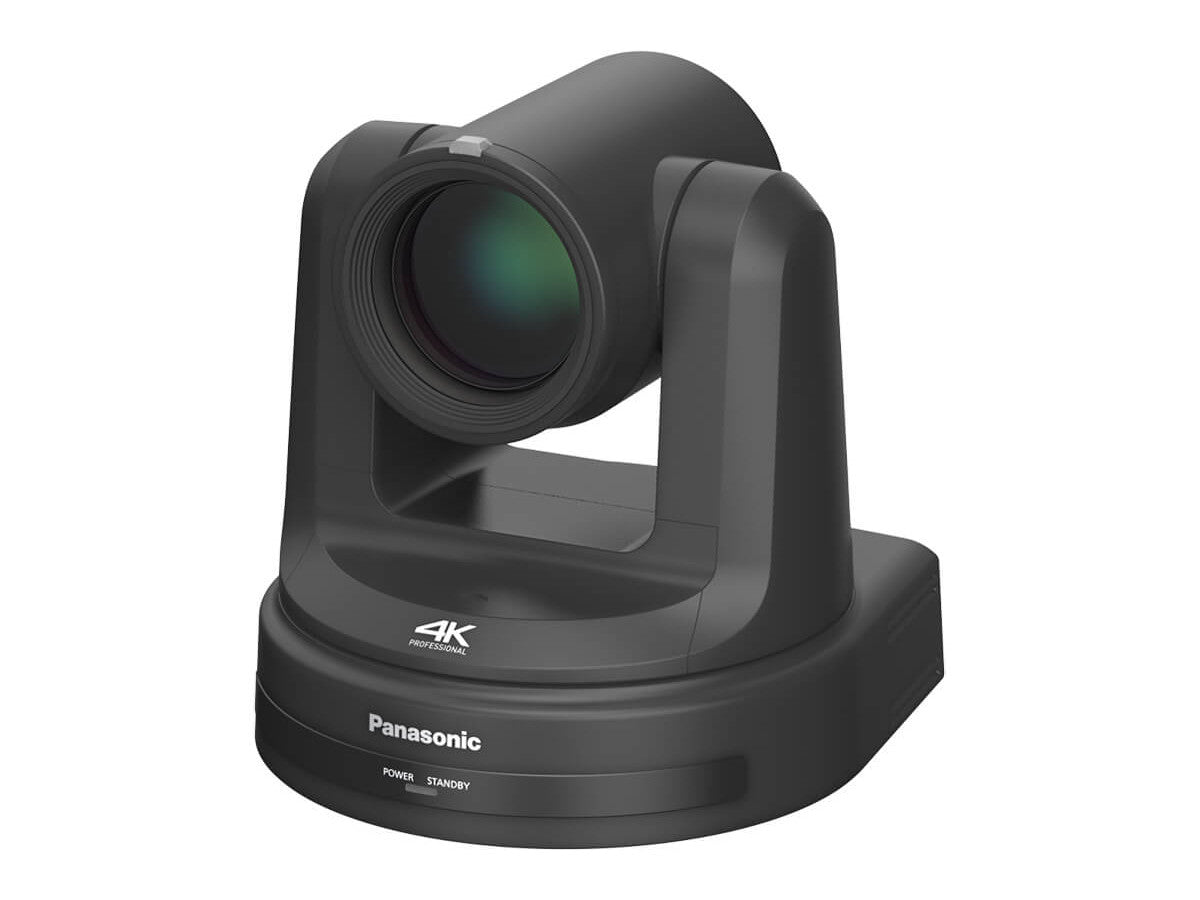

Panasonic AW-UE20 4K PTZ Camera with simultaneous 3G-SDI, HDMI & USB Output - Black
Panasonic AW-UE20 4K PTZ Camera with simultaneous 3G-SDI, HDMI & USB Output - Black
SKU:
PAN-AW-UE20KEJ
Regular price
£1,241.00 GBP ex VAT
£1,489.20 GBP inc VAT
£1,489.20 GBP inc VAT
Regular price
ex VAT
Sale price
£1,241.00 GBP ex VAT
£1,489.20 GBP inc VAT
Unit price
per
£1,489.20 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
The AW-UE20 has a newly-designed and compact body, which makes it very easy to handle and to install in any kind of setting, especially when positioning the camera on trusses, ceilings or wall mounts for class rooms and meetings rooms.
The AW-UE20 has been designed to support the following markets:
-
Live streaming events
-
Higher education
-
Corporate installs
Single-Cable Solution
The AW-UE20 also offers PoE+ support for camera power, control and video transmission over a single cable.
Online Video Content Support
When using the PTZ Virtual USB driver software and using a LAN connection, it is possible to obtain video and audio from the AW-UE20 in the same way you would an USB camera. This also ensures connectivity with video platforms including Panopto.
Upgraded 4K Sensor
The AW-UE20 features a new 1/2.8-type 4K MOS sensor that produces stunning UHD video. The UE20 supports 3G SDI, HDMI and IP which makes it an ideal option for using within existing HD or 4K workflows thanks to its simultaneous video output feature.
Wide-Angle Lens
The AW-UE20 introduces a new wide-angle lens with a 71° field of view and a 12x optical zoom, enabling a wide area to be shot from a limited installation space. This allows shooting in meeting rooms and huddle spaces.
4K & HD Analogue Outputs
The AW-UE20 supports up to 4K 30p/25p video at 3840 x 2160 to provide professional and high-quality shooting of moving images, as well as a wide variety of output interfaces such as 3G-SDI, HDMI, and IP – which can be activated simultaneously for HD and 4K workflows.
IP Protocol Support
RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly.
Simplified Workflows
A new look web interface as been designed for provide quick access to operators in all areas of business.
Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software as well as other Panasonic software from the Broadcast & ProAV range.
- 4K PTZ Camera with simultaneous 3G-SDI, HDMI & USB output
- Compact size & wide angle
- Simultaneous 3G-SDI, HDMI & USB output
- High-Quality Video Streaming for More Comfortable Online Communication
- Excellent system flexiblility to achieve smart wiring and smooth operation
| GENERAL | |
| Power Requirements: | DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter) |
| PoE+: | IEEE802.3 at compliant |
| Current Consumption: | TBD |
| Ambient Operating Temperature: | 0 °C to 40 °C (32℉ to 104℉) |
| Ambient Operating Humidity: | 20 ï¼… to 90 ï¼… (no condensation) |
| Storage Temperature: | -20°C to 50°C (-4 °F to 122 °F) |
| Mass: | TBD |
| Dimensions: | TBD |
| Finish: | AW-UE20W: White AW-UE20K: Black |
| Controller Supported: | AW-RP150GJ, AW-RP60GJ, AW-RM50AG |
| CAMERA UNIT | |
| Image Sensor: | 1/2.8-type MOS×1 |
| Lens: | Electric 12 x optical zoom F1.6～F2.8 (f = 3.9 mm ～ 46.8 mm) |
| Zoom: | Optical zoom: 12 x |
| Angle of View Range: | Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele) |
| Minimum Illumination: | TBD |
| S/N: | TBD |
| Horizontal Resolution: | TBD |
| OUTPUT FORMAT | |
| Output Format - HDMI - 4K: | 2160/30p, 2160/29.97p, 2160/25p |
| Output Format - HDMI - HD: | 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p |
| Output Format - SDI - HD: | 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p |
| Input: | DC 12 V IN |
| OUTPUT | |
| Video Output: | HDMI, 3G-SDI OUT |
| INPUT / OUTPUT | |
| Input / Output Connector: | LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT |
| PAN TILT HEAD UNIT | |
| Installation Method: | Stand-alone (Desktop) or suspended (Hanging) |
| Panning Range: | ±170° |
| Tilting Range: | -30°ï½ž90° |
| Quietness: | NC40 or less |
| SUPPORTED OPERATING SYSTEMS & WEB BROWSERS | |
| Windows: | Windows 10 Windows® Internet Explorer® 11（32 bit / 64 bit） Microsoft Edge Google Chrome |
| Mac: | Mac OS 10.15 Mac OS 10.14 Mac OS 10.13 Mac OS 10.12 Safari Google Chrome |
| IP STREAMING | |
| Image Streaming Mode: | JPEG(MJPEG), H.264, H.265 |
| Image Resolution: | 3840×2160, 1920×1080, 1280×720, 640×360 |
