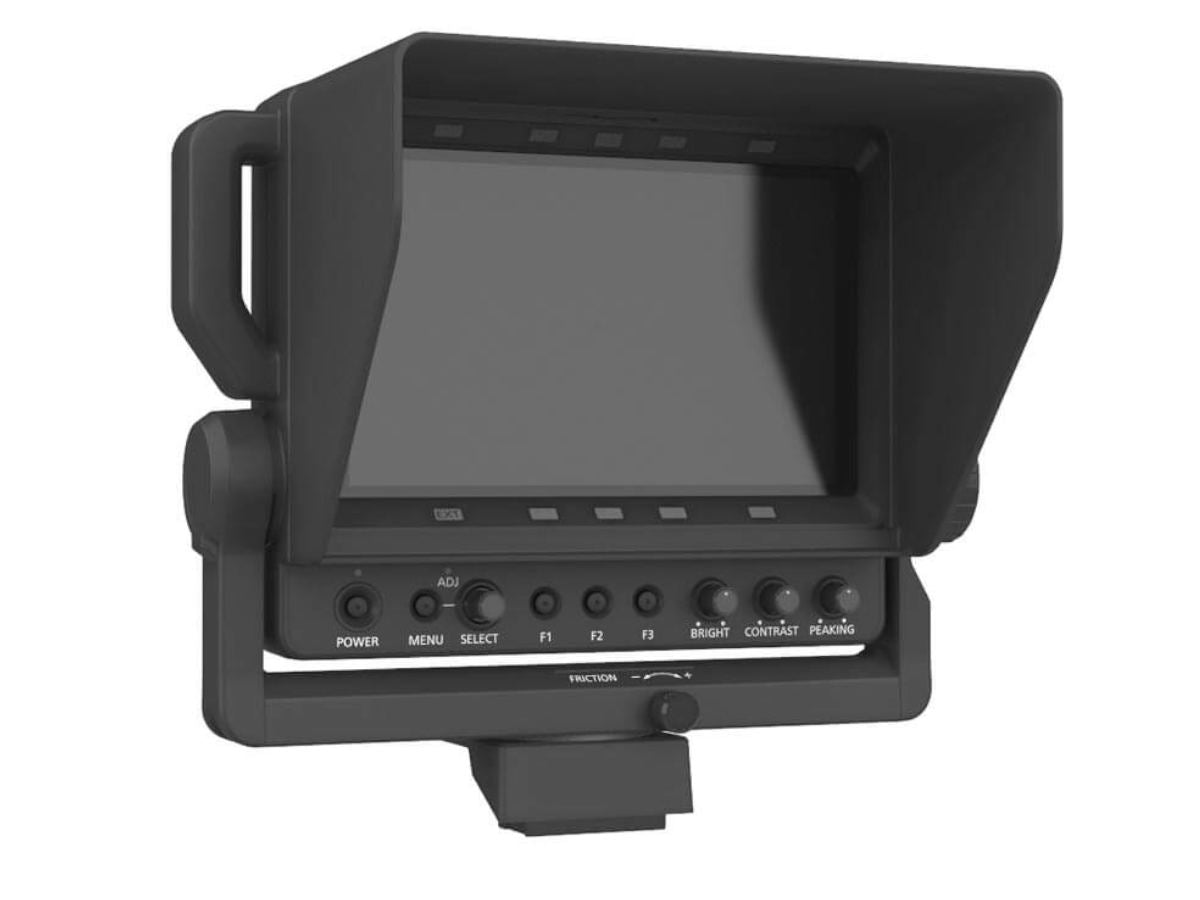

Panasonic AK-HVF75 Lightweight LCD Colour Viewfinder
Panasonic AK-HVF75 Lightweight LCD Colour Viewfinder
SKU:
PAN-AKHVF75
Regular price
£3,210.00 GBP ex VAT
£3,852.00 GBP inc VAT
£3,852.00 GBP inc VAT
Regular price
ex VAT
Sale price
£3,210.00 GBP ex VAT
£3,852.00 GBP inc VAT
Unit price
per
£3,852.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- Lightweight 7 inch LCD Colour Viewfinder, with low power consumption and high resolution.
- Equipped with 1280 x 800 (WXGA) resolution 17.8cm (7 inches) colour LCD panel.
- Wide horizontal / vertical viewing angle of 176° , screen brightness of 400 cd/m² and contrast of 800:1.
- Equipped with focus assist functions (Focus in Red, Pixel to Pixel).
- Direct camera menu control is possible.
- Equipped with three assignable function switches.
- Contrast, brightness, and peaking can be adjusted.
- Tilting (90° up, 60° down) and panning (90° left and right) is possible.
- Wide Angle of View Horizontal : 176 degree Vertical : 176 degree
- Brightness: 400cs/m2
- Contrast: 800:1
- Camera Menu Control from View Finder
- Tally Colour: Red, Green, Yellow is available
- For use with AK-HC3900 / AK-UC3000
| GENERAL | |
| Power: | DC 12 V (supplied from camera) |
| Power Consumption: | 11 W |
| Operating Temperature: | 0°C to 45°C (32°F to 113°F ) |
| Storage Temperature: | −20 °C to 60 °C (−4 °F to 140 °F) |
| Operating Humidity: | 10% to 85% (no condensation) |
| Dumensions: | Approx. 1.6 kg (3.53 lbs.) (not including hood) |
| Weight: | 243.5 mm x 212 mm x 85 mm (9-19/32 inches x 8-11/32 inches x 3-11/32 inches) (not including hood) 243.5 mm x 212 mm x 172 mm (9-19/32 inches x 8-11/32 inches x 6-25/32 inches) (including hood) |
| DISPLAY PANEL | |
| Dimensions: | 7.0 inches |
| Number of Pixels: | 1280 x 800 (WXGA) |
| Display Colour: | Approx. 16.77 million colors |
| SWITCH FUNCTION / CONNECTOR | |
| Operation: | |
| Connector: | Camera I/F connector (D-sub 29 pins x 1) |
| CAM: | 1080/59.94i, 1080/50i |
