Osee Megamon 15 15.4inch 10bit 1000nits HDR Field Studio Production Monitor (V-Mount Kit)
Osee Megamon 15 15.4inch 10bit 1000nits HDR Field Studio Production Monitor (V-Mount Kit)
£870.00 GBP inc VAT
£870.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications
- What's Included
1000nits Brightness
Megamon 15 is a 1920*1200 FHD display which adopts an IPS screen of 1000 nits to achieve daylight visibility, a perfect brightness for production on location and in studio. Combined with a contrast ratio of 1450:1, it's also suitable for HDR preview. And this panel features a super wide viewing angle of 178 degrees with little to no image distortion and color shift.
Accurate Color Performance
By a color depth of 10 bit, Megamon 15 can produce over 1.07 billion colors and cover 100% Rec709 color gamut, and with a color engine of osee, it can generate a really natural and vivid image on screen. Megamon 15 is also equipped with the capability of accurate color calibration, with a color calibration probe and tools osee provides, it can be calibrated to Rec709 standard at anytime anywhere.
Various Connectors

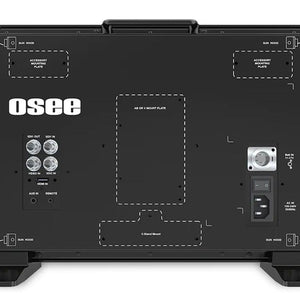

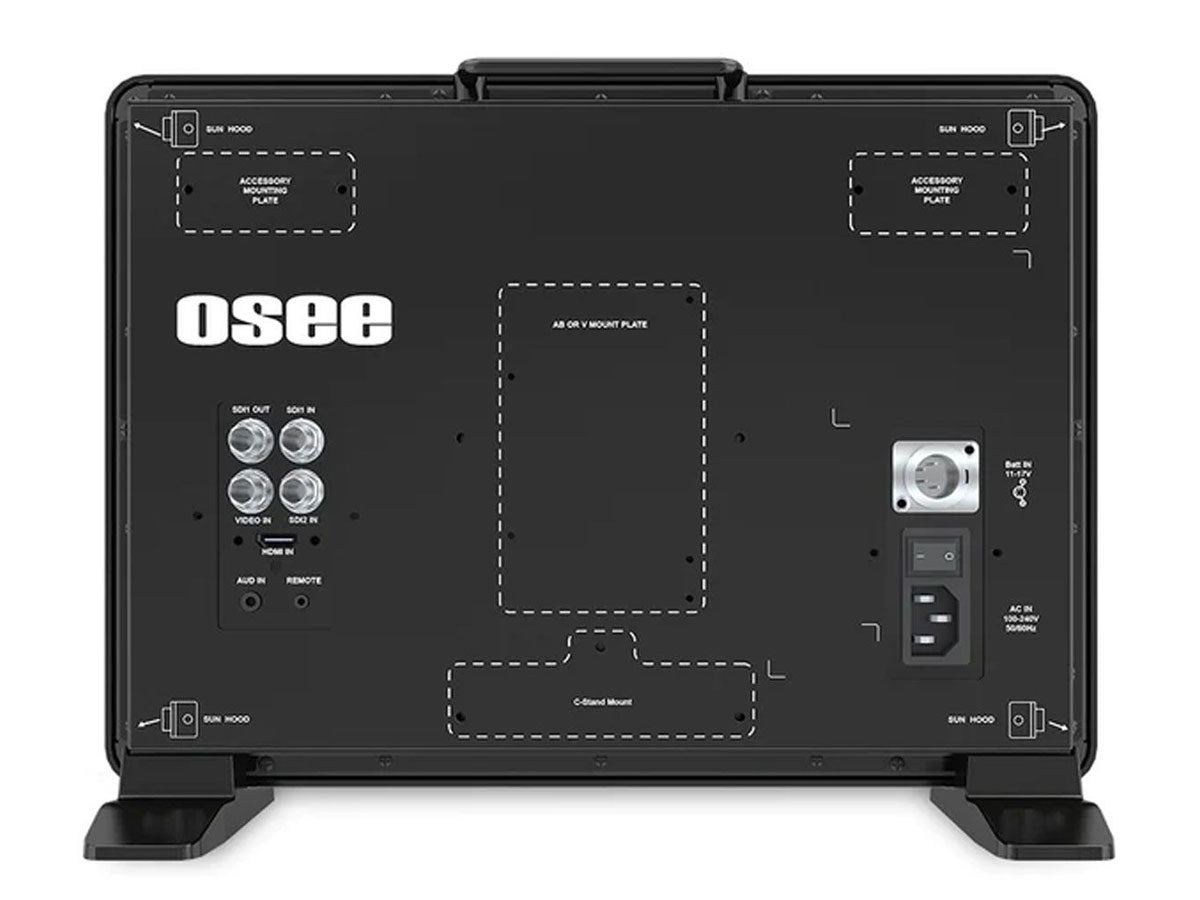

Megamon 15 is equipped with various interfaces to meet the different needs of filmmakers on set. For power, there's AC and DC options, for mounting, there's C-stand adapter and VESA mount options. For signal, there's SDI and HDMI options. There are also cheese plate mounting positions for mounting extra accessories like video transmitters etc.
Full Set of Video Assist Tools
Waveform, false color, focus assist, histogram, anamorphic etc. Megamon 15 has a full set of professional image assisting tools to help you nailing framing, exposure, focus and audio accurately. It also has built-in SDR and HDR(HLG/PQ) LUTs of different camera curves for realtime LUT preview when shooting LOG, you can add your favorite custom LUT via USB as well. With user presets, these functions can be turned on or off on location quickly.
Convenient Portable Bag
Megamon 15 comes with a very convenient portable bag which can be put on a C-stand, what’s more, the front can be transformed into a sun hood and the back can be opened to adjust the connected accessories. It's a perfect tool for easy transportation and run&gun gigs.
| DISPLAY | |
| Panel Size: | 15.4inch |
| Resolution: | 1920X1200 |
| Aspect: | 16:10 |
| Brightness: | 1000nits |
| Backlight: | White LED |
| Backlight Life: | 20000 Hrs Minimun |
| Contrast: | 1450:1 |
| Colour Depth: | 1.06G |
| Response Time: | 18ms |
| Viewing Angle: | 178Ëš |
| DATA I/O | |
| USB Slot: | 3D LUTs upload and Firmware Upgrade (USB under 16G and formatted to FAT32 is recommended) |
| Remote: | 2.5mm Jack |
| ENVIRONMENTAL | |
| Work Temperature: | 0°C~40°C |
| Dimensions: | 368.9mm x 264.9mm x 54.5mm |
| Weight: | 3.7kg (bare monitor) |
| Mounting Style: | Vesa Mount(retail)/C-stand Mount |
| POWER | |
| AC: | 100～240V 50/60Hz |
| DC Battery: | 11~16.8V |
| Power Consumption: | 29.3W |
| VIDEO FORMAT | |
| HDMI (10-Bit 4:2:2 YCC): | 720p: 60/59.94/50 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 1080p: 30/29.97/25/24/23.98 |
| SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC): | 480i: 60 576i: 50 720p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 48/47.95/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 |
| Composite (10-Bit 4:2:2 YCC): | 480i: 60 576i: 60 |
| COLOUR MANAGEMENT | |
| Camera LUT: | 30 SDR&14 HDR LUTs, Detailed in User Manual |
| Load LUT File: | USB, Up to 16 User LUTs can be Stored |
| Gamma: | PQ, HLG |
| Color Temperature: | D55, D61, D65, D93, DCI, User1, User2 |
| Color Space: | ITU709, EBU, SMPTE-C, Native, P3, ITU2020 |
| Color Calibration: | Calman (osee calibrator will be released later) with Xrite i1 Display Pro/Plus |
| AUDIO TOOLS | |
| Audio Source: | Embedded/External/No Signal |
| Speak Out L/R: | Select Channels for Left or Right Speaker, Embedded Signal Only |
| METER DISPLAY | |
| Meter Select: | CH1-2/G1/G2/G3/G4/G1+G2/G1+G3/G1+G4/G2+G3/G2+G4/G3+G4/G1-G4 |
| Meter Position: | Left/Right |
| Display Mode: | Simple/with Channel Number&Frame |
| Meter Opacity: | Value 0-100 Adjustable |
| FRAME TOOLS | |
| Aspect: | 16:9/4:3/15:9/14:9/13:9/1.85:1/2.35:1/Variable(Value 1.00-3.00 Adjustable)/Off |
| Center Marker: | On/Off |
| Area Marker: | 80%/85%/88%/90%/93%/95% |
| Crosshatch: | On/Off |
| Marker Fit: | On/Off |
| Marker Level: | On: Area Marker Based on the Current Input/Off: Area Marker Based on the Aspect Marker |
| Marker Mat: | Darkness of the Outside Area of Aspect Marker Off/Half/Black |
| SCOPE TOOLS | |
| Waveform: | Mode:LUMA/RGB/Parade; Size&Location:Small&Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down, Middle&Right Down/Center Down/Left Down, Large&Center Down; Opacity: 25%/50%/75%/100% |
| Vectorscope: | Location:Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100% |
| Histogram: | Mode: LUMA/RGB; Location: Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100% |
| EXPOSURE TOOLS | |
| False Color: | Spectrum/SONY Slog3/SONY Slog2/ARRI LogC/Canon Clog2/Canon Clog3/Panasonic Vlog/RED RedLogFilm/RED RL3G10/BMD/BMD 4K/ARRI Rec709/SONY LC709A/SONY LC709/Panasonic V709/RED G3 and RED G4 |
| Zebra: | Level 1-100 Adjustable |
| FOCUS TOOLS | |
| Focus Assist: | Red/Green/Blue/Mono; Sensitivity Value 0-100 Adjustable |
| Peaking: | Level 1-16 adjustable |
| OTHER | |
| Anamorphic: | 1X/1.33X/1.5X/1.66X/1.8X/2X/2XMAG/Off |
| Blue Only: | Blue/Green/Red |
| IMD Display: | Protocol: TSL3.1/TSL4.0/Local; Color:Red/Green/Yellow; ID Number:0-255; Baud Rate: 2400/4800/9600/19200/38400/57600/115200 |
| Key Inhibit: | On/Off |
| Mono: | On/Off |
| Mute: | On/Off |
| Osd Time: | 10/30/60s |
| Scan: | On/Off |

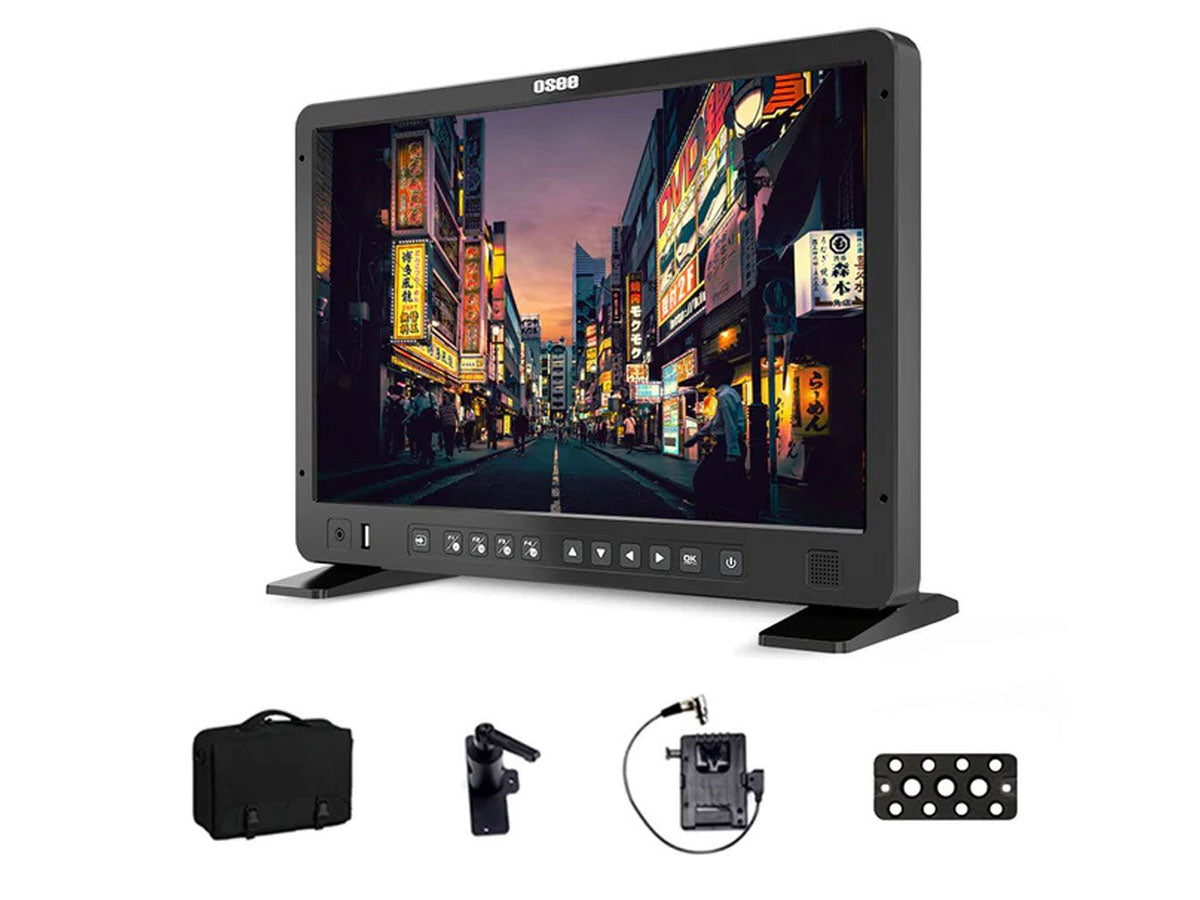

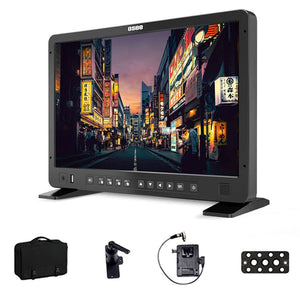

- Megamon 15 Monitor
- Portable Bag
- V-mount Battery Plate
- C-stand Adapter
- Cheese Plate
- Desktop Stand Feet
- Power Cable
