Nanlux NL Mount Projection Attachment (15-30°)
Nanlux NL Mount Projection Attachment (15-30°)
SKU:
NAN-PJ-NLM-15-30
Regular price
£1,325.00 GBP ex VAT
£1,590.00 GBP inc VAT
£1,590.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,325.00 GBP ex VAT
£1,590.00 GBP inc VAT
Unit price
per
£1,590.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
NL Mount Projection Attachment 15-30°
Illuminate · Zoom · Focus
Illuminate · Zoom · Focus
Nanlux introduces the NL Mount Projection Attachment 15-30° for the Evoke series*.
It offers exceptional optical control of zoom, focusing, cutting, and gobo projection with precision optics.
The powerful beam of light it produces is well-controlled, minimizing extraneous light leaks, and easily adds layers, depth, and accents to backgrounds and images.
The range of lighting effects is further enhanced when it is used with reflectors.
*Compatible with Evoke series NL mount light fixtures, including Evoke 900C/1200/1200B/2400B.
It offers exceptional optical control of zoom, focusing, cutting, and gobo projection with precision optics.
The powerful beam of light it produces is well-controlled, minimizing extraneous light leaks, and easily adds layers, depth, and accents to backgrounds and images.
The range of lighting effects is further enhanced when it is used with reflectors.
*Compatible with Evoke series NL mount light fixtures, including Evoke 900C/1200/1200B/2400B.
Remarkable Performance

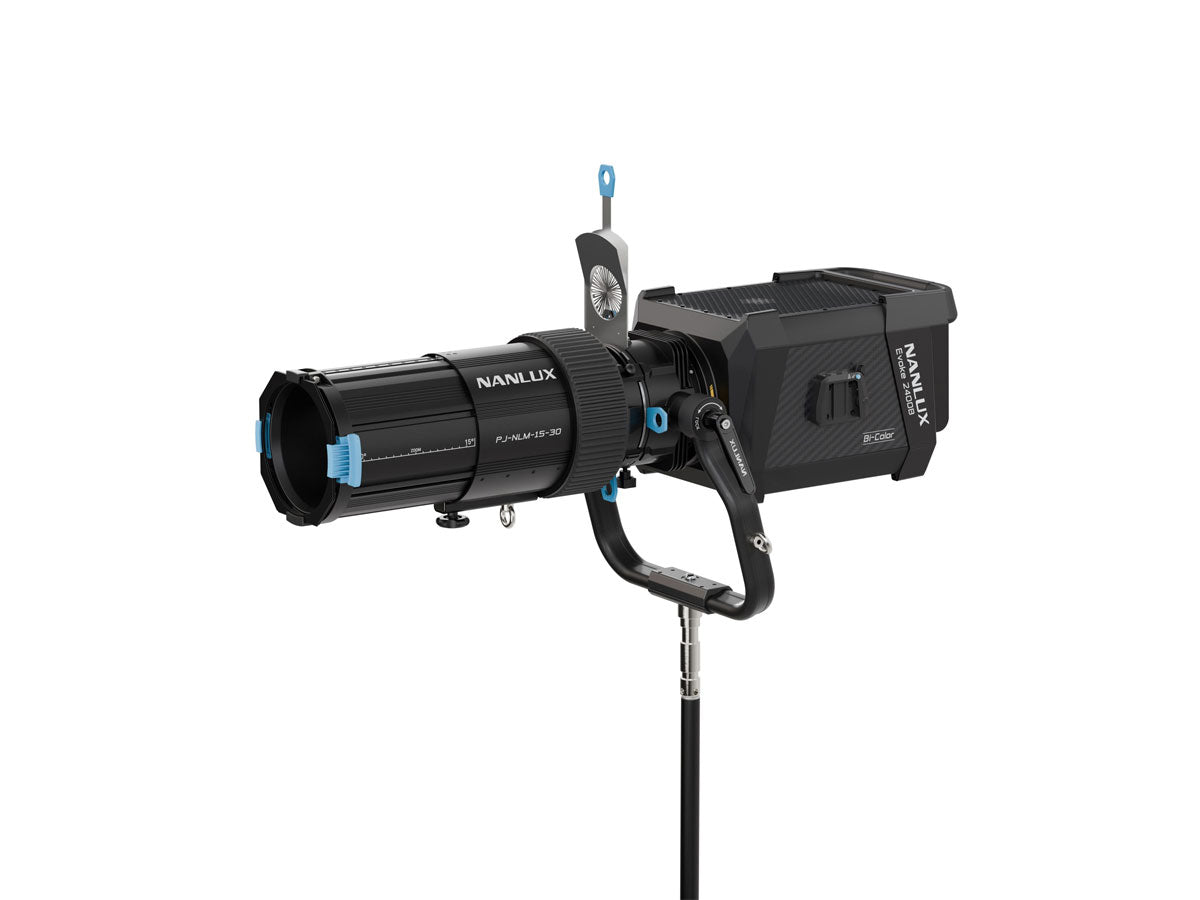

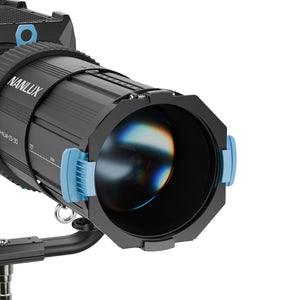

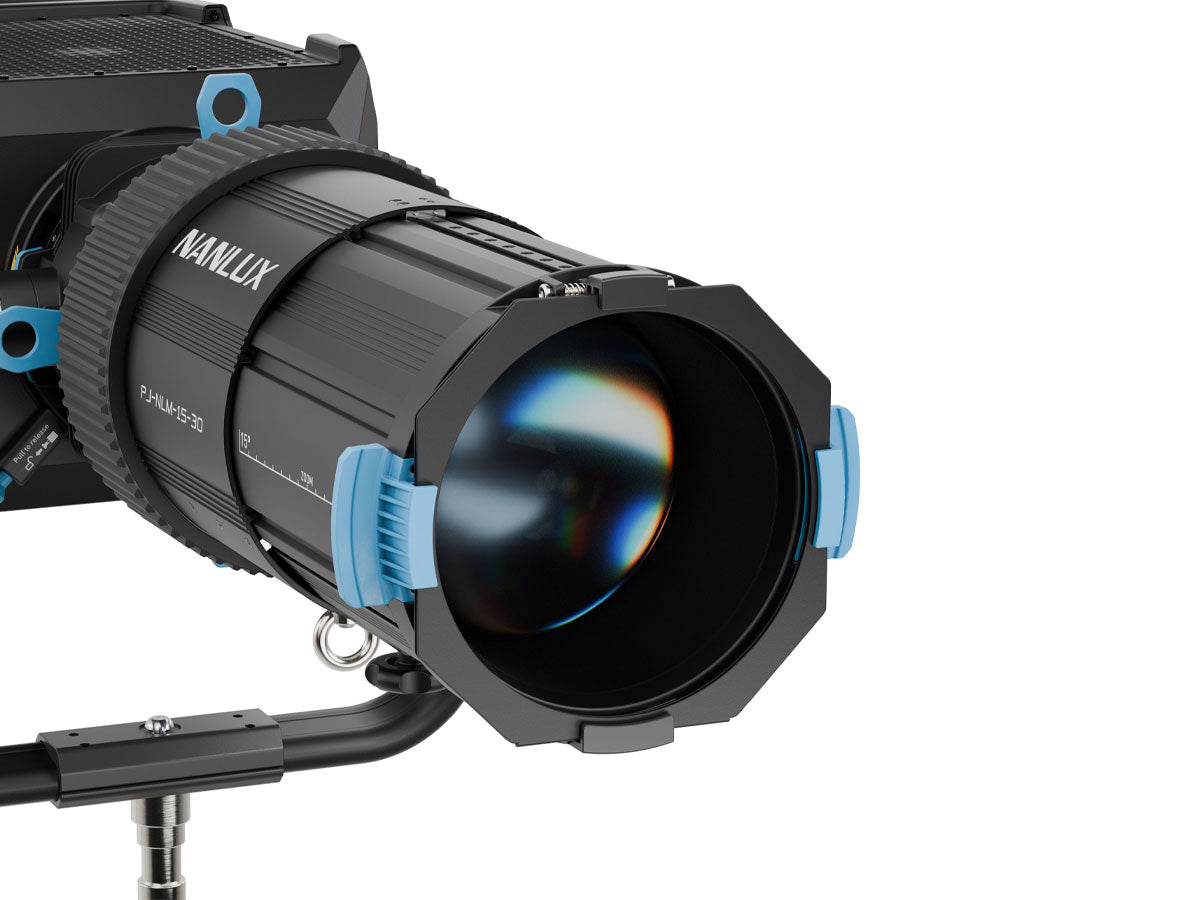

The NL Mount projection attachment 15-30° features an advanced precision optical lens designed exclusively for the Evoke series light fixtures.
It mounts securely to the fixture via the NL mount and delivers up to 7.5 times* the illuminance compared to the light only, thanks to the lens’ high-efficiency optical design and excellent light transmission.
The NL Mount projection attachment 15-30° features an advanced precision optical lens designed exclusively for the Evoke series light fixtures.
It mounts securely to the fixture via the NL mount and delivers up to 7.5 times* the illuminance compared to the light only, thanks to the lens’ high-efficiency optical design and excellent light transmission.
Precision Aspherical Optical Design
Nanlux has designed a precise optical system for the NL Mount Projection Attachment 15-30°, offering exceptional performance in controlling light loss, chromatic aberration, and distortion, while achieving excellent beam uniformity to meet the high demands for light quality in productions.
Nanlux has designed a precise optical system for the NL Mount Projection Attachment 15-30°, offering exceptional performance in controlling light loss, chromatic aberration, and distortion, while achieving excellent beam uniformity to meet the high demands for light quality in productions.
Lightweight and Reliable
Designed to be both rugged and portable, the body of the NL Mount Projection Attachment 15-30° is constructed of aluminum alloy and highly durable nylon. This makes it both lightweight and strong, while keeping the weight under 12kg .
Designed to be both rugged and portable, the body of the NL Mount Projection Attachment 15-30° is constructed of aluminum alloy and highly durable nylon. This makes it both lightweight and strong, while keeping the weight under 12kg .
More Light Shaping Possibilities
-
Cutting Shutters - Each shutter can be freely adjusted independently for precise control.
-
Iris Diaphragm - The 18-blade iris diaphragm creates a beautifully rounded beam shape. Users can slide the built-in rod to adjust the beam size and tighten it to lock.
-
Gobo - Four gobos are included, which can be installed in the gobo holder to project various patterns. Designed in a standard A size, this projection attachment is compatible with a wide variety of pre-made gobos available on the market.
-

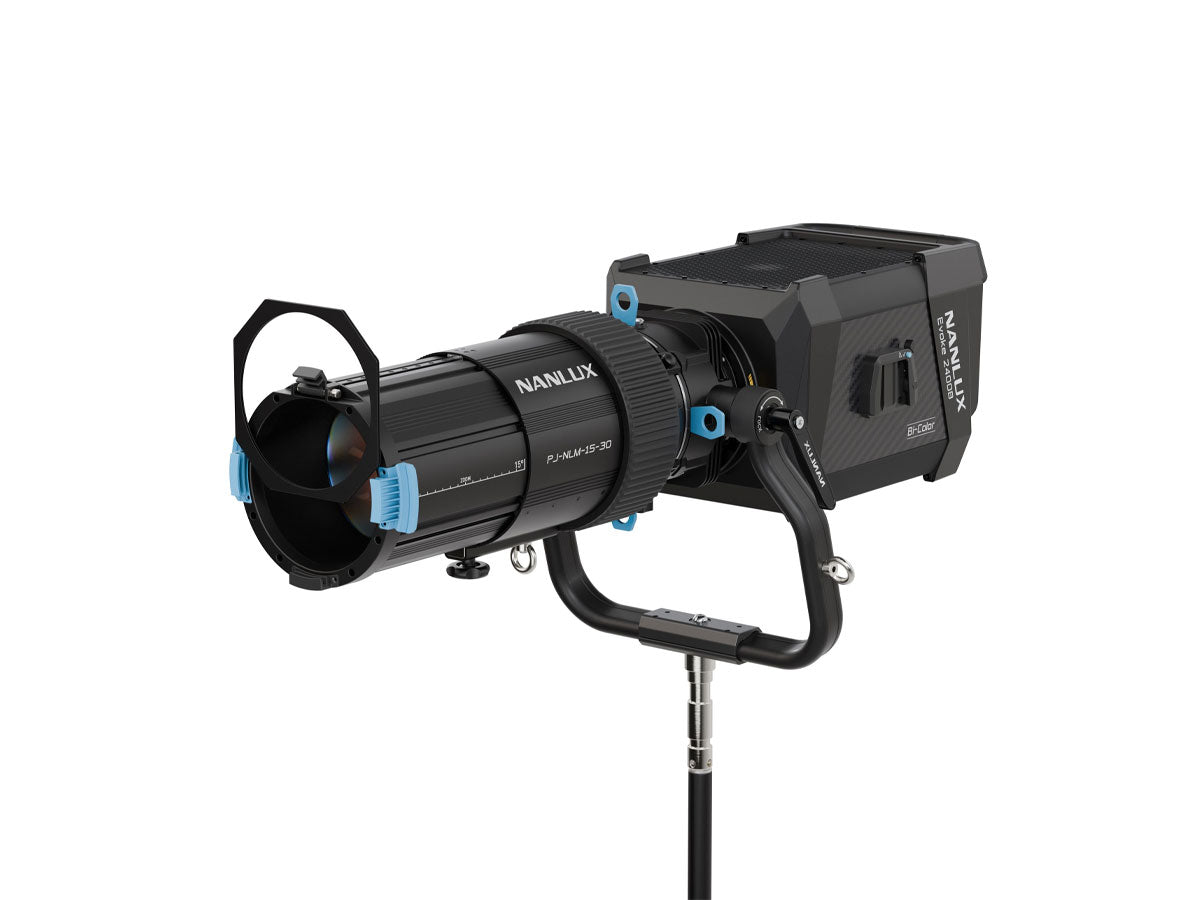

Gel Frame - The projection attachment is designed with a gel frame for inserting gels, allowing daylight or bicolor lights to output colors.
High Heat Resistance + Optimized Heat Dissipation
The NL Mount Projection Attachment 15-30° is made of heat-resistant materials, providing higher thermal stability, and the use of aluminum alloy further enhances the heat resistance of the entire unit. This design allows it to withstand the high temperatures generated during extended use with high-power fixtures like the Evoke 2400B, while also ensuring stable optical performance.

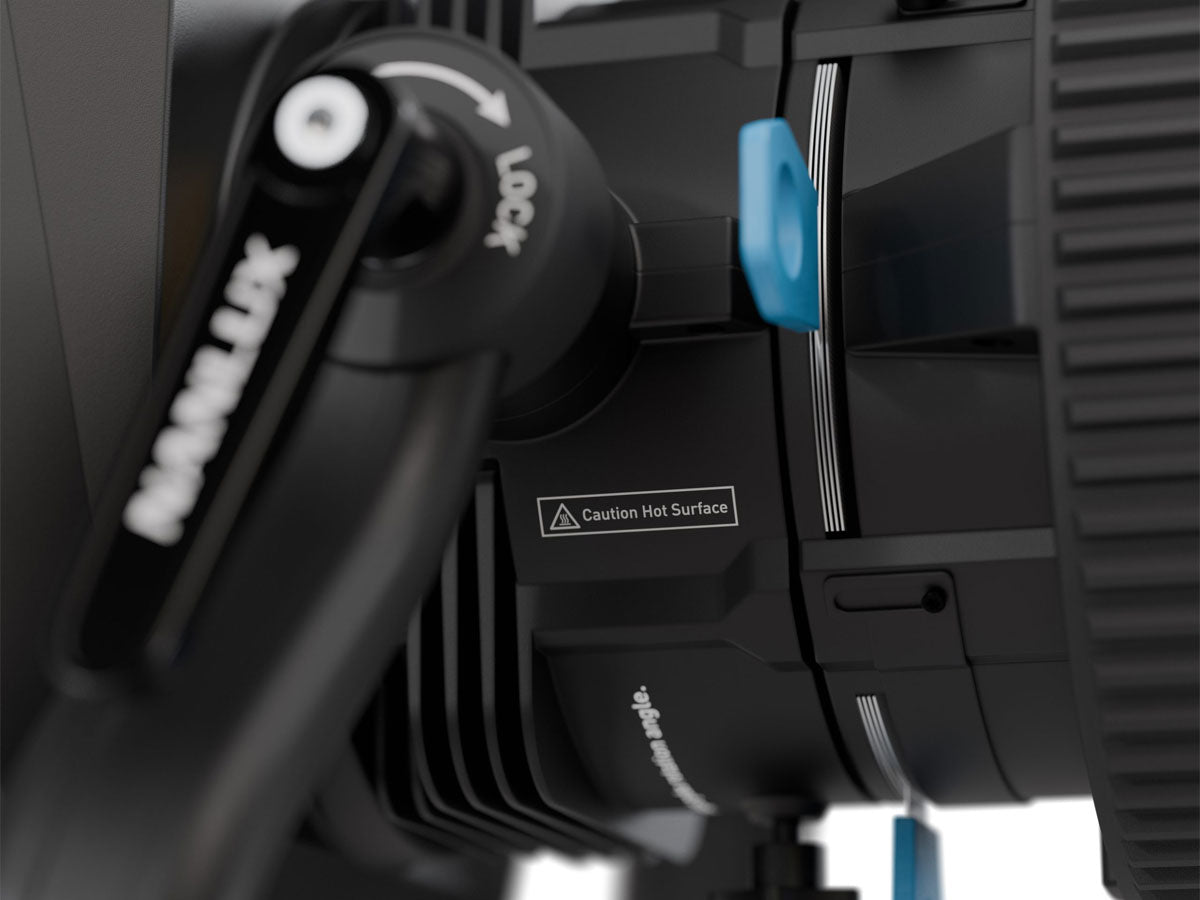

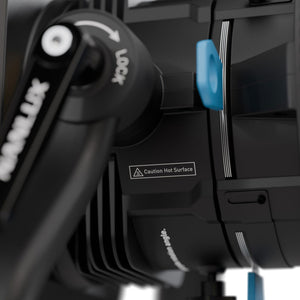

Nanlux has cleverly designed the projection attachment to stay cool passively. The aluminum alloy body ensures optimal heat conduction, while the external heat sink fins at the holder improve cooling efficiency. The passive cooling solution also offers better performance for audio recording on set.

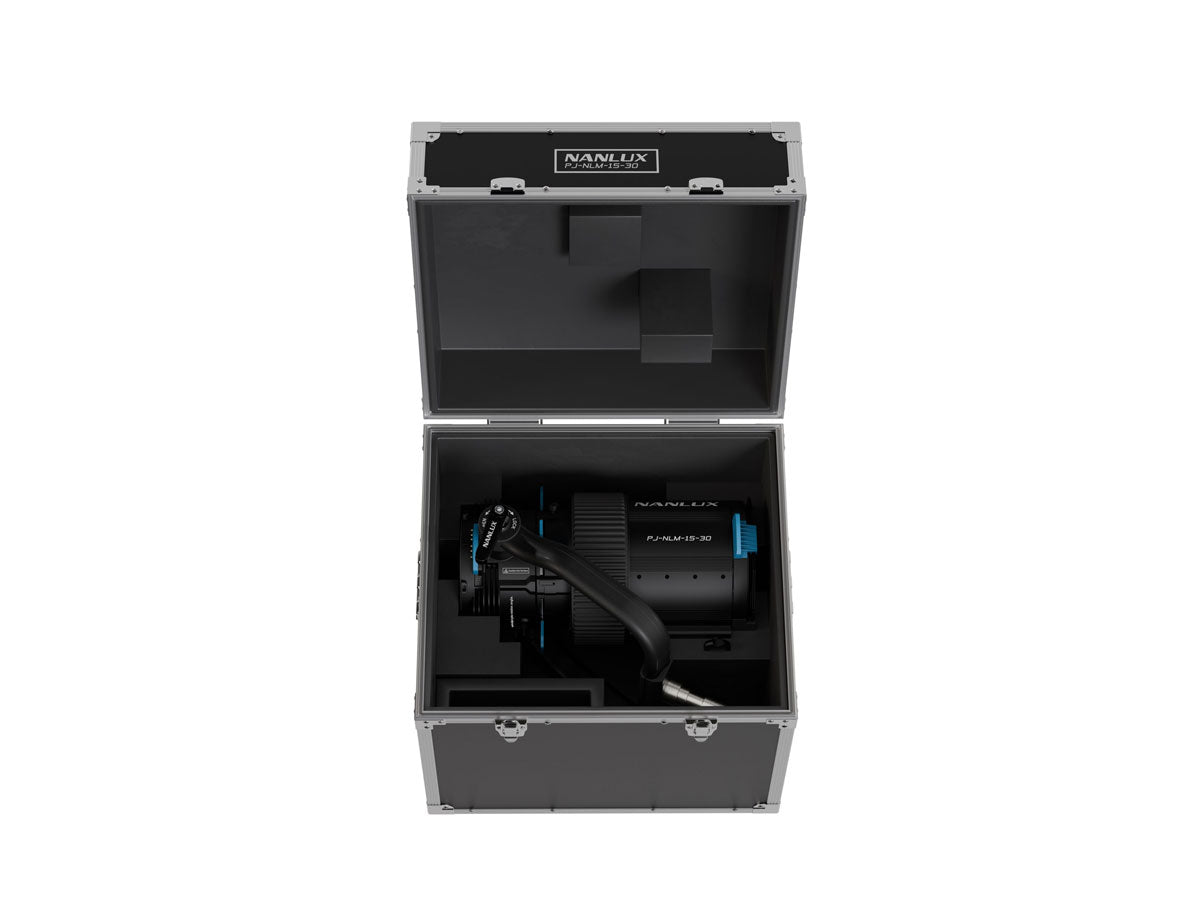

Rugged Flight Case
The standard flight case is designed for frequent transportation. It features an aluminum alloy structure with impact-resistant corner bumpers for durability and internal linings to ensure the safe transport of the whole kit.

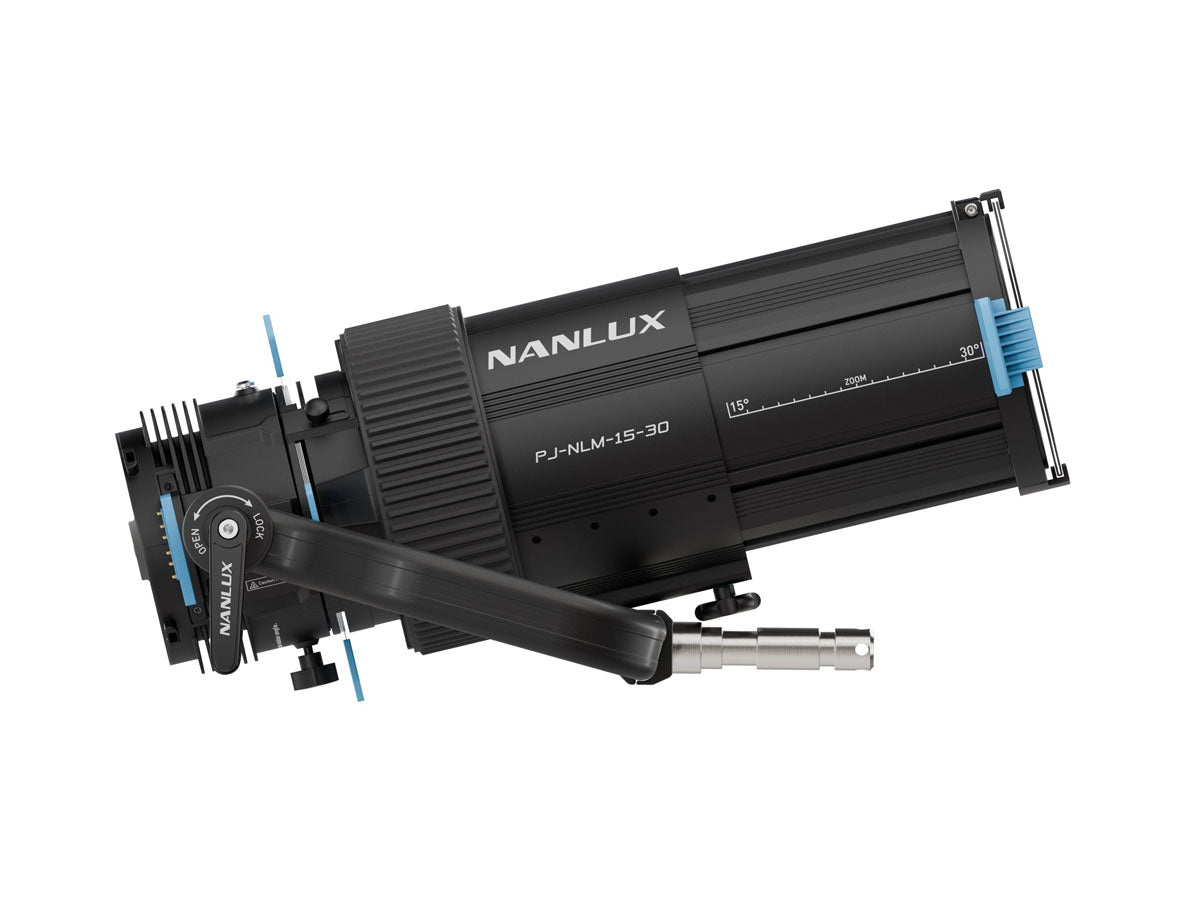

- 15-30° of Zoom Range -The lens barrel of the NL Mount projection attachment 15-30° extends or retracts allowing for continuous beam angle adjustments zooming from 15° to 30°. Compared to traditional fixed focal length projection lenses, the zoom system enables flexible control of the illumination spread without moving the light, making it an ideal solution for various lighting environments.
- Zoom Ring - The focus and defocus of the light beam can be adjusted by rotating the zoom ring. Compared to focusing by pushing the lens barrel, the zoom ring design offers greater precision and a smoother adjustment.

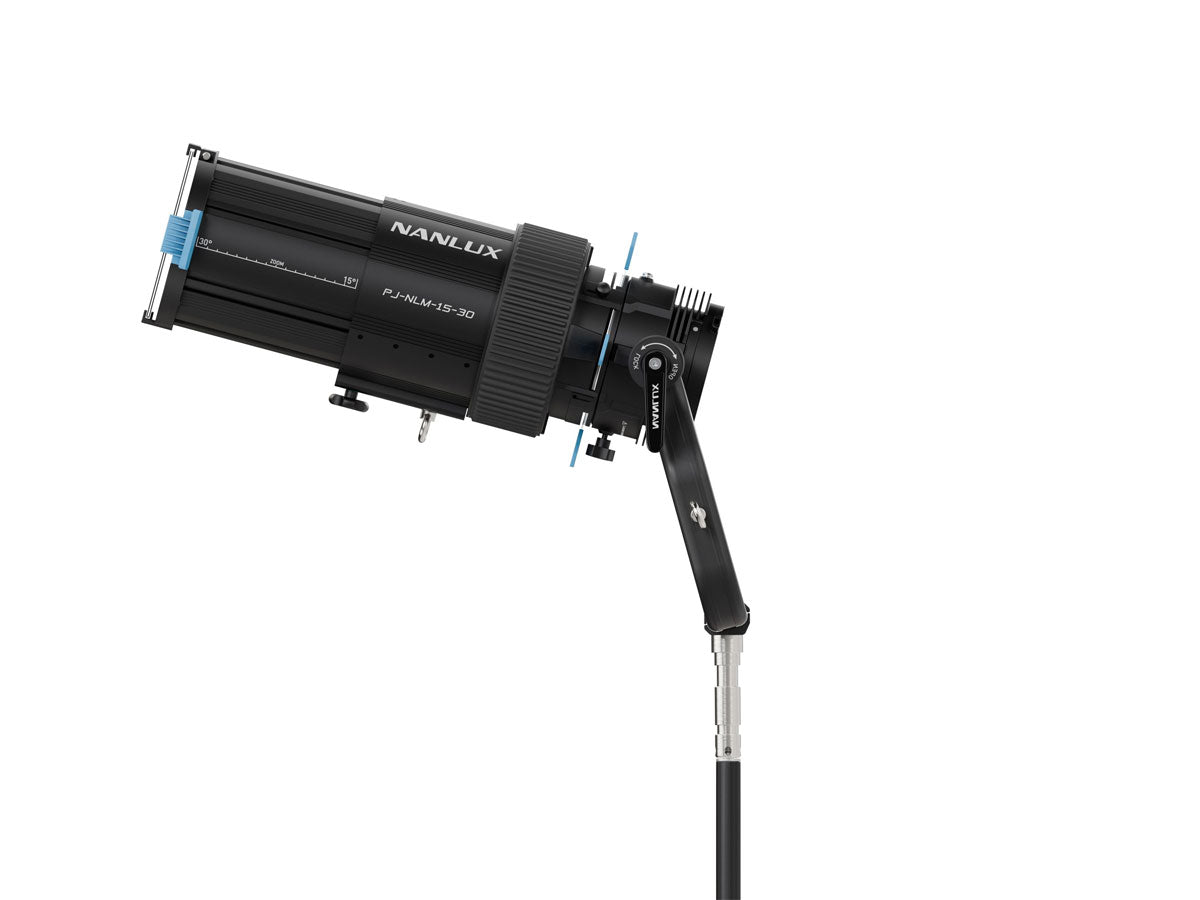

- 90-degree Rotatable Lens Barrel - The lens barrel can be rotated to adjust the angle of the beam, greatly enhancing flexibility without the need to move the shutter or gobo.

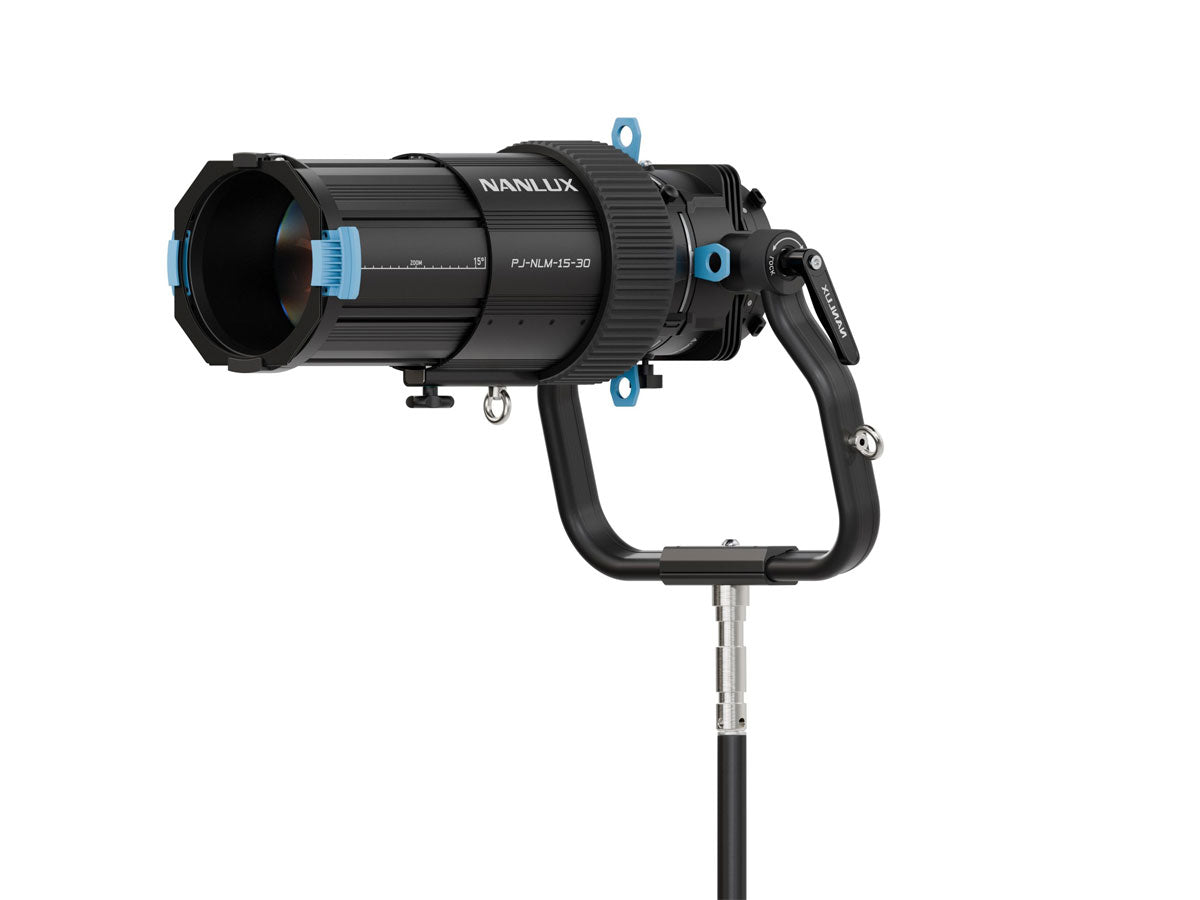

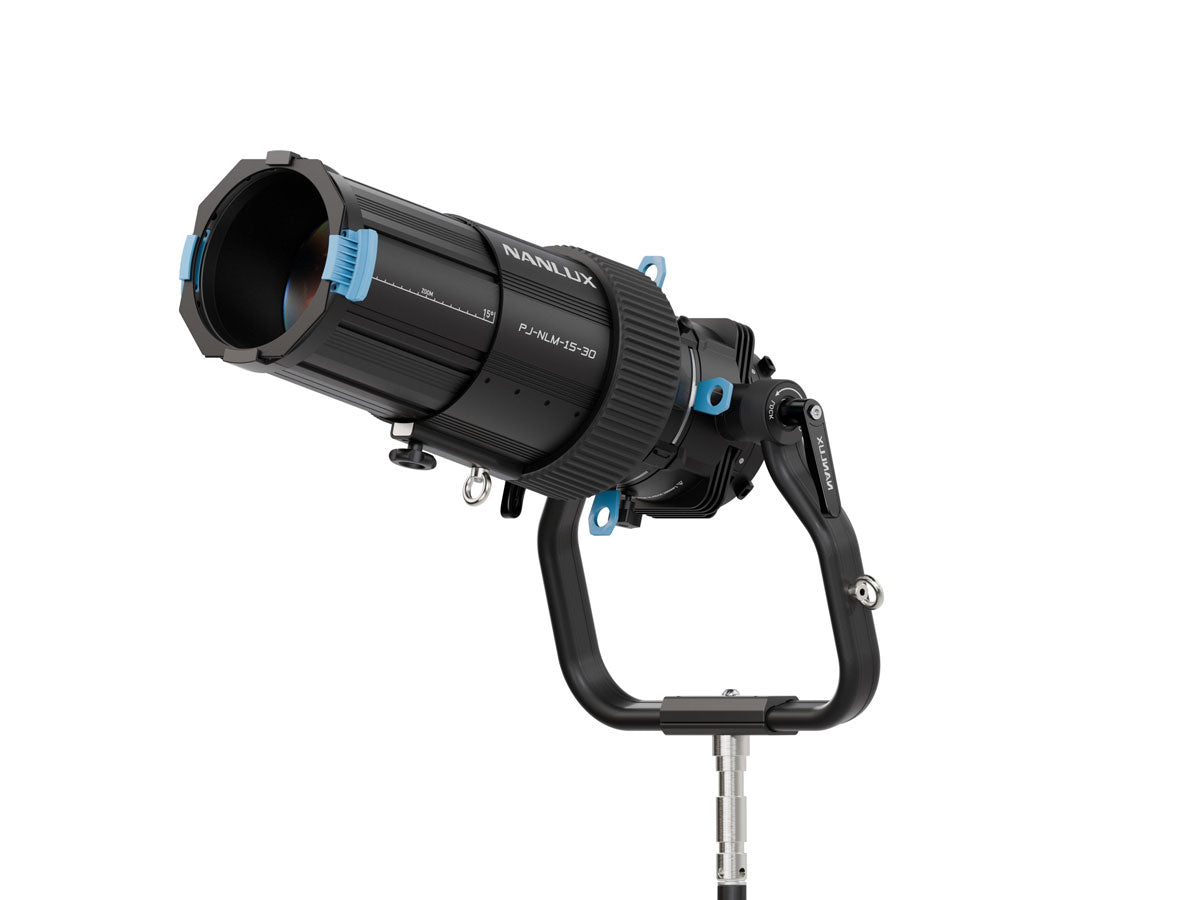

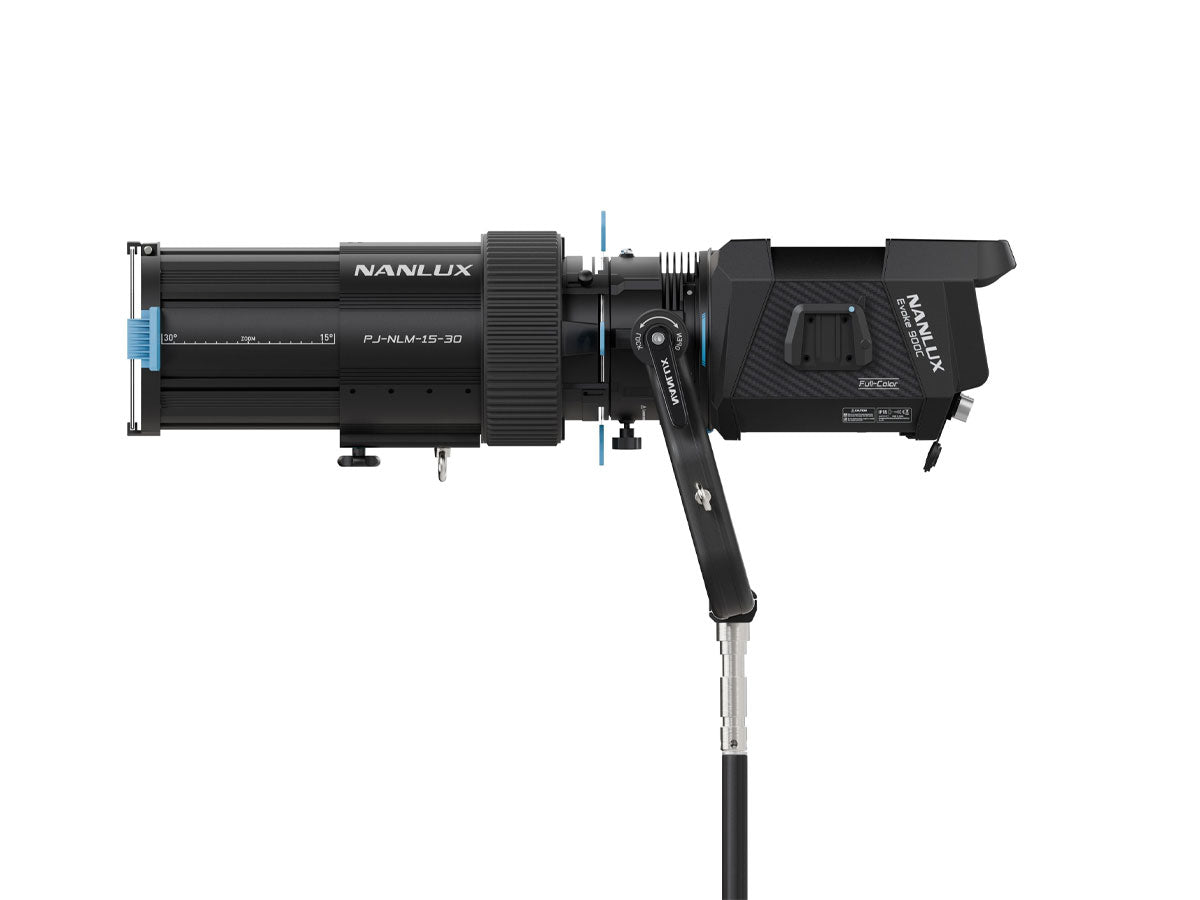

- Fast Setup and Stable Balance - The integrated yoke, together with the adjustable handles on both sides for secure locking, allows users to set up the projection attachment quickly and steadily. Its design ensures proper weight distribution and balance when mounted with the fixture, avoiding any shift in the projection angle due to gravity.
- Third-party Lens Compatibility - The holder of the projection attachment is compatible with third-party barrels and lenses, not only enriching the selection of lenses but also potentially bringing new life to existing lenses already owned.
| Model: | PJ-NLM-15-30 | |
| Beam Angle: | 15-30° | |
| Compatible Mount: | NL Mount | |
| Compatible Products: | Evoke 900C / 1200 / 1200B / 2400B | |
| Dimensions: | Projection Attachment (Extended at 15°): | 629.5 × 392.5 × 514.7mm / 24.78 × 15.45 × 20.26" |
| Projection Attachment (Retracted at 30°): | 451.5 × 392.5 × 514.7mm / 17.78 × 15.45 × 20.26" | |
| Plastic Protective Cover (Front Cover) | φ174.9 × 27mm / φ6.89 × 1.06" | |
| Plastic Protective Cover (Back Cover): | φ158.9 × 17mm/ φ6.26 × 0.67" | |
| A Size GOBO: | φ100 × 0.4mm / φ3.94 × 0.02" | |
| GOBO Holder: | 257.7 × 102 × 24.4mm / 10.15 × 4.02 × 0.96" | |
| Gel Frame: | 188 × 188 × 35mm / 7.40 × 7.40 × 1.38" | |
| Flight Case: | 555 × 445 × 455mm / 21.85 × 17.52 × 17.91" | |
| Weight: | NL Mount Projection Attachment 15-30°: | 11.85kg / 26.12lb |
| Plastic Protective Cover (front cover): | 0.148kg / 0.33lb | |
| Plastic Protective Cover (back cover): | 0.07kg / 0.15lb | |
| A Size GOBO: | 0.018kg × 4 / 0.04lb × 4 | |
| GOBO Holder: | 0.11kg / 0.24lb | |
| Gel Frame: | 0.12kg / 0.26lb | |
| Flight Case: | 12.55kg / 27.67lb | |

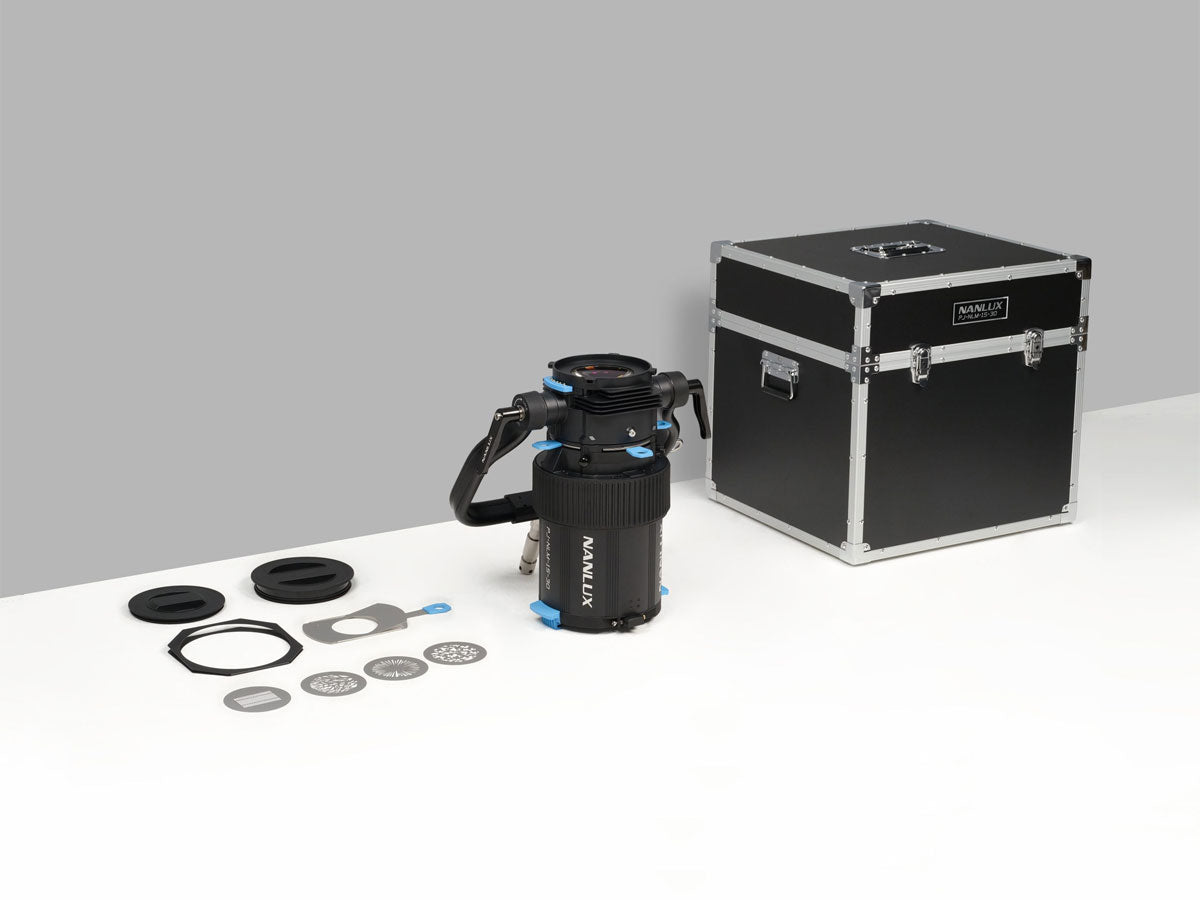

- NL Mount Projection Attachment 15-30° × 1
- Plastic Protective Cover (front cover) × 1
- Plastic Protective Cover (back cover) × 1
- A Size GOBO × 4
- GOBO Holder × 1
- Gel Frame × 1
- User Manual × 1
- Flight Case × 1
