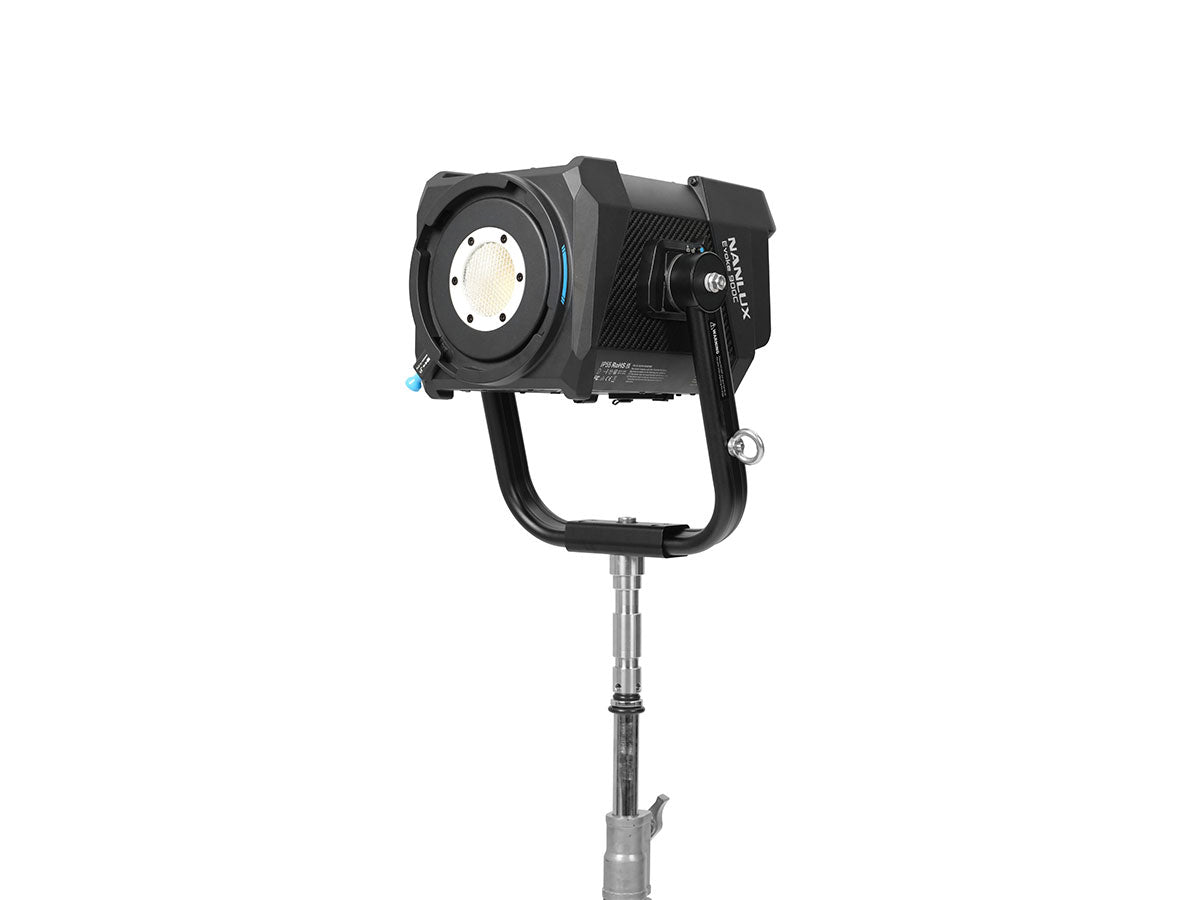

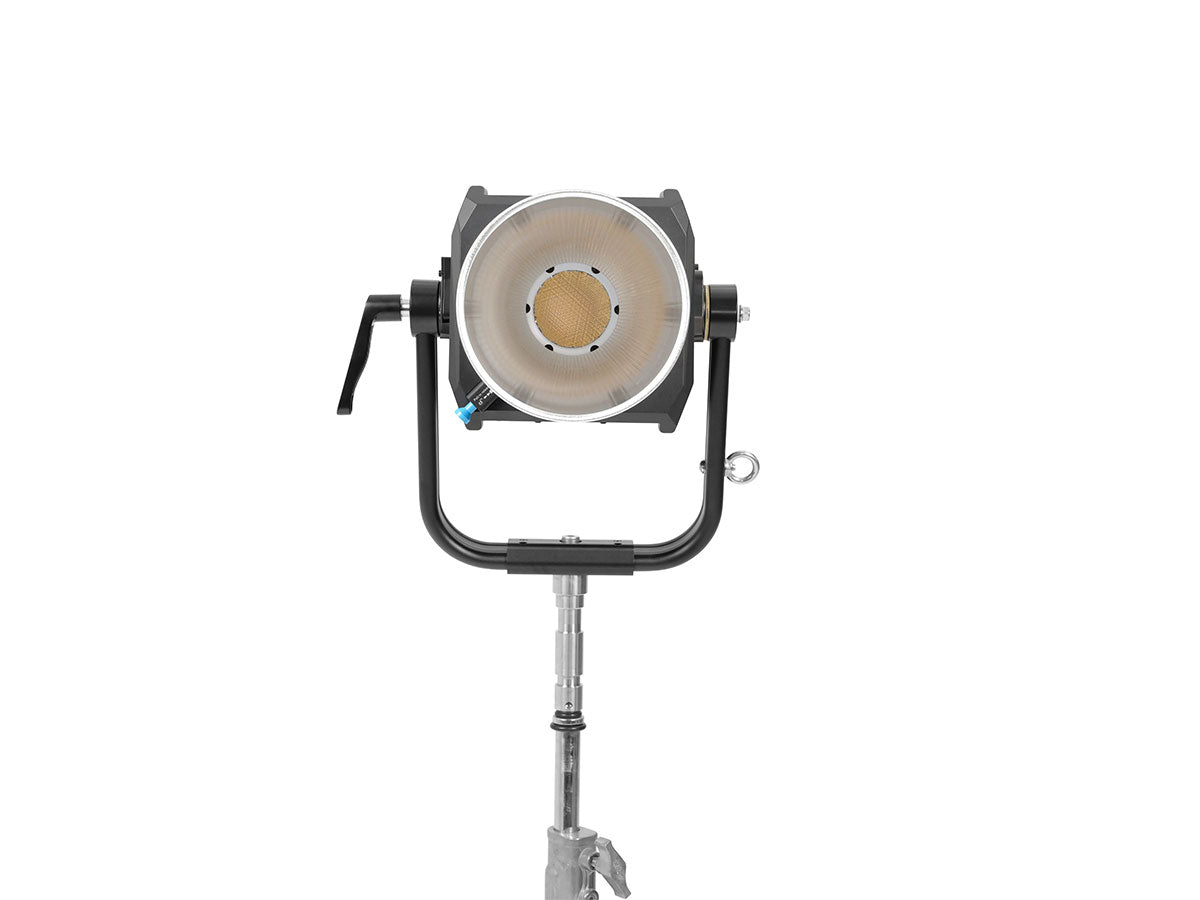

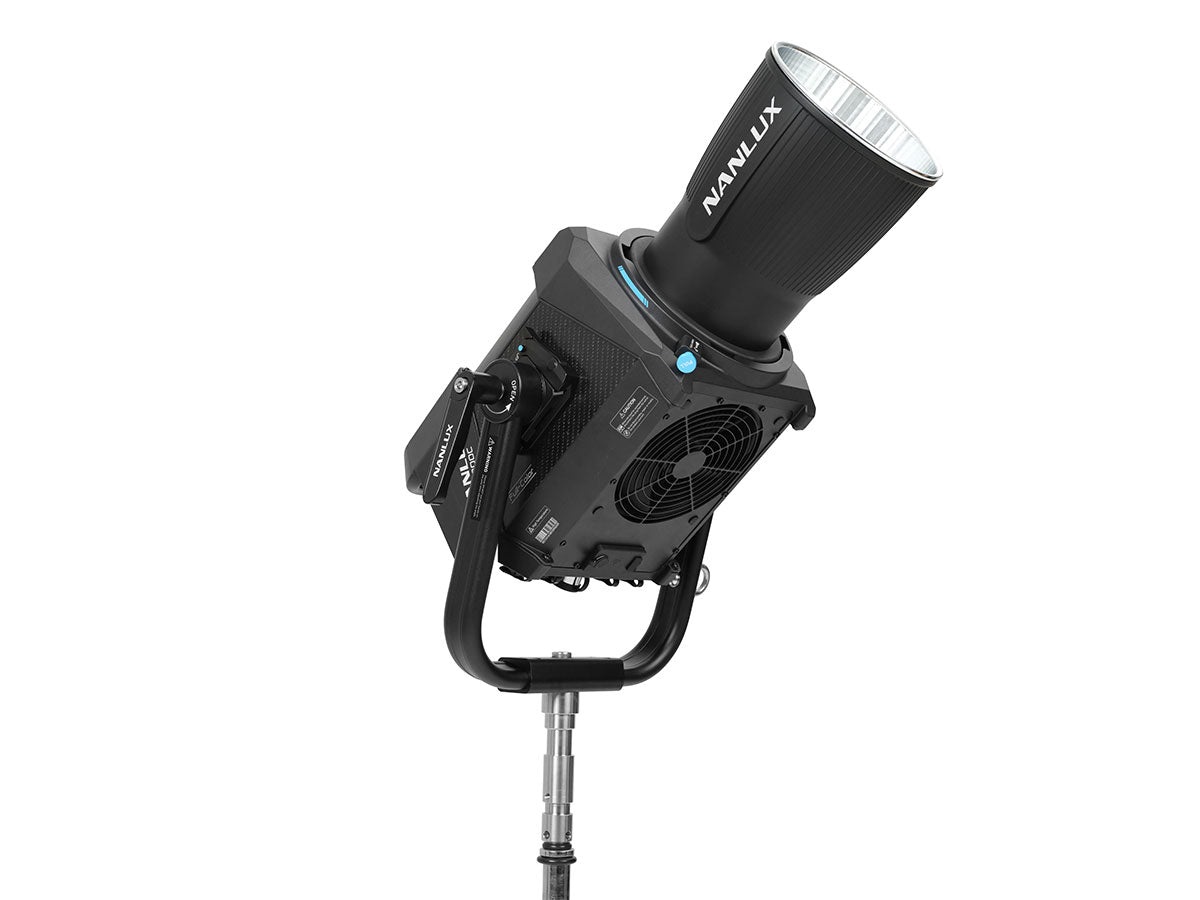

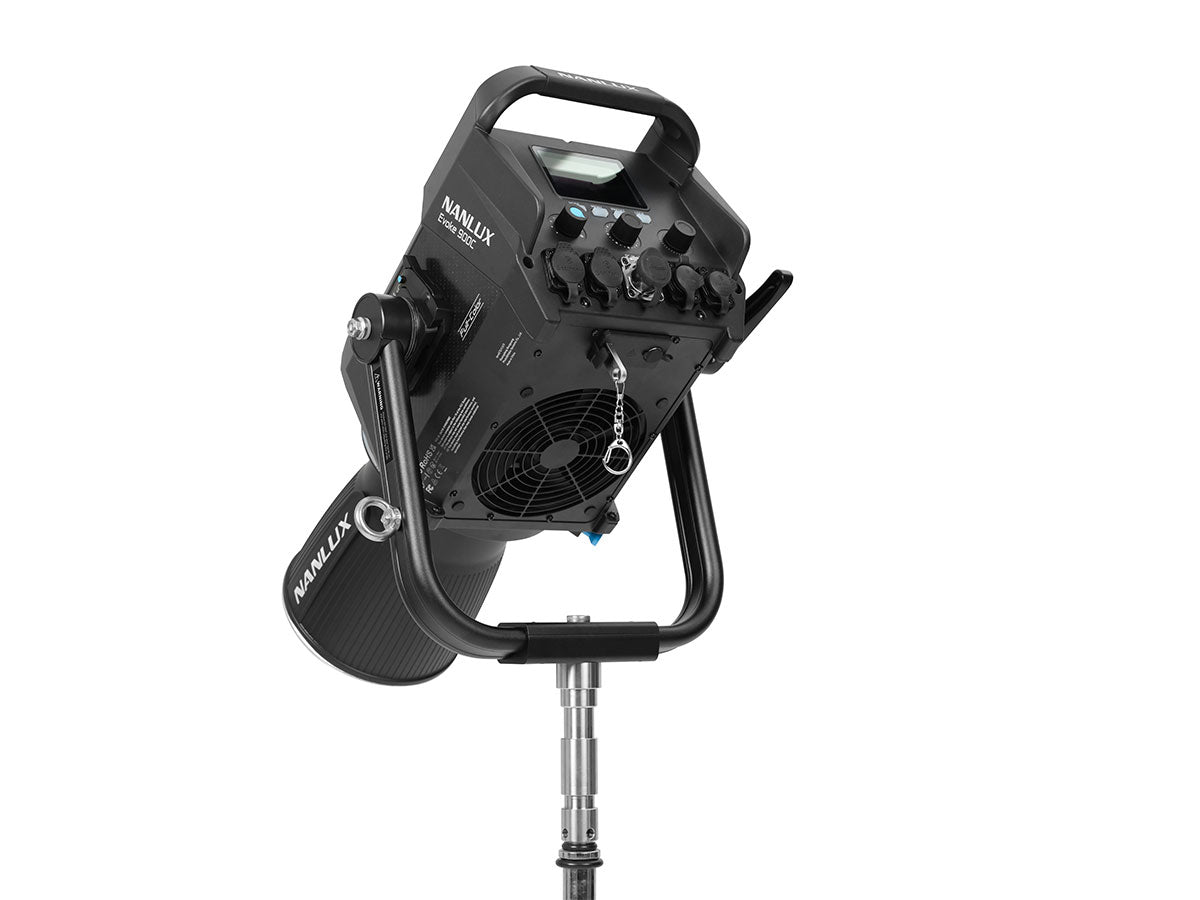

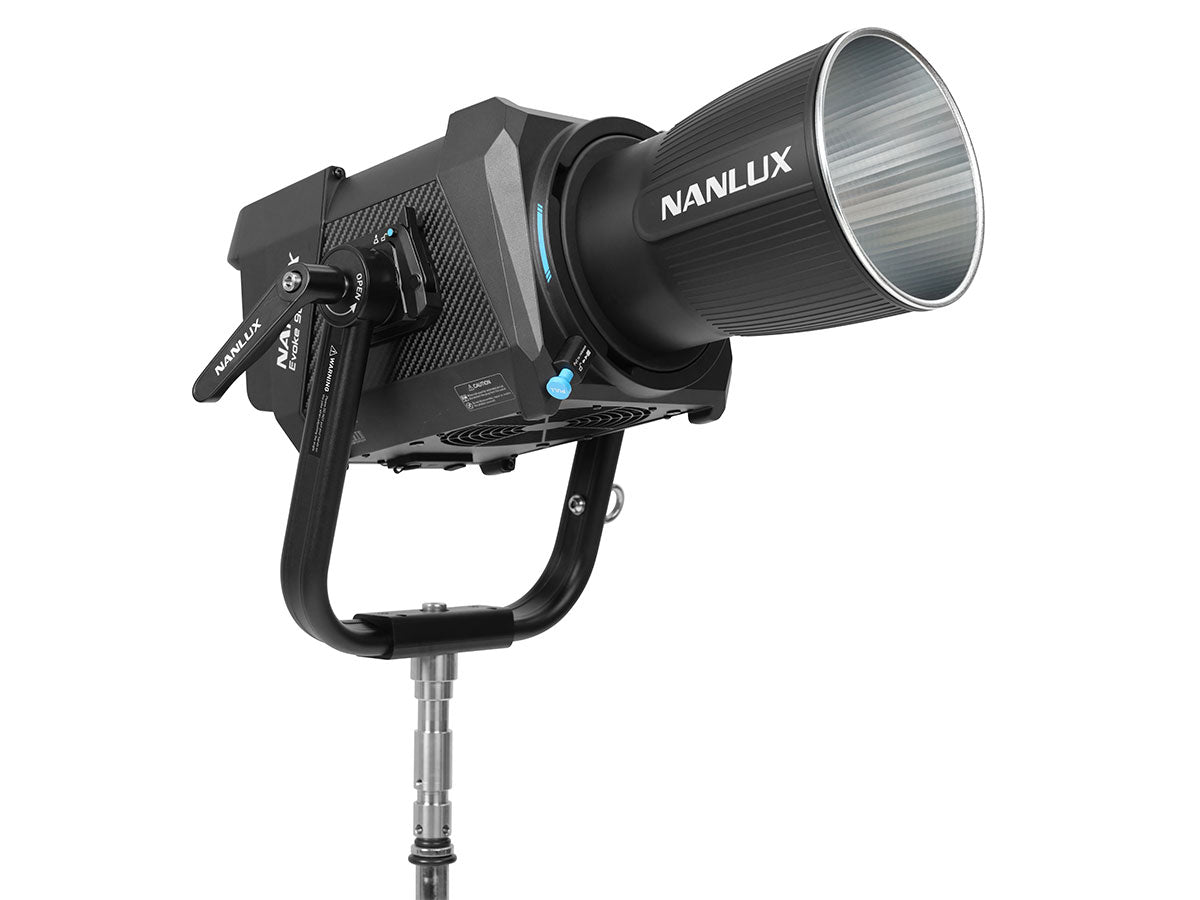

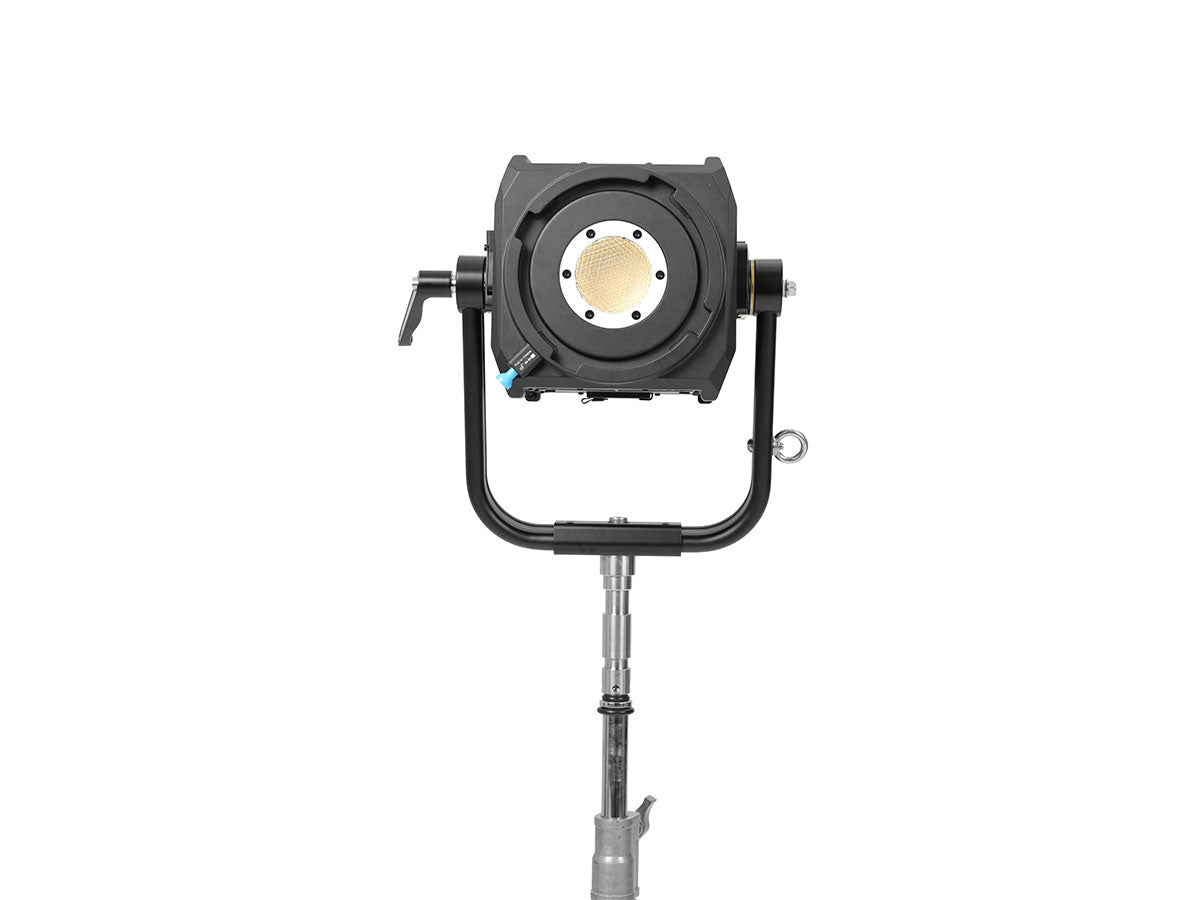

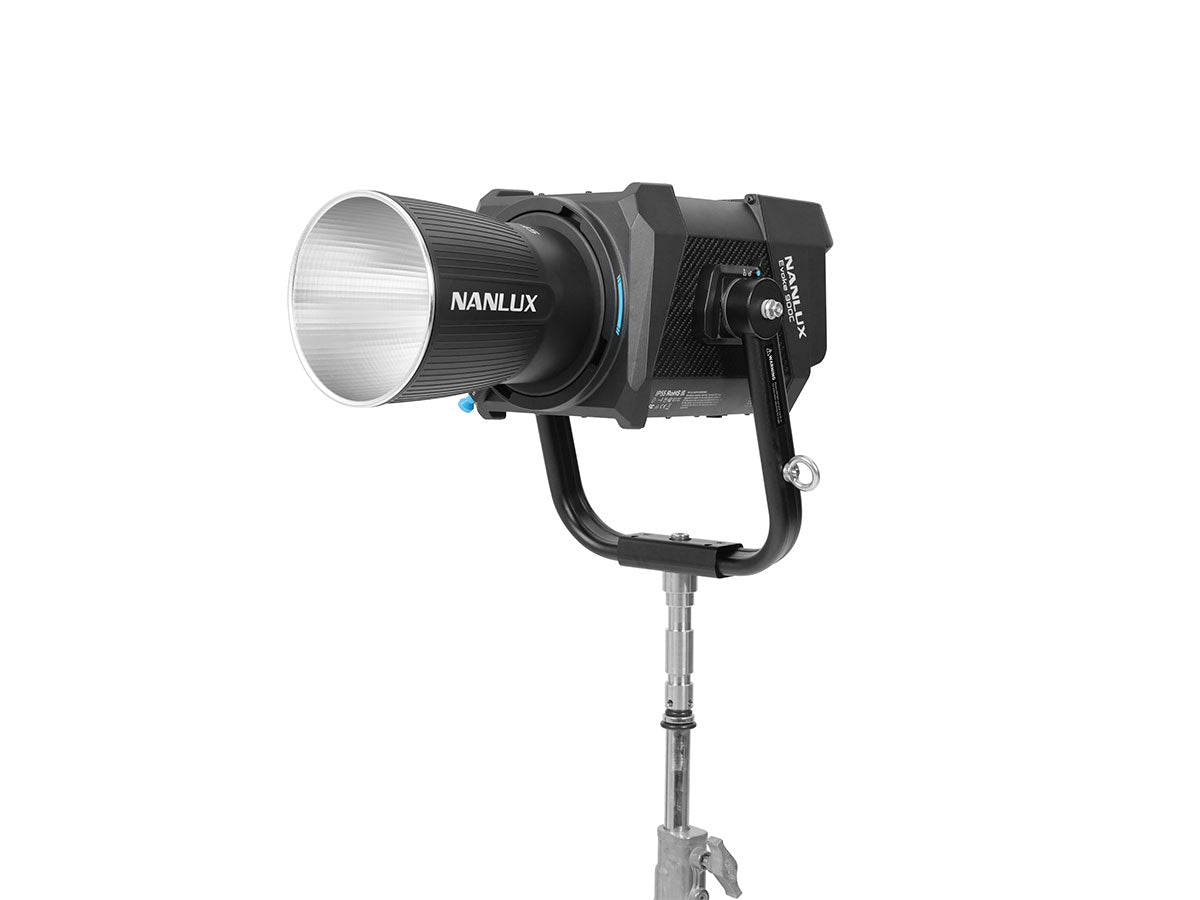

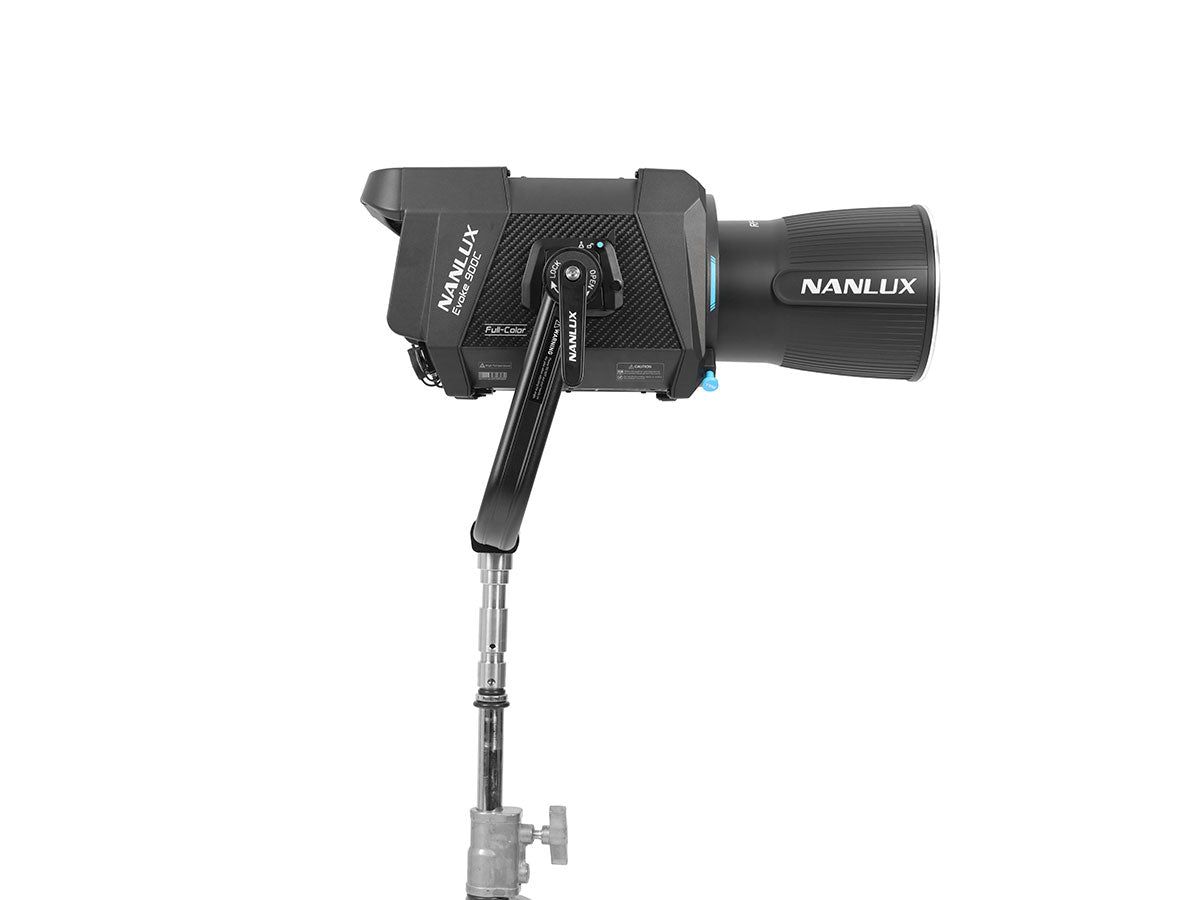

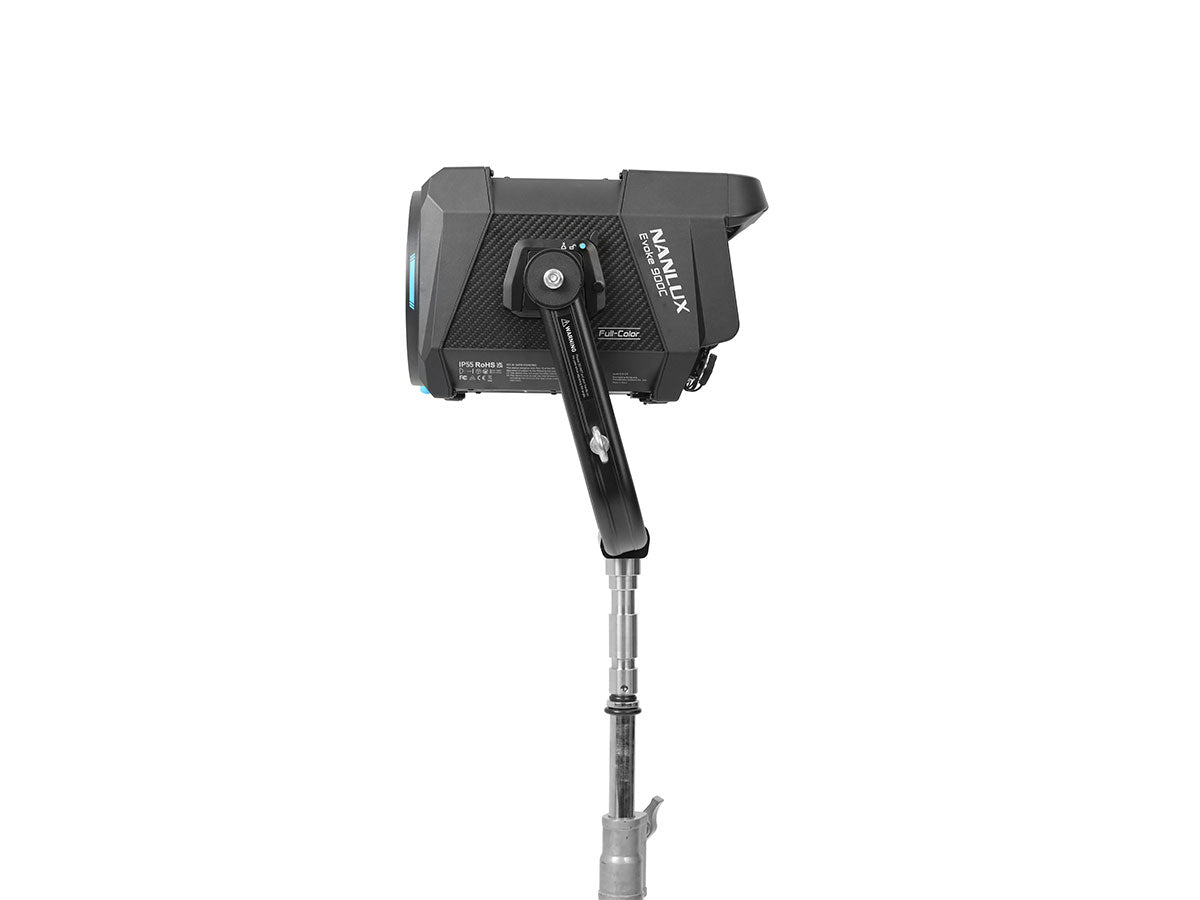

Nanlux Evoke 900C LED RGBLAC Spot Light (With Trolley Case)

Nanlux Evoke 900C LED RGBLAC Spot Light (With Trolley Case)

SKU: NAN-EVOKE-900C-ST-KIT
£3,900.00 GBP ex VAT
£4,680.00 GBP inc VAT
ex VAT £3,900.00 GBP ex VAT
£4,680.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
  • Recommended Accessories
Ever since its establishment, NANLUX has been pushing the boundaries of technology and integrating it into products in order to bring users creative tools with higher efficiency and possibility. NANLUX is in constant communication with users within the industry to explore new possibilities for products. As an answer to the expectation of full color and powerful point source lighting, the Evoke 900C arrives. Equipped with RGBLAC color mixing system and Art-Net/sACN controls, the Evoke 900C is capable of delivering realistic lighting while fitting perfectly into virtual production.
As a point source LED, a quick switch between soft and hard light can be easily achieved on the Evoke 900C via attaching different modifiers. Flooding, spotting and cutting are also a sure thing in order to provide more light shaping freedom for image making.
For virtual production, which has unlimited potential in the future of production, the Evoke 900C will make the presentation with more natural looks, create realistic and natural light, thus greatly improve shooting efficiency.
Blending Six Colors, Achieving New Heights
The Evoke 900C is adopted with the state-of-the-art RGBLAC six color mixing system -- adding Lime, Amber and Cyan on base of the primary colors RGB, reaching a new altitude in color accuracy.
Wider Color Space, New Level Fidelity
The RGBLAC color mixing technology on the Evoke 900C enables more color options, and the ultra-wide CCT range also renders the accurate sunlight or moonlight while maintaining excellent light quality all the time.
The G/M±200 of â–³uv adjusting range gives the Evoke 900C the ability of not only calibrating the G/M deviation, matching common light sources or other brands LED lights on the market, but also giving a more cinematic look to the frame.

Comprehensive Controls, Intuitive Operation

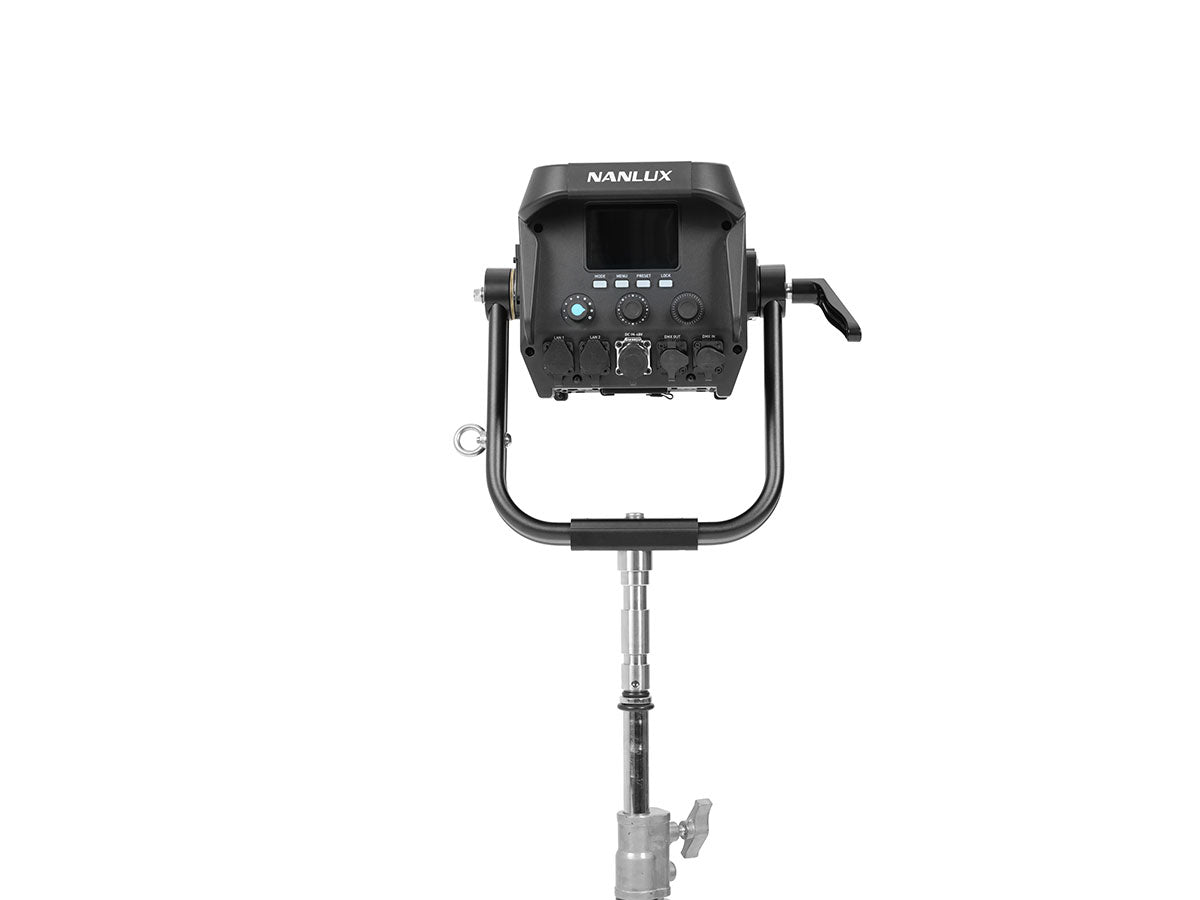

The Evoke 900C is built with a combination of 4 buttons, 3 knobs and an upgraded 3.5 inch full-color TFT screen, gives users an intuitive interface and a better operating experience. More comprehensive wired and wireless control methods are available for offering more flexibility for creators based upon the actual scenarios.
  • DMX/RDM - The fixture comes with DMX 5-pin port, supporting DMX/RDM control and guaranteeing stable operation for large scenes.
  • Art-Net/sACN - The Evoke 900C is equipped with 5-pin XLR in&out ports and LAN in&out ports, supporting basic DMX/RDM control and Ethernet control based on Art-Net/sACN protocol. Through the LAN ports’Art-Net/sACN control, the Evoke 900C could not only easily achieve a much longer distance of signal transmission than traditional cable plus a more convenient control across multiple universes, without affected by signal decay, but also embed seamlessly into Unreal Engine’s lighting system with the matching DMX mode, allowing the Evoke 900C to respond correctly to changes in the virtual environment in real time.
  • NANLINK APP - Access the NANLINK wireless control system through the built-in 2.4G/Bluetooth modules to achieve a precise and professional lighting control experience with ease.
  • LumenRadio CRMX - Through the built-in LumenRadio TimoTwo module, Evoke 900C can receive or transmit CRMX signal, and have the ability to cooperate with other lighting fixtures.

More Lighting Modes
The Evoke 900C incorporates more versatile lighting modes -- CCT mode with G/M adjustment, Advanced HSI mode, RGBW mode, XY coordinates and GEL mode. And a DMX mode is developed specifically for virtual production under DMX control. The wide and complete selection of lighting modes gives users the key to adjust colors at will.
  • Advanced HSI mode - Based on the original HSI mode and expand a higher level of customization, support free adjustment of the Intensity, Hue, Saturation and White Point Color Temperature.
  • RGBW Mode - R/G/B/W channels can be controlled separately for more accurate color.
  • XY Coordinates - Precise color control through adjusting on the XY coordinates in the selected color gamut of CIE1931 color space.
  • GEL Mode - Based on traditional gels, the gel mode provides a wide selection of 151 gels, saving times on the gels’installation process, and bringing a more convenient way in presenting the color and mood.
The Evoke 900C has 15 built-in effects to simulate the real lighting effects with all parameters adjustable via On-board, NANLINK APP, DMX and other control methods.

True Color - True Mirage
In today’s rapidly upgrading image-related technology, virtual production brings a new possibility by utilizing intelligent lighting systems, arc LED screen and virtual rendering system -- the corresponding perspectives and images in the virtual space can be presented through screen and lighting effects by capturing and computing the movement of the camera in real-time, so that the actors and crews can have a immersive feeling in action.
As an intelligent lighting, the Evoke 900C provides various lighting effects in the form of point source lighting with full color functionality, and achieve connections and integration in a higher level via specially developed DMX mode and Ethernet control combining with virtual rendering system.
NANLUX have developed DMX mode -- RGB (NO DIMMER) specially to meet the demands from virtual production.By removing dimmer channel and adding Gamma responding option at the same time, lighting control for virtual production will become easier and more responsive.
The Evoke 900C has the built-in Ethernet control upon Art-Net/sACN protocol for the first time, facilitating the integration into Unreal Engine’s lighting system, enabling fast and accurate respond to virtual environment changes in real time, enhancing the image expression with better detail.

Robust Structure, Weather Resistant
Evoke 900C retains the great features of the Evoke family for outstanding weatherproof performance -- IP55 rated for both the fixture and power supply, making it capable of withstanding extremely inclement weather conditions, the light is a trustworthy weapon for making astonishing images.
The tight and sturdy aluminum structure provides stability during operation. Convenience has been boosted in terms of installation, connection and adjustment.

Maximum Modifiers, Maximum Shaping
The Evoke 900C continues with NL mount, supporting a seamless integration into NL mount ecosystem, takes various light shaping requirements into account with multiple modifiers.
Besides, the Evoke series are also compatible with other professional modifiers, such as DoPchoice. NANLUX always participates in the construction of professional lighting systems with a friendly and open attitude.
  • Full color LED spotlight equipped with RGBLAC six color mixing system
  • Staggering luminance of 40,300 lux at 3m (at 5600K, with reflector), with a rated output of 940W
  • Ultra-wide CCT range of 1,800K-20,000K with G/M±200 adjustment • Excellent color rendition with both CRI/TLCI rated at 96, TM-30 Rf Avg.93, TM-30 Rg Avg.100, SSI (5600K) 73, SSI (3200K) 81. • Intuitive operation with 3.5 inch full-color screen, 4-buttons and 3-knobs UI design
  • Comprehensive wired and wireless control methods: On-board, DMX/RDM, Art-Net/sACN, LumenRadio CRMX and NANLINK APP
  • More color modes: Advanced HSI, RGBW, XY and GEL mode
  • Ethernet control upon Art-Net/sACN protocol to seamlessly integrate into UE lighting system
  • Sturdy build quality with both fixture and power supply IP55 rated
  • Quick release clamp and 7.5M DC connection cable come standard, with 10M/12M cables as optional • New generation of adjustable fan control system with 4 modes: SMART, FULL SPEED, LOW SPEED and OFF
  • NL mount for seamless integration into NL mount ecosystem
  • Support firmware update via USB port on the fixture
Model:
Evoke 900C
Rated Power:
940W
Input Voltage / Current:
DC 48V / 18.75A Max, AC 100-240V 50 / 60Hz
CCT:
1800K - 20000K (G / M±200)
CRI:
Average 96
TLCI:
Average 96
TM-30 RF:
Average 94
TM-30 RG:
Average 100
SSI (3200K):
81
SSI (5600K):
73
Dimming:
0 - 100%, 0.1% increment
IP Rating:
IP55
Control:
On-board, Remote Controller, NANLINK APP, DMX / RDM, LumenRadio CRMX, Art-Net / sACN, Wired Control
Effect:
HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle / Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Product Size:
Light Fixture: 330 x 241 x 210mm / 13.0 x 0.5 x 8.3"

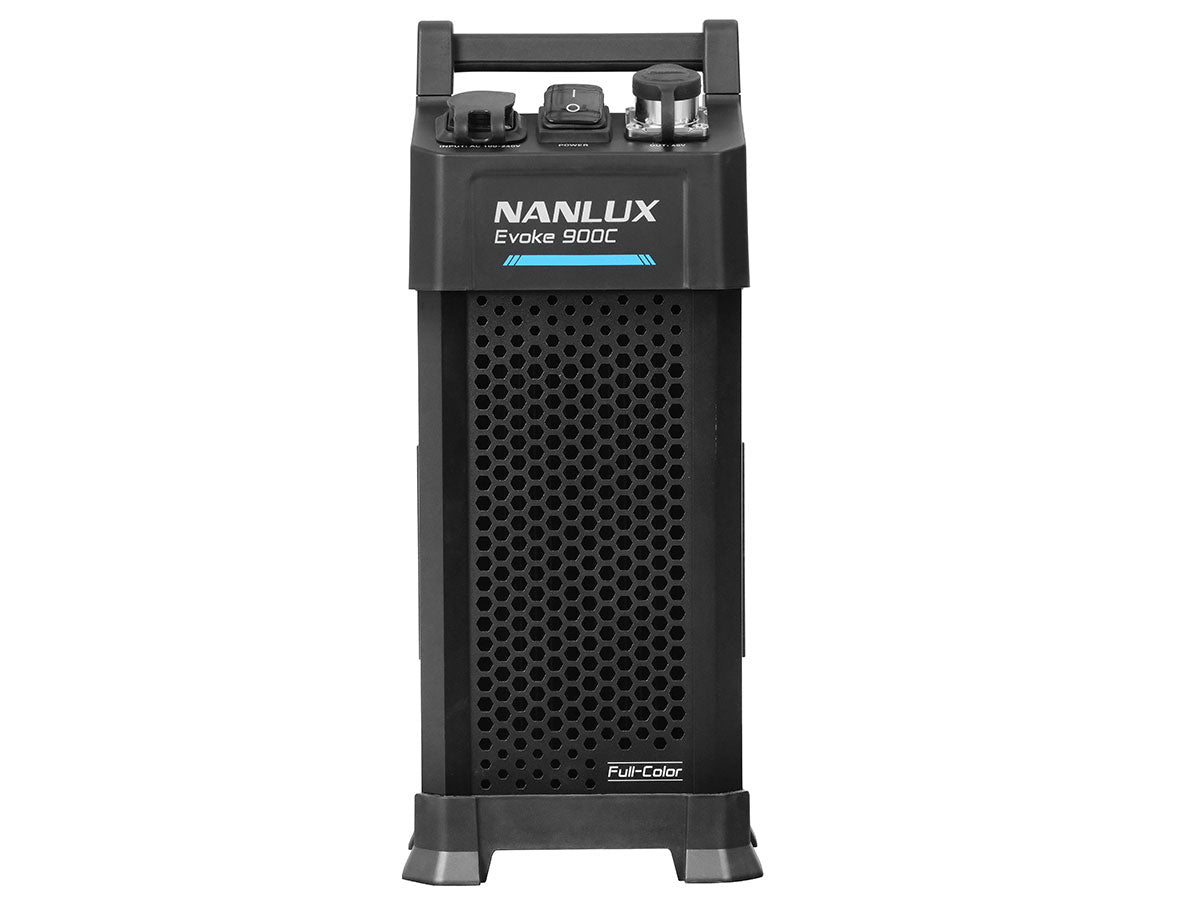

Power Supply: 146 x 125 x 344mm / 5.7 x 4.9 x 13.5"
Product Weight:
Light Fixture: 7.7kg / 16.98lb
Yoke: 1.84kg / 4.06lb
Power Supply: 4.5kg / 9.92lb
RF-NLM-45 Reflector: 0.62kg / 1.37lb
DC Connection Cable 7.5M: 2.62kg / 4.98lb
AC Power Cable 6M: 0.88kg / 1.94lb
Certification:
CE, UKCA, ROHS, IP55

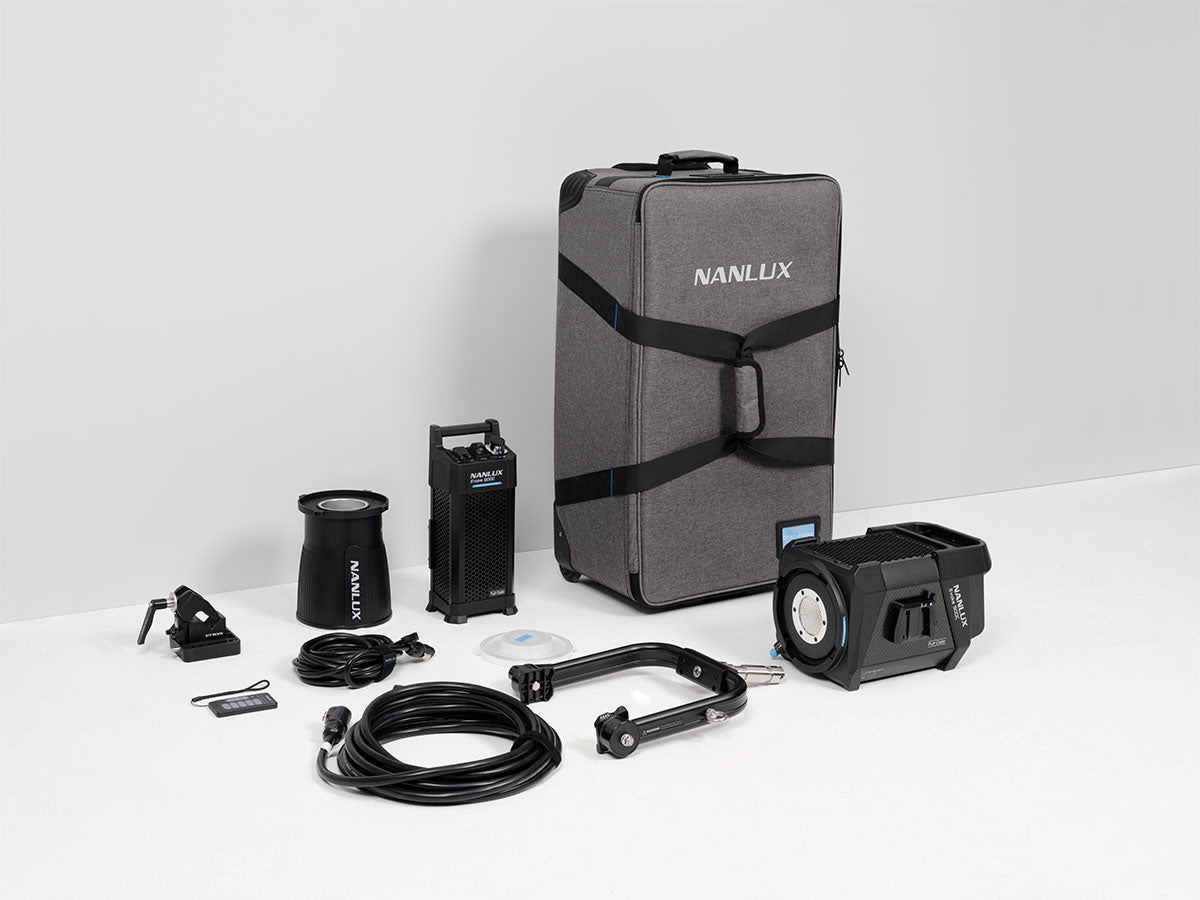

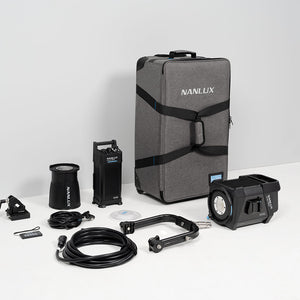

  • Evoke 900C × 1
  • Yoke × 1
  • Power Supply × 1
  • RF-NLM-45 Reflector × 1
  • DC Connection Cable 7.5M × 1
  • AC Power Cable 6M × 1
  • AS-CP-QR-EV Quick Release Clamp × 1
  • USB Flash Drive × 1
  • WS-RC-C2 Remote Controller × 1
  • User Manual × 1
  • CC-ST-EV900C Trolley Case × 1
