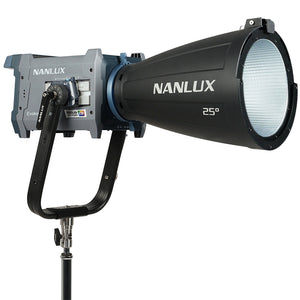

Nanlux Evoke 600c LED Full-color Spot Light with Trolley Case

Nanlux Evoke 600c LED Full-color Spot Light with Trolley Case

SKU: NAN-EVOKE600CKIT
£2,150.00 GBP ex VAT
£2,580.00 GBP inc VAT
ex VAT £2,150.00 GBP ex VAT
£2,580.00 GBP inc VAT
Sale Sold out
Only 1 left in stock.
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
  • Recommended Accessories

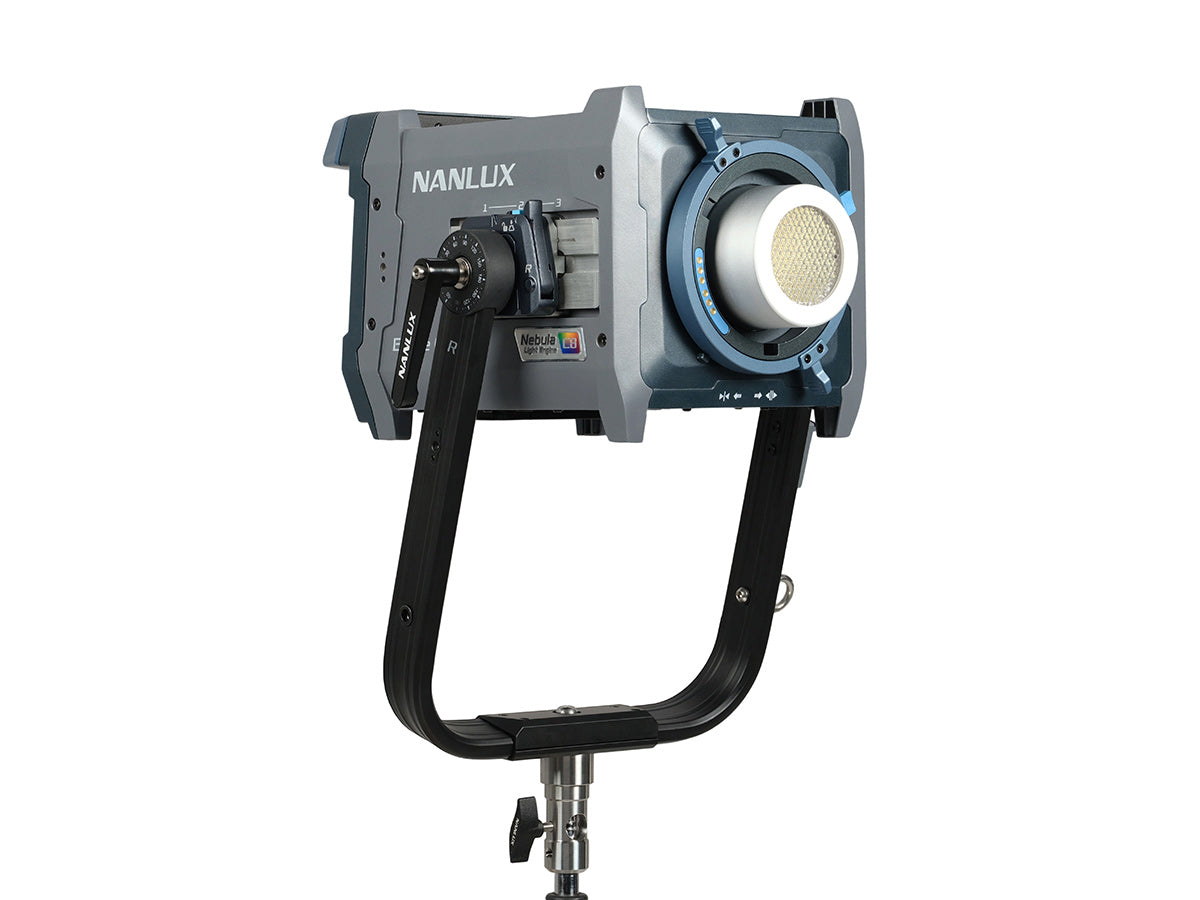

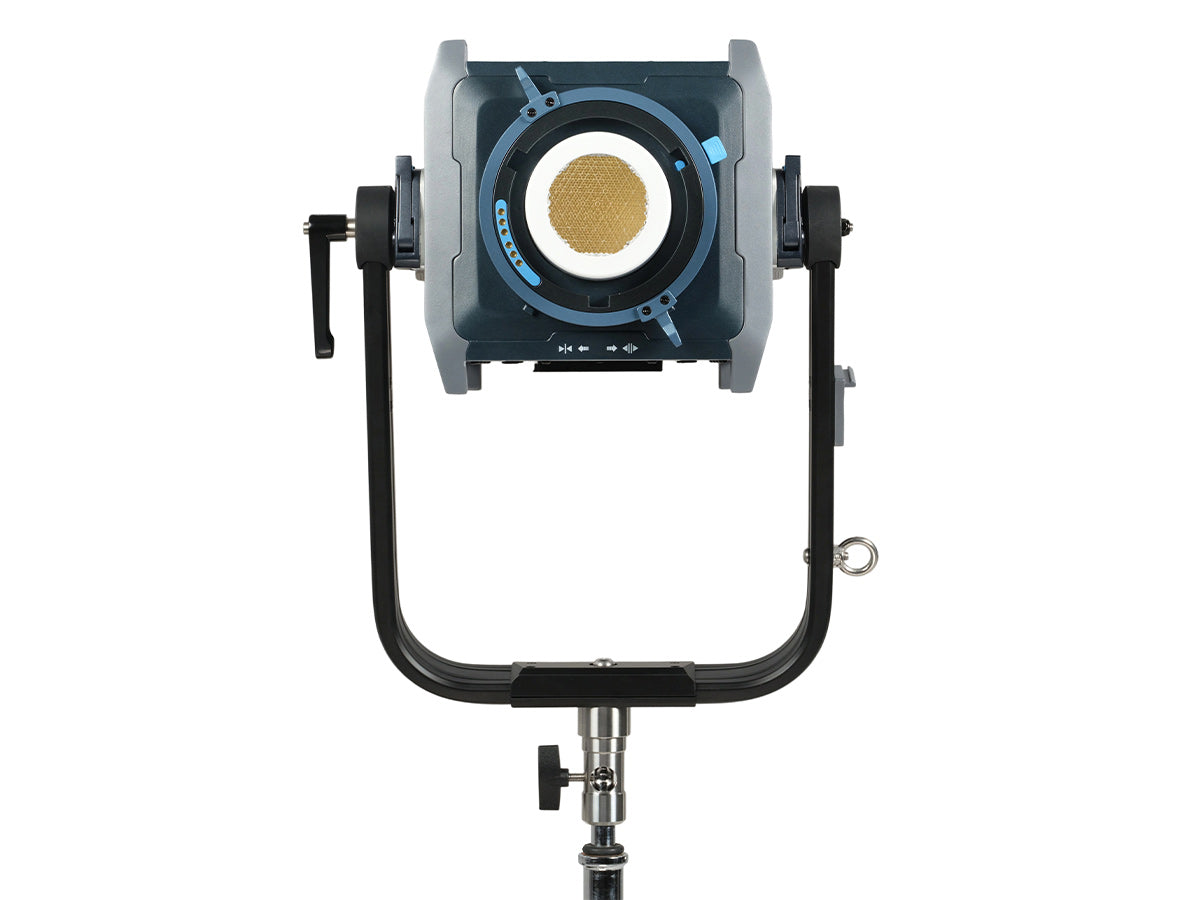

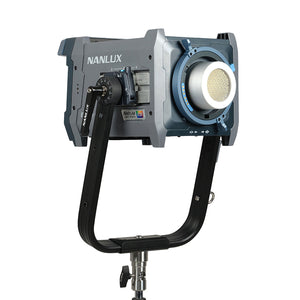

The Evoke 600C is a powerful, versatile, and reliable full-colour point light source designed for professional production.
Equipped with the Nebula C8 Color Light Engine, the Evoke 600C delivers an ultra-wide colour temperature range of 1,000K-20,000K and stunning colour performance. Its all-in-one design, combined with a magnesium-alloy housing, ensures a compact, lightweight and durable fixture. With IP66 all-weather protection, it is ready for use in various extreme environments. Continuing the Evoke family's excellence in high output and excellent light quality, both white and color light are bright and powerful. The BE mount Evoke 600C is also compatible with the Bowens mount accessory ecosystem, and with the NL to BE mount adapter, it can accommodate NL mount accessories, providing users with more comprehensive and professional lighting shaping options.
Exceptional Light Quality · Powerful Colour Output
Ample lighting on set provides filmmakers with the strongest support. The Evoke 600C upholds the series’ outstanding performance in illuminance, delivering powerful and superior white light and coloured light.
It can serve as a key light in smaller setups or as a fill light in larger scenes, shaping diverse lighting effects and atmosphere.
Nebula C8 Colour Light Engine
The Nebula C8 Colour Light Engine combines eight colours (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo) to give the Evoke 600C a wider colour temperature range, more saturated colours, and superior colour rendering.
The Nebula C8 extends its original red colour with addition of deep-red colour. This extends coverage across the red spectrum, delivering richer, healthier skin tones with a natural vibrancy.
Various Lighting Modes
The Evoke 600C has six built-in lighting modes with fully adjustable parameters, delivering diverse lighting effects quickly.
  • CCT Mode - Ultra wide CCT range from 1,000K to 20,000K, and supports ±200 green/magenta adjustment across the entire range.
  • HSI Mode - Flexible adjustment of 360 hues with 100% saturation.
  • RGBW Mode - Independent tuning of the red, green, blue, and white channels for precise colour matching.
  • XY Coordinates Mode - Offers precise colour control within the CIE 1931 colour space through adjustments of the X and Y coordinate values.
  • Gel Mode - Provides access to 230 selectable LEE gels and 230 Rosco gels.
  • FX Effect Mode - 15 dynamic effects with adjustable parameters to simulate a wide range of atmospheres and lighting scenarios.
Better Dimming Performance
The Evoke 600C supports ultra-precise dimming in 0.1% increments and meets filmmakers’ demand for precise control of lighting. The low-end dimming has also been optimized, it remains stable and smooth, enabling soft fade-in and fade-out lighting transitions.
All-in-One Design · Compact & Reliable
From its lightweight, compact integrated body to stormproof protection, the Evoke 600C continues the professional standards of the Evoke series in both design and build quality. It features a BE mount with electronic contacts and a new accessory ecosystem, paired with a motorized yoke and a new portable power solution, providing comprehensive and flexible support for creative work.
Single-Cable, Plug-and-Play
To enable rapid deployment and more convenient lighting setups, the Evoke 600C adopts an all-in-one design, combining the lamp head, control unit, and power supply into a single fixture—allowing the fixture to be ready for use with a single cable.
Magnesium Alloy Build Extreme Weight Reduction
The Evoke 600C features a high-strength yet lightweight magnesium-alloy housing, reducing weight while remaining robust and durable.
Stormproof Protection
The entire housing of Evoke 600C is rated IP66, built to withstand dust, sand, heavy rain, and other harsh conditions, ensuring reliable operation even in the toughest environments.
Versatile Accessory Compatibility
The fixture is designed with the new BE mount (with electronic contacts). In addition to supporting BE mount accessories, it is compatible with Bowens mount ecosystem, and NL mount accessories via the NL to BE Mount Adapter*, allowing users to continue using existing accessories and reducing the need for additional investment.
The Evoke 600C can be powered by a V-mount battery via the optional Power Station*, offering a more flexible power solution and extended runtime for outdoor or on-the-go shooting.
With the optional Motorized Yoke, the fixture’s tilt and pan angles can be adjusted easily when it is mounted at height, without frequent manual adjustments, improving both lighting efficiency and on-set safety.
Meticulous Design
The Evoke 600C is meticulously crafted in every detail, from power connections to accessory mounting, from extension port to control options – each design choice is aimed at enhancing operational efficiency and user comfort.
  • Extension Port - The extension port on the fixture allows connection to control devices, signal routing, or communication with motorized accessories. This port will serve as one of Nanlux’s standard interfaces for future lights, allowing for future functional expansion of Evoke 600C.
  • Power Input - With an integrated AC/DC input port, the fixture can be powered directly by either wall outlet (AC 100-240V) or DC power (48V/12.5A).
Detail by Design

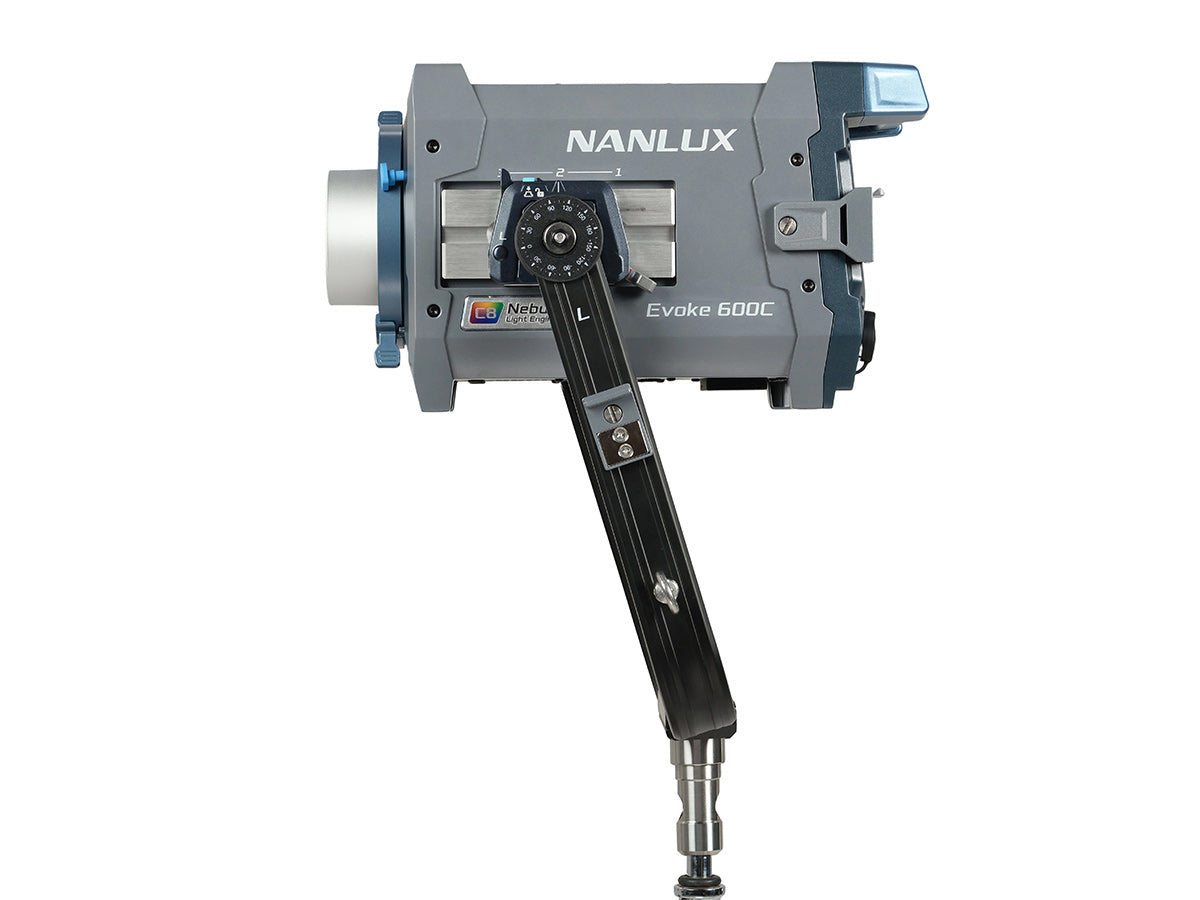

  • Dual-Side Locking Mechanism - The locking mechanism features an angle indicator, and together with the adjustable handle, it allows the tilt angle to be secured quickly.
  • Balance Adjusting Rail - Both sides of the fixture have balance adjusting rails, enabling flexible adjustment of the balance position of the head, ensuring that the fixture is closer to balance when different accessories mounted on.
  • 1/4"-20 Threads - The fixture features two 1/4"-20 threads (with anti-twist design) on both sides, allowing the attachment of magnetic base for securing an extension adapter.
  • 3/8" Threads - There are 3/8" threads reserved on the bottom, for installing the skid to the fixture.
  • Offset Yoke - Expands the tilt adjustment range when mounting large accessories, enhancing lighting setup flexibility. The yoke is designed with 1/4"-20 threads (with anti-twist design) that allow the magnetic base to be mounted for securely holding the wired controller.
  • Dual Security - The PosiTight system has been added to the Evoke 600C's BE mount, providing a dual-safety mechanism that ensures a secure connection between the fixture and the accessory.
Comprehensive Control Options
The Evoke 600C retains the Evoke series' efficient and versatile control system. Whether on professional sets with multiple cameras and lighting fixtures or in compact shoots with smaller crews, it enables quick presets, switching, and adjustments, allowing users to adapt quickly and focus on creation.
  • On-board Control - The control panel has a 2.4-inch display, three knobs for parameter adjustment, and four buttons for mode switching.
  • Wired Controller - The fixture can be connected to the included wired controller (WC-EXT). With an 8-meter cable, it accommodates high rigging positions and long-distance lighting setups. The wired controller also features an IP66 rating, making it suitable for use in the rain alongside the fixture.
  • NANLINK APP 2.0 - The Evoke 600C can be controlled by the Nanlink App 2.0 through its built-in Bluetooth module, making flexible and simple wireless control possible.
  • DMX/RDM Control - The Evoke 600C can be controlled via DMX/RDM by connecting the 5-pin XLR DMX in and out ports, providing a stable connection for group control.
  • LumenRadio CRMX - With a built-in LumenRadio TimoTwo module, the Evoke 600C can be connected to the CRMX control ecosystem and provide flexible and stable wireless DMX control.
  • Art-Net/sACN - The Evoke 600C can be controlled via Ethernet by connecting the optional LAN Extension Adapter (AS-EXT-LAN), which can convert fixture's extension port into LAN 1 and LAN 2 ports, enabling longer distance signal transmission than an XLR cable.
  • Remote Controller - The Evoke 600C can be controlled wirelessly using the optional remote controller (WS-RC-C2), allowing for quick and convenient adjustments.
  • NFC - Users can quickly connect the Evoke 600C to an NFC-enabled phone or tablet running Nanlink App 2.0 by bringing the device close to the fixture’s NFC tag. This allows users to batch-set DMX parameters for multiple lights even when they are powered off, greatly improving pairing efficiency.
Evoke Lineup
With the addition of the Evoke 600C, the Evoke lineup now includes daylight, bi-colour, colour fixtures, with power ratings up to 5000W – one family of lights providing multiple solutions for professional production.
The same operation logic allows users to operate different fixtures without spending time readjusting.
FE, BE, and NL mounts together constitute a comprehensive accessory ecosystem, enabling different fixtures to have versatile light-shaping options. Built for demanding shooting environments, all Evoke lights combine metal construction with IP ratings, reflecting professional engineering.
Within the Evoke system, the Evoke 600C blends naturally into the workflow, collaborating with other lights in the series to streamline and unify on-set lighting.
Complete Accessory Ecosystem
The Evoke 600C features the new BE mount (with electronic contacts), which can recognize accessories and correct colour casts, also power the motorized attachment. The fixture can still illuminate when mounted on an accessory without electronic contacts.
The Evoke 600C is also compatible with Bowens mount accessory ecosystem, and the NL mount accessories via the NL to BE mount adapter, providing filmmakers with more comprehensive and professional accessory support.
Reliable Cooling System
The Evoke 600C is equipped with an efficient cooling system featuring five built-in fan modes. In Smart mode, the noise level is as low as 31 dB(A), ensuring quiet, reliable performance while meeting the needs of different production environments.
Durable Trolley Case
For better storage and higher deployment efficiency, a trolley case (CC-ST-EV600C) is for optional purchase. Its interior padded dividers provide reliable protection for the Evoke 600C and the accessories against impact. With a retractable handle and durable wheels, the case offers easy mobility, making it effortless to transport the equipment to shooting locations.
  • Innovative Nebula C8 Light Engine (combining deep red, red, amber, lime, green, cyan, blue, indigo) to achieve 1,000K-20,000K with G/M±200 adjustment.
  • IP66 rating for robust weather protection.
  • Weighing only 7.26kg/16.01lb, made of magnesium alloy for significant weight reduction.
  • All-in-one design: unibody with integrated power supply and controller.
  • Ergonomic design including balance adjusting rail, single-sided locking mechanism with an angle indicator, tilt-angle yoke, and additional PosiTight system on BE mount.
  • Linear dimming from 0.0% to 100.0%, with precise control between 0.0% and 0.1%.
  • Multiple control methods - On-board, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC, Wired Controller.
  • 5 fan modes - SMART, FULL SPEED, LOW SPEED, PAUSE, OFF
  • BE mount and Bowens mount complete accessory ecosystem, built with BE mount (Bowens mount with electronic contacts), compatible with BE mount and Bowens mount accessories, and includes the PosiTight system for dual security.
  • NL mount complete accessory ecosystem, accessible with an NL adapter (optional).
Model: Evoke 600C
Rated Power: 600W
Input Voltage / Current: AC100-240V/50-60Hz, 8A Max
DC48V/12.5A
Beam Angle: 65°
LED Light Engine: Nebula C8 Light Engine: dRRALGCBI
CCT: 1000K-20000K (G/M±200)
CRI: Average 96
TLCI: Average 97
TM-30 Rf: Average 96
TM-30 Rg: Average 100
Dimming: 0.0%-100.0%, by 0.1% increment
Dimensions: Light Fixture: 358.2 x 246.3 x 205.33mm / 14.10 x 9.70 x 8.08"
Yoke: 405 x 349.5 x 63.6mm / 15.94 x 13.76 x 2.50"

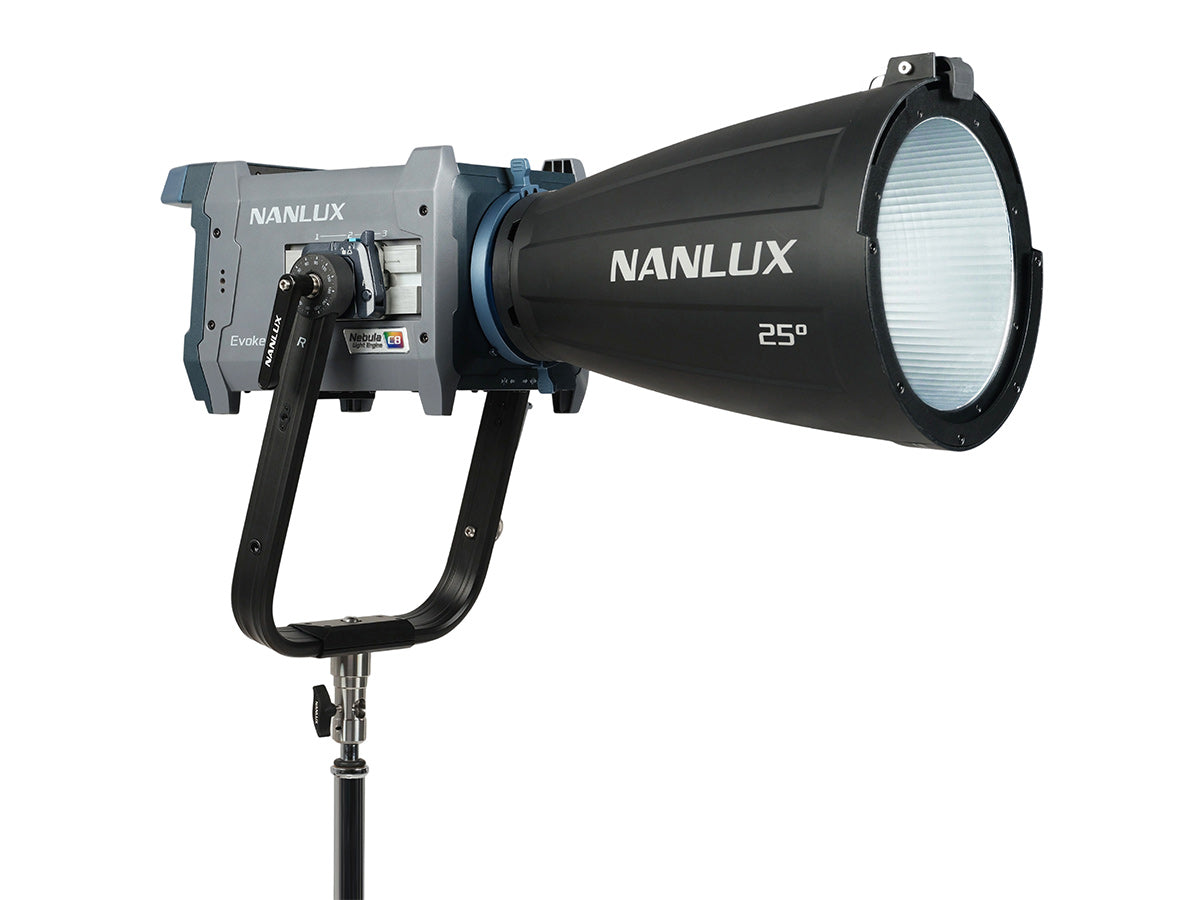

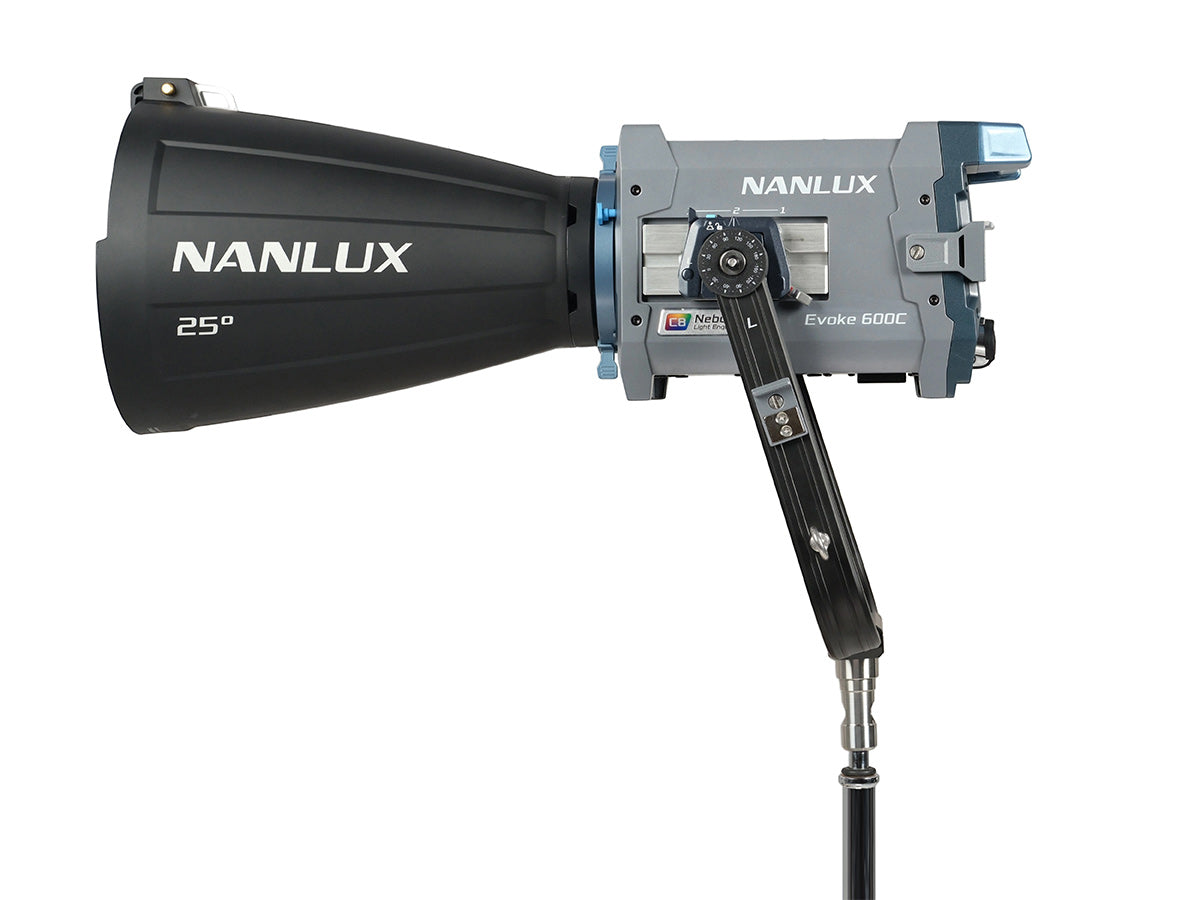

RF-BE-25 BE Mount Reflector 25°: Φ131.8 x 273 x 372.5mm / Φ5.19 x 10.75 x 14.67"
AS-MB-2 Magnetic Base: 65.1 x 44 x 29mm / 2.56 x 1.73 x 1.14"
WC-EXT Wired Controller: 149.9 x 121.7 x 41mm / 5.90 x 4.79 x 1.61"
AS-MB-1 Magnetic Base: 29 x 43.7 x 17.3mm / 1.14 x 1.72 x 0.68"
CC-ST-EV600C Trolley Case: 460 x 370 x 580mm / 18.11 x 14.57 x 22.83"
Weight: Light Fixture: 7.26kg / 16.01lb
Yoke: 1.02kg / 2.25lb
RF-BE-25 BE Mount Reflector 25°: 1.654kg / 3.65lb
AC Power Cable 6m: 0.59kg / 1.30lb
AS-MB-2 Magnetic Base: 0.038kg / 0.084lb
WC-EXT Wired Controller: 0.493kg / 1.09lb
Connection Cable 8m: 0.3kg / 0.66lb
AS-MB-1 Magnetic Base: 0.03kg / 0.066lb
CC-ST-EV600C Trolley Case: 6.6kg / 14.55lb

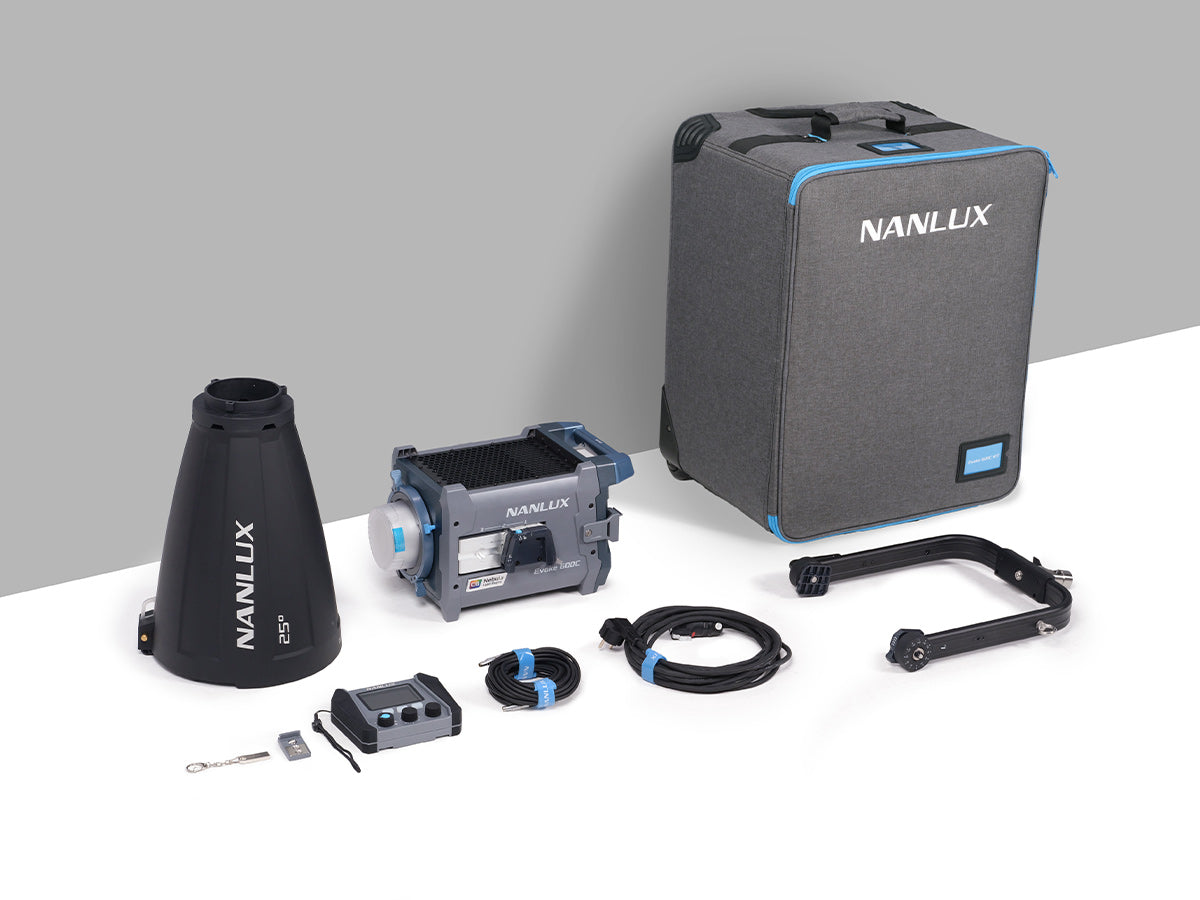

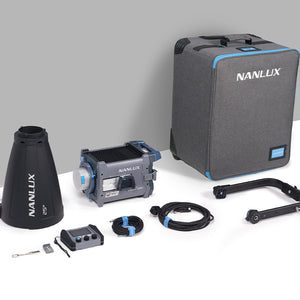

  • 1x Evoke 600C
  • 1x Yoke
  • 1x RF-B-25 BE Mount Reflector 25°
  • 1x AC Power Cable 6m
  • 1x USB Flash Drive
  • 1x AS-MB-2 Magnetic Base
  • 1x WC-EXT Wired Controller (1x Connection Cable 8m, 1x AS-MB-1 Magnetic Base)
  • 2x User Manual (Evoke 600C+WC-EXT)
  • 1x CC-ST-EV600C Trolley Case
