Nanlux Evoke 5C Kit
Nanlux Evoke 5C Kit
SKU:
NAN-EVOKE-5C-KIT
Regular price
£219.00 GBP ex VAT
£262.80 GBP inc VAT
£262.80 GBP inc VAT
Regular price
ex VAT
Sale price
£219.00 GBP ex VAT
£262.80 GBP inc VAT
Unit price
per
£262.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

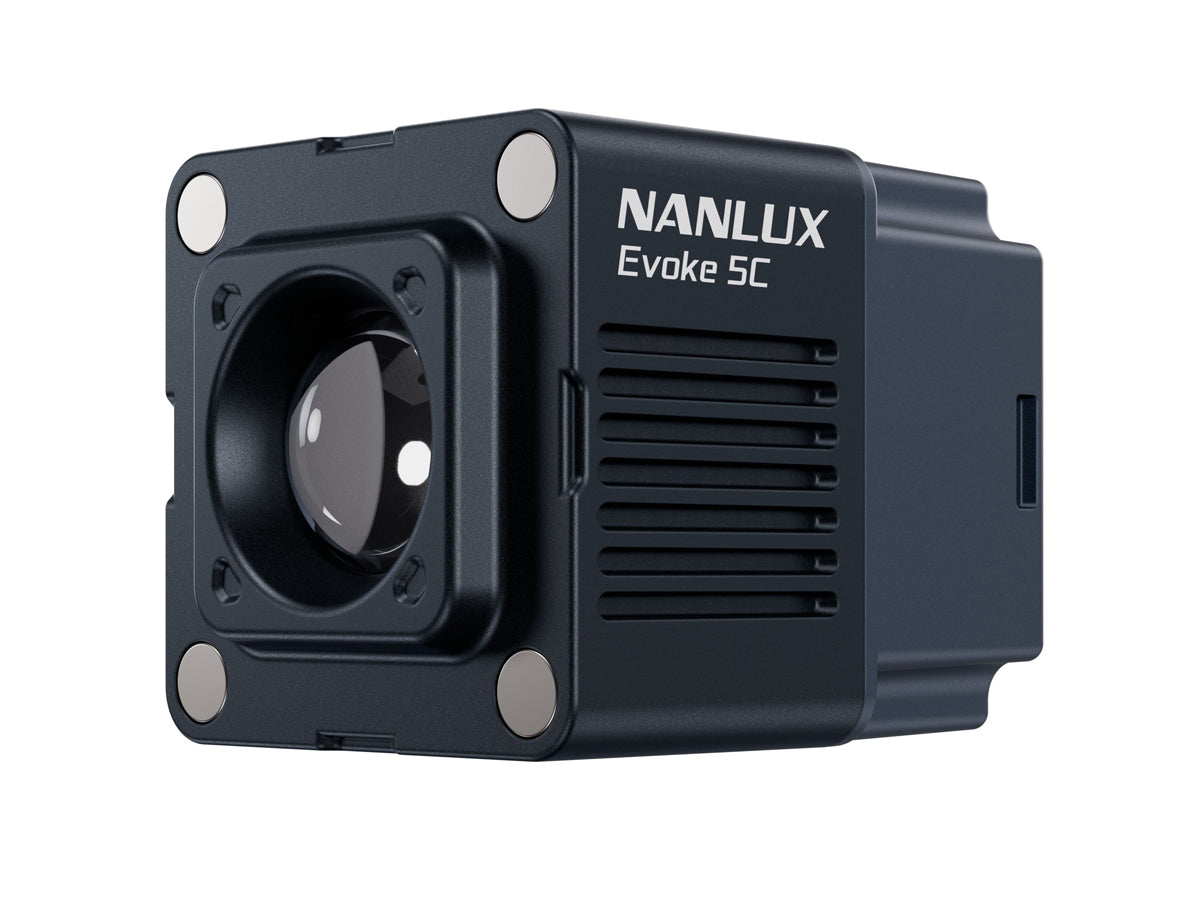

The NANLUX Evoke 5C is an ultra-compact spotlight built for professionals. Until now, trulysmall LED spotlights have lacked the precision and control demanded by gaffers and DPs, butNANLUX changes that equation entirely with this meticulously designed 6W fixture with itsbuilt-in battery. The Evoke 5C delivers pro-level light shaping and precision full-color output,yet measures just 5.6×4.4×4.5 cm and weighs a mere 160g. It is ideal for small scenes,desktop and macro cinematography/photography, or seamless integration into set furnitureas unobtrusive practicals.The Evoke 5C’s comprehensive range of magnetically attachable modifiers, including SoftDome, Fresnel Lens, Spot Beam Lens, Snoot, and Projection Attachment, enables preciseaccents, fill lighting, and atmospheric enhancement. The fixture can be used handheld withthe snap-on battery grip, precision-aimed with its dedicated yoke stand, securely mountedwith anti-twist 1/4"-20 threads, or used for in-prop concealment. With rugged build and IP67resistance, it can be deployed anywhere, anytime. An optional underwater housing takes it toeven greater depths. The Evoke 5C delivers professional-grade precision and flexibility in anexceptionally compact design, making it ideal for demanding lighting applications.
Handy and Versatile
The Evoke 5C measures just 5.6 × 4.4 × 4.5 cm (2.2 × 1.73 × 1.77 in) and weighs only 160 g(5.64 oz). Exceptionally portable and quick to set up, it can be handheld for run-and-gunshooting or discreetly placed within the frame to provide subtle fill light without drawing attention. It delivers 2,026 lux at 0.5 m (light only, 5600K), approximately doubling with theoptional Fresnel Lens and reaching 5.5 times with the Spot Beam Lens. This makes it ideal forenhancing fine details, building atmosphere, adding localized highlights, or creating preciseaccent lighting.
Versatile with Comprehensive Accessories

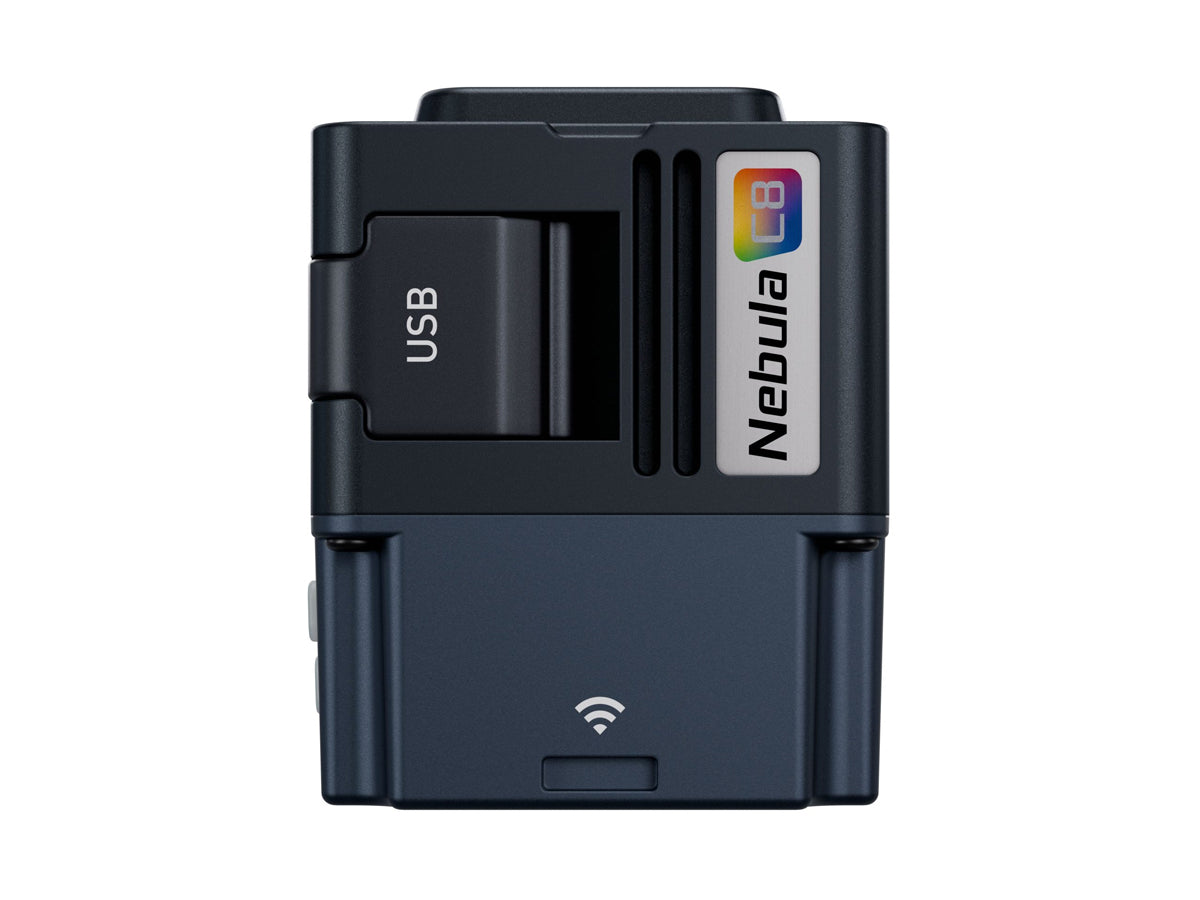

14 dedicated accessories are designed for the Evoke 5C, including various modifiers,mounting, power, and control accessories. It features magnetic and snap-fit designs on thefront, and magnetic and latch designs with electronic contacts on the back, allowing quick andeasy attachment of accessories. A 1/4”-20 mount secures the Evoke 5C on light stands orother supports, and a USB-C port allows power input, firmware updates, or connection of anadapter cable for wired DMX control.

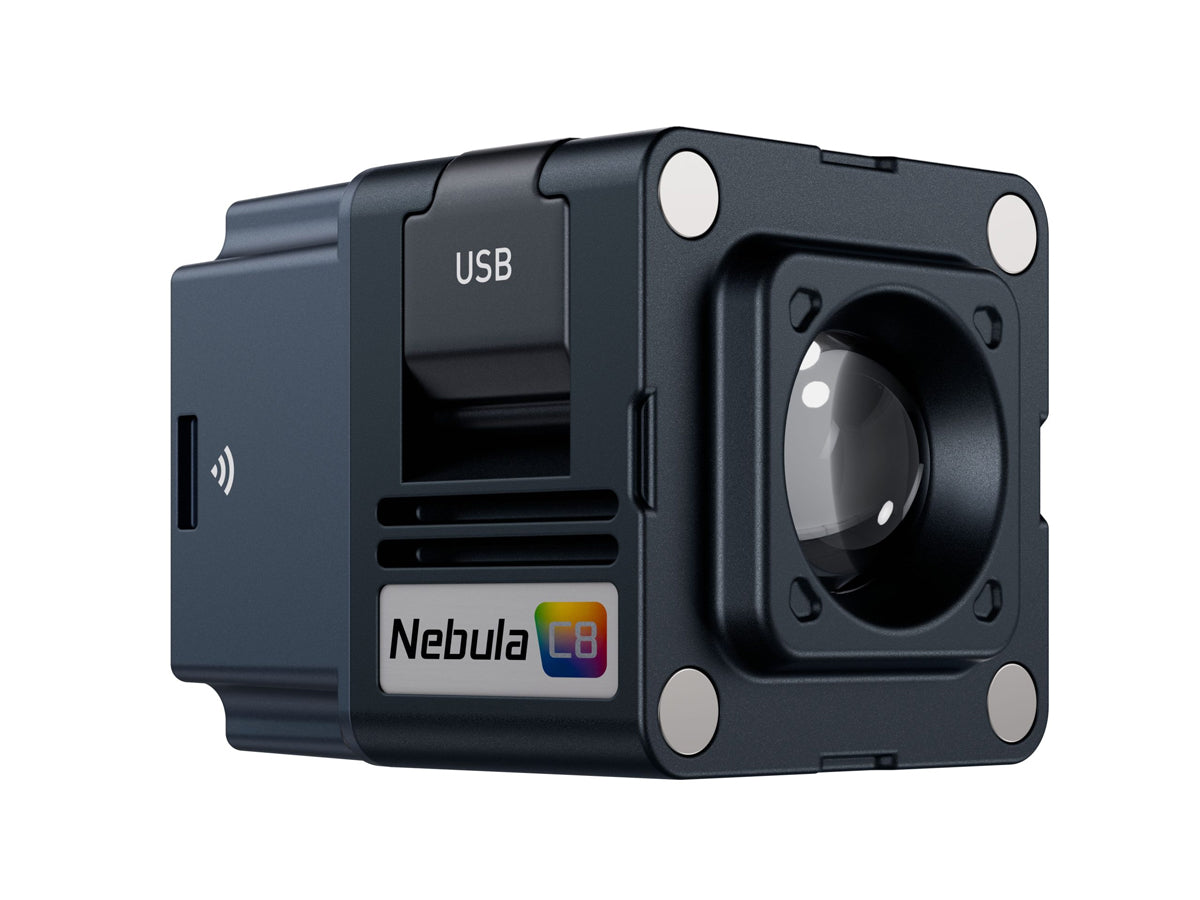

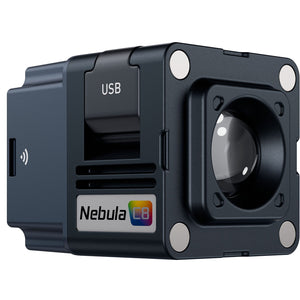

Innovative C8 Light Engine
Like the larger NANLUX Evoke 150C and Evoke 600C, the Evoke 5C is equipped with theadvanced Nebula C8 Color Light Engine, that integrates Deep Red, Red, Amber, Lime, Green,Cyan, Blue, and Indigo LEDs. It achieves higher color saturation, offers an ultra-wide colortemperature range of 1,000K-20,000K with ±200 green/magenta adjustment, and deliversexcellent color rendering with a CRI/TLCI average of 98. The Evoke 5C has seven built-inlighting modes, including CCT, HSI, HSIW, RGBW, XY Coordinates, Gel, and Effect, providingversatile lighting control for creative and professional applications.
Flexible Power Options
With its built-in lithium battery, the Evoke 5C can operate for about 2.5 hours, and lasts 4.7hours with the Battery Grip, making it perfect for on-the-go shooting and rapid repositioning.It also accepts USB-C power, is compatible with the E27 Socket Adapter, or can be charged inthe 8-Light Kit Case via electronic contacts.
Dustproof and Waterproof
With an IP67-rated body, the Evoke 5C delivers reliable performance in challengingenvironments. It can be submerged up to 1 meter underwater for 30 minutes. The optionalIP68-rated Underwater Housing extends its operational depth to 30 meters, enabling highqualitylighting for diving applications.
Multiple Control Methods
The Evoke 5C supports multiple wired and wireless control methods to meet the lightingrequirements of professional productions, whatever the complexity. Adjustments can bemade directly on the fixture or wirelessly via the NANLINK App. For larger or more complexshoots, it allows remote control via wired DMX or wireless CRMX. The NFC function allowsusers to batch-set DMX parameters for multiple fixtures even when they are powered off,greatly improving pairing efficiency.
- Innovative Nebula C8 Light Engine (combining deep red, red, amber, lime, green, cyan, blue, indigo) to achieve 1,000K-20,000K with G/M±200 adjustment
- Compact, lightweight, and easy to use and carry – Weighs only 160g/0.353lb / Size: 56×44×45mm/2.2×1.73×1.77″
- Built-in battery for long runtime – Up to 2 hrs 36 minutes, 50 minutes at full output
- IP67 rating for robust underwater protection – Up to 30 min runtime at 1 m / Up to 45 min runtime at 30 m with Underwater Housing
- 3 power options – Charge via the USB-C port / Charge using an adapter or power bank (5V/2A or higher) / Charge via the electronic contacts, compatible with
- Battery Grip, Magnetic E27 Socket Adapter, 8 kit case, and Magnetic Motorized Yoke
- 6 lighting modes – CCT, HSI, RGBW, XY Coordinates, Gel and Effect
- 5 control methods – On-board, NANLINK App, CRMX, DMX/RDM, NFC
- Modifier recognition function
| Model: | Evoke 5C | |
| Rated Power: | 6W | |
| Input Voltage / Current: | DC5V/2A | |
| Beam Angle: | 25° | |
| LED Light Engine: | Nebula C8 Light Engine (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo) | |
| CCT: | 1,000K-20,000K (G/M±200) | |
| CRI: | Average 98 | |
| TLCI: | Average 98 | |
| TM-30 Rf: | Average 96 | |
| TM-30 Rg: | Average 100 | |
| SSI (3200K): | 86 | |
| SSI (5600K): | 78 | |
| Dimming: | 0%-100%, by 1% increment | |
| IP Rating: | IP67 | |
| Control: | On-board, Nanlink App, DMX/RDM, LumenRadio CRMX*, NFC (*via Magnetic CRMX Module) | |
| Special Effect: | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding | |
| Battery Capacity: | 3.7V/1300mAh | |
| Battery Runtime: | 100 Brightness: | 50 mins |
| 1% Brightness: | 2 hours 36 mins | |
| Dimensions: | Light Fixture: | 56 x 44 x 45mm / 2.2 x 1.73 x 1.77" |
| USB-C Cable: | 1m / 39.37" | |
| AS-MD-EV5C Magnetic Diffuser: | 44 x 44 x 11mm / 1.73 x 1.73 x 0.433" | |
| YK-EV5C Magnetic Yoke: | 67 x 42 x 69mm / 2.64 x 1.65 x 2.72" | |
| AS-MTS-EV5C Magnetic Thermal Shield: | 48 x 48 x 31mm / 1.89 x 1.89 x 1.22" | |
| Carrying Bag: | 135 x 50 x 75mm / 5.31 x 1.97 x 2.95" | |
| Weight: | Light Fixture: | 0.16kg / 0.353lb |
| USB-C Cable: | 0.028kg / 0.0617lb | |
| AS-MD-EV5C Magnetic Diffuser: | 0.008kg / 0.0176lb | |
| YK-EV5C Magnetic Yoke: | 0.062kg / 0.137lb | |
| AS-MTS-EV5C Magnetic Thermal Shield: | 0.009kg / 0.002lb | |
| Carrying Bag: | 0.076kg / 0.168lb | |
| Certification: | CE, UKCA, RoHS, PSE Circle, BIS, FCC-ID, NCC, UN38.3 Transportation Test, Battery KC Certification, IP67, VOC | |

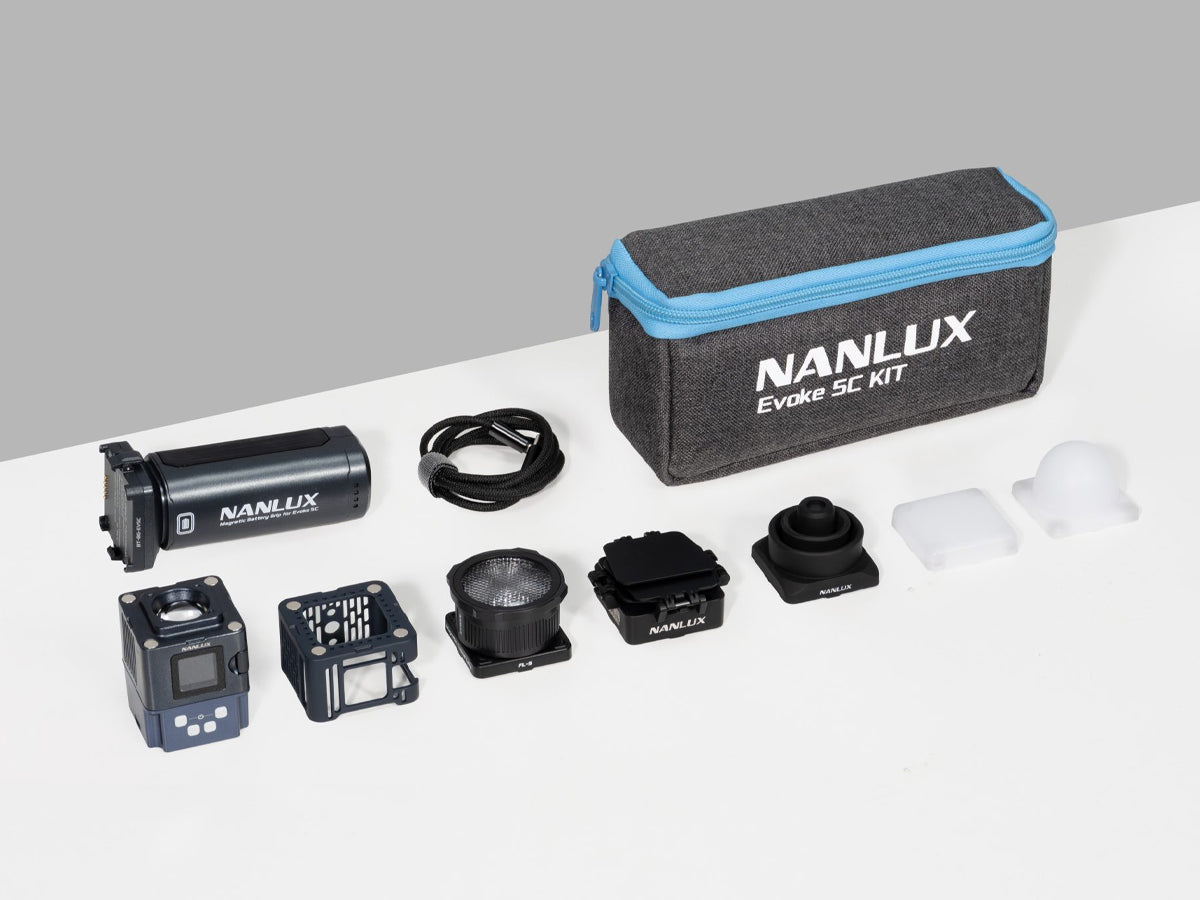

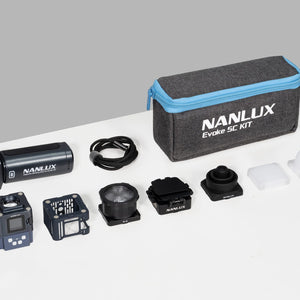

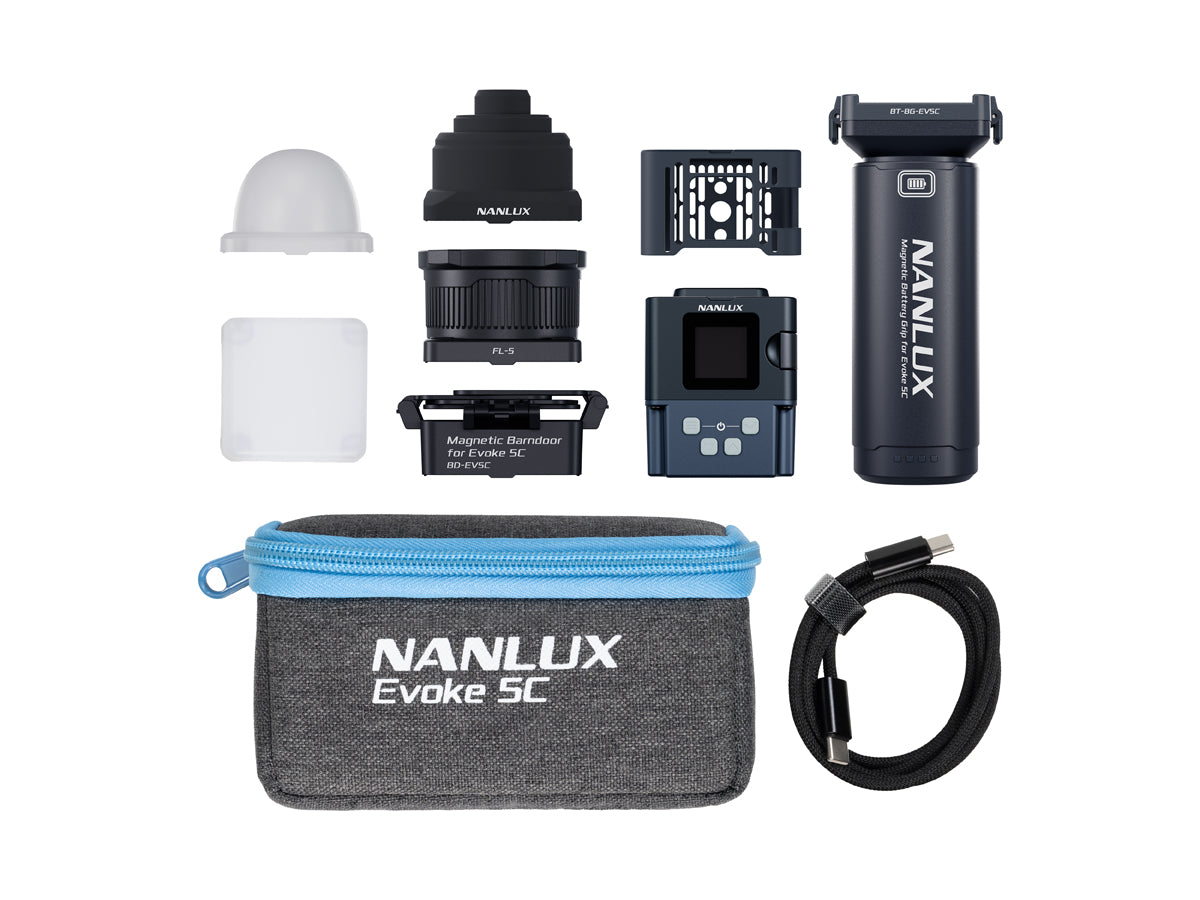

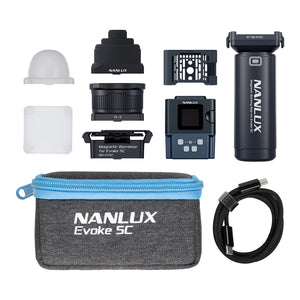

- 1x Evoke 5C
- 1x USB-C Cable
- 1x Magnetic Diffuser
- 1x Magnetic Fresnel Lens
- 1x Magnetic Soft Dome
- 1x Magnetic Barn Door
- 1x Magnetic Snoot
- 1x Magnetic Thermal Shield
- 1x Magnetic Battery Grip
- 1x User Manual
- 1x Carrying Bag
