Nanlux Evoke 2400B Flight Case Kit

Nanlux Evoke 2400B Flight Case Kit

SKU: NAN-EVOKE-2400B-KIT
£5,999.00 GBP ex VAT
£7,198.80 GBP inc VAT
ex VAT £5,999.00 GBP ex VAT
£7,198.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
  • Recommended Accessories

For the first time, a bi-color LED light can bring the equivalent of a 10K tungsten to your set.
The new Nanlux Evoke 2400B is built with extremely high 2400W of rated power, wide CCT range with G/M±80 adjustment. IP55 rating of both light fixture and power supply, allows for use in severe weather conditions. Additionally, Evoke 2400B has accessory recognition function, for automatically identifying accessories that with optical contacts.

Function

  • CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80
  • EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.
  • Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF.
    • The maximum output is 100% when the fan is in SMART or FULL SPEED state.
    • The maximum output is 50% when the fan is in LOW SPEED state.
    • The maximum output is 10% when the fan is OFF.
  • Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
  • Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu.
  • Two language options: English and Chinese.
  • Support firmware update.
  • Bluetooth reset function.

Structure

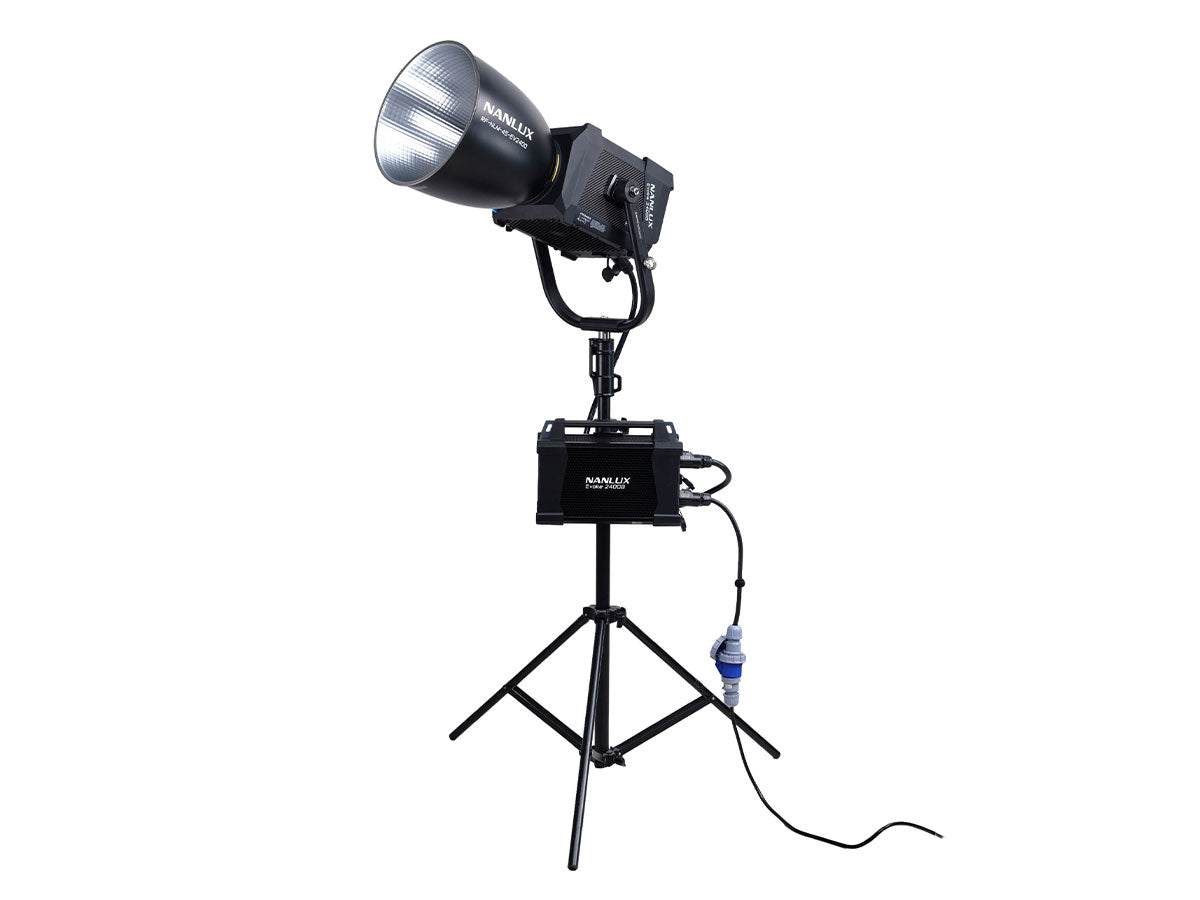

  • Separate design of light fixture and power supply, high power output with ultra-bright output.

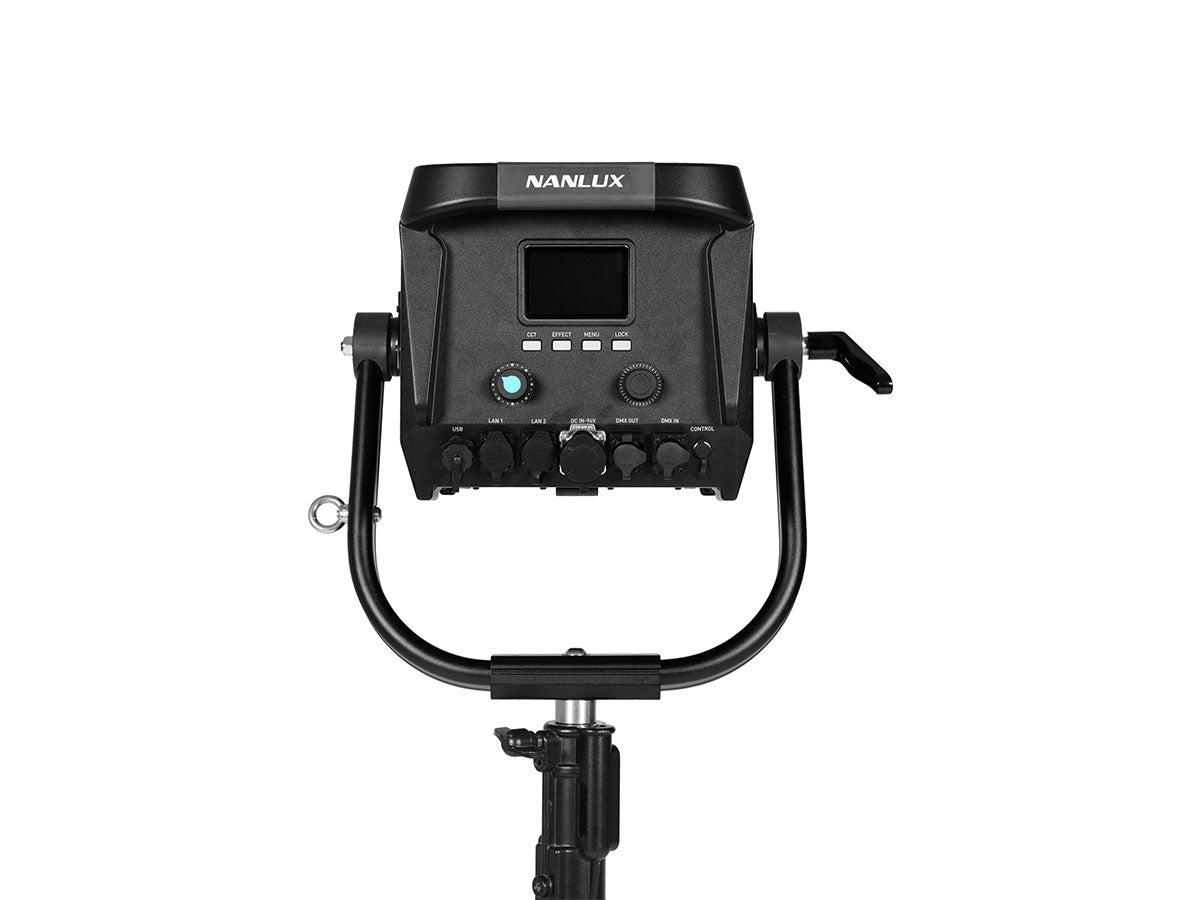

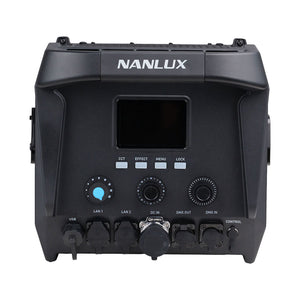

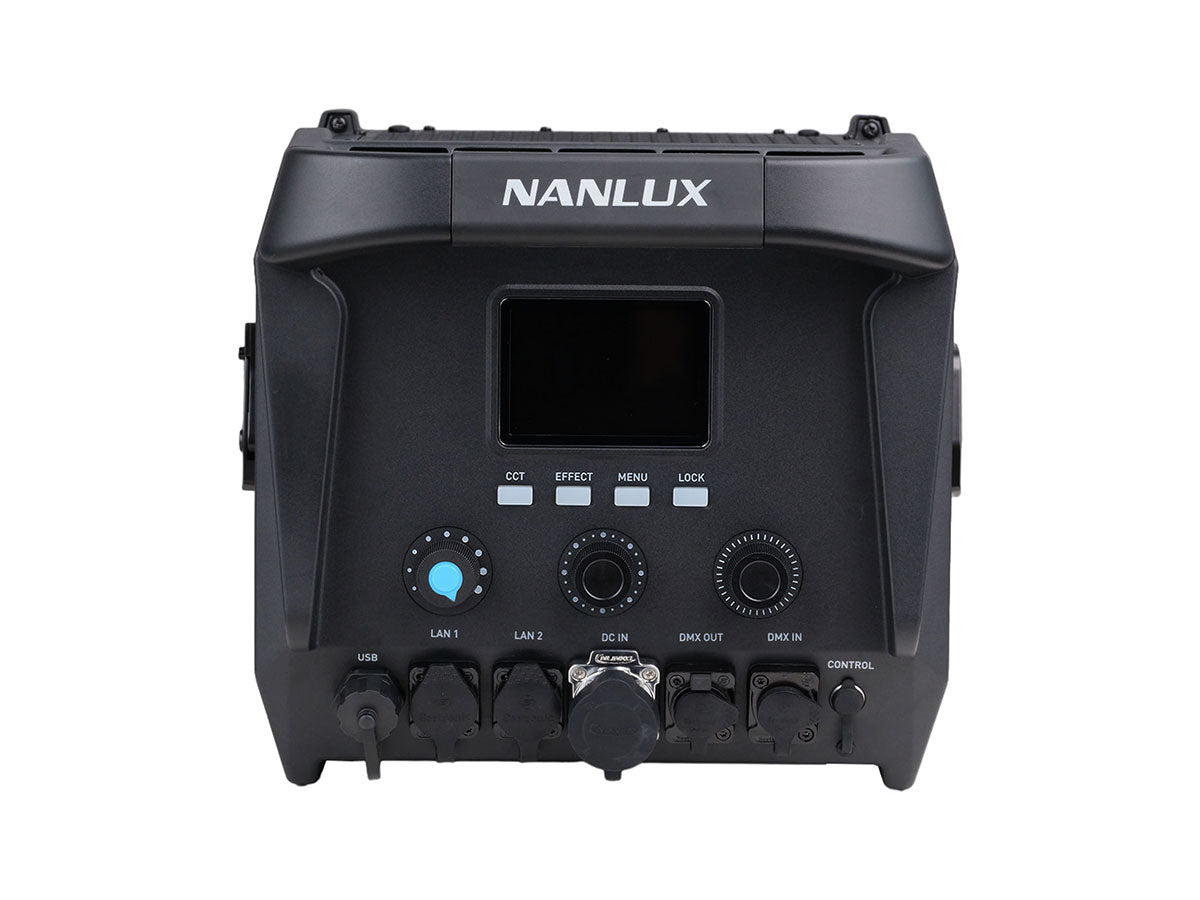

  • 3.5 inch screen, with four buttons and three knobs.
  • Robust and durable metal material construction, with IP55 rating.
  • Quick release design of yoke with eye bolt, enable Evoke 2400B to rotate in 360-degree.
  • Integral disassembly design makes it convenient for maintenance and replacing parts.

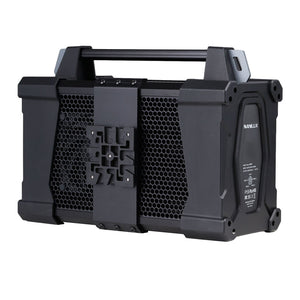

  • Quick release plate & clamp for the power supply, with clamping range of φ15-50mm.

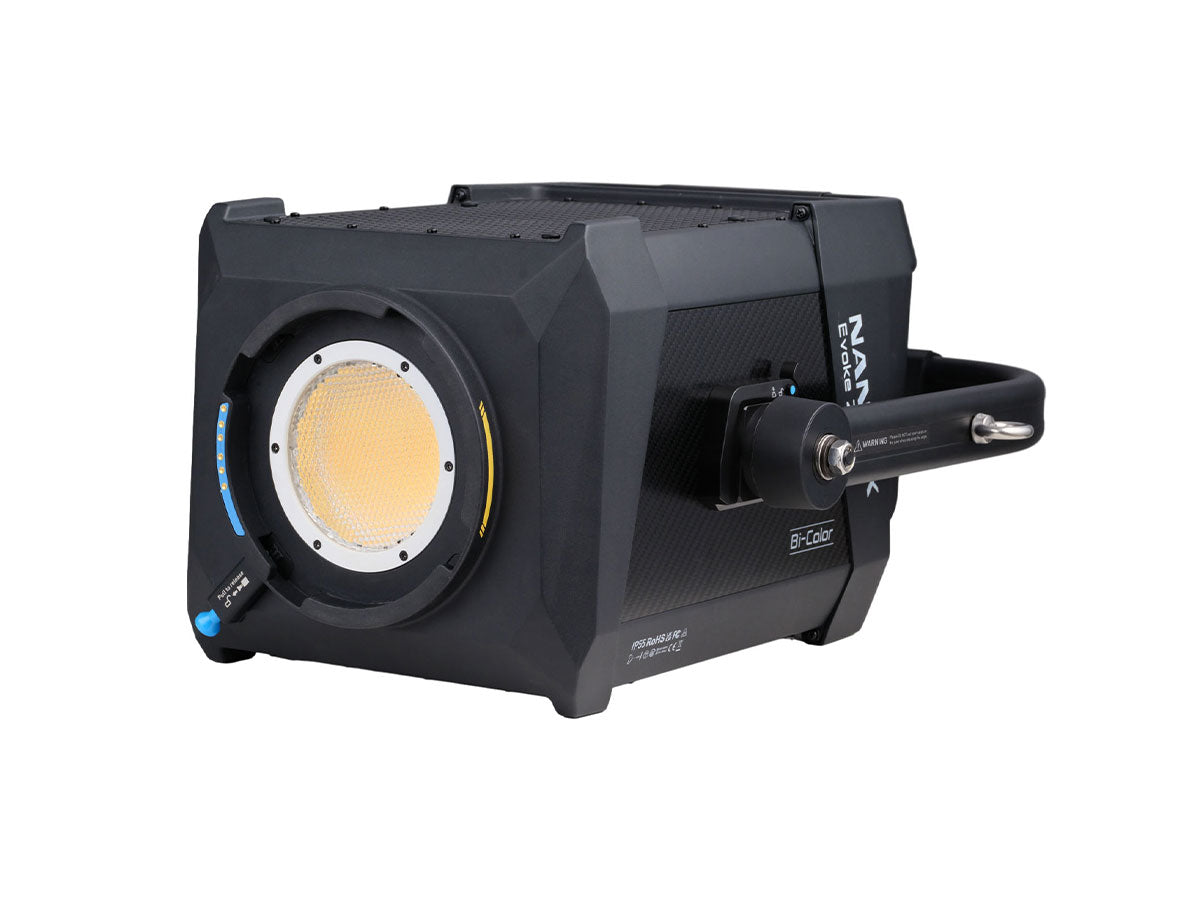

  • Evoke 2400B is built with NL mount and optical contacts, makes it compatible with NL mount accessories and modifiers that with optical contacts.

Control

  • On-board control: Evoke 2400B can be operated through the control panel on the fixture.
  • Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP.
  • 2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box.
  • DMX/RDM: Support DMX/RDM control.
  • LumenRadio: Built-in Lumenradio module for remote control.
  • Wireless control on/off function.
  • Reserved wired control function.
  • Support Art-Net and sACN control protocol.
  • Wide CCT range of 2700K-6500K with G/M±80 tunability
  • Excellent color rendition with CRI/TLCI scores of 96/97
  • Robust and durable metal material construction with IP55 rating
  • Multiple control methods: On-board, Remote Controller, NANLINK App,  DMX/RDM, LumenRadio CRMX and Ethernet (Art Net, sACN)
  • Equipped with 12 effects with parameters for every single effect customizable
  • Accessory recognition function: Built with NL mount and optical contacts
  • Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF and two output  modes
  • Support firmware update via USB port on the fixture
Model No. Evoke 2400B
Description: LED Bi-color Spot Light
Rated Power: 2400W
Input Voltage / Current: DC48V/26A
AC100V-240V 50/60Hz
Beam Angle: 100°
LED Type: WW
Control: On-board, 2.4G, Bluetooth, DMX/RDM, LumenRadio, Wire Control(reserved), NANLINK APP, Art-Net & sACN
Dimming: 0-100%, 0.1% increment
IP Rating: IP55
Operating Temperature Range: -20℃-45℃
CRI: average 96
TLCI: average 97
TM-30: RF: average 95
RG: average 100
CCT: 2700K-6500K (G/M±80)
Dimensions: Light Fixture: 427.3 x 316.4 x 265.1mm / 16.8 x 12.5 x 10.4″
Power Supply: 389.2 x 172.2 x 268.3mm / 15.3 x 6.8 x 10.6″
Weight: Light Fixture: 15kg / 33.1lb
Yoke: 2kg / 4.41lb
Power Supply: 11.58kg / 25.53lb

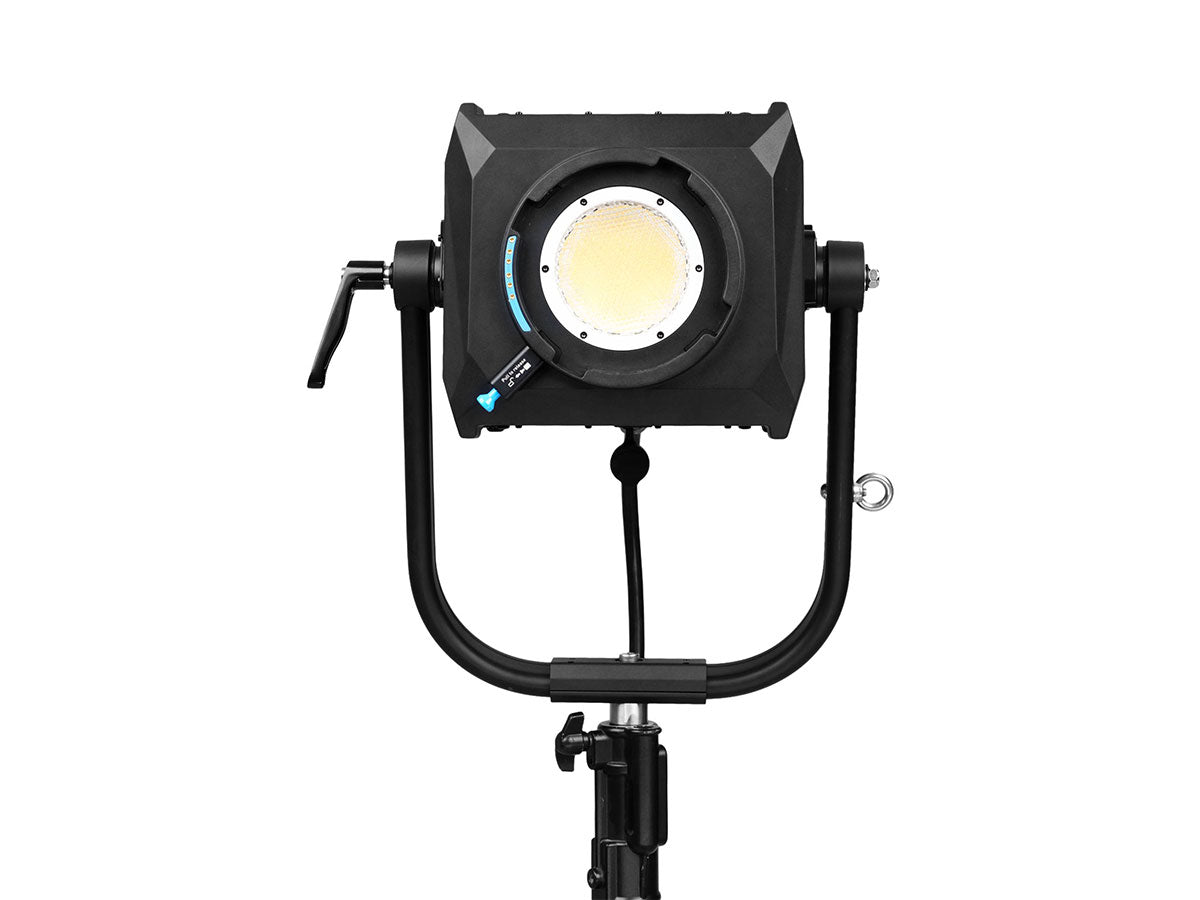

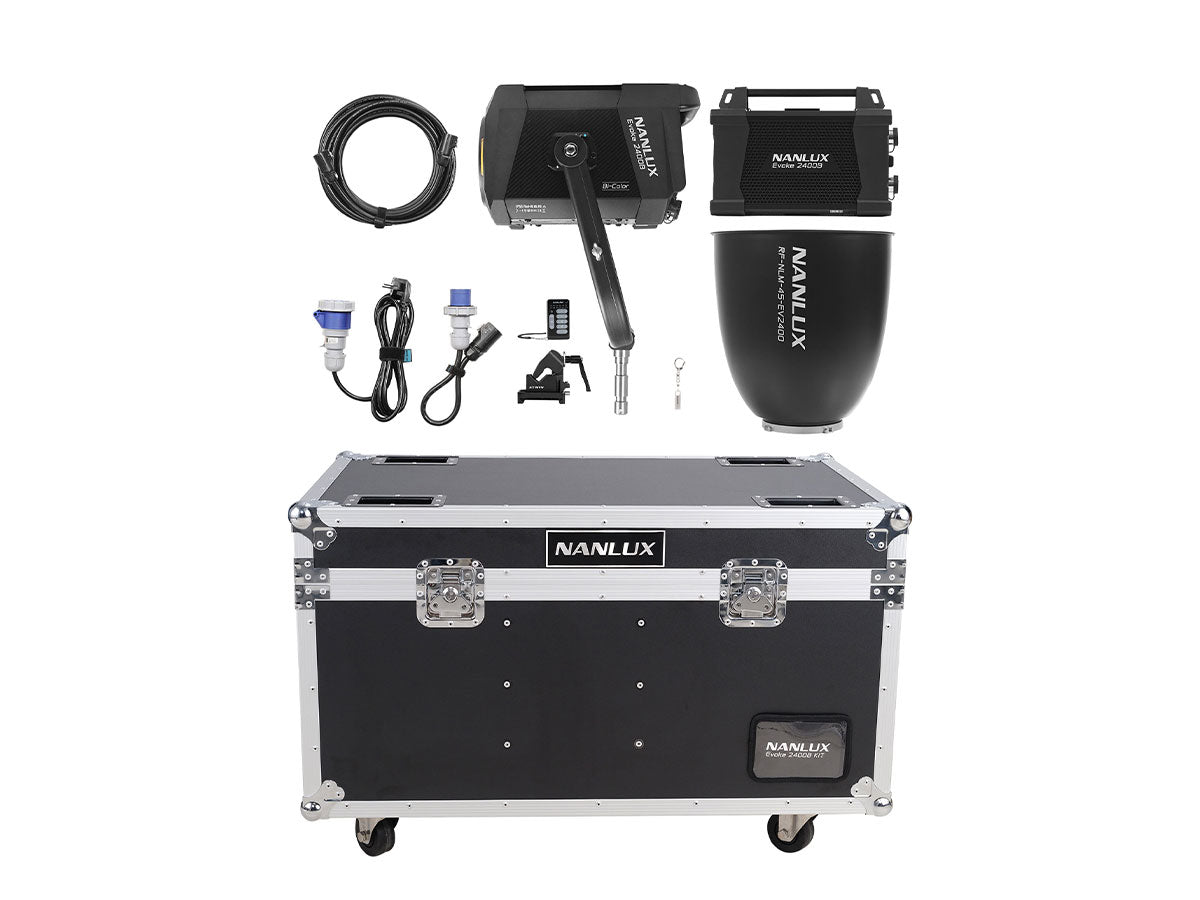

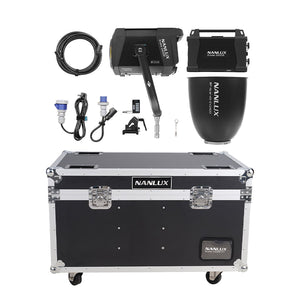

  • 1x Evoke 2400B

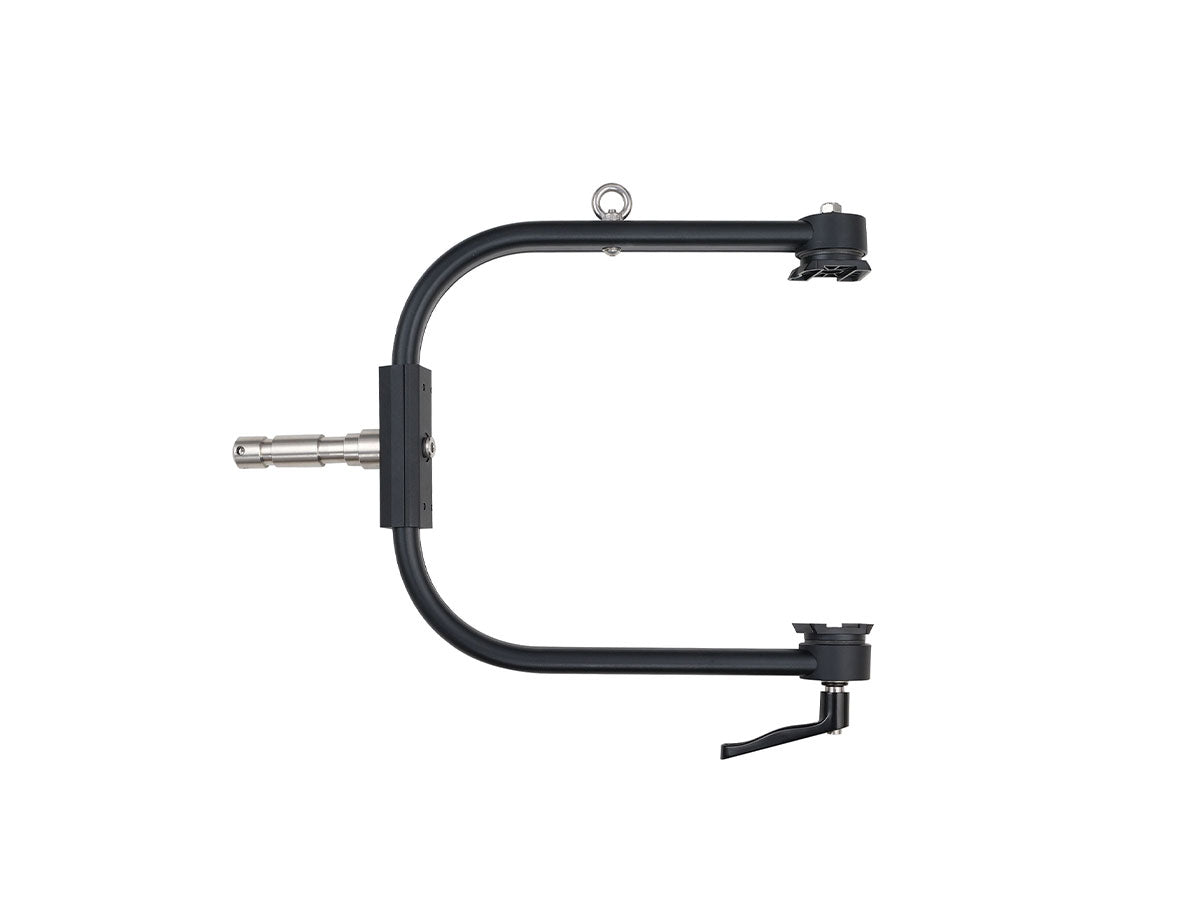

  • 1x Yoke

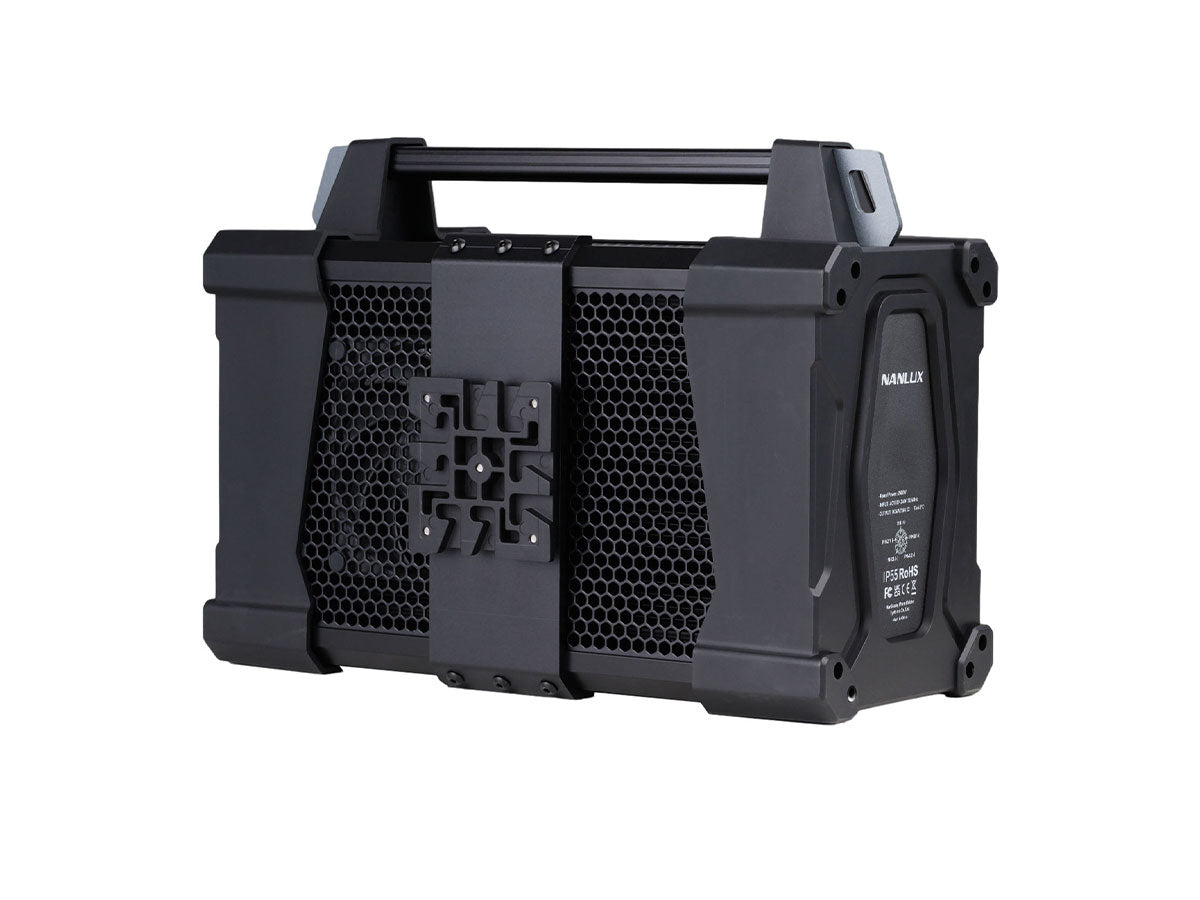

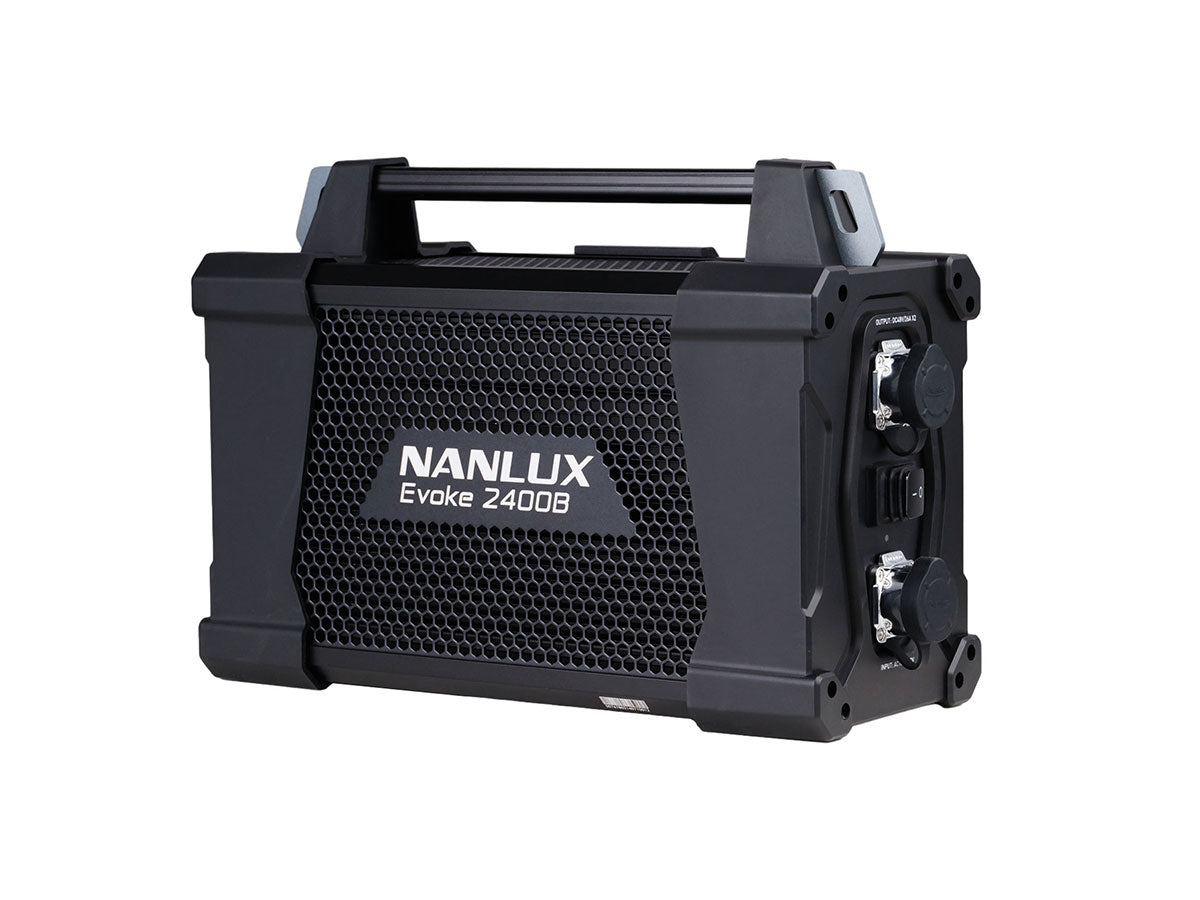

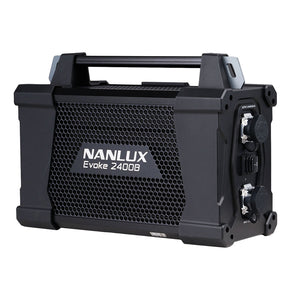

  • 1x Power Supply

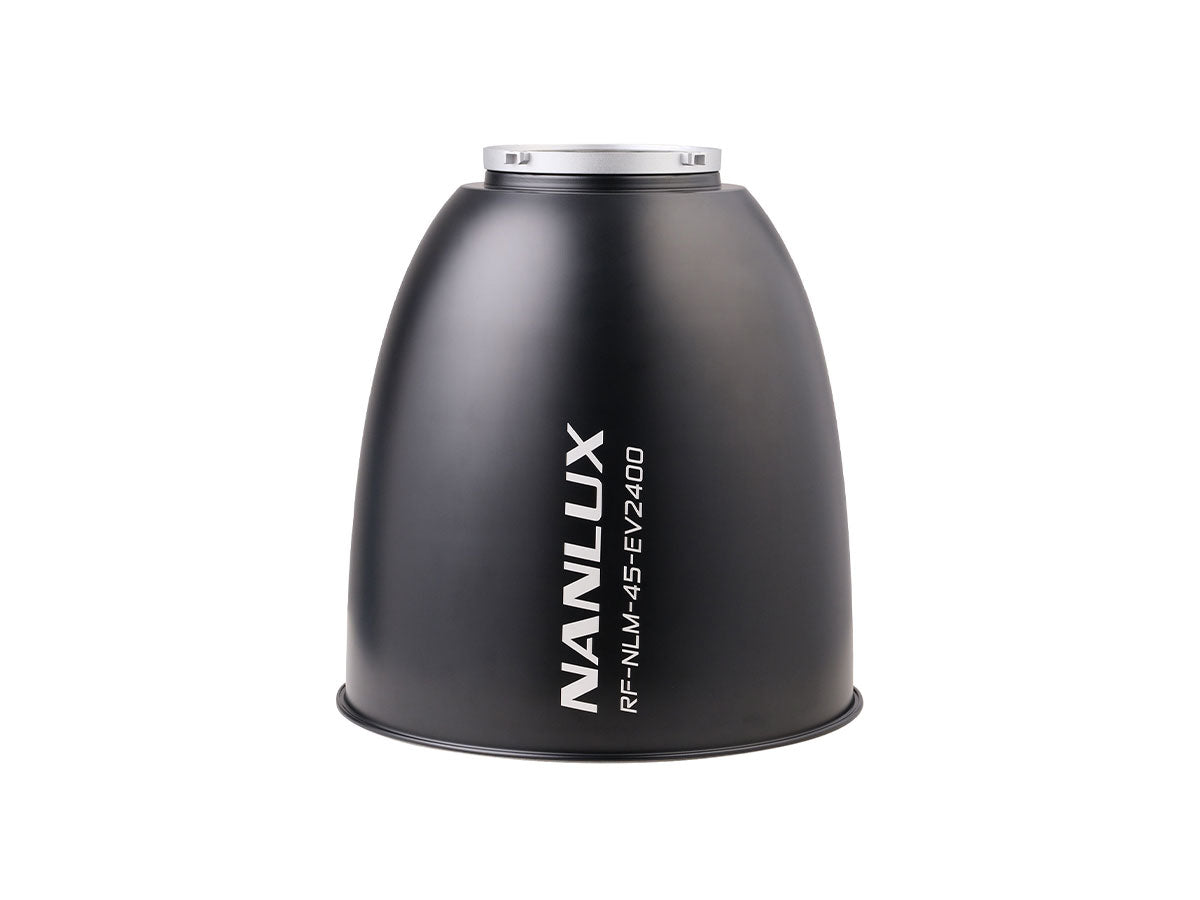

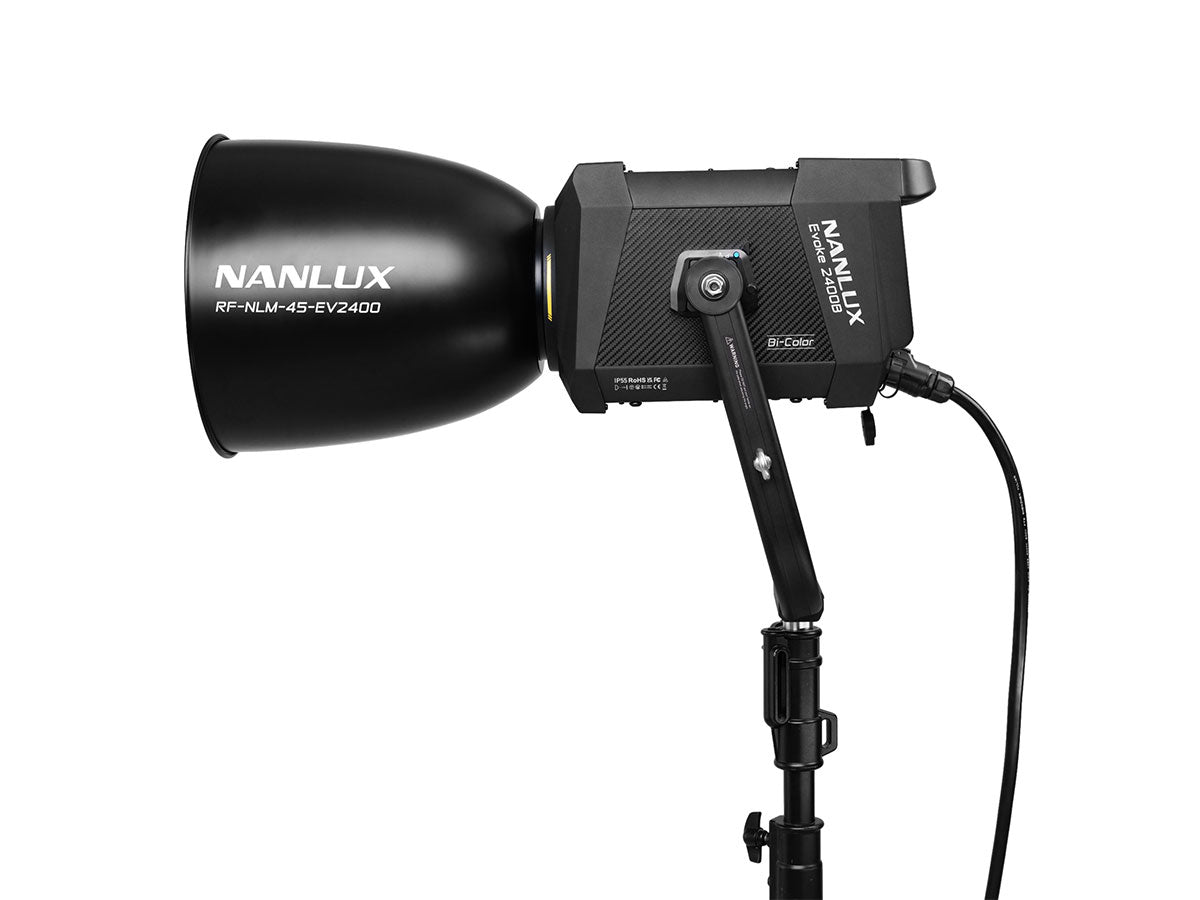

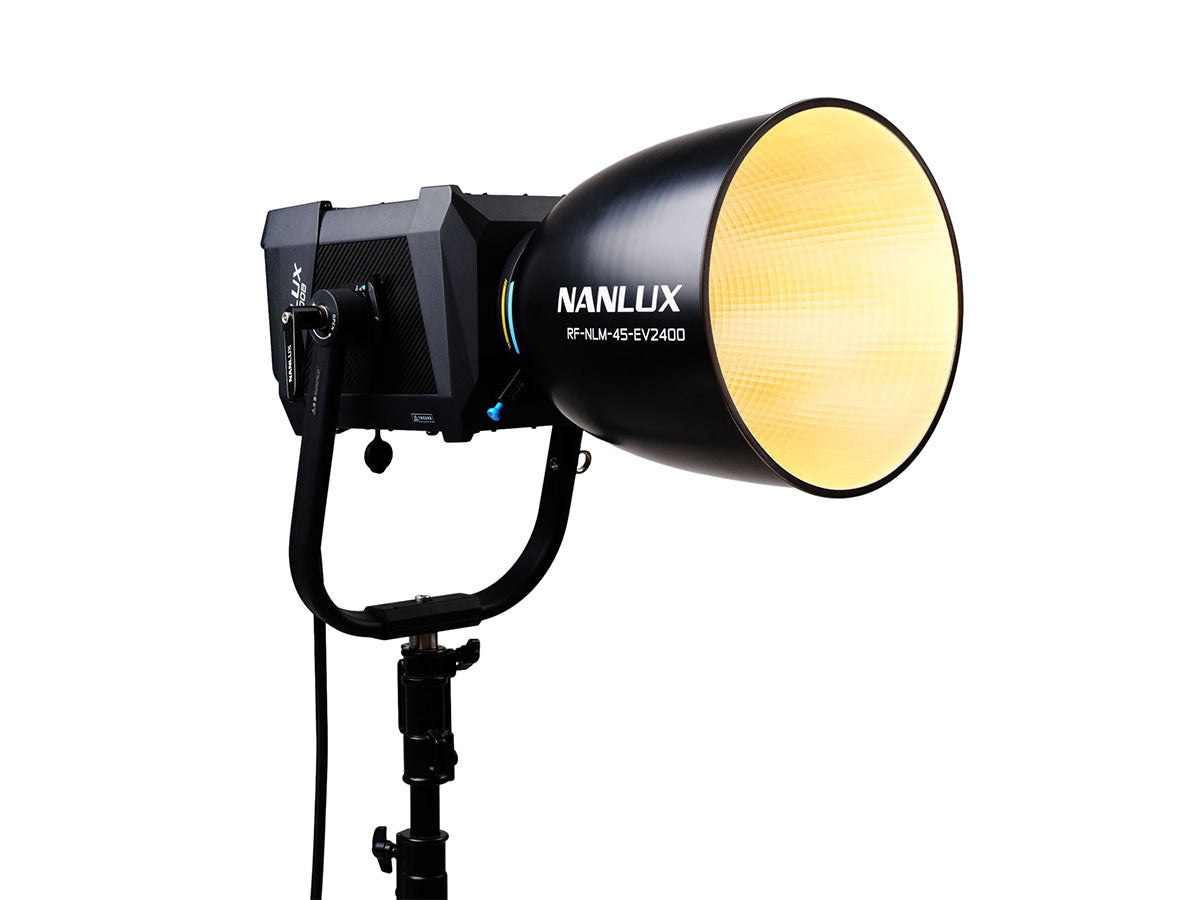

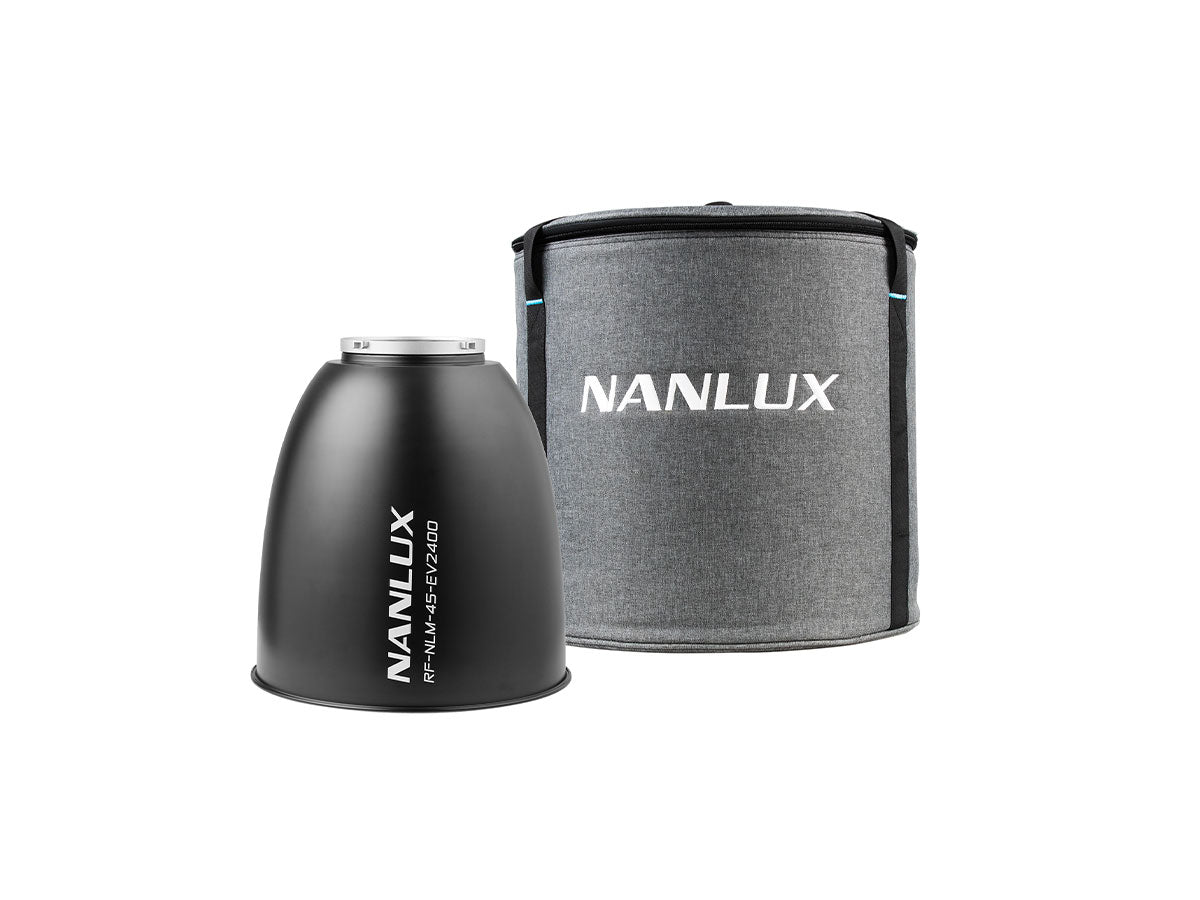

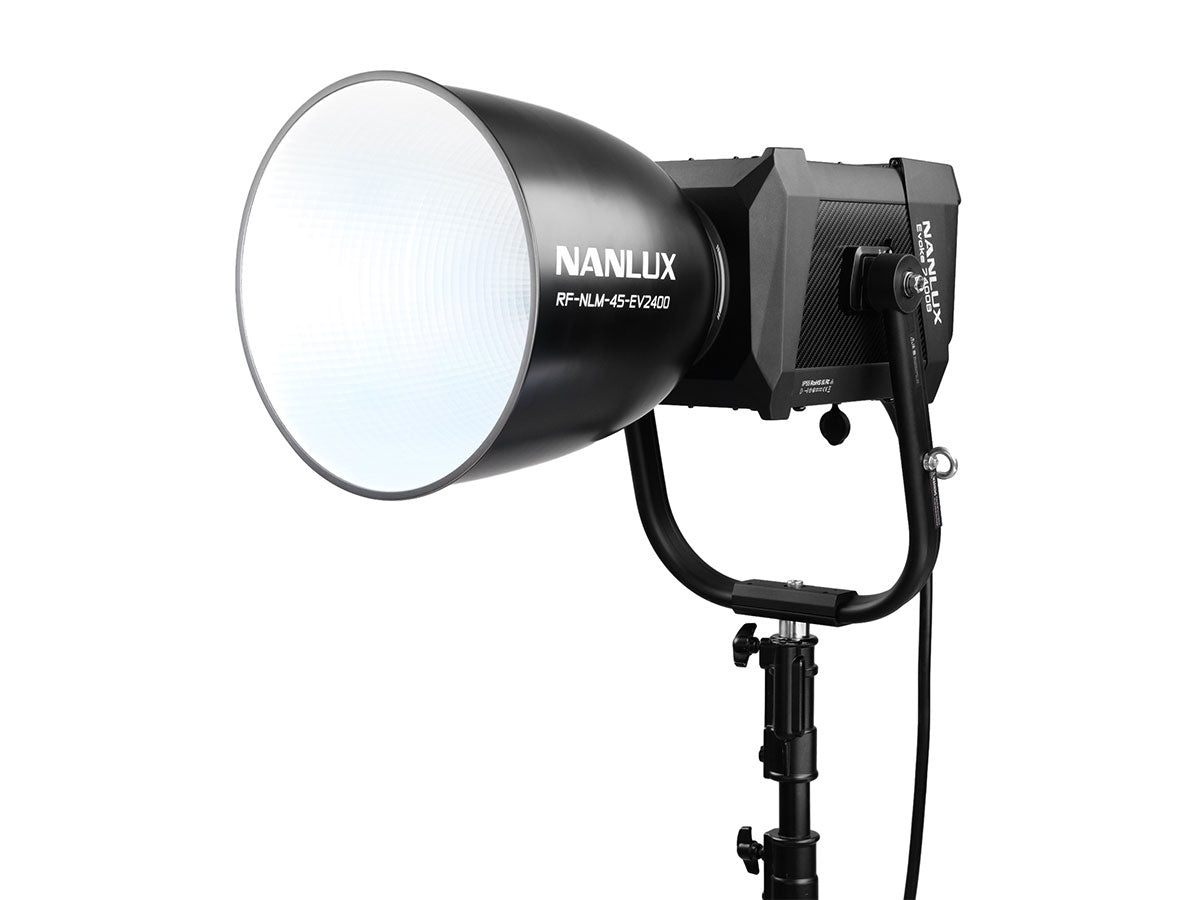

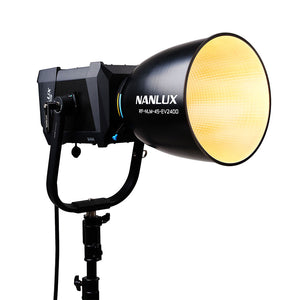

  • 1x RF-NLM-45-EV2400 Reflector 45°
  • 1x USB Drive

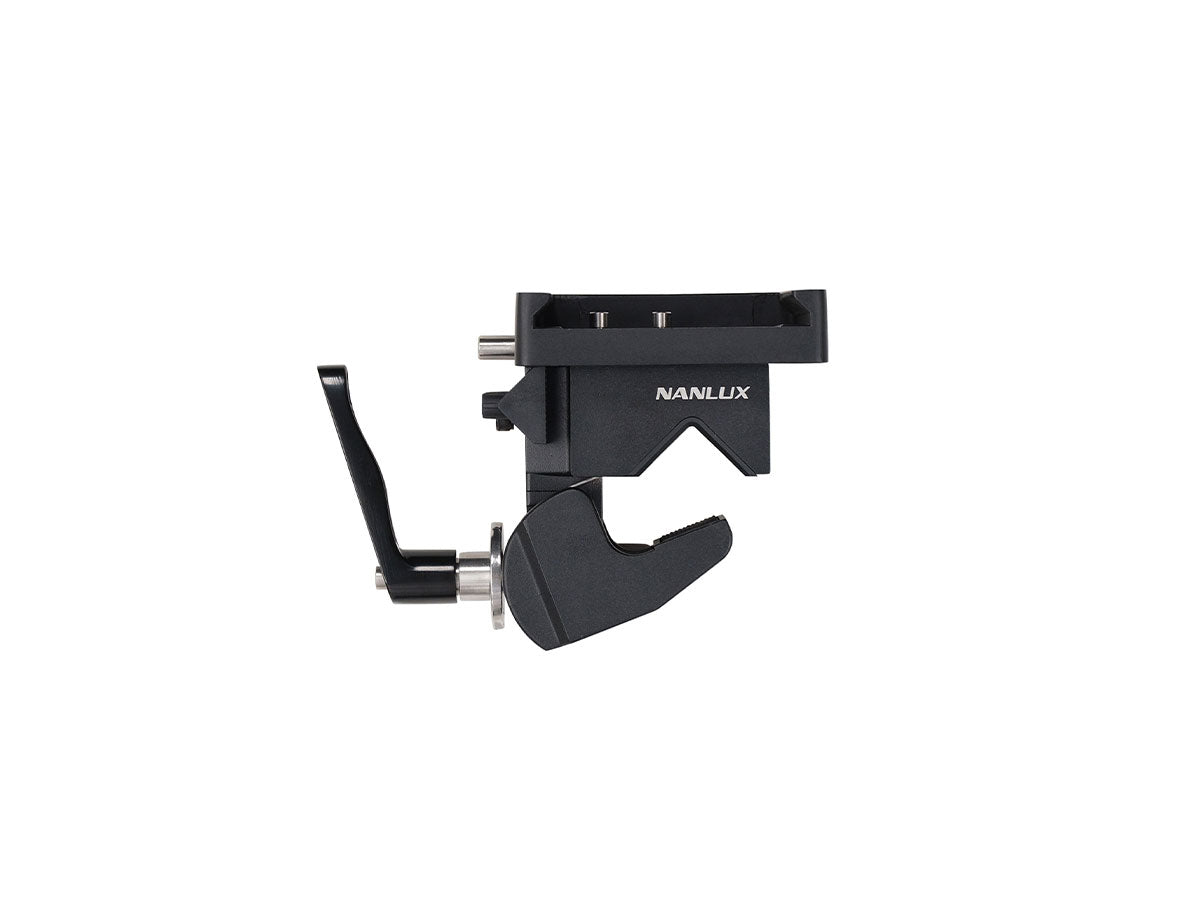

  • 1x AS-CP-QR-EV Quick Release Clamp
  • 1x CC-EV2400-FT Flight Case
  • 1x WS-RC-C2 Remote Controller
  • 1x DC Connection Cable 7.5M

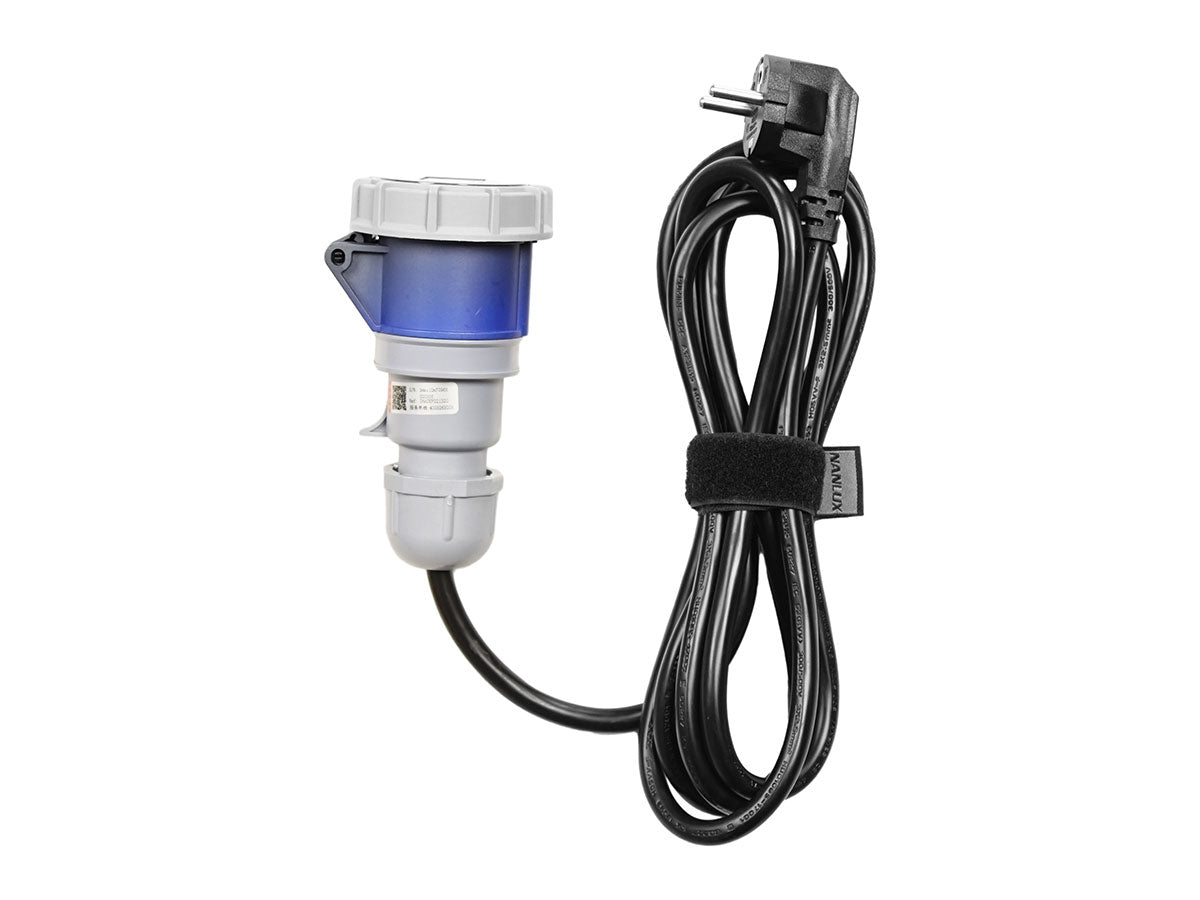

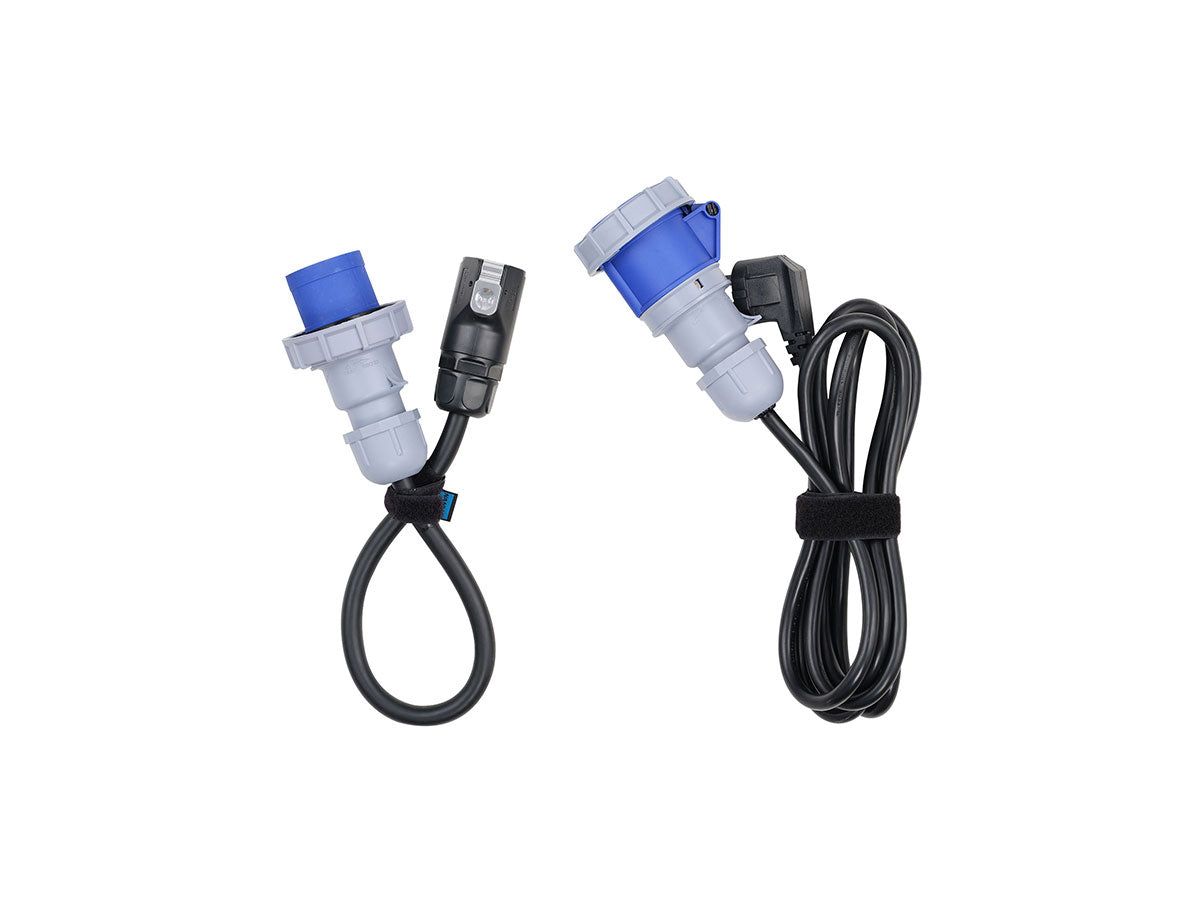

  • 1x AC Power Cable 3M
  • 1x User Manual
