Nanlite PavoSlim 240CL RGBWW LED Panel
Nanlite PavoSlim 240CL RGBWW LED Panel
SKU:
NAN-01-092
Regular price
£1,149.00 GBP ex VAT
£1,378.80 GBP inc VAT
£1,378.80 GBP inc VAT
Regular price
ex VAT
Sale price
£1,149.00 GBP ex VAT
£1,378.80 GBP inc VAT
Unit price
per
£1,378.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The new PavoSlim 240CL is a slim, robust, lightweight, and easy-to-install LED panel that offers professionals exciting new possibilities when lighting in tighter spaces. Since its launch, the industry has rapidly adopted NANLITE's PavoSlim series of super-thin, high-output panel lights. These lights are recognized for their significant advantages in output and ruggedness over traditional LED light mat products, while also providing excellent control and quality of light.
This latest 4x1 model in the range maintains the slim, lightweight design while offering a powerful 240W output. The unique dimensions of the PavoSlim 240CL make it ideal for use in confined spaces or areas with limited headroom. It can be used close to talent, hidden easily within a set design, or suspended from ceilings, and it excels in virtual production applications. All with the added versatility of color, wireless LumenRadio CRMX, and control via remote or app.
Lightweight yet Bright
The PavoSlim 240CL has a high rated power of 260W, like the PavoSlim 240B/240C, while the fixture body weighs only 3.62 kg//7.98lb. With carefully designed optical lensing the light from each emitter is perfectly mixed, achieving four times the output of similar products and delivering an impressive brightness of 21,030 lux @1m, all within a compact body.
Distinctive Lighting, Slim yet Rugged
The 4’x1’ size of the PavoSlim 240CL expands the available size options of the PavoSlim series. The difference in length and width enables the fixture to provide a softer light on the long side and a harder light on the short side, allowing for flexible application based on needs. The PavoSlim 240CL’s elongated shape, combined with a thickness of just under 1 inch (2.35 cm), means it can be easily and flexibly set up in tight spaces or locations with low height ceilings.

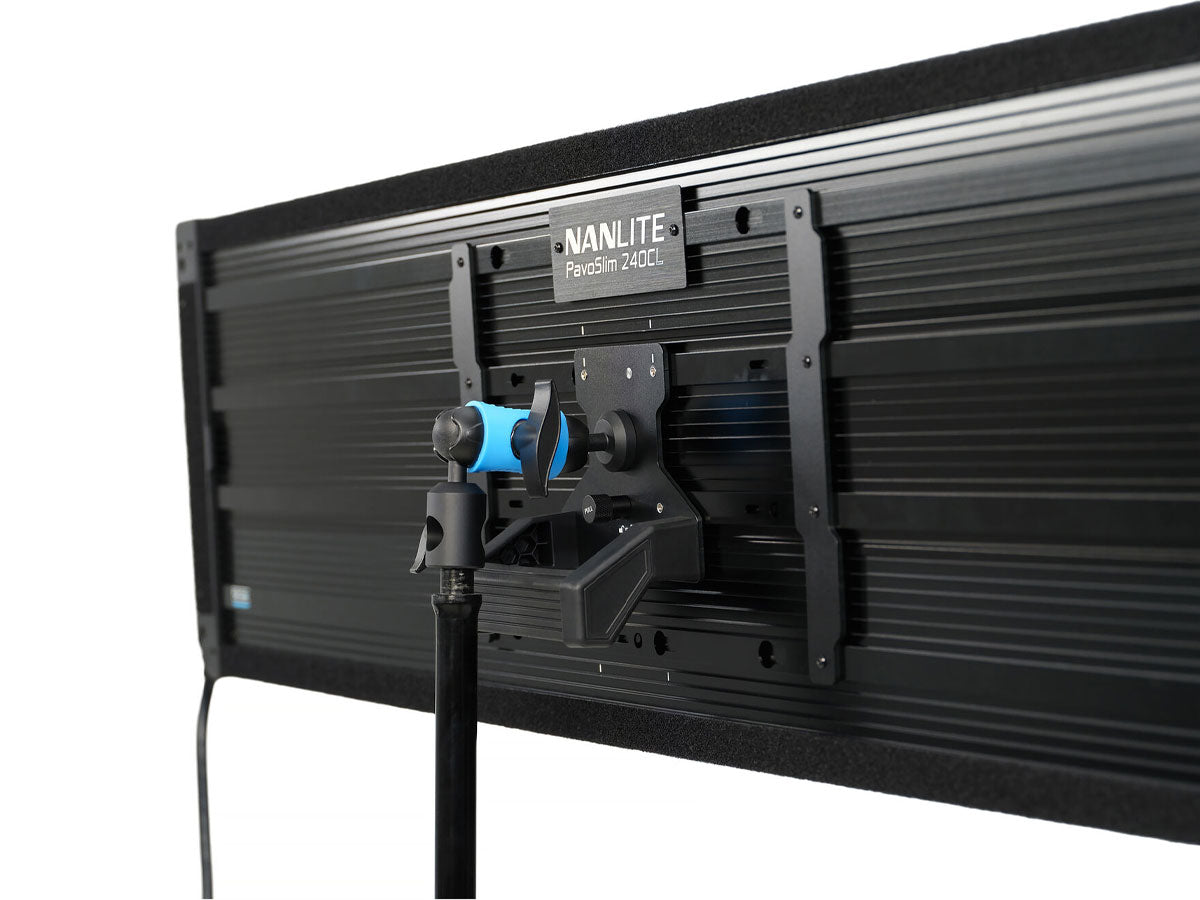

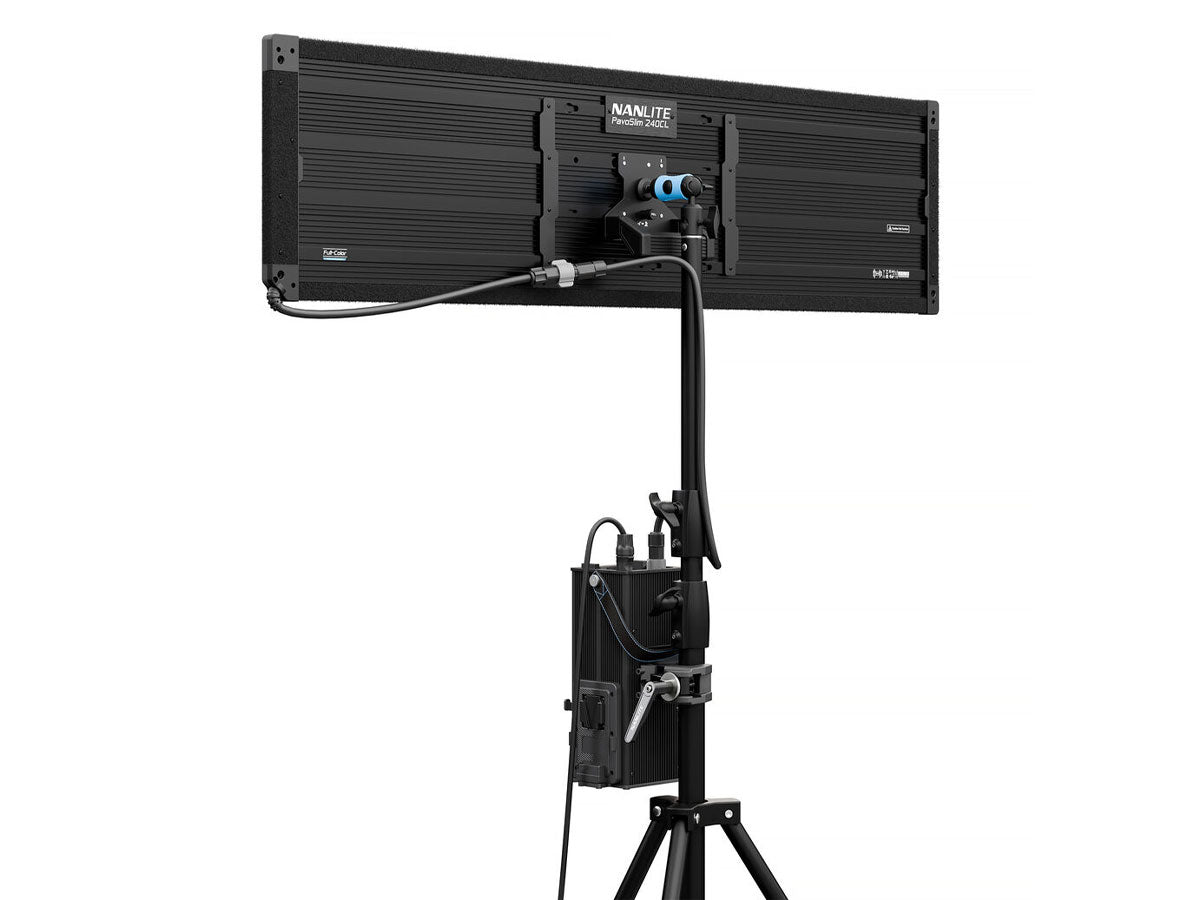

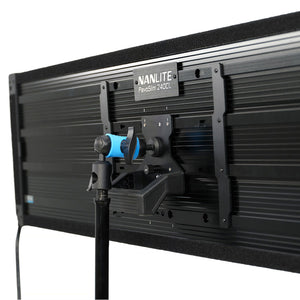

The fixture is made from super light high-quality aluminum alloy, providing excellent protection and heat dissipation. The rear of the PavoSlim 240CL features a large multi-row heat sink, enhancing structural strength and efficiently moving heat away.
Fast Installation, Easy Detachment
Every element of the PavoSlim is designed for rapid deployment:
- Snap and Lock - A universal holder and a baby pin holder are included for securing the fixture and adjusting the tilt. Either can be easily mounted on the back of the fixture.

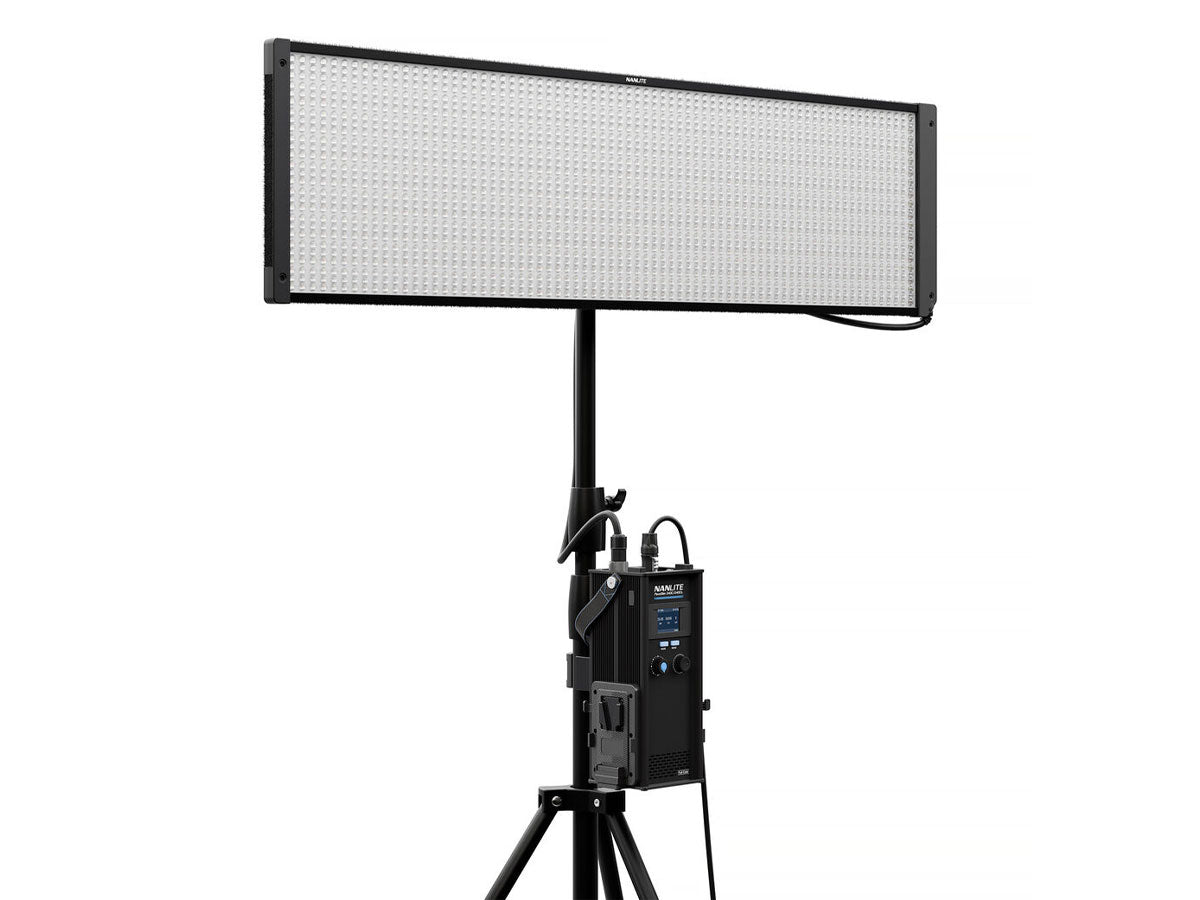

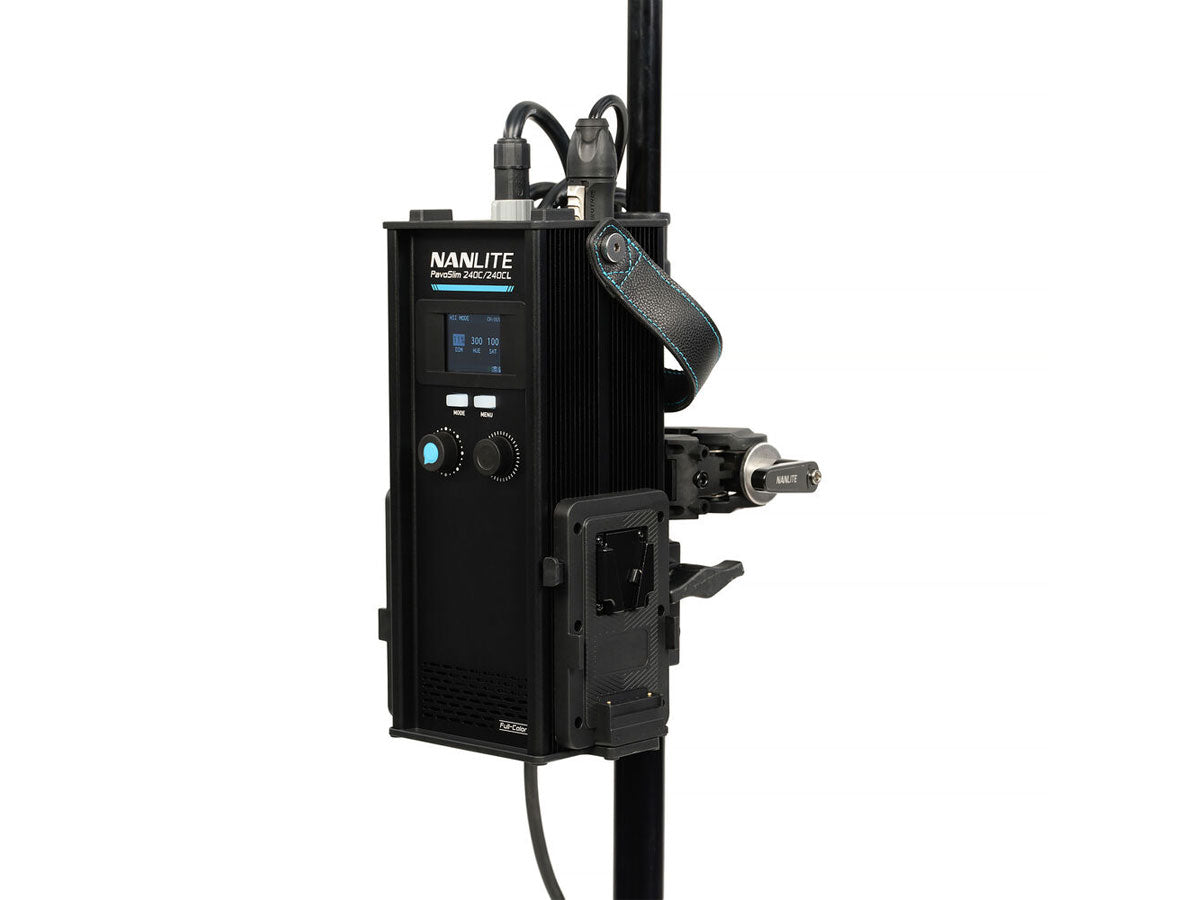

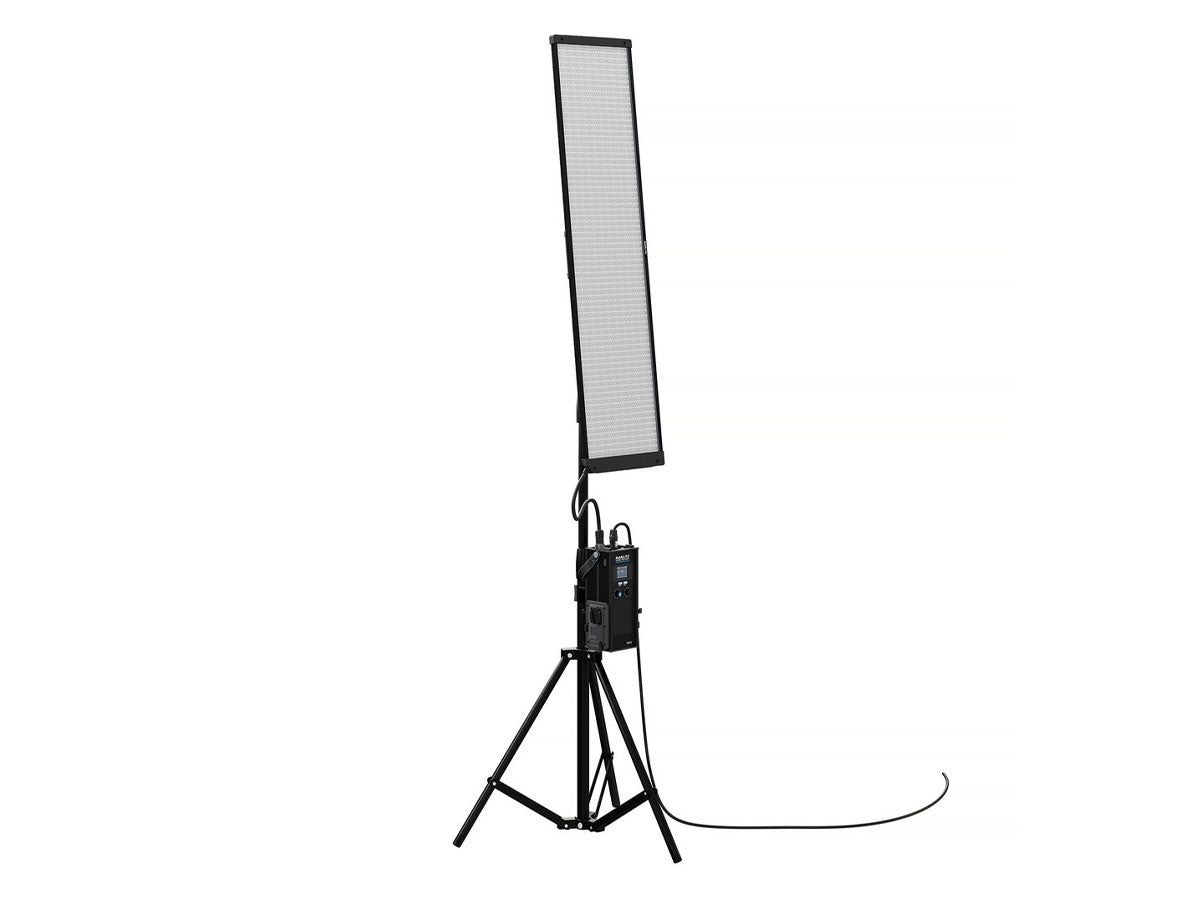

- Snap and Mount - The included quick release clamp can be snapped into the quick release plate on the control unit, allowing it to be securely mounted on the light stand or truss.

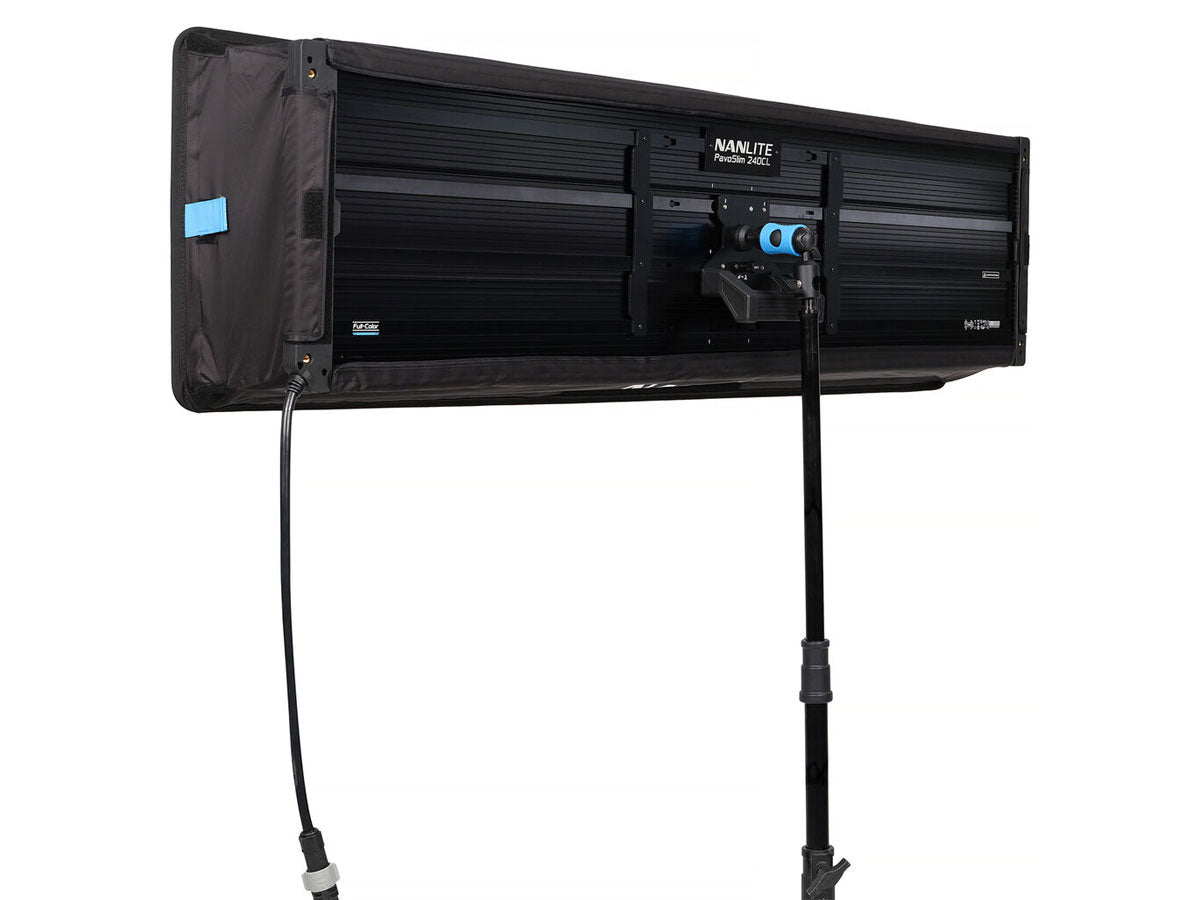

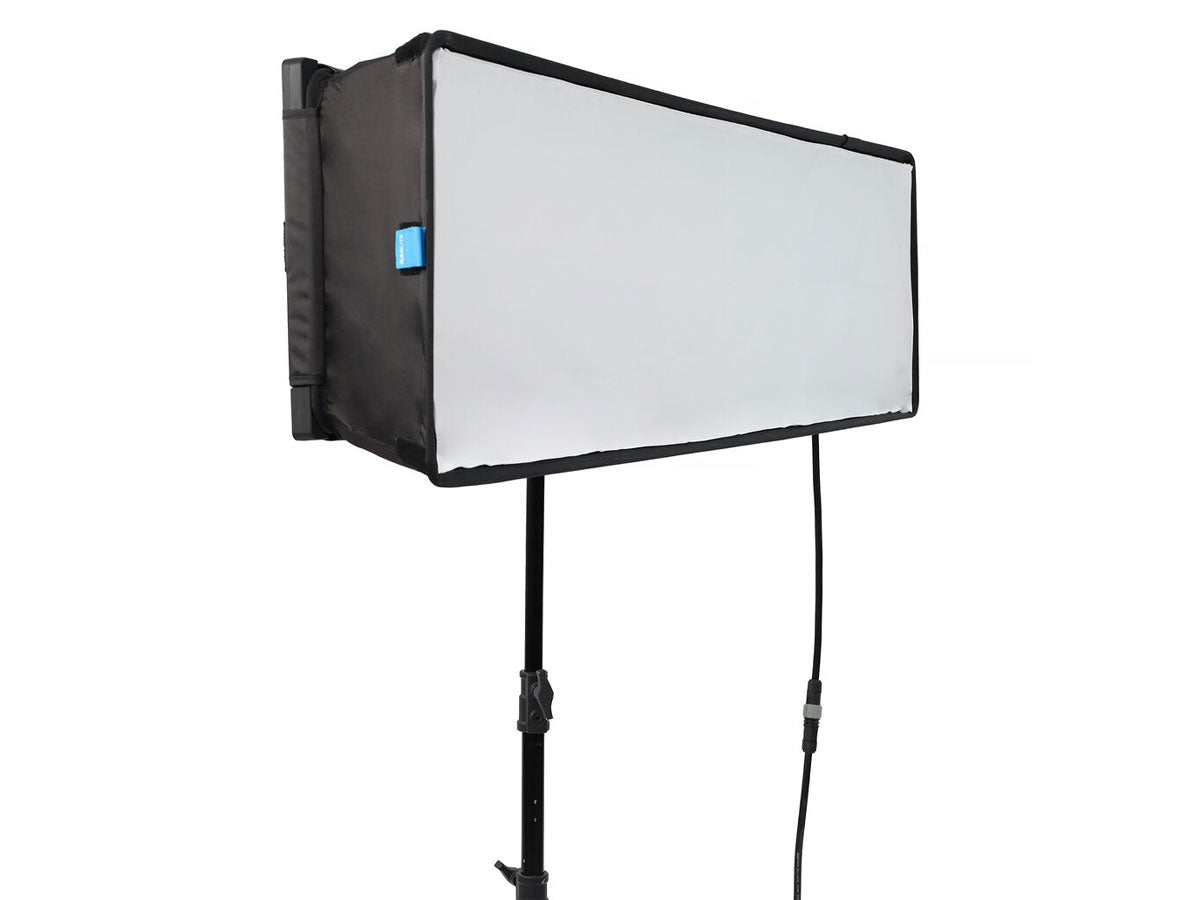

- Release and Deploy - The fixture comes with the softbox pre-installed. Simply tear the hook and loop fasteners and the softbox is ready to use. After use compress the softbox and attach the hook and loop fasteners for convenient storage with the fixture.

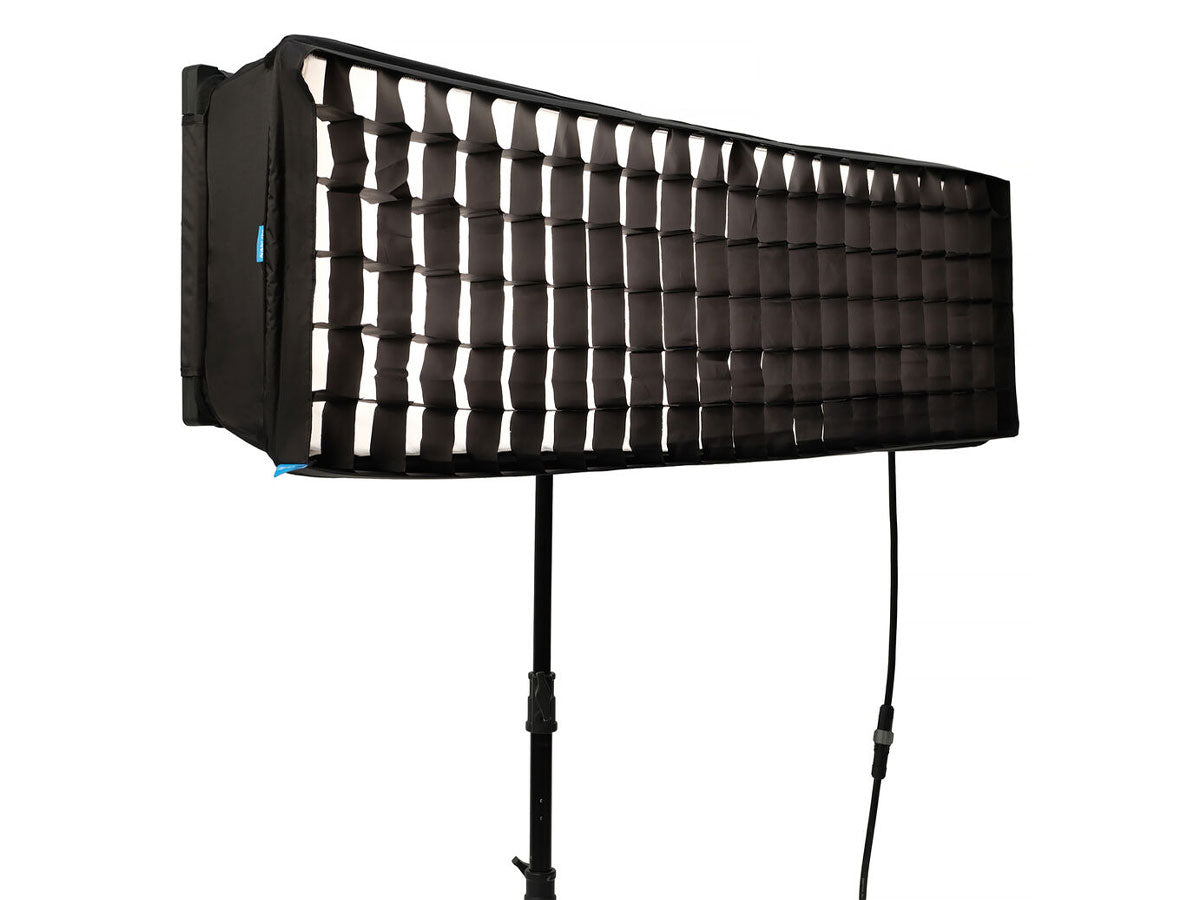

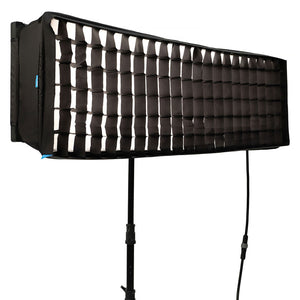

- Wrap and Use - The eggcrate can be quickly wrapped over the softbox using the elasticated strap, making it simpler and more convenient compared to traditional fasteners.
Excellent Color Accuracy
Thanks to Nanlite’s advanced color mixing technology, the PavoSlim 240CL features a CCT range of 2700K to 7500K, with the added benefit of green/magenta adjustment. Whether for accurate color rendering or specific lighting effects, it can be fine-tuned to match with other light sources by adjusting the green/magenta values.
Multiple Sizes for Different Needs
The NANLITE PavoSlim series is available in 2'×0.5', 1'×1', 2'×1', 2'×2' and 4'×1' sizes, and in bi-color or full color*. This allows them to be fit into a wide variety of locations and spaces depending on the requirements. *The 2'×0.5' and 4'×1' sizes are only available in the full color version.
Various Modes for Creations
The PavoSlim 240CL is designed to meet a wide range of lighting needs. With built-in five lighting modes and excellent color reproduction capacity, it provides vast creative possibilities. Whether fine tuning green/magenta shift based on the white light, or selecting from a wide range of colors, the PavoSlim 240CL is ready to fulfill every request.
Comprehensive and Efficient Controls

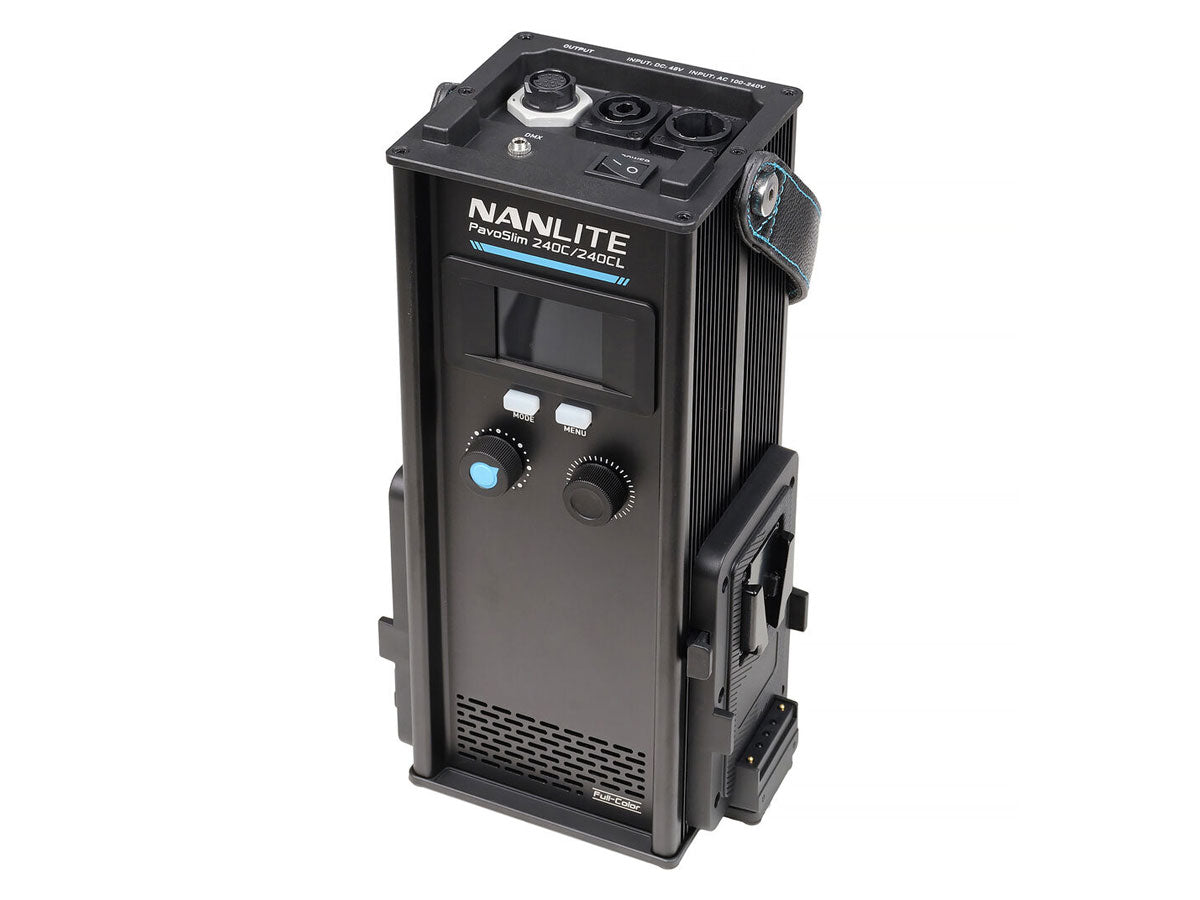

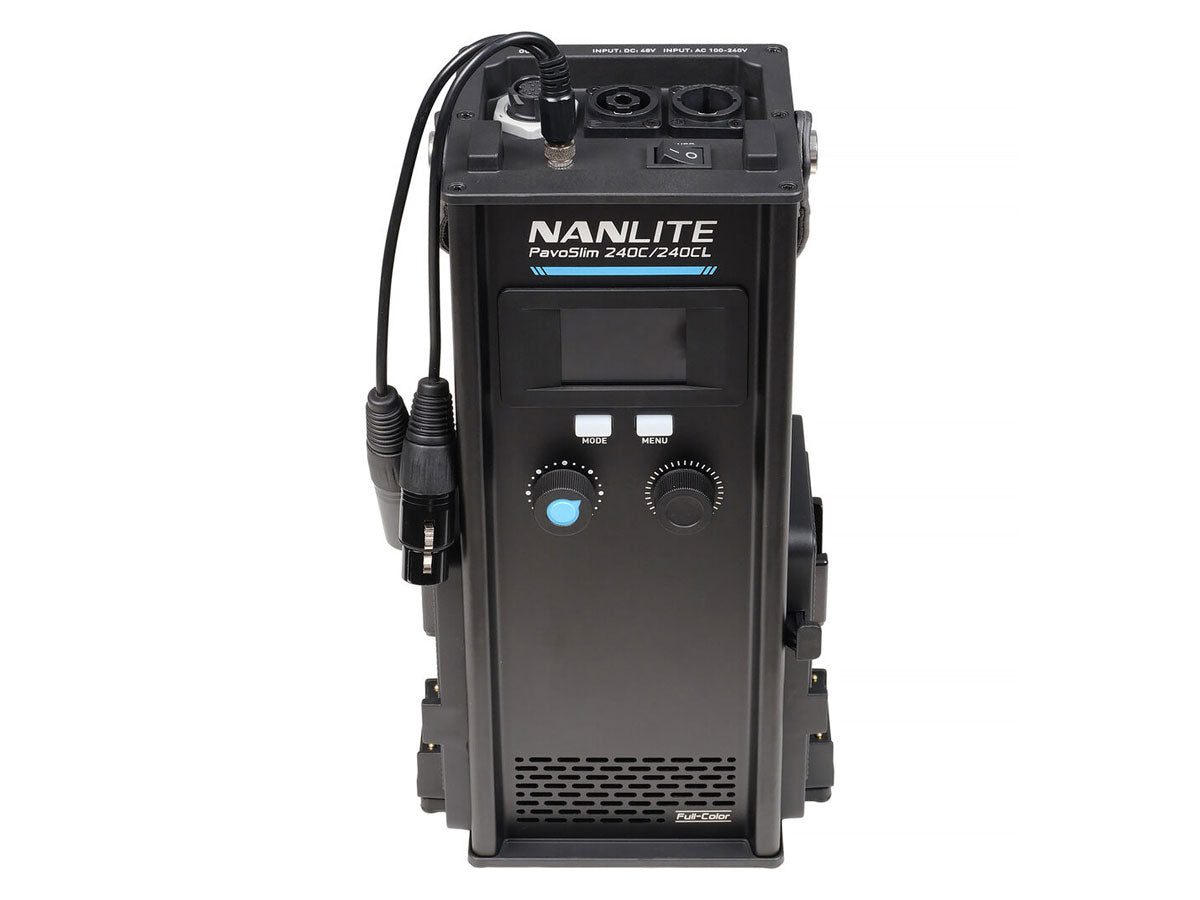

Based on the demand for efficient lighting control, the PavoSlim 240CL can be controlled in five different ways, ensuring that users can always find the most suitable method in different environments. Settings can be quickly and directly adjusted using the control unit, while the Nanlink App and DMX console enable remote control and more precise lighting adjustments.
Multiple Reliable Power Options

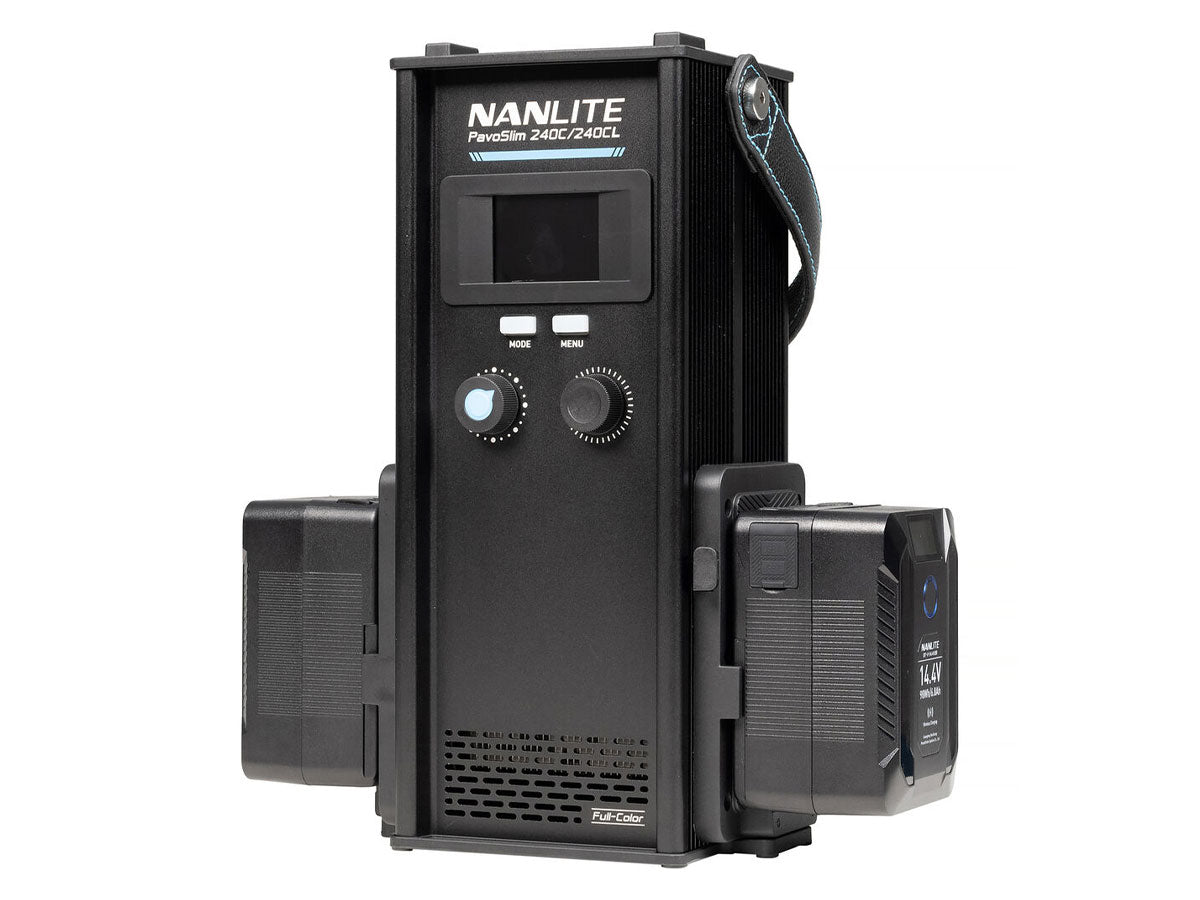

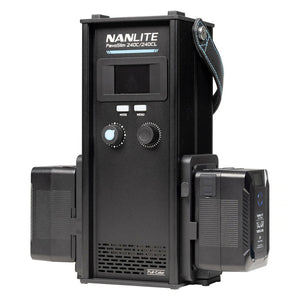

The PavoSlim 240CL can be powered by AC power, DC power or V-mount batteries of various voltages, making it suitable for both indoor and outdoor scenarios. When powered by V-mount batteries of various voltages, the PavoSlim 240CL provides greater convenience for on-the-go shooting. The efficient circuit design not only delivers high output power when using battery power, but also enables hot swapping* between different power sources. *The current intensity must be within the supported range of the selected power supply option when hot swapping.
Expanding Possibilities
The flexibility of PavoSlim 240CL is enhanced further with optional accessories:DC Connection Cable 5M (optional): This cable is made with interconnectable connectors that can be coupled with the included DC connection cable for extended reach. This is ideal for situations where the fixture is rigged at high up, or at a distance.
Dual-Panel Coupler (optional): Two PavoSlim 240CL can be coupled to form a 4'×2' size, increasing the illuminance and lighting coverage. Paired with specialized softbox and eggcrate, this setup further enhances the soft lighting.

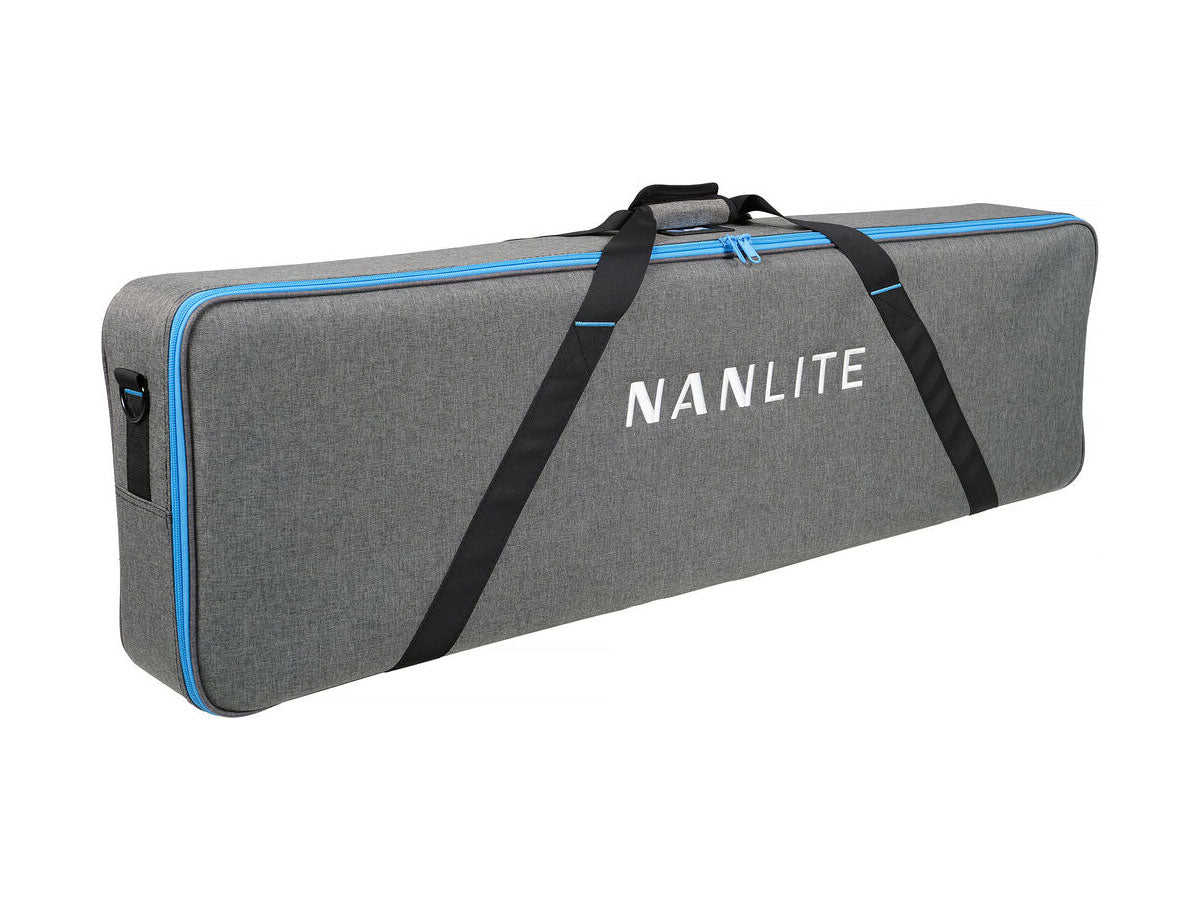

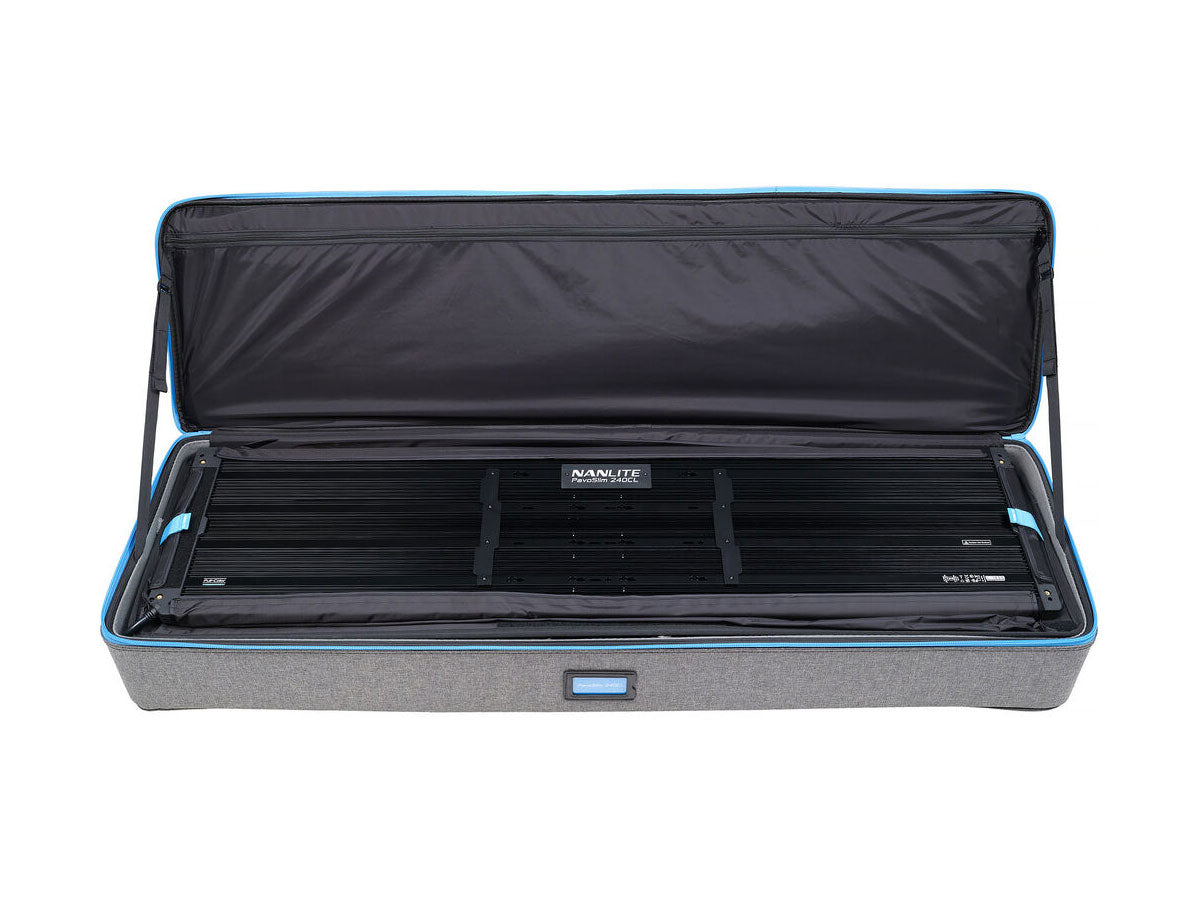

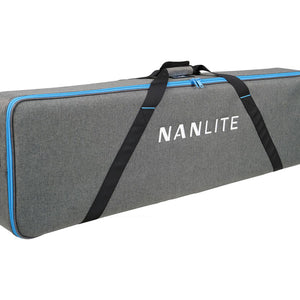

Slender & Reliable Case

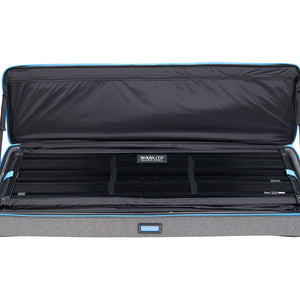

The included carrying bag is designed with a solid structure to withstand unexpected bumps and pressure during transport. Interior is thoughtfully partitioned for easy organization, while providing extra space to accommodate other items, enhancing the space efficiency.
- LED Full Color Panel Light
- 4’ × 1’ fixture body
- Delivers 21,030 lux @1m, 5600K with rated power of 260W
- Wide CCT range of 2700K-7500K with ±150 green/magenta adjustment
- CRI/TLCI average 96/97, TM-30 Rf/Rg average 94/100, SSI 3200K: 84/5600K:74

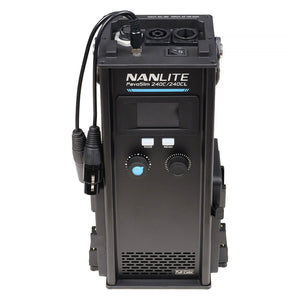

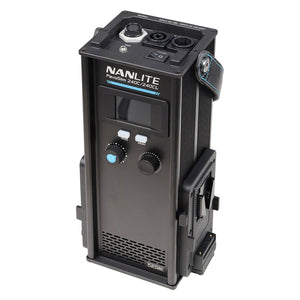

- Intuitive operation with two-inch screen, two buttons and two knobs
- Included a pop-up softbox, universal holder and baby pin holder
- Multiple control methods: On-board, Remote Controller, Nanlink APP, DMX/RDM,LumenRadio CRMX
- Multiple lighting modes: CCT/HSI/RGBW/GEL/EFFECT
- 15 lighting effects: HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
- Multiple power supply options: AC/DC/V-mount battery
| Model: | PavoSlim 240CL | |
| Rated Power: | 260W | |
| Input Voltage / Current: | AC 100-240V 50/60HZ DC 48V/5.6A DC(Battery)14.4-26V | |
| CCT: | 2700K-7500K(G/M ± 150) | |
| CRI: | Average 96 | |
| TLCI: | Average 97 | |
| TM-30 RF: | Average 94 | |
| TM-30 RG: | Average 100 | |
| SSI (3200K): | 84 | |
| SSI (5600K): | 74 | |
| Dimming: | 0-100% | |
| Control: | On-board, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX | |
| Special Effects: | HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding | |
| Certifications: | CE, UKCA, RoHS, KCC, BIS, FCC-ID, PSE Circle Mark, PSE Diamond Mark, SAA+C-Tick, ETL+cETL, NCC, Test Report | |
| Dimensions: | Light Fixture: | 1205.5 × 307.3 × 23.5mm / 47.46 × 12.10 × 0.93" |
| Control Unit: | 152.6 × 111.5 × 283mm / 6.01 × 4.39 × 11.14" | |
| Weight: | Light Fixture: | 3.62kg / 7.98lb |
| Control Unit: | 2.76kg / 6.08lb | |

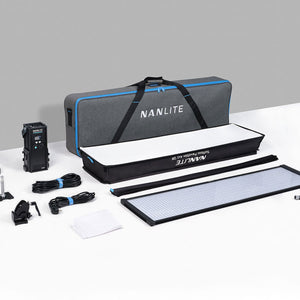

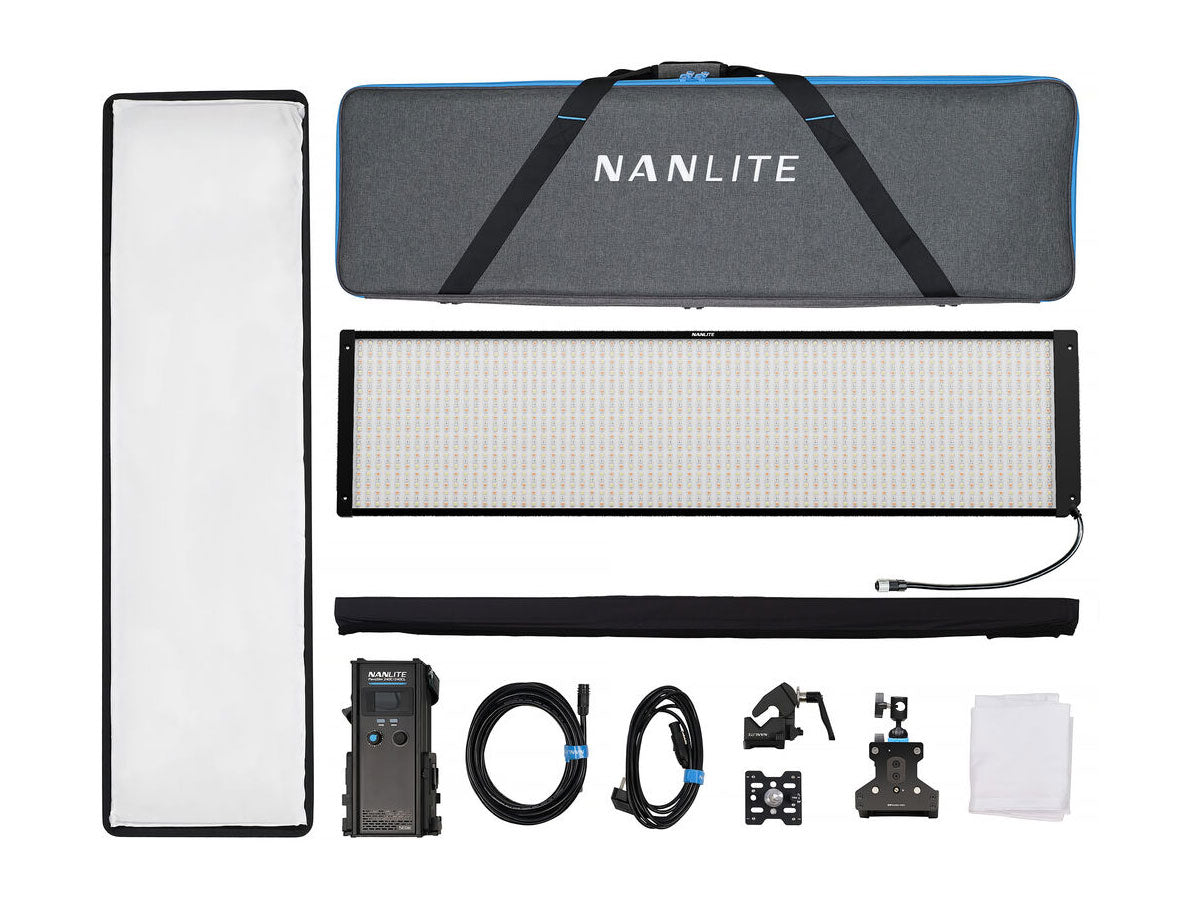

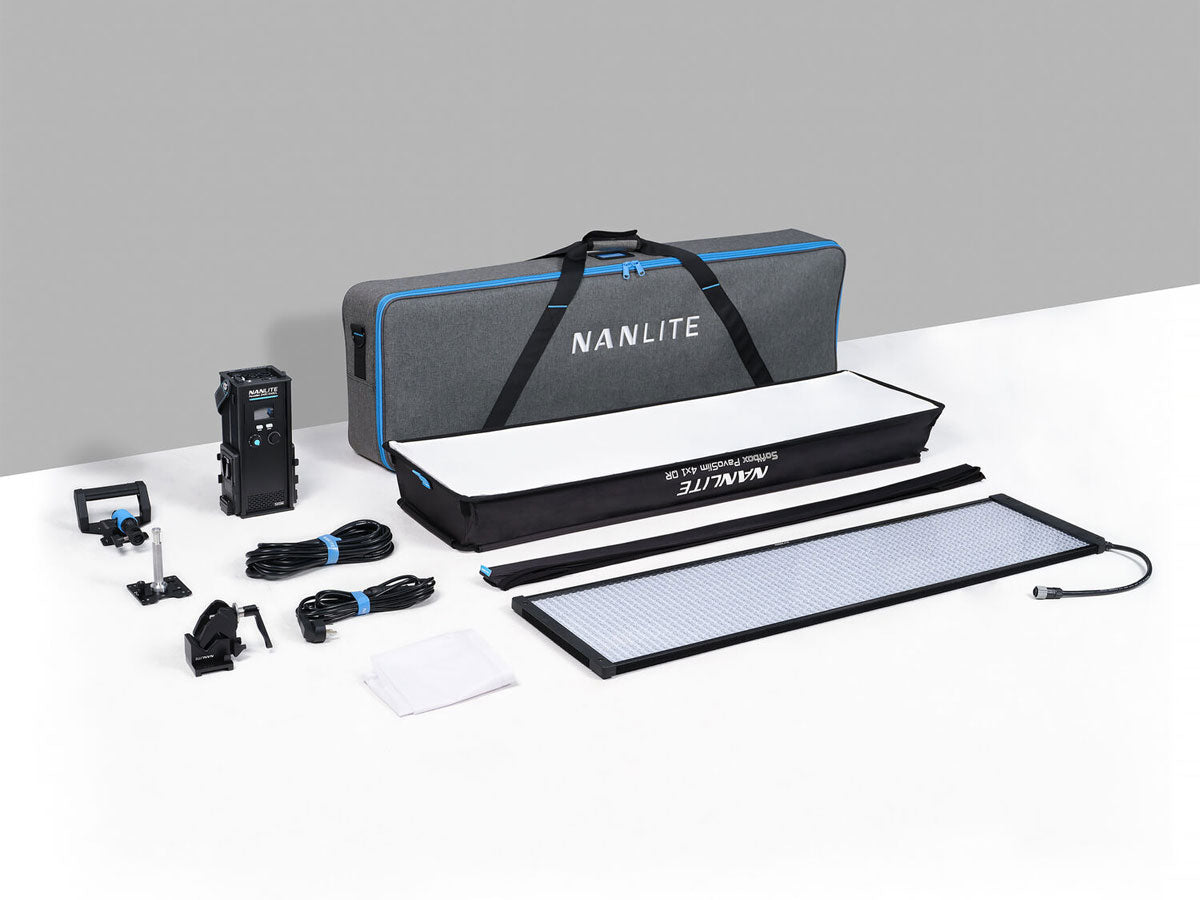

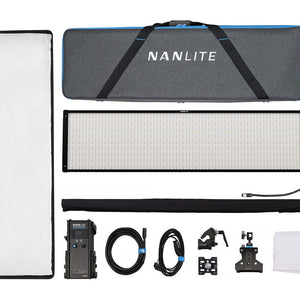

- 1x PavoSlim 240CL
- 1x Control Unit
- 1x Universal Holder
- 1x Baby Pin Holder
- 1x Quick Release Clamp
- 1x DC Connection Cable 5M
- 1x AC Power Cable 4.5M
- 1x Quick-release Softbox
- 1x Diffuser (1x Lite Diffuser + 1x Standard Diffuser)
- 1x Eggcrate
- 1x Carrying Bag
- 1x User Manual
