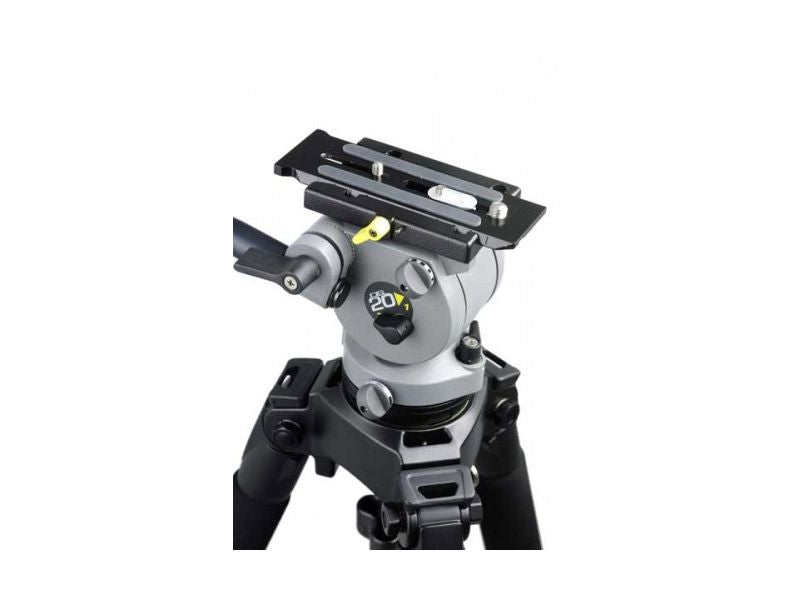

Miller DS20 Fluid Head

Miller DS20 Fluid Head

SKU: MIL-184
£596.32 GBP ex VAT
£715.58 GBP inc VAT
ex VAT £596.32 GBP ex VAT
£715.58 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

As the superior fluid head of the DV range, the DS20 fluid head offers two attachments choice: 1/4" & 3/8" screws or 1/4" & pin, to attach MiniDV or tripod adaptor plates. Adjustable pan and tilt drags provide continuous friction for your flexible applications, while 'flick-of-a-switch' selectable counterbalance lets you tilt balance larger camcorders ranging from 5kg to 10kg.

  • MiniDV/DVCAM/HDV camcorders to 10kg
  • Fluid drag plate system with friction boost
  • Selectable counterbalance system
  • Disc lock pan/tilt braking system
  • Quick release sliding camera plate
  • Camera plate choice: 1/4" & 3/8" screws or 1/4" & pin
  • 75mm ball levelling with bubble level
Payload Range:
5 to 10kg
 Payload Capacity:
10.00 kg (22 lbs)
#
Weight:
1.75 kg (3.9 lbs)
 Camera Platform Type:
Quick release 60mm sliding camera plate
#
Camera Plate:
Std 1/4" + pin & 1/4" & 3/8" screws
 Mounting:
75mm Ball levelling
#
Tilt Drag:
Fluid drag plate system with friction boost
 Tilt Range:
+90/-75°
#
Tilt Lock:
Calliper disc brake system
 Pan Drag:
Fluid drag plate system with friction boost
#
Pan Range:
360 °
 Pan Lock:
Calliper disc brake system
#
Counter balance System:
2 selectable positions
 Temperature Range:
-40°C- +65°C
#
Pan Handle:
Fixed lenght
 Depth Including Camera Platform:
145 mm (5.7 in)
#
Body Width:
72 mm (2.8 in)
 Height Above Bowl:
137 mm (5.4 in
