Miller DS10 Fluid Head

Miller DS10 Fluid Head

SKU: MIL-182
£488.24 GBP ex VAT
£585.89 GBP inc VAT
ex VAT £488.24 GBP ex VAT
£585.89 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

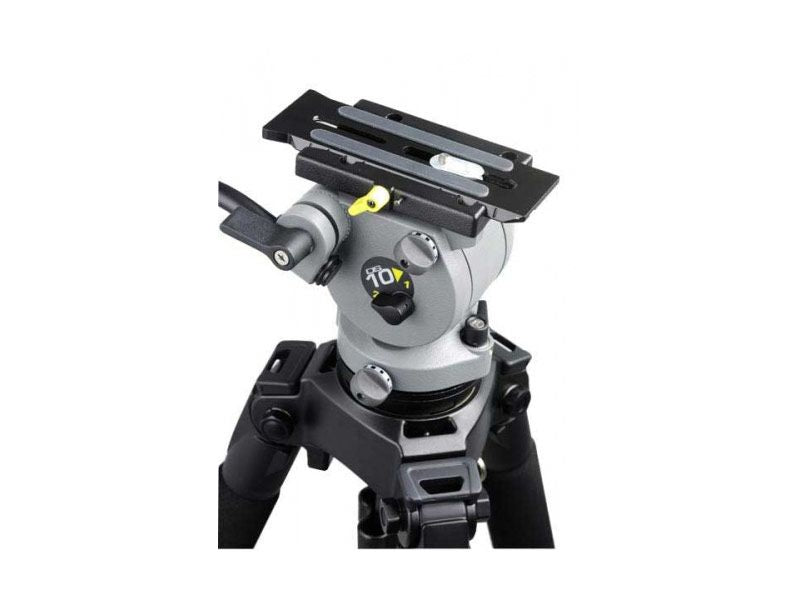

The DS10 fluid head boosts similar physical appearance and features as the DS5 fluid head. However, it offers 2 selectable counterbalance positions for MiniDV/DVCAM/HDV camcorders with larger lens/battery from 2.5kg to 5kg. Improved pan and tilt drag adjustments provide a friction boost to the true fluid action.

  • MiniDV/DVCAM camcorders to 5kg
  • Fluid drag plate system with friction boost
  • Selectable counterbalance system
  • Quick release sliding camera plate: ¼” Screw and pin
  • Disc lock pan/tilt braking system
  • 75mm ball levelling with bubble level
Payload Range:
2.5 to 5
 Payload Capacity:
5.00 kg (11 lbs)
#
Weight:
1.70 kg (3.7 lbs)
 Camera Platform Type:
Quick release 60mm sliding camera plate
#
Camera Plate:
Std. 1/4" + pin
 Mounting:
75mm Ball levelling
#
Tilt Drag:
Fluid drag plate system with friction boost
 Tilt Range:
+90/-75°

#
Tilt Lock:
Calliper disc brake system
 Pan Drag:
Fluid drag plate system with friction boost
#
Pan Range:
360 °
 Pan Lock:
Calliper disc brake system
#
Counter balance System:
2 selectable positions
 Temperature Range:
-40°C - +65°C
#
Pan Handle:
Fixed lenght
 Depth Including Camera Platform:
145 mm (5.7 in)
#
Body Width:
72 mm (2.8 in)
 Height Above Bowl:
137 mm (5.4 in)
