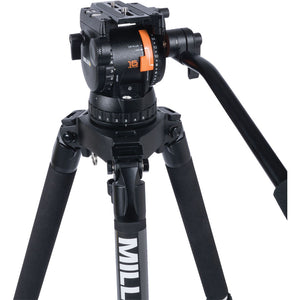

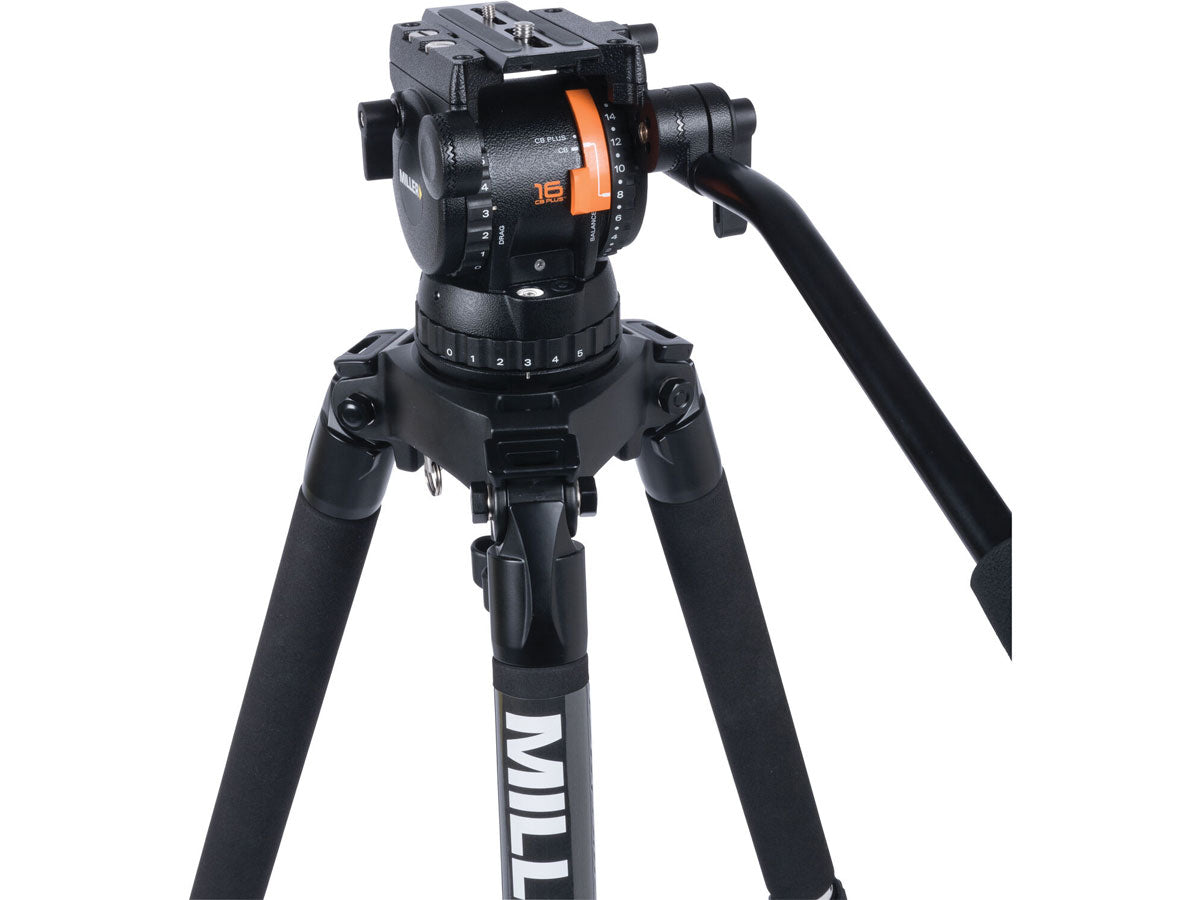

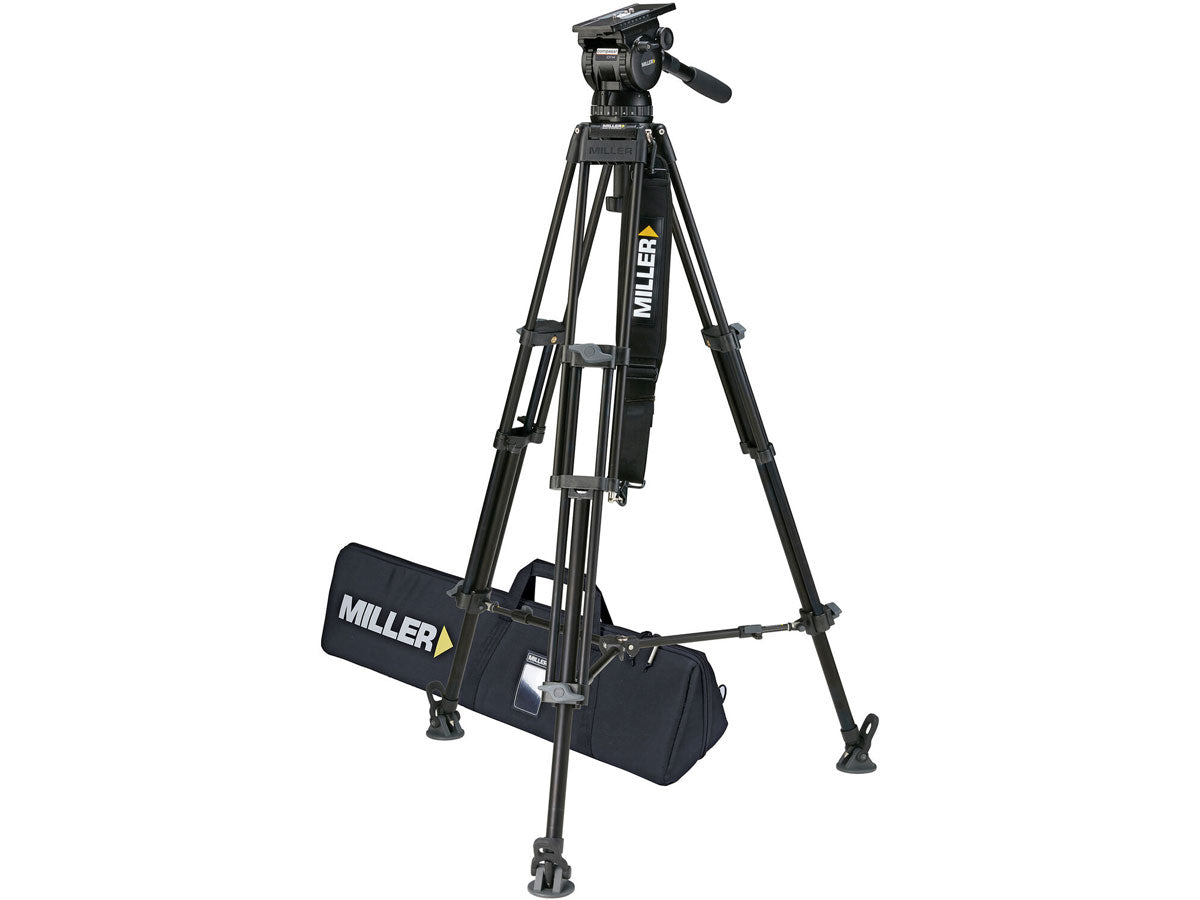

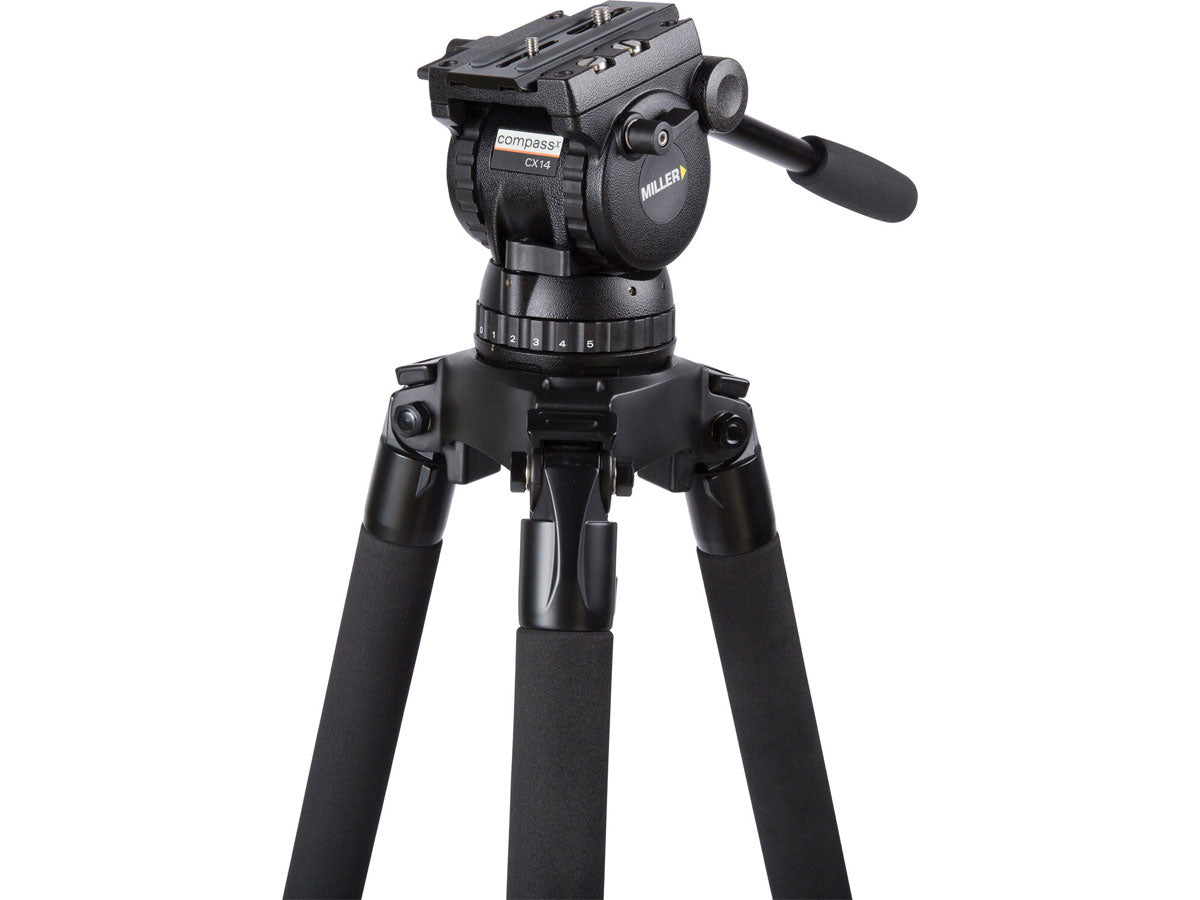

Miller CX14 Toggle 2 Stage Alloy Tripod (w/Above Ground Spreader, Rubber Feet, Pan Handle, Strap and Softcase)
Miller CX14 Toggle 2 Stage Alloy Tripod (w/Above Ground Spreader, Rubber Feet, Pan Handle, Strap and Softcase)
£3,165.89 GBP inc VAT
£3,165.89 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The 3770 CX14 Toggle 2-stage (alloy) tripod system combines with award winning CX14 fluid head and cost-effective yet speedy 100mm 402 Toggle tripod with above ground spreader is capable of balancing from a broadcast down to a DSLR camera, thanks to CB PlusTM technology and Miller's precision fluid drag system.
CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 - 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to yield a large height range 553-1723mm (22-68"), offers positive leg toggle locks and the versatility of using the system across all terrains.
- Compact, lightweight and versatile.
- 100mm bowl levelling.
- Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
- 15+0 CB Plus selectable counterbalance positions.
- Ergonomically located CB Plus switch.
- 5+0 selectable positions of fluid pan and tilt drag.
- 2-stage fast toggle adjustment legs.
- Durable black anodised alloy tubing.
- Comes with above ground spreader and rubber feet.
- Comes with 2-stage tripod bag.
- 3 year warranty.
| Payload Range | 0-14.0 kg (0 - 30.9 lbs) |
| Weight | 6.9kg (15.2lbs) |
| Height Range | 553-1723mm (22-68") |
| Transport Length | 843mm (33.2") |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4”) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed 390 mm (15.4”) |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 2-stage |
| Lock Type | Toggle |
| Leg Material | Alloy |
| Components | |
| 1097 | CX14 fluid head |
|---|---|
| 402 | Toggle 2-stage tripod (alloy) |
| 508 | Above ground spreader |
| 550 | Rubber feet (set of 3) |
| 679 | Pan handle - fixed with clamp |
| 554 | Shoulder strap (padded) |
| 3514 | Softcase 2-stage |
- CX14 fluid head
- Toggle 2-stage tripod (alloy)
- Above ground spreader
- Rubber feet (set of 3)
- Pan handle - fixed with clamp
- Shoulder strap (padded)
- Softcase 2-stage
