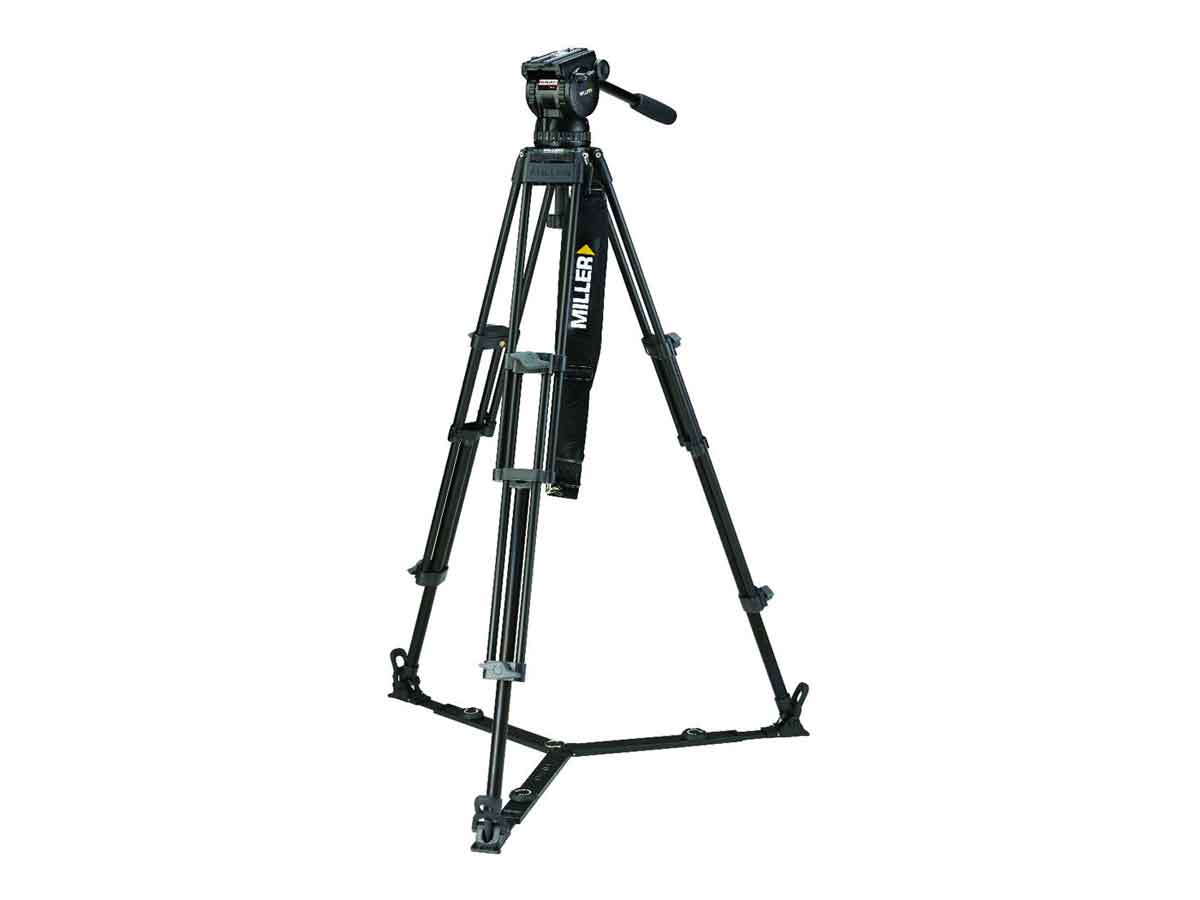

The 3753 CX10 Toggle 2-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
Whether the job requires a mirrorless camera, DSLR, cine-rig or a broadcast camera, the CX10 is capable of balancing from 0kg to 12kg. It features advanced precision fluid drag, fast set-up and professional performance with the flexibility and rigidness of the 402G alloy Toggle tripod.
CX10 employs CB PlusTM technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The CX10 is matched with the 2-stage Toggle (alloy) tripod and on-ground spreader to provide a large height range 543-1713mm (21.4-67.4"), positive leg toggle locks and quick pack down.
- Affordable, Stable, Robust.
- 100mm ball levelling.
- Perfect for payloads to 0-12kg (26.4bs).
- 15+0 CB Plus selectable counterbalance positions.
- Ergonomically located CB Plus switch.
- 5+0 selectable positions of fluid pan and tilt drag.
- 2-stage fast toggle adjustment legs.
- Durable black anodised alloy tubing.
- Comes with on ground spreader.
- Comes with2-stage tripod bag.
- 3 year warranty.
| Payload Range | 0-12.0kg (0-26.4lbs) |
| Weight | 6.8kg (14.9lbs) |
| Height Range | 543-1713mm (21.4-67.4") |
| Transport Length | 821mm (32.3”) |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 Selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Leg Extension | 2-stage |
| Lock Type | Toggle |
| Leg Material | Alloy |
- 1096 CX10 fluid head
- 402G Toggle 2-stage tripod (alloy)
- 411 On ground spreader
- 679 Pan handle - fixed with clamp
- 554 Shoulder strap (padded)
- 3514 Softcase 2-stage
