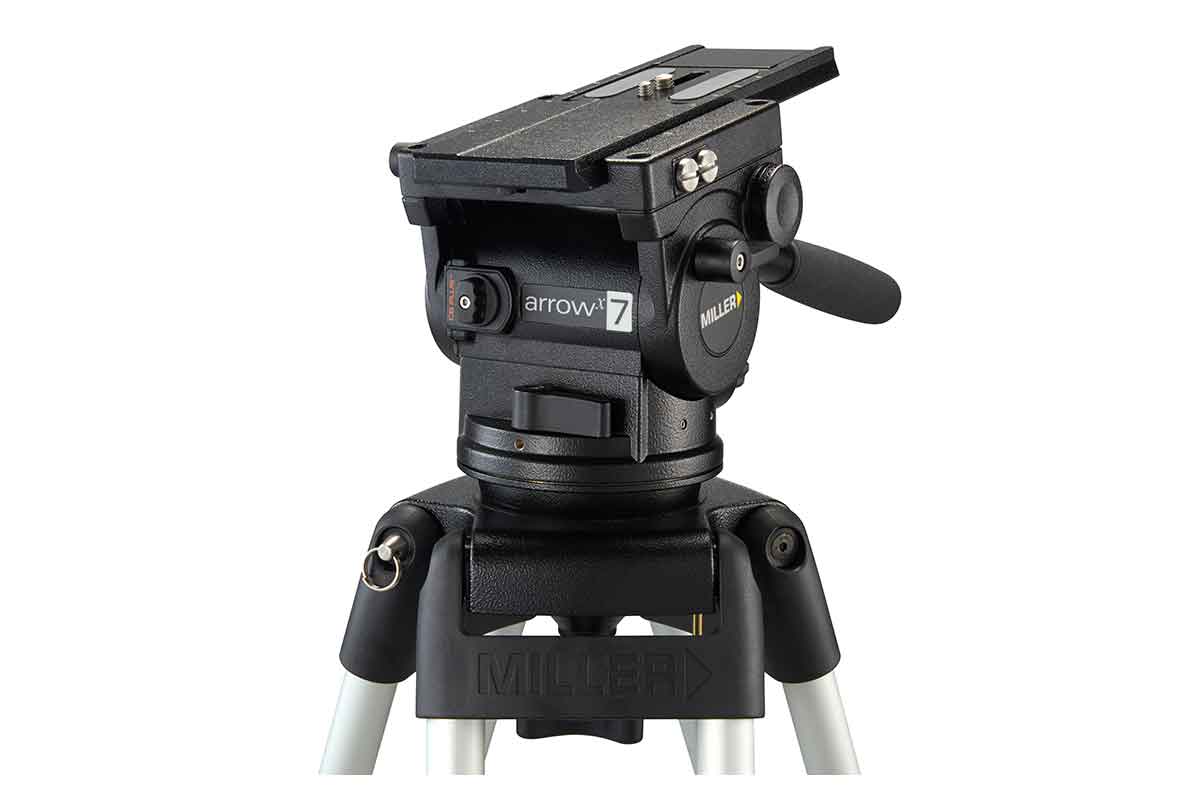

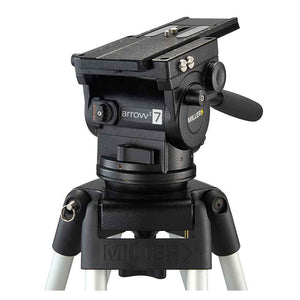

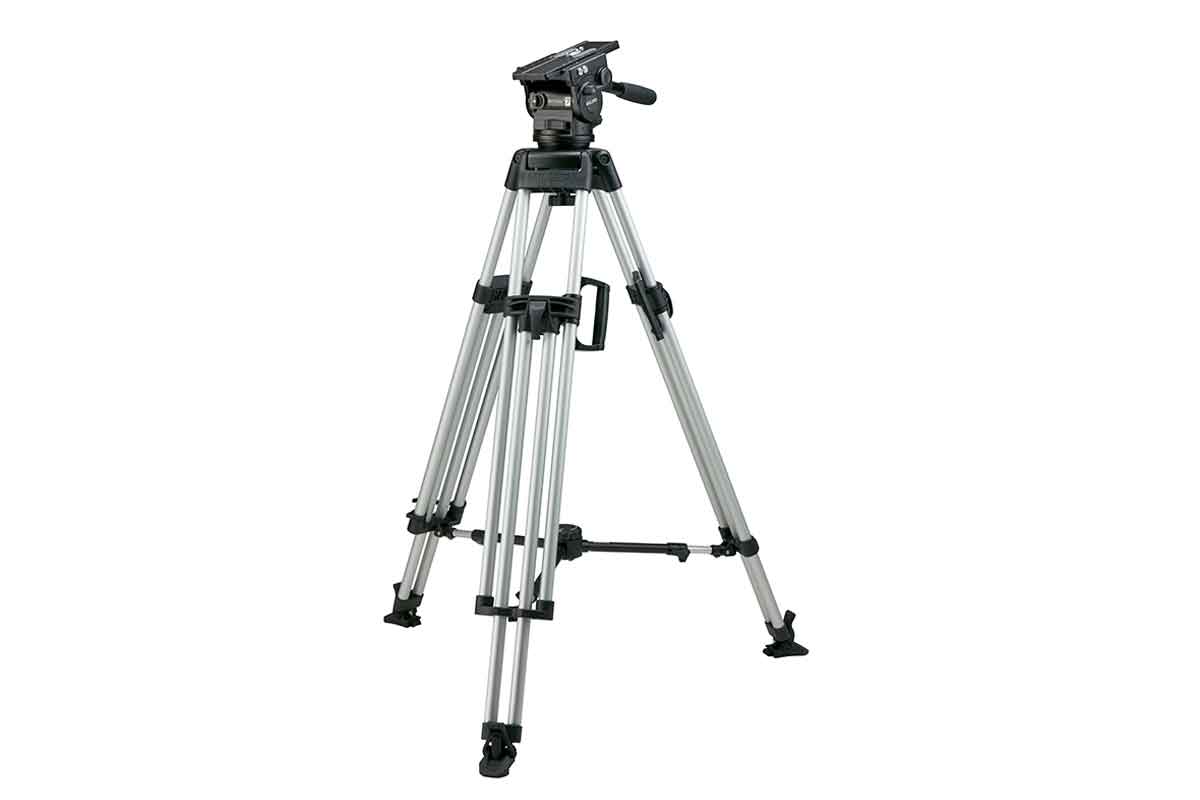

Miller Arrowx 7 HD 1 Stage Alloy Tripod System
Miller Arrowx 7 HD 1 Stage Alloy Tripod System
£6,005.29 GBP inc VAT
£6,005.29 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The 3175 Alloy, Heavy Duty 1-stage, Arrowx 7 system, fitted with mid-level spreader is designed for speed of setup, high level of stability, and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.
The Arrowx 7 is matched with the HD 1 stage (alloy) tripod and mid-level spreader which makes for one of the most solid system packages in the Miller range. The system can support EFP and OB applications and the mid-level spreader means system can be set up in all terrains.
- Compact, lightweight and versatile.
- 7 selectable positions of fluid pan and tilt drag + 0.
- 16 position CB Plus™ counterbalance system.
- Perfect for payloads to 6-25kg (13.2-55.1lbs).
- Integrated 100mm bowl.
- 1-stage flip lock leg extension.
- Durable clear anodised alloy tubing.
- Comes with mid-level spreader and rubber feet.
- 3 year warranty.
| Payload Range | 6.0-25.0kg (13.2-55.1lbs) |
| Weight | 10.4kg (23.1lbs) |
| Height Range | 947-1737mm (37.3-68.4") |
| Transport Length | 1092mm (43") |
| Counterbalance Positions | 16 selectable positions |
| Pan Tilt Drag | 7 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Quick release camera plate (Euro) |
| Sliding Range | 120mm (4.7) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 162mm (6.4") |
| Illuminated Controls | Bubble level, pan-tilt drag controls |
| Pan Handle | Telescopic 390-590mm (15.4-23.2") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Leg Extension | 1 Stage |
| Lock Type | Fliplock |
| Leg Material | Alloy |
- 1x Miller ArrowX 7 (1076)
- 1x Miller HD 1-St Alloy Tripod Legs (931)
- 1x Mid-Level Spreader (993)
- 1x Pan Handle (696)
- 3x Tripod Feet (475)
