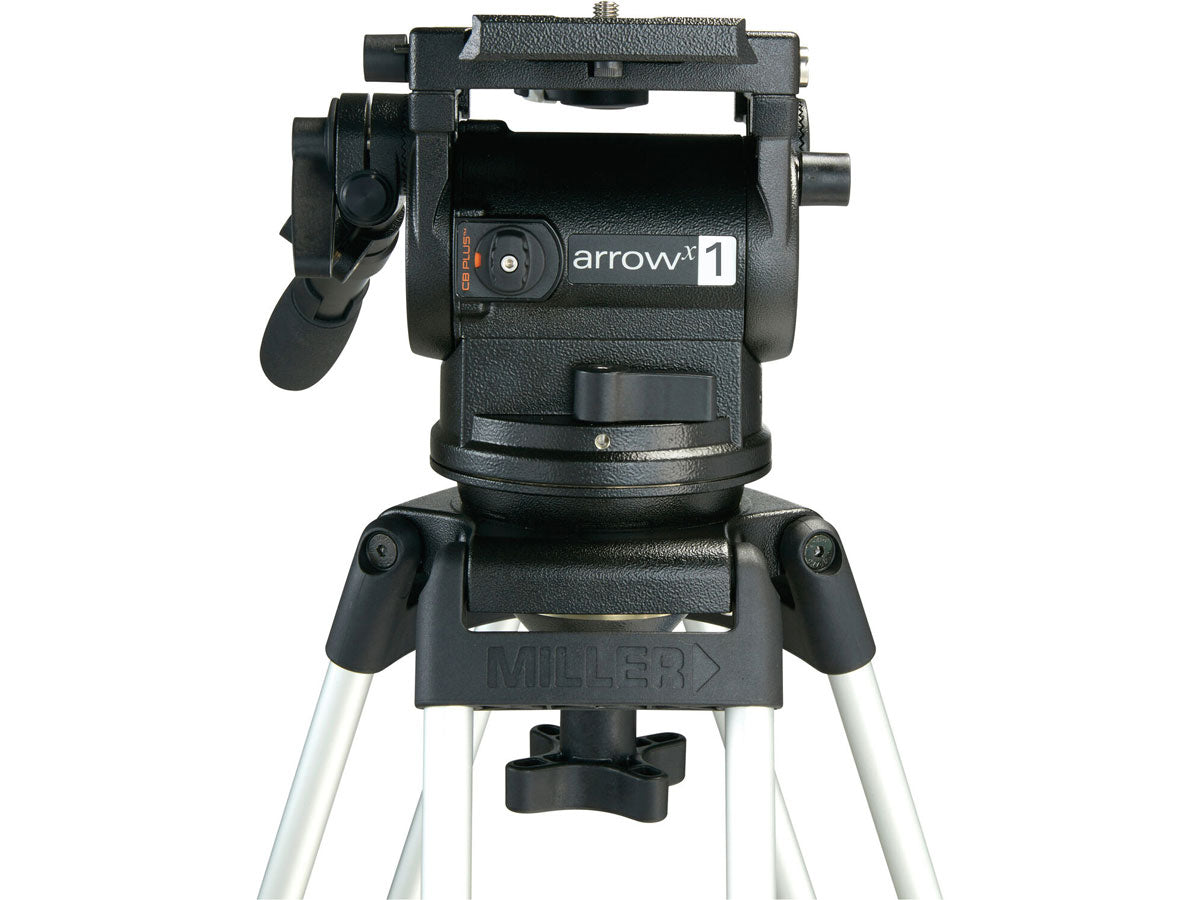

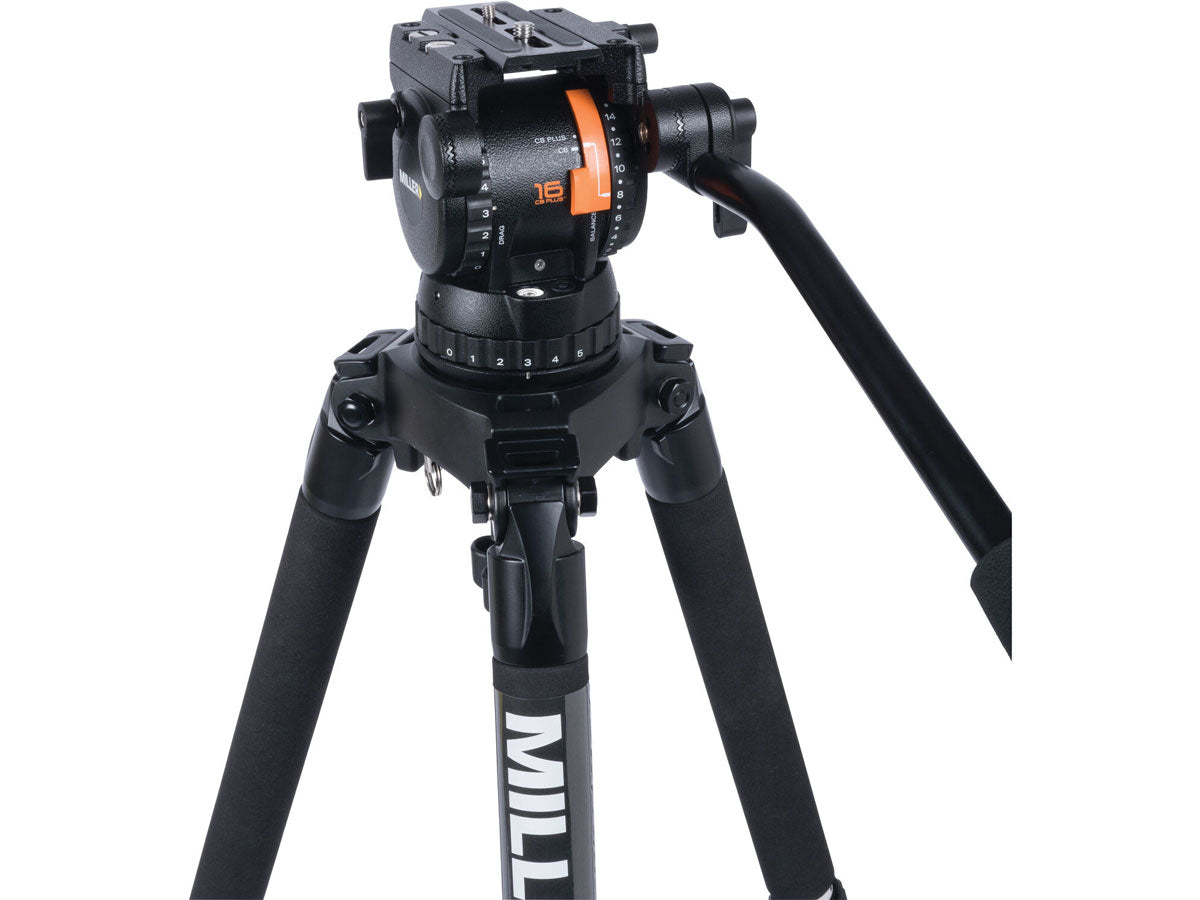

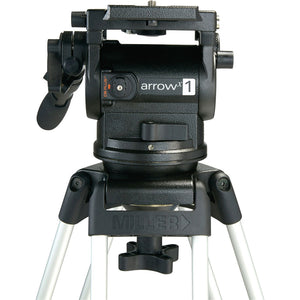

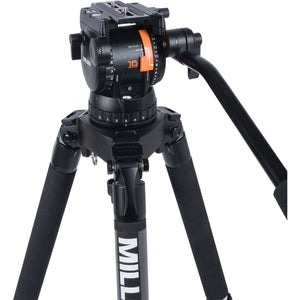

Miller ArrowX 1 Fluid Head
Miller ArrowX 1 Fluid Head
£2,489.11 GBP inc VAT
£2,489.11 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The Arrowx 1, 100mm Fluid head, joins the highly successful Arrowx series comprising of Arrowx 3, 5 and 7.
At a favorable entry level price point, the AX1 is a great choice for aspiring emerging shooters to own a truly professional fluid head.
Enabling them to achieve their career goals which will serve them well for many years to come.
A key feature of the Arrowx series is Miller’s patented 16 CB Plus™ technology - a unique sequential counterbalance design resulting in accurate and rapid setup. With a payload range of 0-16.0kg (0-35.3lbs) and 5 selectable fluid drag positions + 0, delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
CB Plus is an innovative sequential counterbalance design, taking traditional counter balancing a step forward, resulting in repeatable, accurate and rapid setup. CB Plus features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus one flick" switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
Arrowx 1 comes with the reliability and "THE RIGHT FEEL" that are the hallmarks of every Miller product.
- Wide payload range 0-16.0kg (0-35.3lbs).
- 5 selectable drag positions (pan and tilt) + 0.
- 16 selectable counterbalance positions, with CB PlusTM for precise counterbalance (15 + 0).
- Quick release, 120mm sliding camera platform with standard camera plate (euro).
- Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
- Controls “all in one location” design for fast, easy and practical use.
- Illuminated bubble level and pan-tilt drag controls.
- Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
- Removable ball level stud for flat base mounting (sliders) with 3/8” screw hole.
- Mitchell base adaptable.
- Robust construction for rugged outdoor shooting conditions.
- Optional second pan handle mount.
- Side mounting points for viewfinders and accessories.
- Three-year warranty.
| Payload Range | 0-16.0kg (0-35.3lbs) |
| Weight | 2.9kg (6.4lbs) |
| Counterbalance Positions | 16 selectable positions |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release camera plate (Euro) |
| Sliding Range | 120mm (4.7") |
| Mounting Base | Ø100mm (3.9") ball levelling with 3 x M5 holes for flat base mounting |
| Height Above Bowl | 162mm (6.4") |
| Illuminated Controls | Bubble level, pan-tilt drag controls |
| Pan Handle | Telescopic 390-590mm (15.4-23.2") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
- Miller Arrowx 1 Fluid Head (100mm)
- Miller 860 Quick Release Plate
- Miller Telescopic Pan Handle for ArrowX Heads
- Locking Handle
