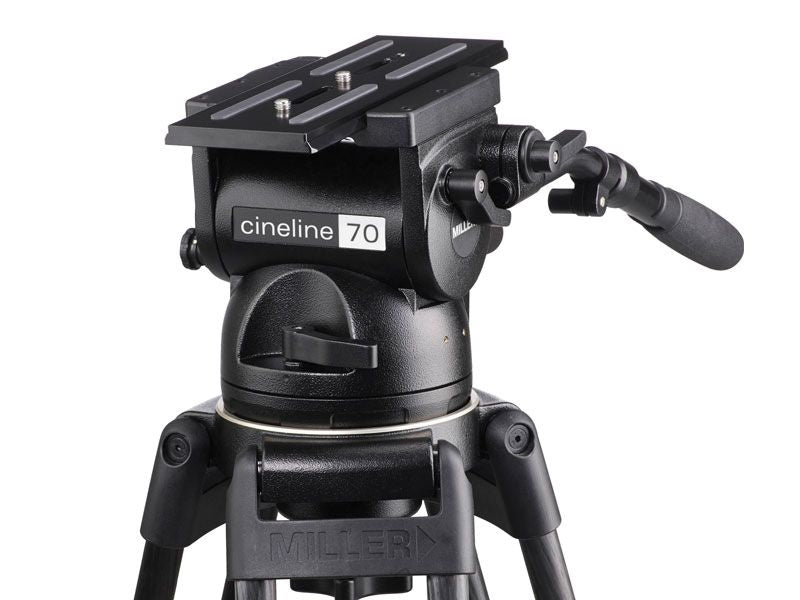

Miller’s new Cineline 70 Fluid Head is purpose-built for film and digital production cinematographers who want a new dimension in professional camera support. It features an Arri-sized side-loading camera platform and; when fitted with Miller’s Mitchell Base Adaptor 1225, it can be mounted on traditional Mitchell flat base tripods. Cineline 70 is a premium product with proven, solid build quality that offers 7 (+ 0) positions of precision fluid drag and 8 counterbalance settings all located in one control layout for quick and easy setup.
The robust Cineline 70 Fluid Head is ideal for use on feature films, documentaries and high-end television commercial productions that require heavy payload, frequent re-rigging and a diverse range of lenses and camera accessories. It is set to accommodate industry-leading cameras, including Arri, Sony, RED, and Canon.
With a lightweight design, the heavy-duty fluid head offers advanced precision fluid drag control with ultra-soft starts and smooth stops and perfect diagonal drag transition. In addition to providing industry standard benefits, the Cineline 70 Fluid Head also features an extended sliding range to promote quick and seamless rebalancing of rigs when lenses and accessories are changed resulting in weight distribution shifts. Moisture and dust resistant, alloy construction, the Cineline 70 Fluid Head offers dual side mounts for monitors and accessories, as well as a front head mount, convenient for a camera assistant’s accessory box.
Sliding Range: 150mm (5.9")
Payload Range: 4.5-37.5 (9.9 - 82.5 lbs)
Payload Capacity: 37.50 kg (82.7 lbs)
Weight: 5.70 kg (12.6 lbs)
Camera Plate: Quick release, 150 mm (5.9") balance travel 2 x 3/8" screws
Mounting: Ø 150 mm (5.9") with option to fit 1225 Mitchell base adaptor
Tilt Drag: 7 selectable fluid drag positions + 0
Tilt Range: +90° / -75°
Tilt Lock: Positive disc brake type
Pan Drag: 7 selectable fluid drag positions + 0
Pan Range: 360 °
Pan Lock: Positive disc brake type
Counter balance System: 4.5 - 37.5 kg range with 8 selectable positions
Temperature Range: -40° to +65°C / -40° to +149°F
Pan Handle: Telescopic x 2, 390-590 mm (15.4-23.2”)
Height Above Bowl: 190 mm (7.5 in)
Illumination: Pan/tilt drag, counterbalance controls and bubble level
