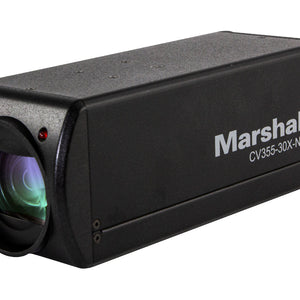

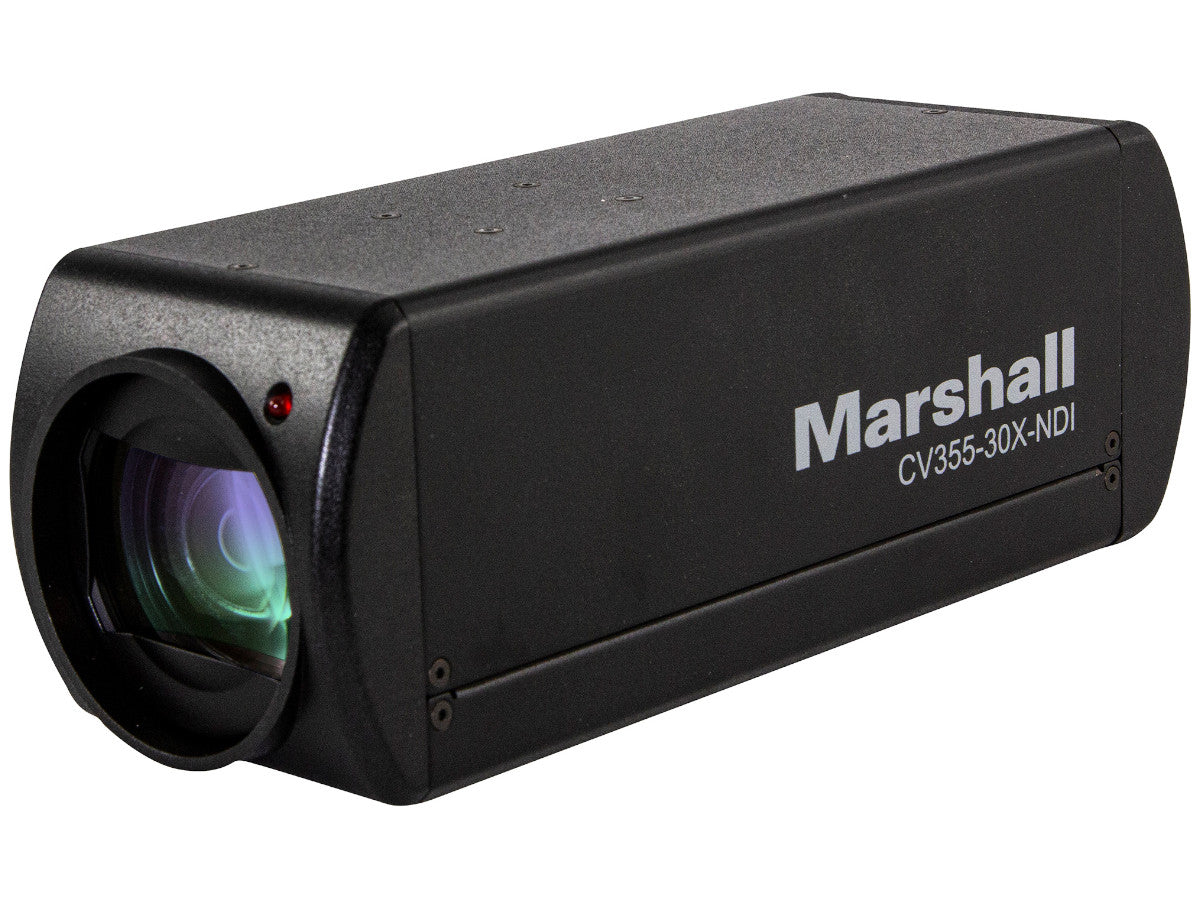

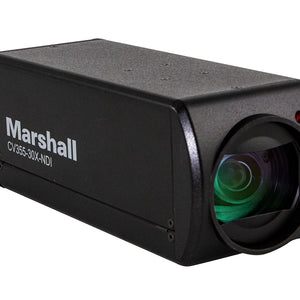

Marshall HD Zoom Block Camera with 4.6mm-135mm 30x Zoom Lens - NDI|HX, 3G/HD-SDI & HDMI Output
Marshall HD Zoom Block Camera with 4.6mm-135mm 30x Zoom Lens - NDI|HX, 3G/HD-SDI & HDMI Output
£1,482.00 GBP inc VAT
£1,482.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The CV355-30X-NDI 30X optical zoom NDI® camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 1920x1080p at 60fps with support for all HD formats. Marshall’s straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.
The 30X optical zoom block offers an extensive zoom range from 4.6mm to 135mm starting at 68° all the way out to 3° horizontal angle-of-view for maintaining image crispness from ultra-wide to tight shots.
To keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronization. NDI® also opens up a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows.
The CV355-30X-NDI operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
Marshall’s straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.
- 8.5 Megapixel 1/2.5″ HD sensor
- 1920×1080 Resolution up-to 59.94P
- Integrated 30x optical zoom lens (4.6mm to 135mm)
- NDI®|HX2, 3G/HDSDI and HDMI 2.0 simultaneous outputs
- Ethernet I/O supports video, control & PoE over a single cable
- RS232 & 3.5mm audio input with pass-through
- NDI® discoverable, controllable, manageable via NDI®Tools
| SENSOR | |
| Sensor Type: | 1/2.5″ 8.5 Megapixel |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 25, 29.97, 50 & 59.94 |
| HD 1280x720p: | 25, 29.97, 50 & 59.94 |

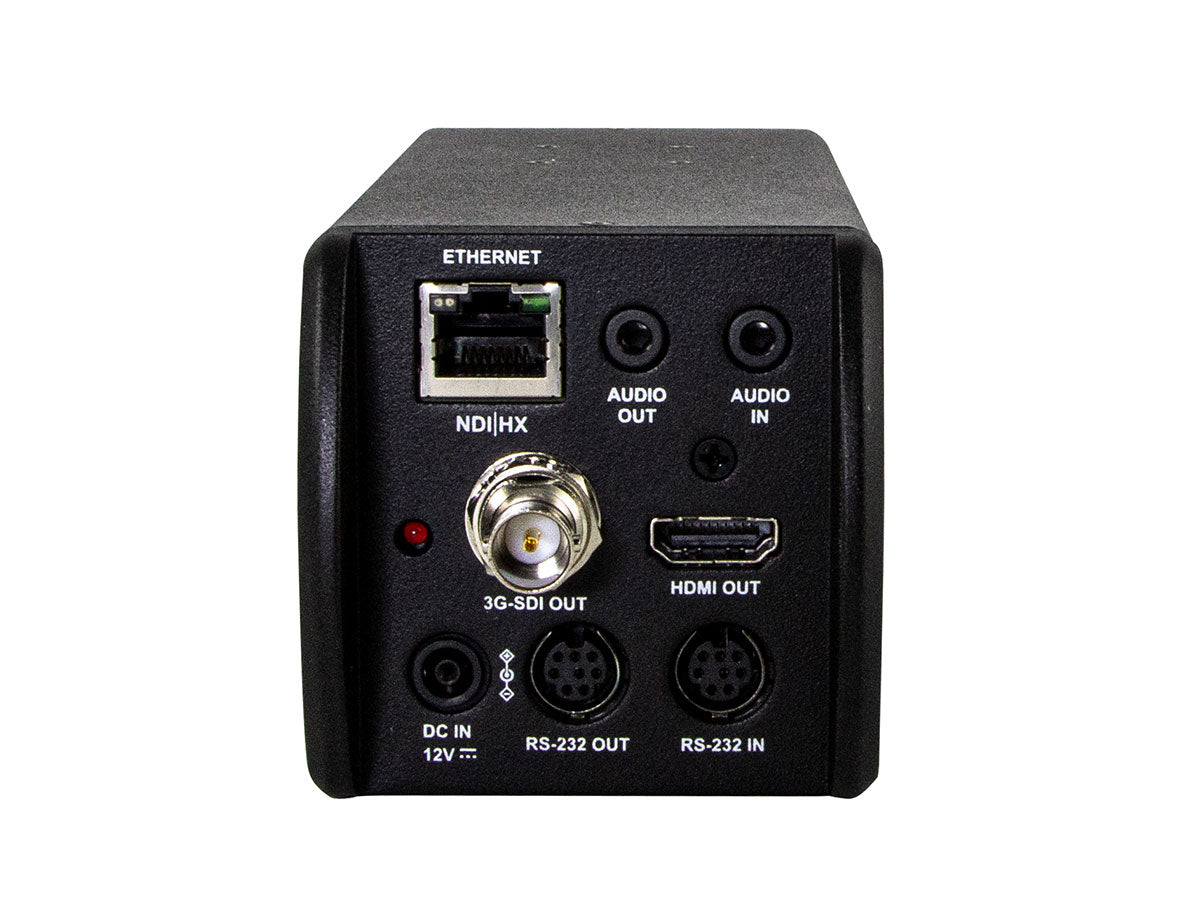

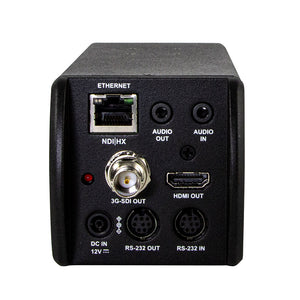

| INPUT & OUTPUT CONNECTORS | |
| Video Output Connectors: | 1x 3G-SDI, 1x HDMI, 1x IP Ethernet or NDI|HX2 (RJ45) |
| Remote Control: | 1x RS-232 Input & 1x RS-232 Output |
| Power: | 1x 12V DC Input |
| LENS | |
| Focal Length: | 4.6mm to 135mm |
| Optical Zoom Ratio: | 30x |
| Angle of View: | 68° to 3° |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-232 |
| GENERAL | |
| Power Input: | 12V DC |
| Dimensions: | 1kg |
| Weight: | 190.80mm (l) x 67mm (w) x 67mm (h) |
- 1x Marshall CV355-30X-NDI Camera Body
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
