Marshall Electronics VS-PTC-200 Compact PTZ Camera Controller

Marshall Electronics VS-PTC-200 Compact PTZ Camera Controller

SKU: ME-VS-PTC-200
£605.00 GBP ex VAT
£726.00 GBP inc VAT
ex VAT £605.00 GBP ex VAT
£726.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

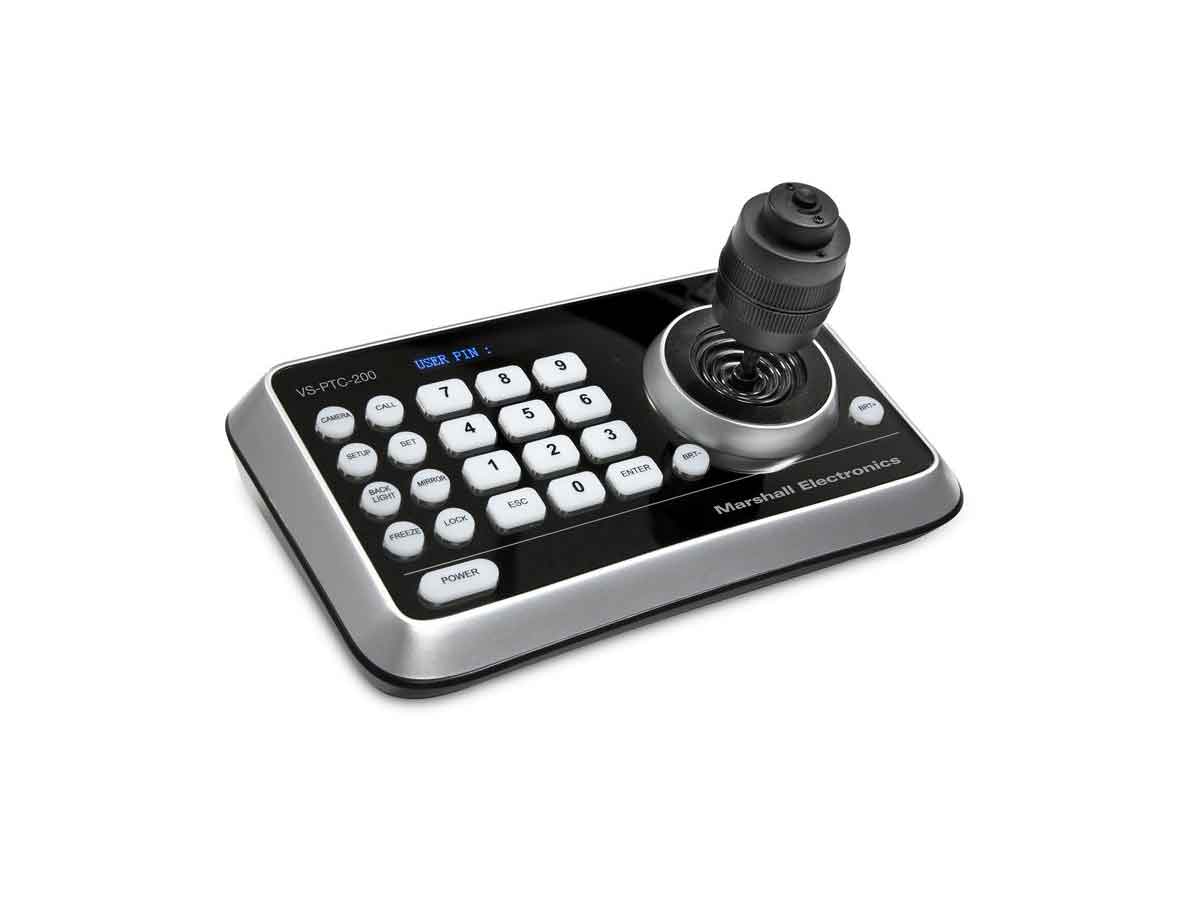

Marshall's VS-PTC-200 Compact PTZ Camera Controller is designed to control Marshall CV620 Broadcast PTZ Cameras. Using the 4D joystick, you can control pan, tilt, zoom, and focus simultaneously. Adjustments for brightness, flip/mirror, backlight compensation, freeze-frame, auto/manual focus, and more are accessable via the keypad buttons.

Features

  • 4D Joystick allows simultaneous control over Pan, Tilt, Zoom and Focus
  • 128 Preset locations with smooth adjustable transition speeds
  • One touch controls over Brightness, Back Light, Mirror/Flip, Freeze Capture
  • Full Duplex RS-232 & RS-422 Communication Interface
  • VISCA and PELCO Protocols
  • Bright OLED Display with Auto Backlit Keys
  • Can operate 1 to 255 cameras (CV620)
  • Multi-level protection from unauthorized operation
  • Works with Marshall CV620 PTZ Cameras
  • 4D Joystick
  • Control up to 255 Cameras
  • One-Touch Camera Controls
  • VISCA and PELCO Protocols
  • OLED Display and Backlit Keys
Interface RS-232, RS-422
Power Consumption 12 VDC (less than 2 W)
Dimensions 7.9 x 4.7 x 4" / 200 x 120 x 103 mm
Weight 1.1 lb / 0.5 kg
  • 1x Marshall Electronics VS-PTC-200 Compact PTZ Camera Controller
