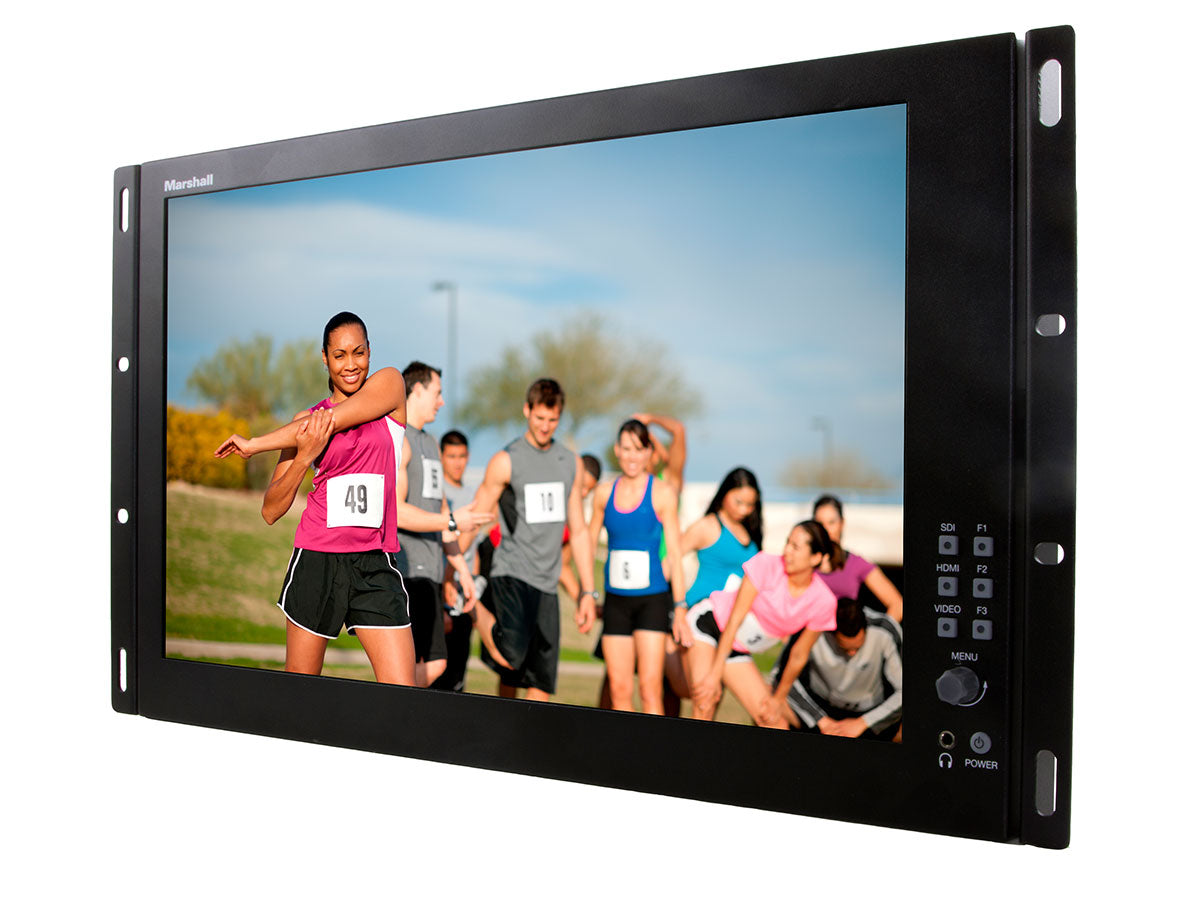

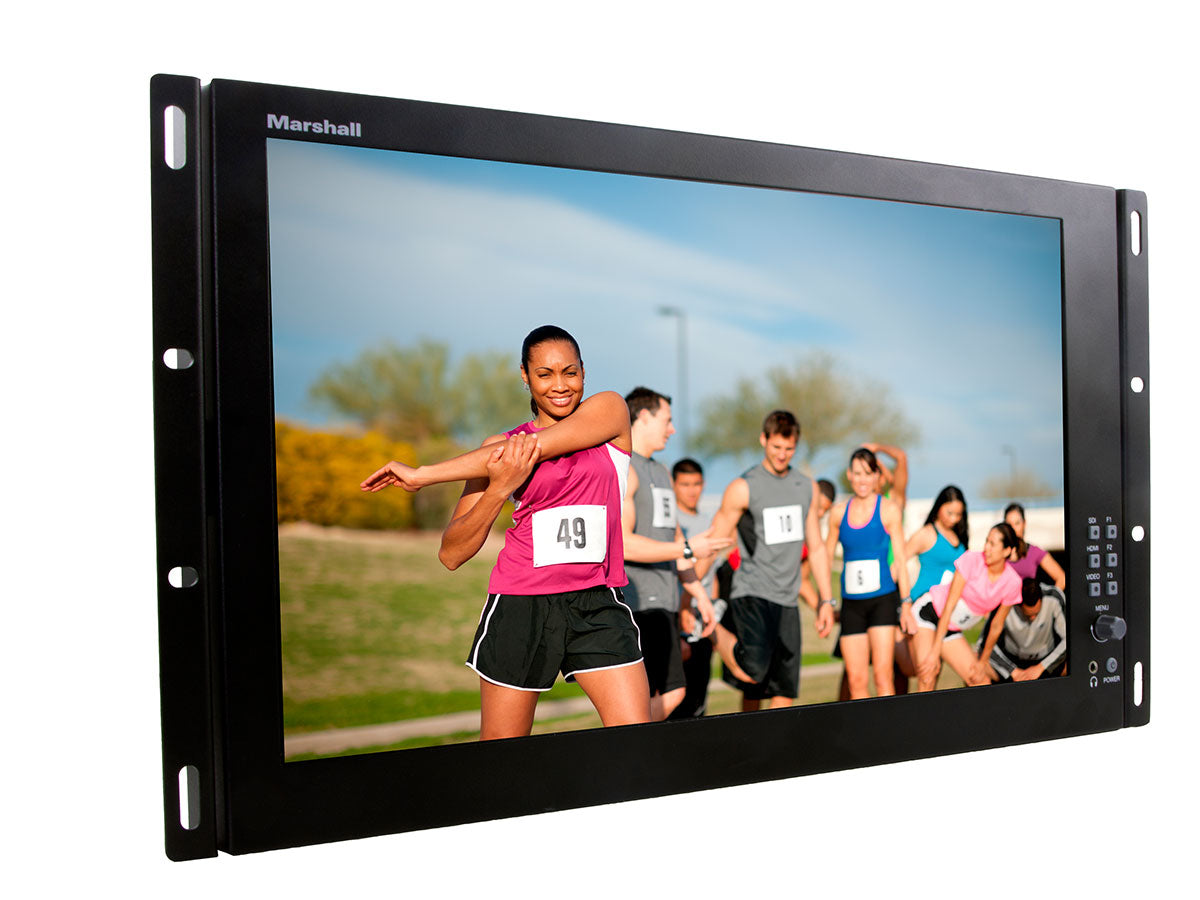

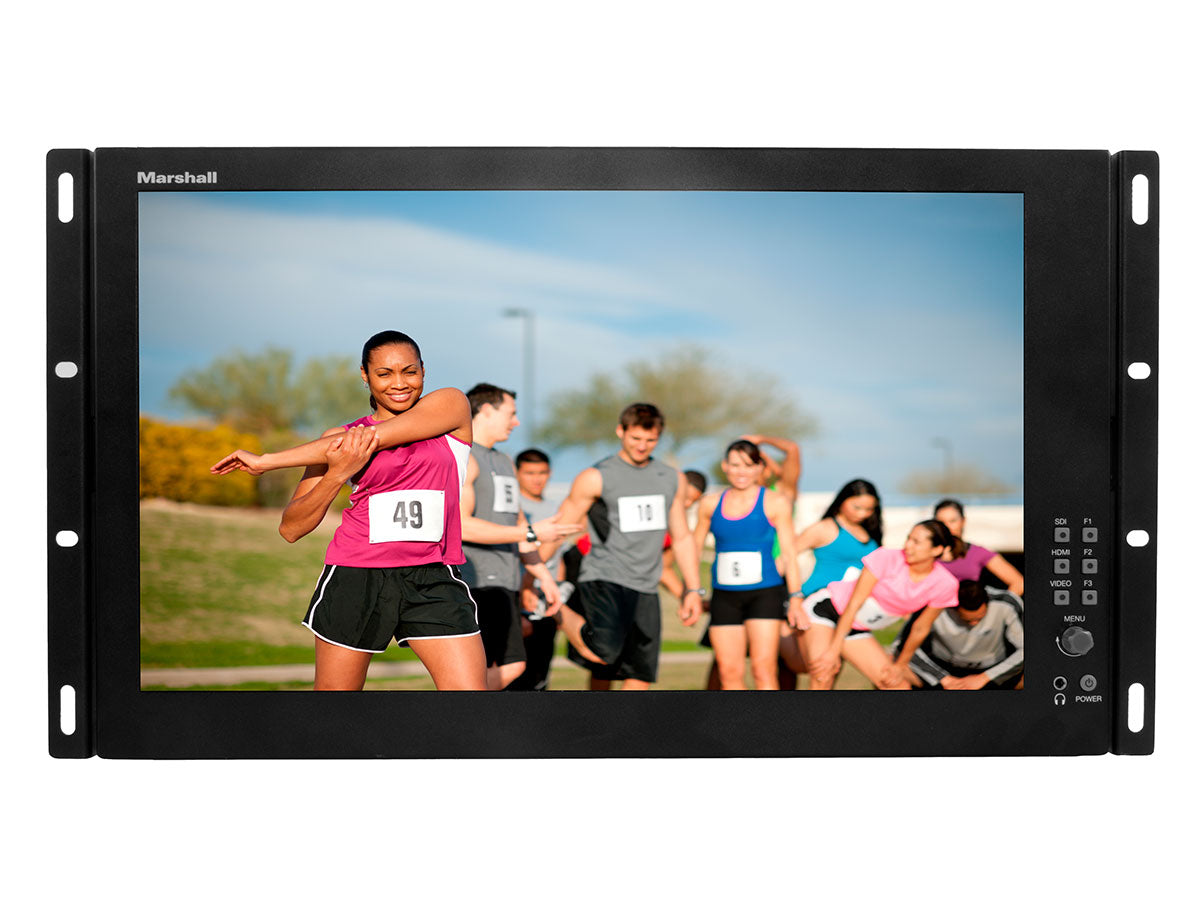

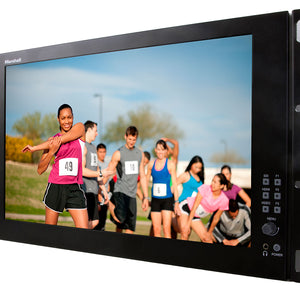

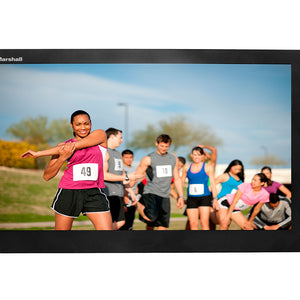

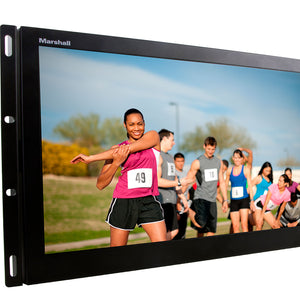

Marshall Electronics V-LCD173HR 17.3" Professional LCD Rack Mount Monitor
Marshall Electronics V-LCD173HR 17.3" Professional LCD Rack Mount Monitor
SKU:
ME-V-LCD173HR
Regular price
£1,175.00 GBP ex VAT
£1,410.00 GBP inc VAT
£1,410.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,175.00 GBP ex VAT
£1,410.00 GBP inc VAT
Unit price
per
£1,410.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
The Marshall V-LCD173HR 17.3-inch native resolution (1920 x 1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs. The Marshall V-LCD173HR comes with built-in histogram, peaking, false color, exposure, adjustable safety markers, and more, and can monitor up to two audio channels as well.
The V-LCD173HR offers unprecedented value for the price and has a versatile 6RU frame that can be rack mounted or used on a desktop. The V-LCD173HR can also convert between HDMI and SDI signals.
- Rec 709 compliant
- LED Tally lights
- HDMI/HDSDI inputs and outputs with conversion ability
- Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
- Rack ears or VESA mount options
- BNC connectors
- Two-channel audio monitoring
- Image flip ability
- Headphone jack

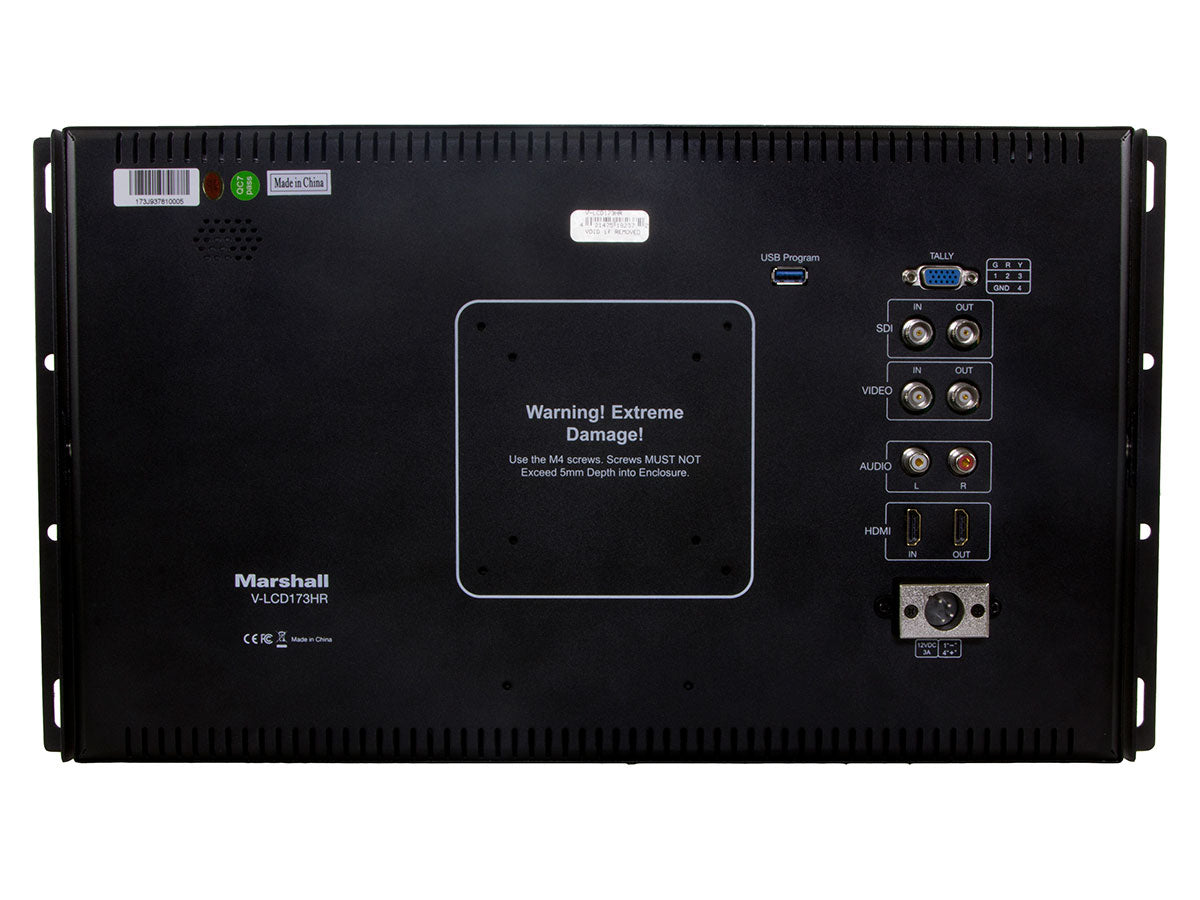

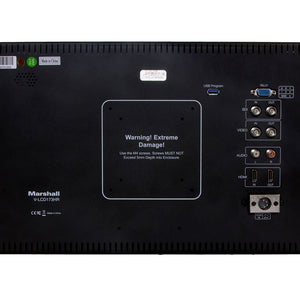

| Inputs: | SDI BNC x 1 with Loop Out HDMI x 1 with Loop Out Composite BNC x 1 with Loop Out Audio L/R RCA x 2 Line Level Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth USB 3.0 USB-A x 1 (Firmware Updates) XLR-12V 4 pin x 1 | |
| Outputs: | 3.5 mm Front Panel Stereo Headphone Jack | |
| Native Resolution: | 1920 x 1080 pixels | |
| Contrast Ratio: | 700:1 | |
| Luminance: | 300 nits | |
| Display Colours: | 16 million colors | |
| Viewing Angle: | 178-degrees H & V | |
| Supported Formats / Frame Rates: | Composite Input: | NTSC PAL |
| SD-SDI Input: | 480i 59.94Hz 576i 50Hz | |
| HD-SDI: | 720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50, 59.94, 60 Hz 1080psf 23.98, 24.00 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz | |
| 3G-SDI Level A: | 1080p 50, 59.94, 60 Hz 10800i 50, 59, 60 Hz 1080psf 23, 24, 25, 29.97, 30 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz | |
| SD-HDMI: | 480i 59.94, 60 Hz 576i 50 Hz 480p 59.94, 60 Hz 576p 50Hz | |
| HD-HDMI: | 720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50, 59.94, 60 Hz 1080psf 23.98, 24 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz | |
| Dimensions: | 1.29” x 17.75” x 10.5” / 3.28cm x 45cm x 26.7cm (D x L x W) | |
| Weight: | 7.9 lbs. (3.6 Kg) | |
