Marshall Electronics V-702W Dual 7" Rackmount Monitor with HDMI and 3G-SDI and Inputs
Marshall Electronics V-702W Dual 7" Rackmount Monitor with HDMI and 3G-SDI and Inputs
£1,500.00 GBP inc VAT
£1,500.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The Marshall V-702W dual 7" LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. The V-702W adds multiple analysis functions to a monitors with great images and pricing. Features like Waveform Monitor, Vectorscope, Audio Phase, HDR modes, S-Log conversions and user LUT's (with split-screen comparison) makes this monitor a versatile QC platform.
Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.
Split-Screen Comparison
Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.
Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.
- Full HD 7-inch diagonal bright displays x 2
- Great viewing angle, multiple analysis functions built-in
- Perfect for flypacks, control rooms, news vans
- Front panel controls give access to all functions
- Waveform, Vectorscope and more. Full screen or overlay
- Multiple HDR and Log functions plus user LUT's
- Three color tally lights (Red, Green, Yellow)

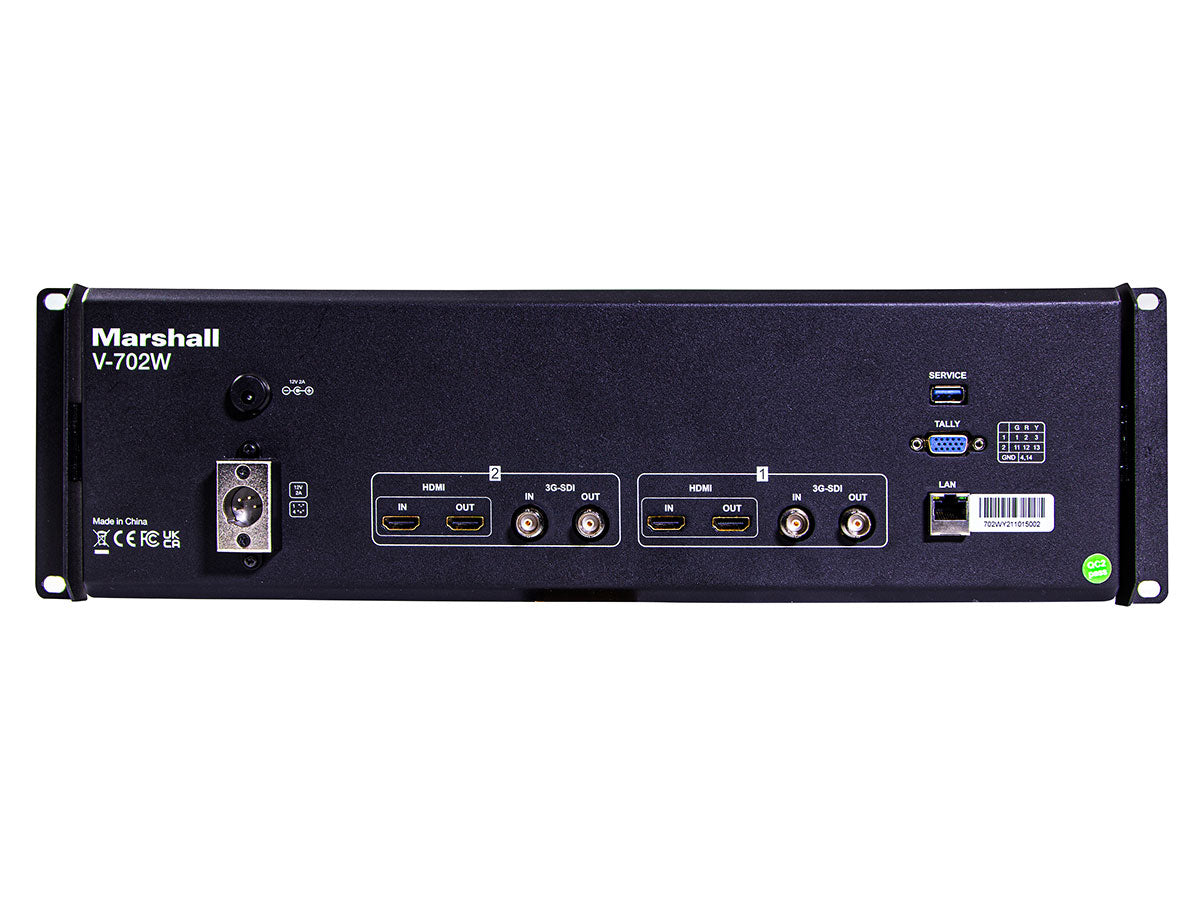

- Dual input types: 3G SDI, HDMI with loop-through connections
- Four user short-cut Function buttons
- Tilting mount. Adjust for optimum viewing or rear panel access
- Headphone jack to monitor embedded stereo audio
- Remote controlable via Ethernet
- Firmware update via USB port and thumbdrive
- Includes Tally Kit which converts 12-pin DSub connector to solderless terminal type
| Number of Panels: | 2 | |
| Panel Size: | Dual 7-inch | |
| Resolution (Pixels): | 1920 x 1080 | |
| Aspect Ratio: | 16:9 | |
| Viewing Angle: | 160° / 160° (H/V) | |
| Brightness (in cd/m2): | 450 | |
| Backlight Type: | LED | |
| Compatible Input Formats: | Video Formats via SDI Input: | 1080p 50/59.94/60 1080p 29.97/25/24/23.98 1080PsF 24/23.98 1080i/ 50/59.94/60 720p 50/59.94/60 576i 50, 480i 59.94 1080p 50/59.94/60 1080p 29.97/25/24/23.98 |
| Video Formats via HDMI Input: | 1080i 50/59.94/60 720p 50/59.94 576i 50, 480i 59.94 | |
| Audio Output: | Headphone jack, 3.5mm mini-phone | |
| Power Supply: | Included | |
| Weight: | 5.2 lbs, 2.32 Kg | |
| Size: | 19" W x 5.3" H x 1.2" D 482.6mm W x 134.62mm H x 30.48mm D | |
| Rack Ears: | Included - adjustable tilt | |
