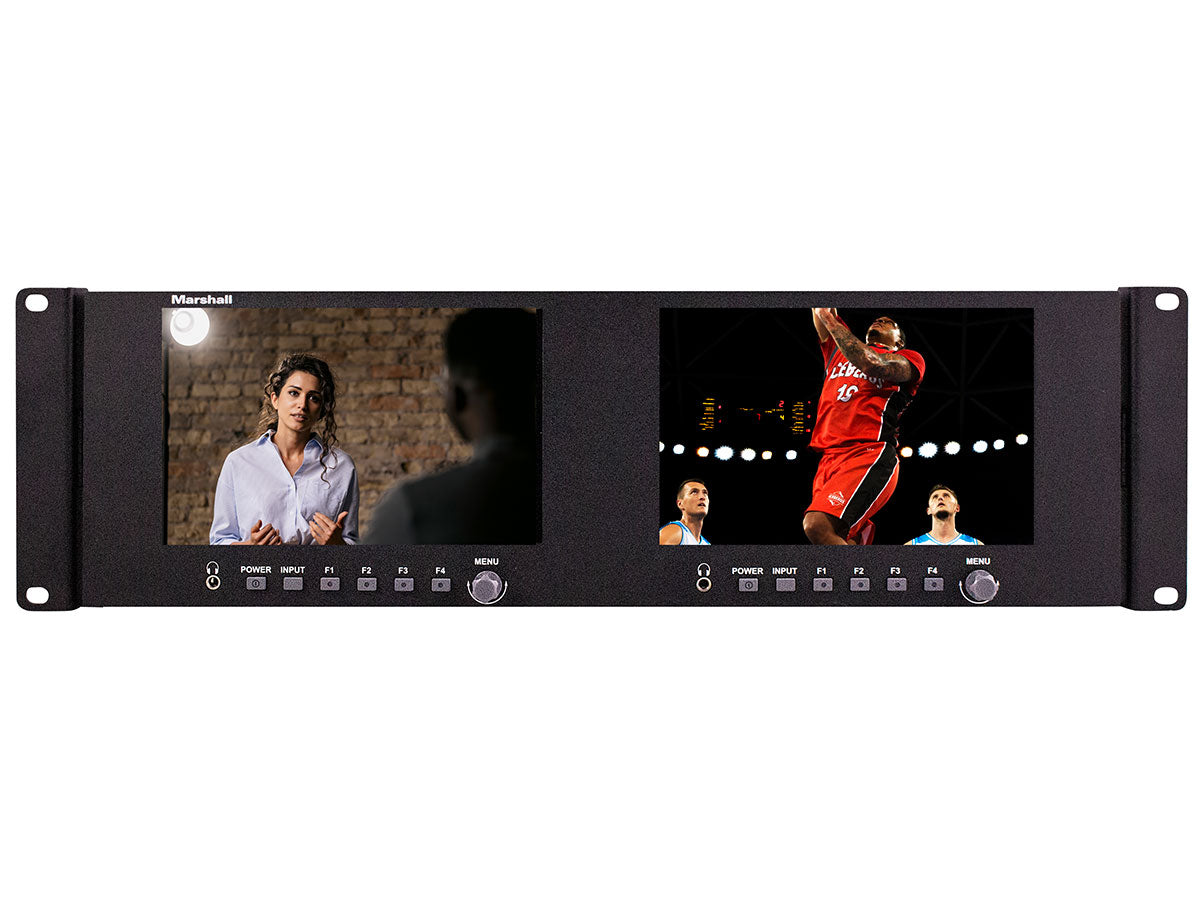

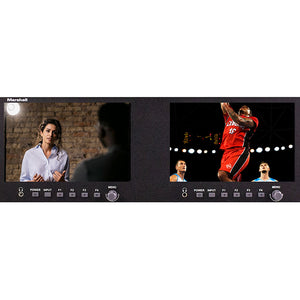

Marshall Electronics V-702W-12G Dual 7" Rackmount Monitor with 12G-SDI and HDMI Inputs
Marshall Electronics V-702W-12G Dual 7" Rackmount Monitor with 12G-SDI and HDMI Inputs
£2,370.00 GBP inc VAT
£2,370.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The Marshall V-702W-12G dual 7" LCD Display is a feature-packed, solution perfect for remote production trucks, fly-packs, control rooms, routing rooms and countless other video system applications. Based on the Marshall V-702W model, the 12G-SDI inputs provides low latency and eliminates the need for outboard down conversion.
Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.
Split-Screen Comparison
Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.
Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.
- 12G SDI input low latency, eliminates external downconverter
- Two 7-inch diagonal displays
- Front panel controls give access to all functions
- Remote controllable via Ethernet. PCSet Control App available
- Red, Green, Yellow on-screen tally. Control via GPI or Ethernet
- All inputs have looping outputs allowing for flexible system design
- Waveform, Vector, Histogram, HDR, S-LUT and User LUT's
- Timecode Display (VITC & LTC modes)
- Four user Function buttons
- Tilting mount. Adjust for optimum viewing or accessing back panel
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB drive
| Number of Panels: | 2 | |
| Screen: | 2" x 7" LCD | |
| Chassis: | 3 RU | |
| Aspect Ratio: | 16:10 | |
| Viewing Angle: | (H) +80/-80° ; (V) +80/-80° | |
| Brightness (in cd/m2): | 450 cd/m2 | |
| Contrast Ratio: | 1100:1 | |

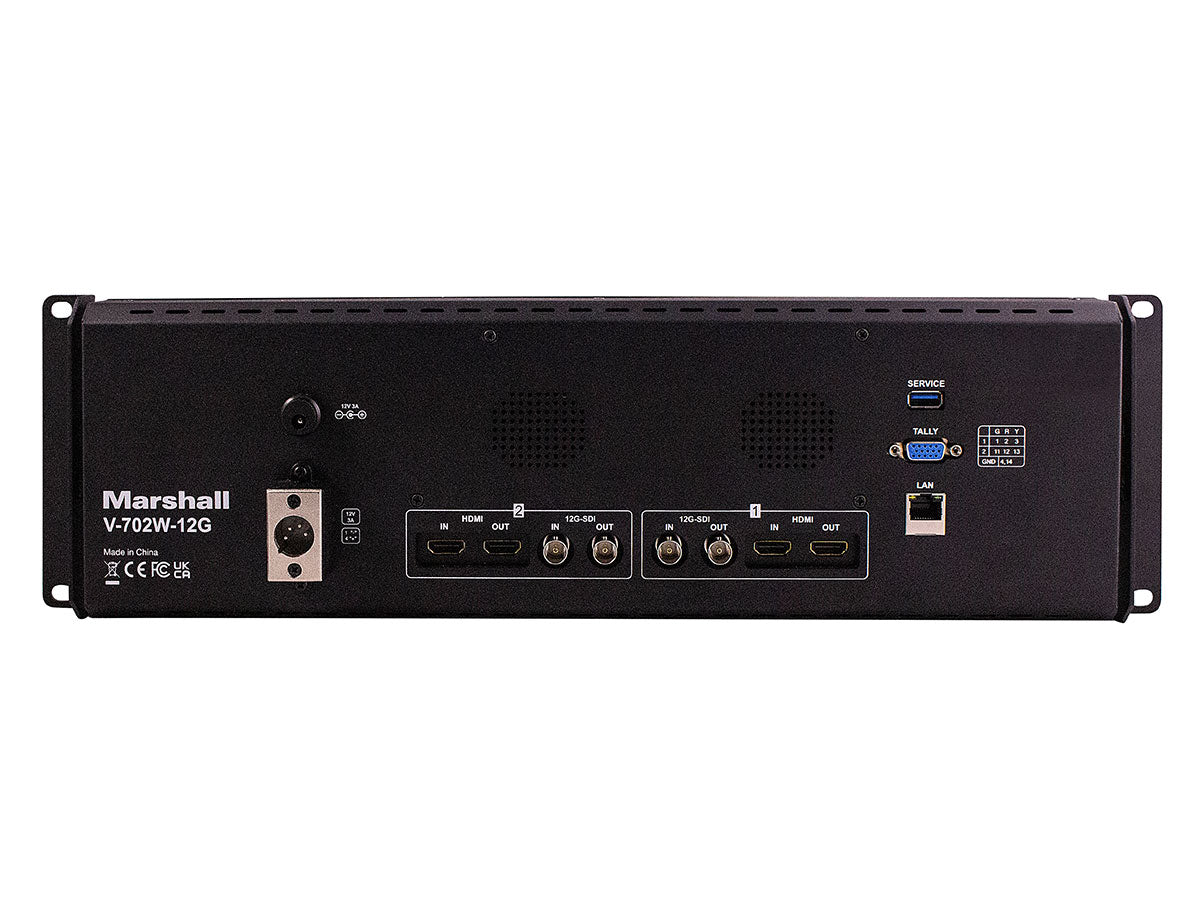

| Video Input: | 2 x 12G/3G/HD/SD-SDI 2 x HDMI | |
| Video Loopout: | 2 x 12G/3G/HD/SD-SDI 2 x HDMI | |
| Input Formats: | SDI: | SD: 480i 59.94 / 576i 50 HD: 720p 25/29/30/50/59.94/60 1080i 50/59.94/60 1080p 23.98/23.98sf/24/24sf/25/29.97/30 |
| 3G Level A: | 1080p50/59.94/60/23.98/23.98sf/24/24sf/25/25sf/29/29.97sf/30/30sf 1080i 50/59.94/60 | |
| 12G: | 3840/2160p 23.98/24/25/29.97/30/50/59.94/60 4096x2160p 23.98/24/25/29/30/50/59.94/60 | |
| HDMI: | 480i 59.94/480p 59.94/576i 50/576p 50 720p 25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 3840x2160p 23.98/24/25/29.97/30/50/59.94/60 4096x2160p 23.98/24/25/29.97/30/50/59.94/60 640x480 60 800x600 60 1024x768 60 1280x768 60 1360x768 60 1280x960 60 1280x1024 60 1400x1050 60 1600x1200 60 1920x1200 60 | |
| Audio In: | Embedded Audio from SDI and HDMI | |
| Audio Output: | SDI and HDMI embedded audio from 3.5mm headphone jack Embedded audio from SDI and HDMI loopout | |
| Control: | On-screen tally from 15-pin D-Sub port GUI control via Ethernet | |
| Power Supply: | DC 10.8~24V (Typical 12V), 21W (Typical) | |
| Storage Temperature: | -20°C ~ 60°C | |
| Operating Temperature: | 0°C ~ 50°C | |
| Dimensions: | 481.8mm x 133.5mm x 61.4mm (19”W x 5.26”H x 2.42”D) | |
| Weight: | 2.56kg (5.64 lbs) | |
